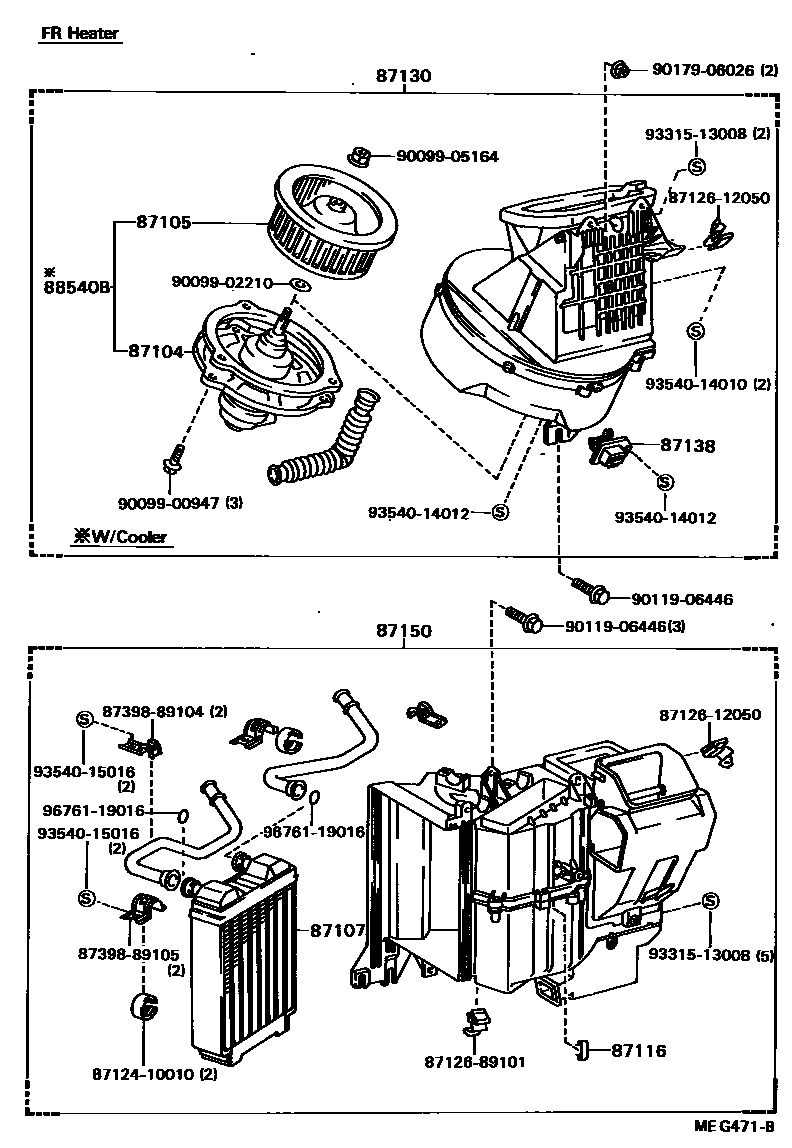

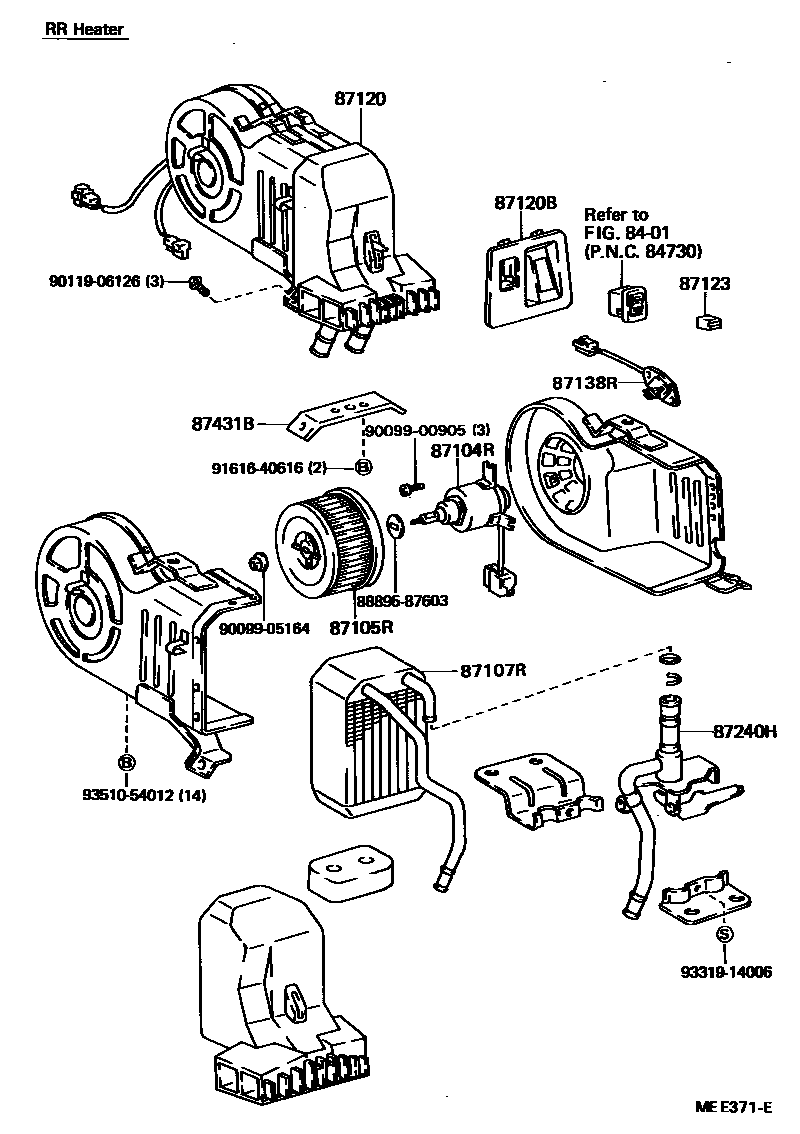

Toyota HILUX 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712
Toyota HILUX EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87104 | Heater blower motor sub-assembly | 87104-89110 · 87104-89111 |
| 87104R | Rear heater blower motor sub-assembly | 87104-87003 |
| 87105 | Heater blower fan sub-assembly | 87105-14030 · 87134-30020 |
| 87105R | Rear heater blower fan sub-assembly | 87105-87002 |
| 87107 | Heater radiator device sub-assembly | 87107-89110 · 87107-89111 · 87107-89112 |
| 87107R | Rear heater device sub-assembly | 87107-89113 · 87107-89115 |
| 87116 | Heater shell fastening spring | 87116-14010 |
| 87120 | Rear heater assembly | 87110-89136 · 87110-89138 |
| 87123 | heater button | 55905-89110 |
| 87130 | Front heater blower assembly | 87130-89105 · 87130-89107 · 87130-89111 · 87130-89112 |
| 87138 | Heater Blower Resistor | 87138-89104 · 88635-89103 · 88635-89105 · 88635-89109 |
| 87138R | Rear heater blower resistor | 88635-89104 · 88635-89106 |
| 87150 | Heater radiator assembly | 87150-89105 · 87150-89107 · 87150-89111 |
| 87240H | Water valve device assembly | 87240-89121 · 87240-89122 |
| 87431B | Rear heater bracket | 87431-89101 |
| 88540B | Motor assembly with fan | 88540-89102 |
