Toyota HILUX 后视镜 — Figure 8701

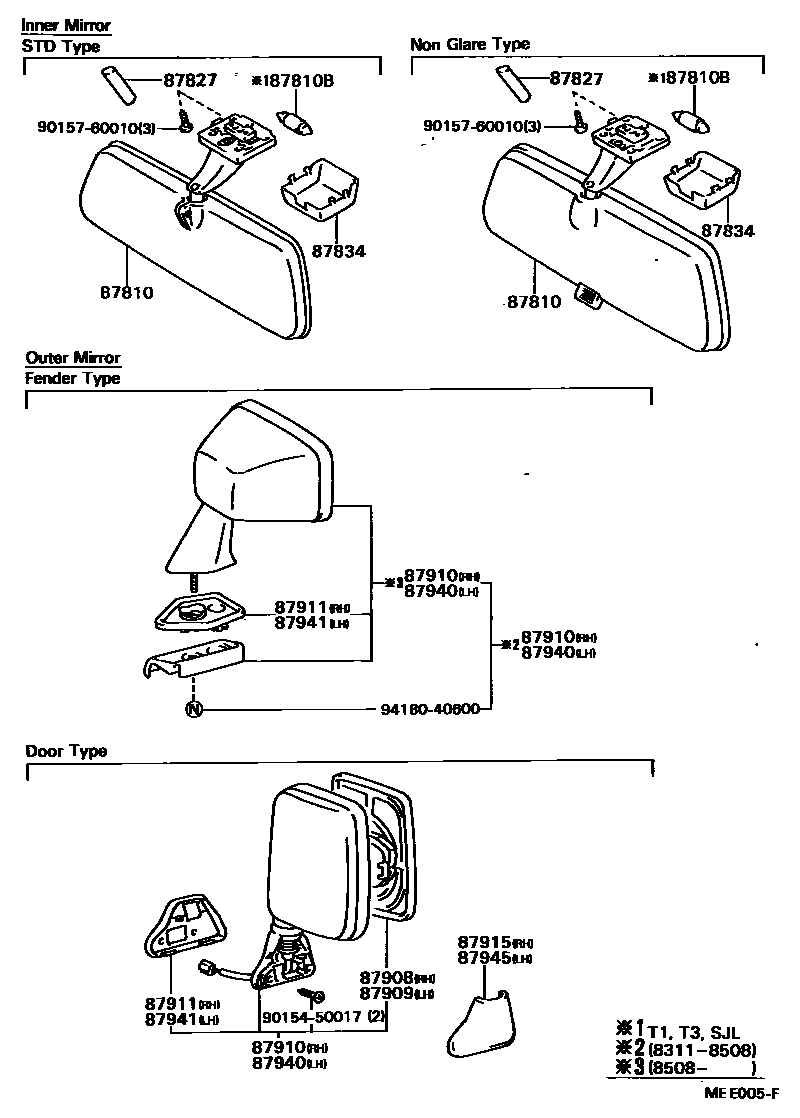

Toyota HILUX EPC diagram 8701, 后视镜, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810B | Interior rearview mirror light bulb | 99132-13050 |
| 87827 | Interior rearview mirror shock absorber | 87828-89101 |
| 87834 | Interior rearview mirror stay fixing cover | 87834-89102 |
| 87908 | Right exterior rearview mirror actuator assembly | 87908-89128 |
| 87909 | Left exterior rearview mirror actuator assembly | 87909-89131 |
| 87910 | Right exterior rearview mirror assembly | 87910-39345 · 87910-89125 · 87910-89128 |
| 87911 | Right exterior mirror pad | 87911-89105 · 87911-89108 |
| 87915 | Right exterior rearview mirror cover | 87915-89101 |
| 87940 | Left exterior rearview mirror assembly | 87940-39295 · 87940-80112 · 87940-89128 · 87940-89131 |
| 87941 | Left exterior mirror pad | 87941-89103 · 87941-89107 |
| 87945 | Left exterior rearview mirror cap | 87945-89103 |
