Toyota HILUX antenna — Figure 8604

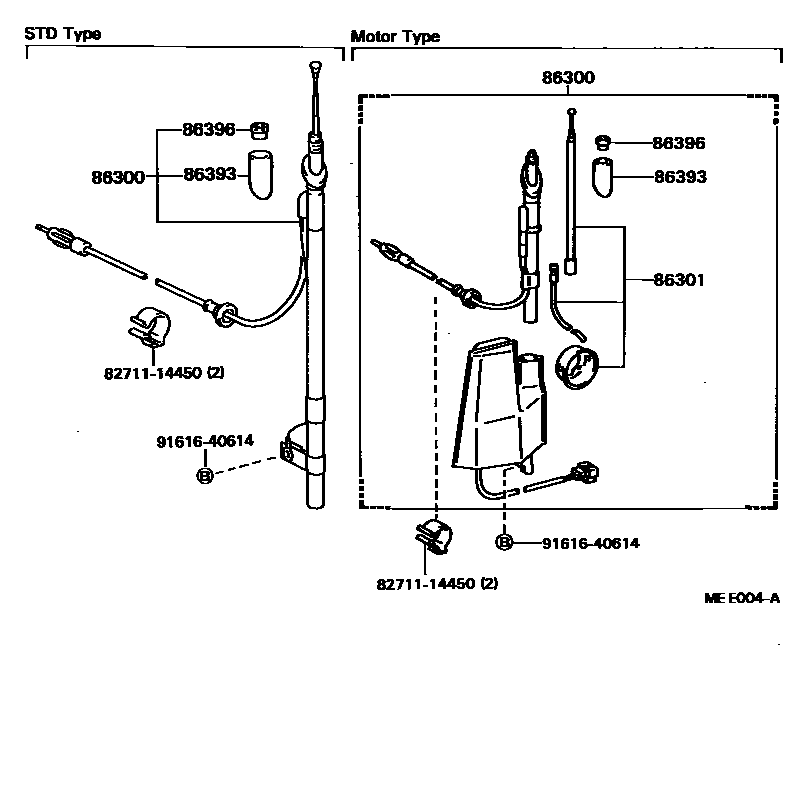

Toyota HILUX EPC diagram 8604, antenna, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86300 | Antenna assembly with fixing parts | 86300-89114 · 86300-89119 · 86300-89127 |
| 86301 | Antenna sub-assembly | 86353-89119 |
| 86393 | Antenna decorative parts | 86392-89101 · 86392-89103 |
| 86396 | Antenna nut | 86396-16020 · 86396-89101 |
