Toyota HILUX 收音机、放大器和冷凝器 — Figure 8601

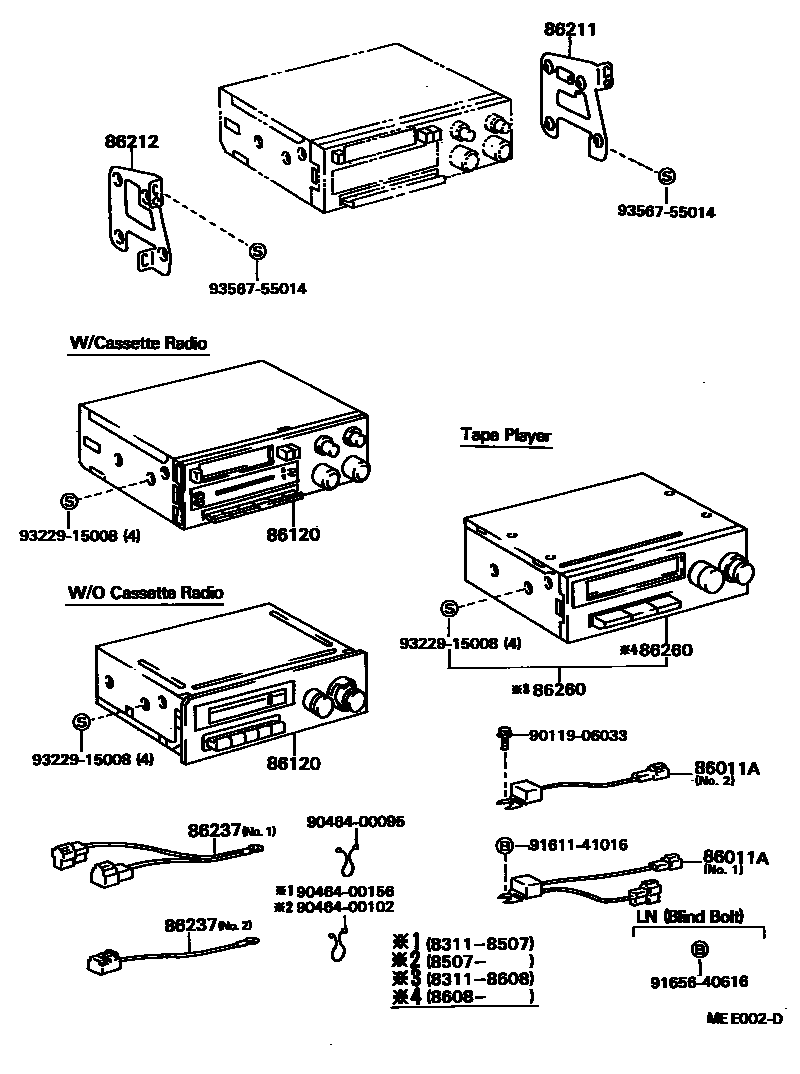

Toyota HILUX EPC diagram 8601, 收音机、放大器和冷凝器, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011A | radio settings phase modulator | 90980-04036 · 90980-04040 · 90980-04072 |
| 86120 | Radio assembly | 86120-16530 · 86120-17010 · 86120-17020 · 86120-17030 · 86120-89121 · 86120-89124 · 86120-89125 · 86120-89131 |
| 86211 | No. 1 radio bracket | 86211-89109 |
| 86212 | No. 2 radio bracket | 86212-89104 |
| 86237 | capacitor harness | 86237-89106 · 86237-89107 |
| 86260 | Tape player assembly | 86260-17010 · 86260-19055 |
