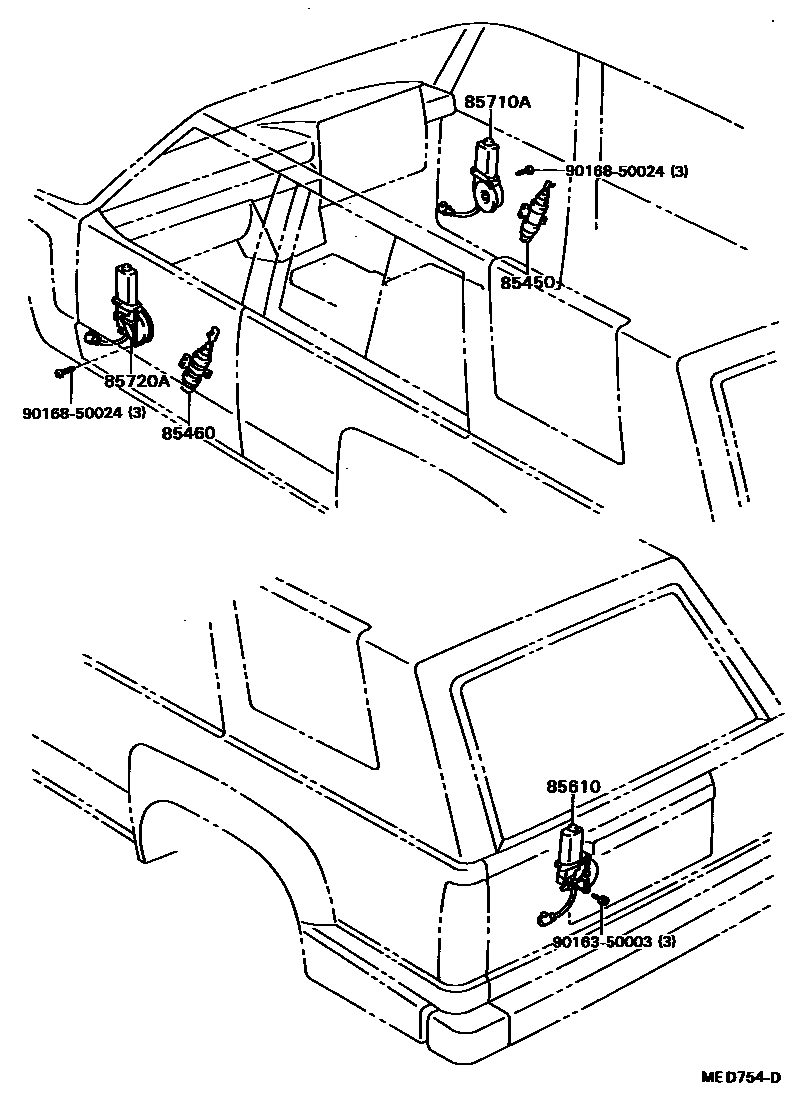

Toyota HILUX 车门电机和车门电磁阀 — Figure 8511
Toyota HILUX EPC diagram 8511, 车门电机和车门电磁阀, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85450 | Right front door control solenoid valve assembly | 85450-17010 |
| 85460 | Left front door control solenoid valve assembly | 85450-17020 |
| 85610 | Back door lifter motor assembly | 85710-89102 |
| 85710A | Right front electric window lift motor assembly | 85710-89101 |
| 85720A | Left front electric window lift motor assembly | 85720-89101 |
