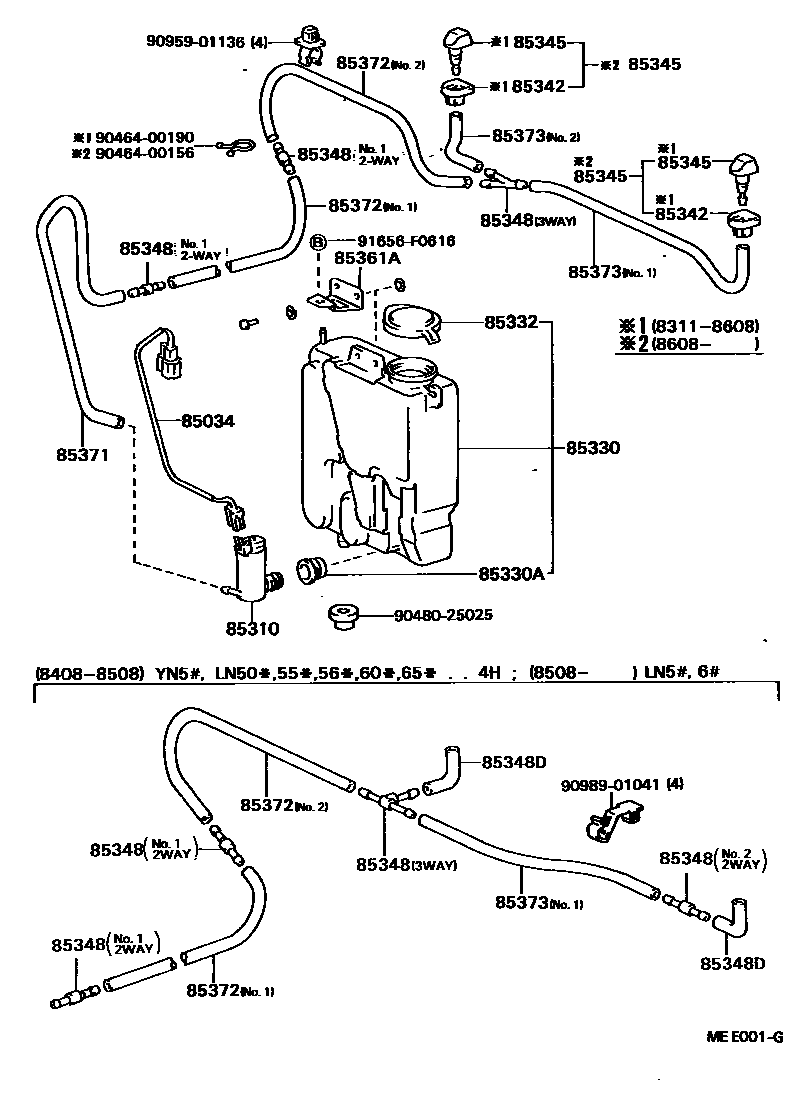

Toyota HILUX 挡风玻璃清洗器 — Figure 8503
Toyota HILUX EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85034 | Cleaner wiring harness | 85034-89101 |
| 85310 | Windshield washer motor and pump assembly | 85310-22080 |
| 85330 | Windshield washer fluid tank assembly | 85331-89121 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85332-12320 |
| 85342 | Washer nozzle retainer | 85342-14010 |
| 85345 | windshield washer nozzle | 85035-89105 · 85035-89110 |
| 85348 | Windshield washer hose connector No. 1 | 85348-12250 · 85348-89118 · 85349-89118 · 85349-89122 |
| 85348D | No. 1 windshield washer elbow joint | 85355-14481 |
| 85361A | Windshield washer bracket No. 1 | 85361-89121 |
