Toyota HILUX 挡风玻璃刮水器 — Figure 8501

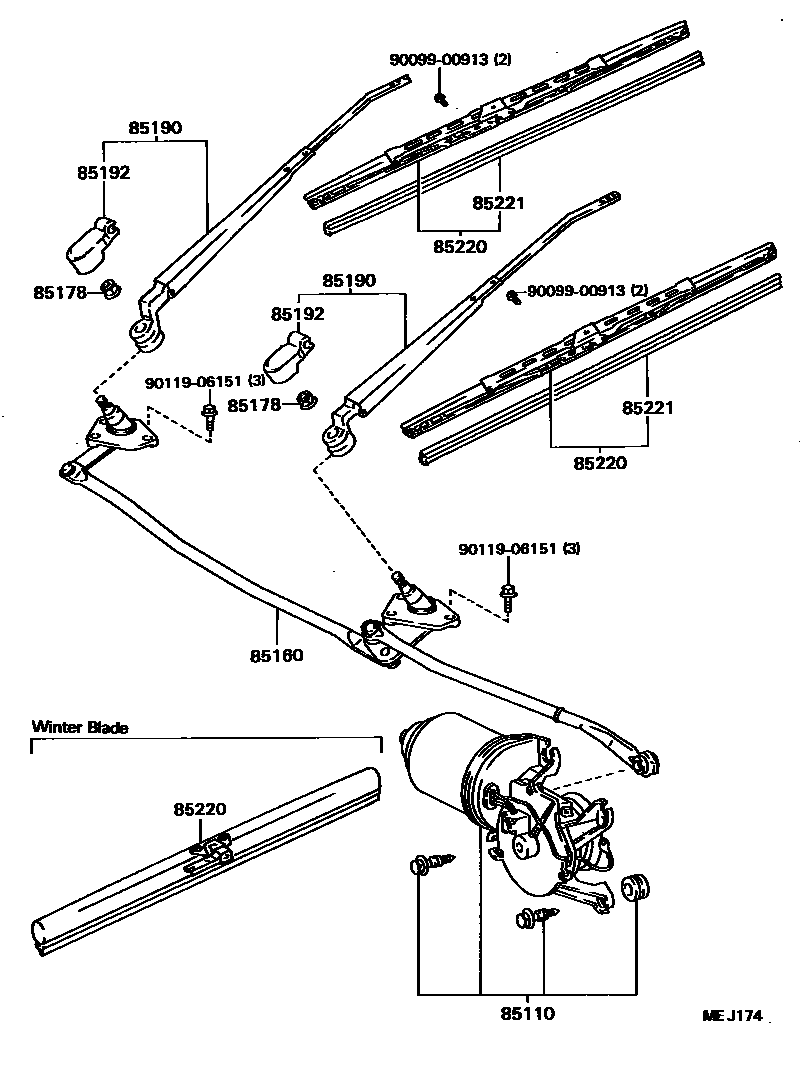

Toyota HILUX EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-89131 |
| 85160 | Windshield wiper connecting rod assembly | 85160-89120 |
| 85178 | Nut (for securing front wiper arm) | 90179-08075 |
| 85190 | Windshield wiper arm assembly | 85190-89130 · 85210-89101 |
| 85192 | windshield wiper arm cover | 85192-89101 · 85192-89130 |
| 85220 | Windshield wiper blade assembly | 85220-22470 · 85220-90K00 |
| 85221 | Windshield wiper blade | 85221-10070 · 85221-22090 · 85221-89103 |
