Toyota HILUX 开关和继电器和ECU — Figure 8401

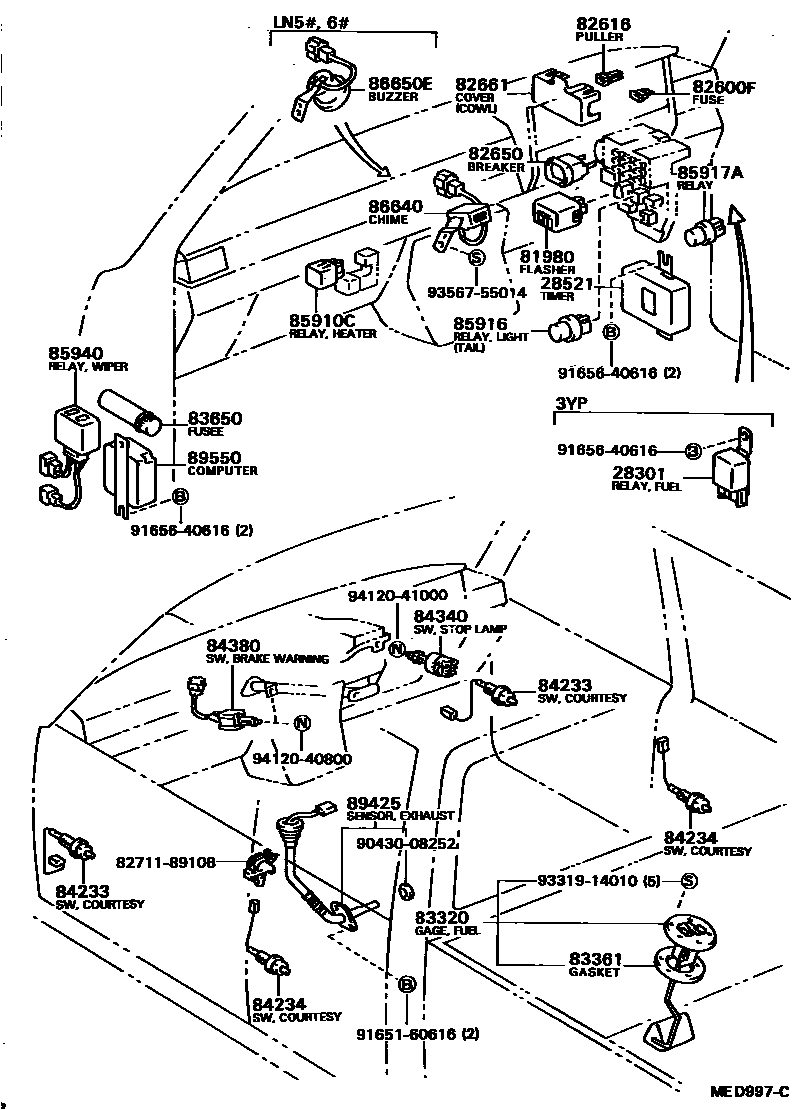

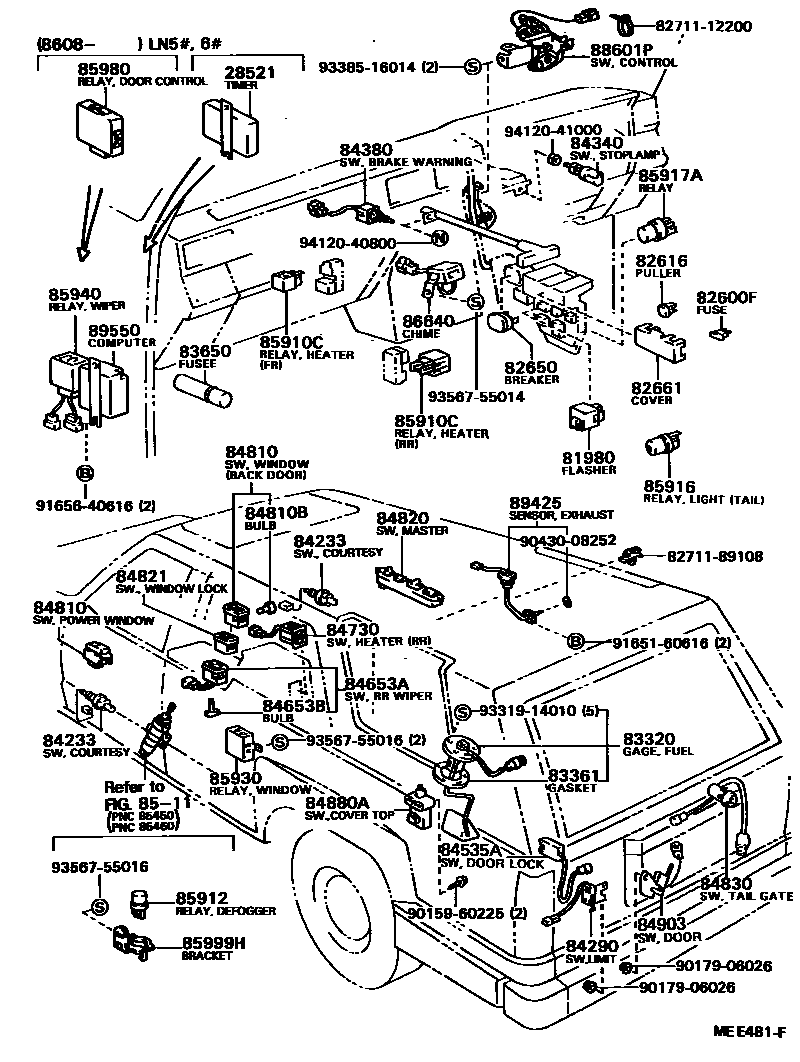

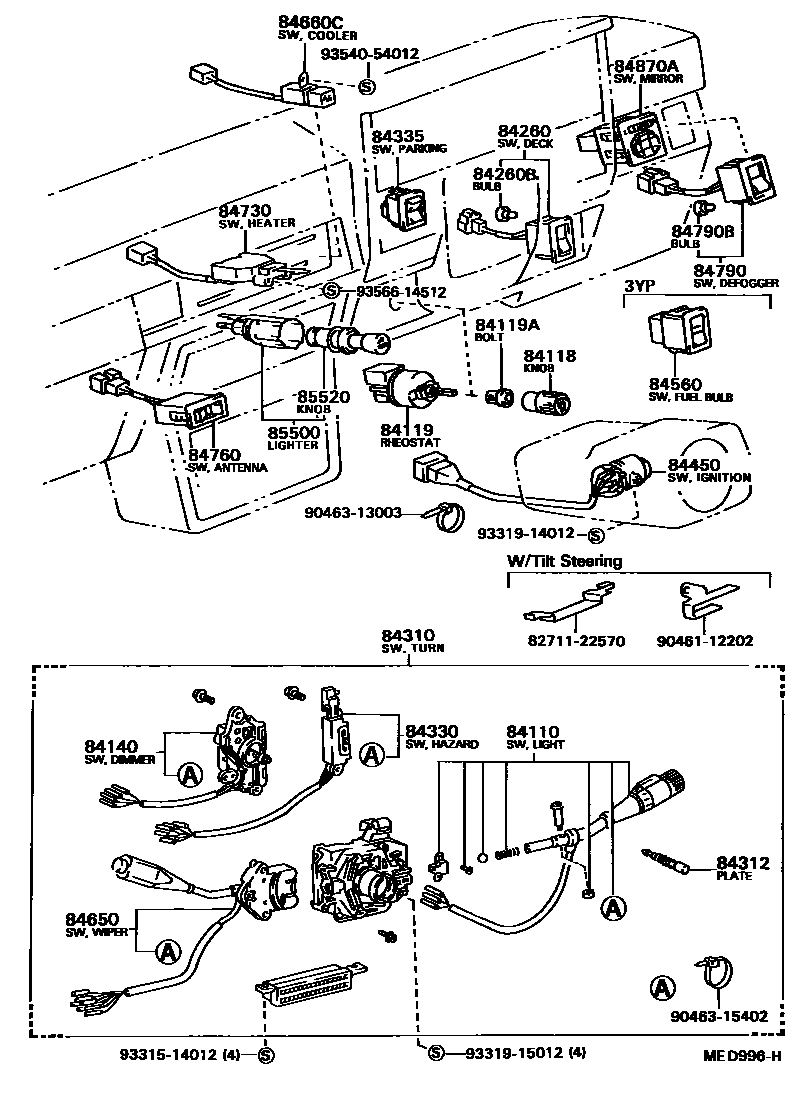

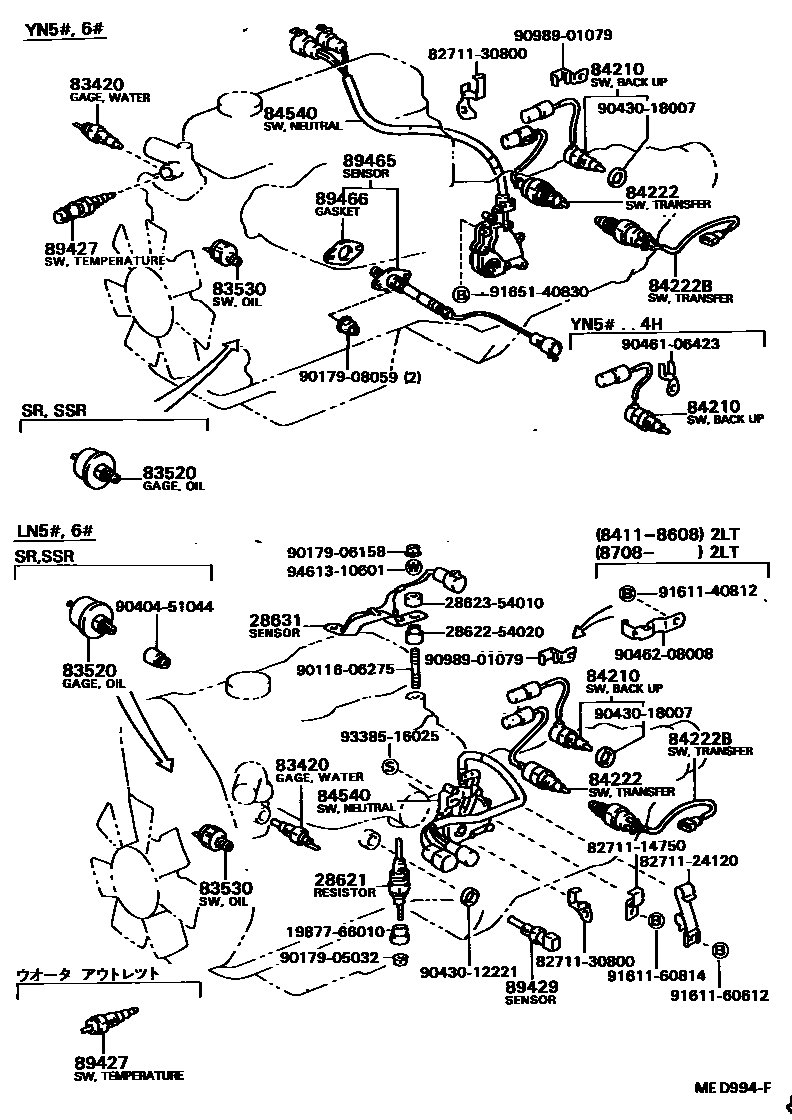

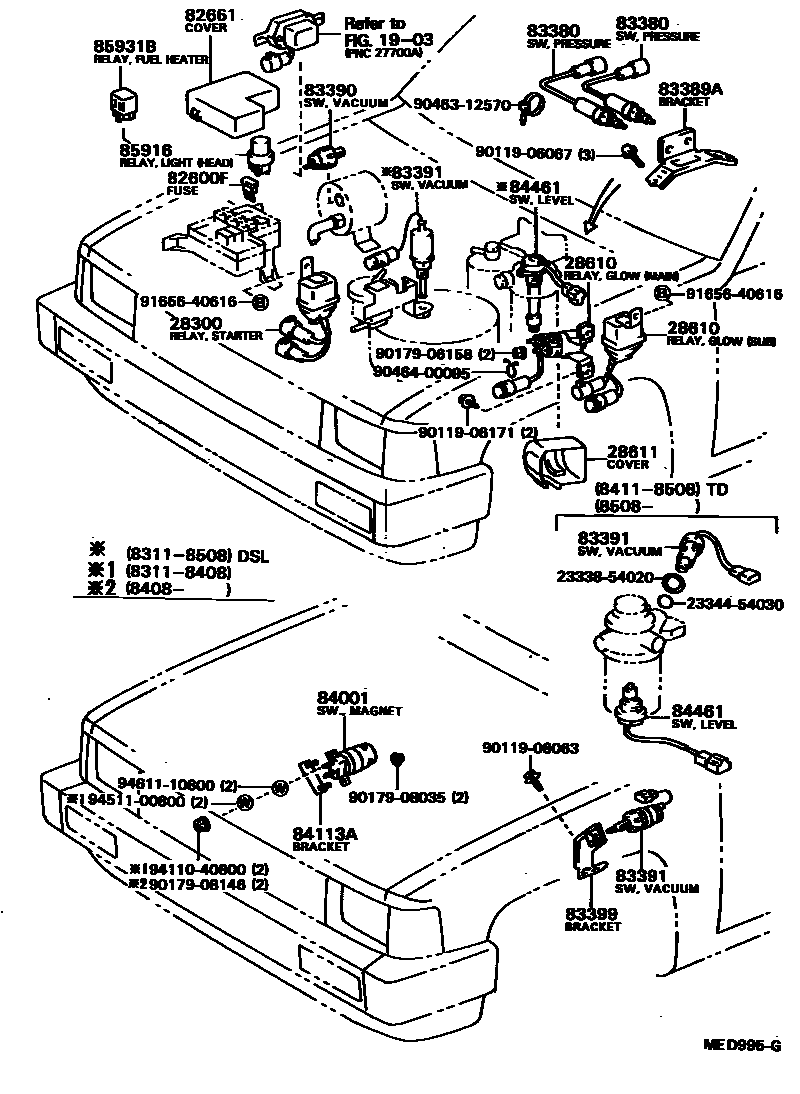

Toyota HILUX EPC diagram 8401, 开关和继电器和ECU, with 5 images and 85 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-54070 |
| 28301 | Fuel pump relay assembly | 28380-73020 |
| 28521 | Preheat timer | 28521-54170 · 28521-54171 · 28521-54180 · 28521-54181 |
| 28610 | Glow plug relay assembly | 28610-35010 · 28610-54080 · 28610-54090 · 28610-54250 · 28610-64050 |
| 28611 | Glow plug relay cover | 28611-54011 · 28611-55010 |
| 28621 | glow plug resistor | 28621-54031 · 28621-54060 · 28621-54070 |
| 28631 | glow plug current sensor | 28631-54031 |
| 81980 | Turn signal flasher relay assembly | 81980-16010 · 81980-22070 |
| 82600F | Spare fuse | 90982-09002 · 90982-09003 · 90982-09004 · 90982-09005 |
| 82616 | fuse puller | 82616-12010 |
| 82650 | No. 1 circuit breaker assembly | 82650-35010 |
| 82661 | No. 1 relay box cover | 82661-89101 · 82661-89102 · 82661-89107 · 82661-89109 · 82661-89110 · 82661-89114 · 82661-89117 |
| 83320 | Fuel gauge sensor assembly | 83320-39405 · 83320-39415 · 83320-39445 · 83320-39485 · 83320-39675 · 83320-39685 |
| 83361 | fuel gauge sensor gasket | 83361-20030 |
| 83380 | Pressure switch assembly | 83381-30010 · 83381-30030 |
| 83389A | Pressure switch bracket | 83389-35010 |
| 83390 | Vacuum warning switch assembly | 83390-30020 |
| 83391 | Vacuum switch | 83391-22060 · 83391-27020 · 83391-32030 · 83391-35030 · 83391-36010 |
| 83399 | Vacuum switch bracket | 83399-22011 |
| 83420 | Water temperature sensor assembly | 83420-20020 |
| 83520 | Oil pressure gauge sensor assembly | 83520-14022 · 83520-14023 · 83520-55011 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-10020 · 83530-14030 · 83530-30060 · 83530-36011 |
| 83650 | fuse | 90986-01003 |
| 84001 | Electromagnetic switch assembly | 38630-35010 |
| 84110 | No. 1 light control switch assembly | 84112-29305 · 84112-29315 · 84112-39395 · 84112-39405 |
| 84113A | No.1 switch bracket | 38631-35010 |
| 84118 | Light control rheostat button | 84118-12030 |
| 84119 | Light control rheostat | 84119-89103 |
| 84119A | Rheostat control retaining bolt or nut | 90984-01007 |
| 84140 | Headlight dimmer switch assembly | 84140-29095 · 84140-29155 · 84140-35050 · 84140-35060 |
| 84210 | Reversing light switch assembly | 84210-26020 · 84210-60021 |
| 84222 | No. 1 transfer case indicator switch | 84222-35020 |
| 84222B | No. 2 transfer case indicator switch | 84222-35030 |
| 84233 | Door control light switch assembly (for front door) | 84230-12120 · 84231-20080 |
| 84234 | Door control light switch assembly (for rear door) | 84231-20080 |
| 84260 | Base panel light switch assembly | 84260-89102 |
| 84260B | Bulb (for base panel light switch) | 84999-10110 |
| 84290 | Limit switch assembly | 84290-89101 |
| 84310 | Turn signal switch assembly | 84310-28080 · 84310-28090 · 84310-35200 · 84310-35210 |
| 84312 | Speaker contact piece | 84312-20011 |
| 84330 | Hazard warning signal switch assembly | 84332-28040 · 84332-29135 · 84332-29145 |
| 84335 | Parking light switch assembly | 84330-14110 |
| 84340 | brake light switch assembly | 84340-30030 · 84340-32010 |
| 84380 | Brake warning test switch assembly | 84380-35010 |
| 84450 | Ignition or starter switch assembly | 84450-27040 |
| 84461 | Liquid level warning switch | 84461-14030 · 84461-30040 · 84461-35030 |
| 84535A | door lock switch | 84535-89101 · 84535-89102 |
| 84540 | Neutral start switch assembly | 84540-35020 · 84540-35030 |
| 84560 | Fuel valve control switch assembly | 84560-35010 |
| 84650 | Windshield wiper switch assembly | 84652-29615 · 84652-29625 · 84652-35100 · 84652-35110 |
| 84653A | Rear wiper switch | 84653-89101 · 84653-89102 |
| 84653B | Rear wiper switch light bulb | 84999-10120 |
| 84660C | Cooler switch | 84660-89101 |
| 84730 | Heater blower switch assembly | 84732-89108 · 84732-89109 · 84732-89110 · 84732-89111 · 84732-89112 |
| 84760 | Antenna switch assembly | 84760-89101 |
| 84790 | Rear window defogger switch assembly | 84790-32040 |
| 84790B | Bulb (for rear window defogger switch) | 84999-10110 |
| 84810 | Electric window lift switch assembly | 84810-32050 · 84810-89102 · 84810-89103 |
| 84810B | Bulb (for power window lift switch) | 84999-10170 |
| 84820 | Electric window lift main switch assembly | 84820-89104 |
| 84821 | Power window lock switch | 84821-89101 |
| 84830 | Back door control switch assembly | 84830-89101 |
| 84870A | Exterior rearview mirror switch assembly | 84870-22040 |
| 84880A | Top cover switch assembly | 84880-89101 |
| 84903 | Door unlock switch sub-assembly | 84903-89101 |
| 85500 | Cigarette lighter assembly | 85500-16060 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-14030 |
| 85910C | Relay assembly (for heater blower motor) | 90987-04002 |
| 85912 | defogger relay | 90987-02004 |
| 85916 | Light control relay | 90987-01003 · 90987-02006 · 90987-04002 |
| 85917A | Four wheel drive indicator light relay | 90987-03001 |
| 85930 | Electric window relay assembly | 85930-89101 |
| 85931B | Fuel heater relay | 85931-35010 |
| 85940 | Windshield wiper relay assembly | 85940-89103 |
| 85980 | Door control relay assembly | 85980-89103 |
| 85999H | Relay bracket | 85999-12050 |
| 86640 | Warning bell assembly | 86640-89101 |
| 86650E | Buzzer assembly | 86650-89101 |
| 88601P | Control switch sub-assembly | 88601-89102 |
| 89425 | Exhaust gas temperature sensor | 89425-39185 · 89425-39195 · 89425-39205 · 89425-39215 |
| 89427 | Temperature detection switch | 83430-96440 · 89428-28030 |
| 89429 | oil temperature sensor | 89422-30020 |
| 89465 | oxygen sensor | 89465-19065 |
| 89466 | Oxygen sensor pad | 89466-20020 · 89466-30010 |
| 89550 | Emission control ECU assembly | 89550-35270 · 89550-35340 · 89550-35350 |
