Toyota HILUX indicator light — Figure 8302

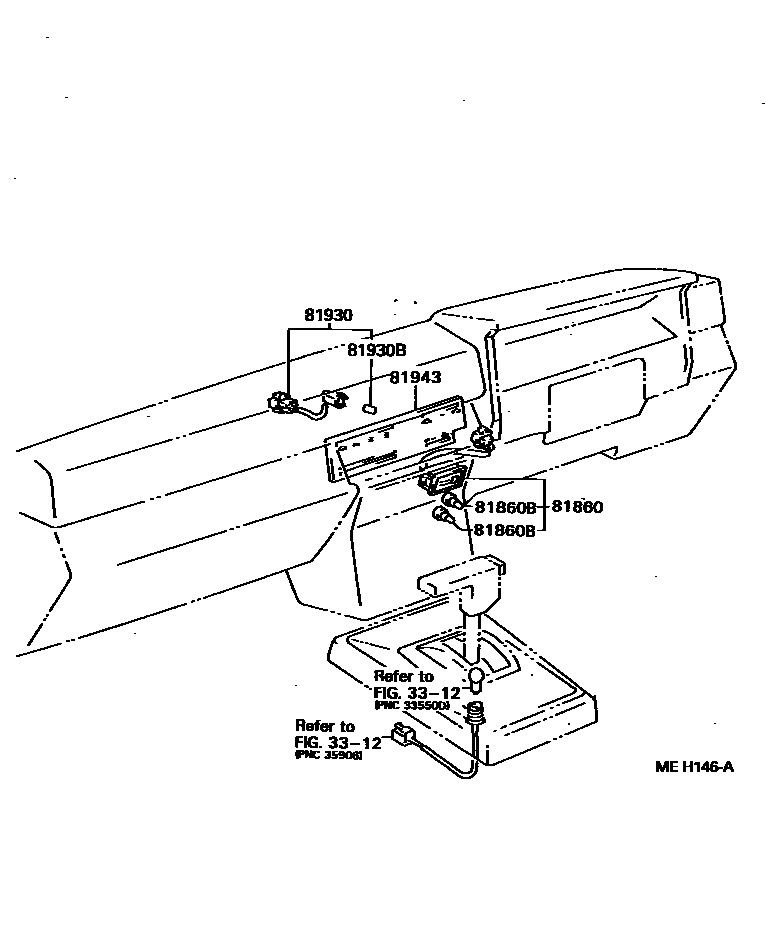

Toyota HILUX EPC diagram 8302, indicator light, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81860 | Transmission indicator light assembly | 81860-35010 · 81860-35030 · 81860-35040 |
| 81860B | Transmission indicator light bulb | 84999-10110 |
| 81930 | No. 1 heater control indicator light assembly | 81930-89115 |
| 81930B | Heater control indicator light bulb | 90981-11014 |
| 81943 | Heater control indicator light cover | 55519-89115 · 55519-89119 · 55519-89128 · 55519-89129 · 55519-89140 · 55519-89141 |
