Toyota HILUX 线束和卡夹 — Figure 8202

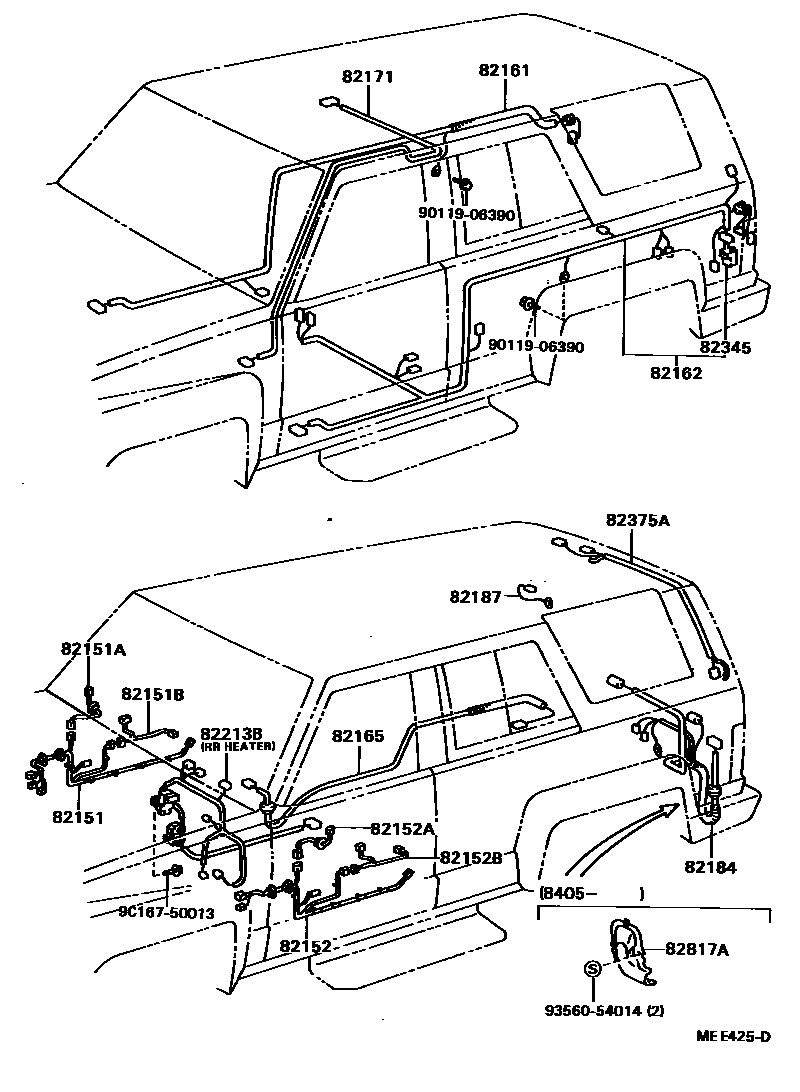

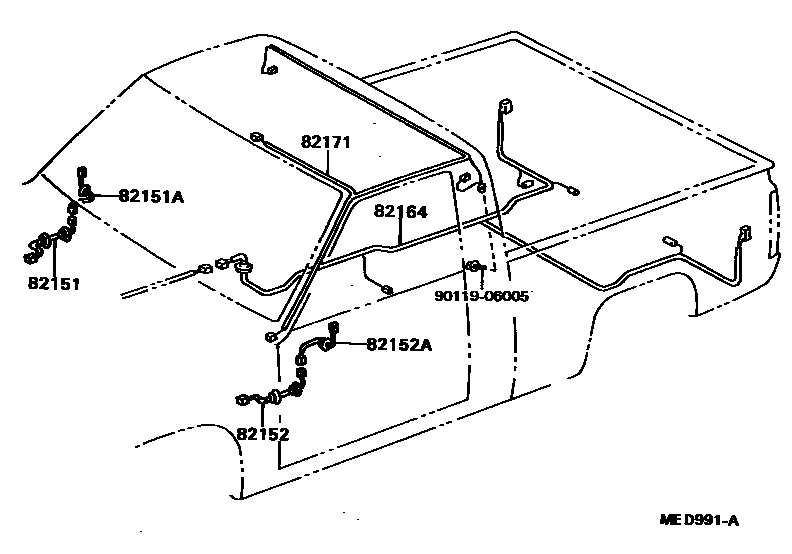

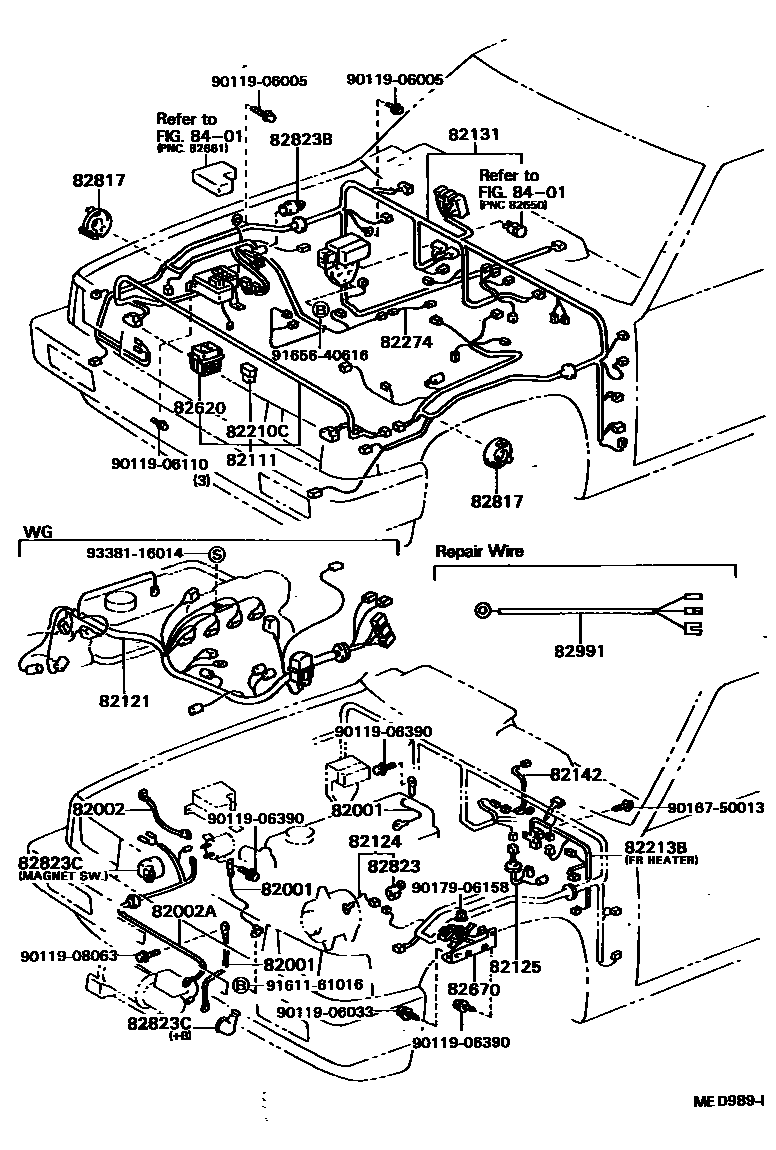

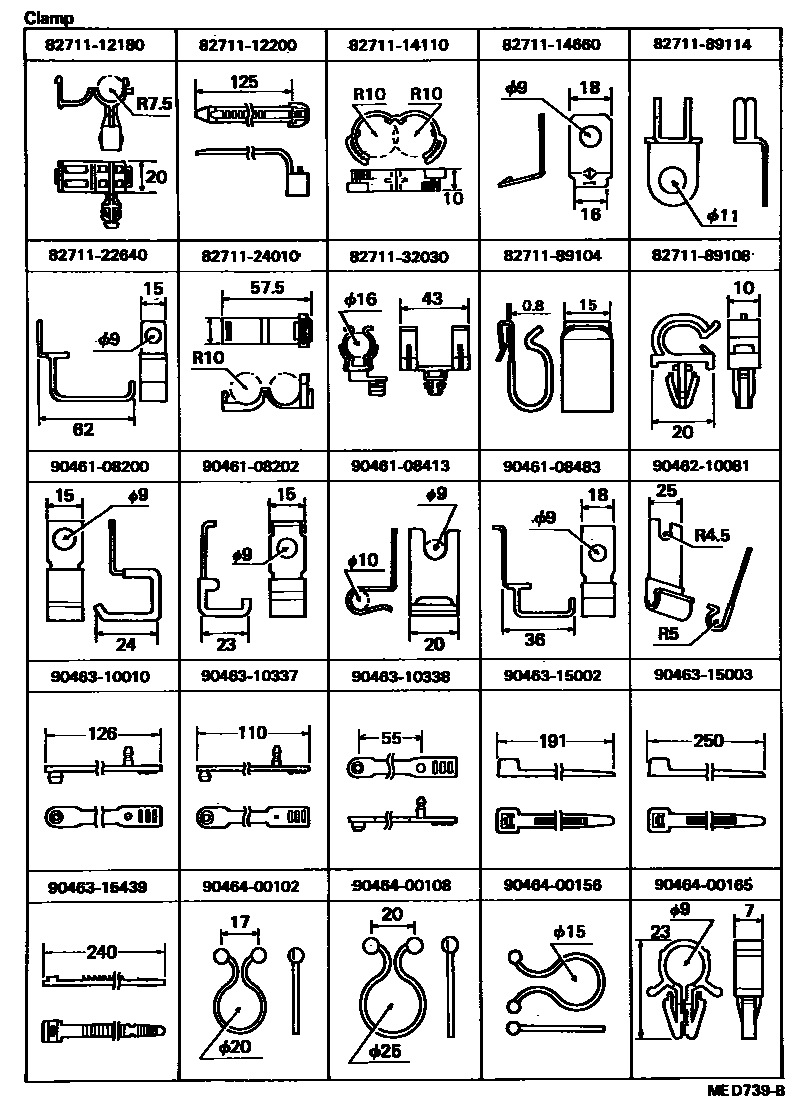

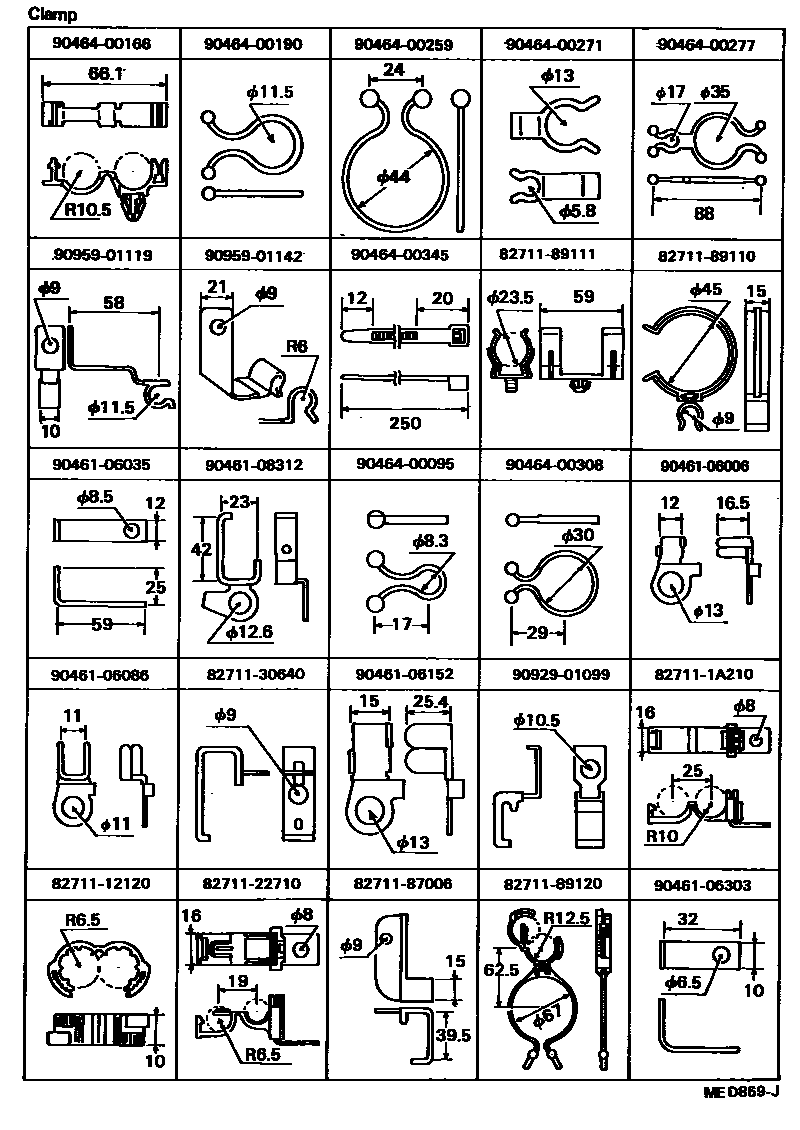

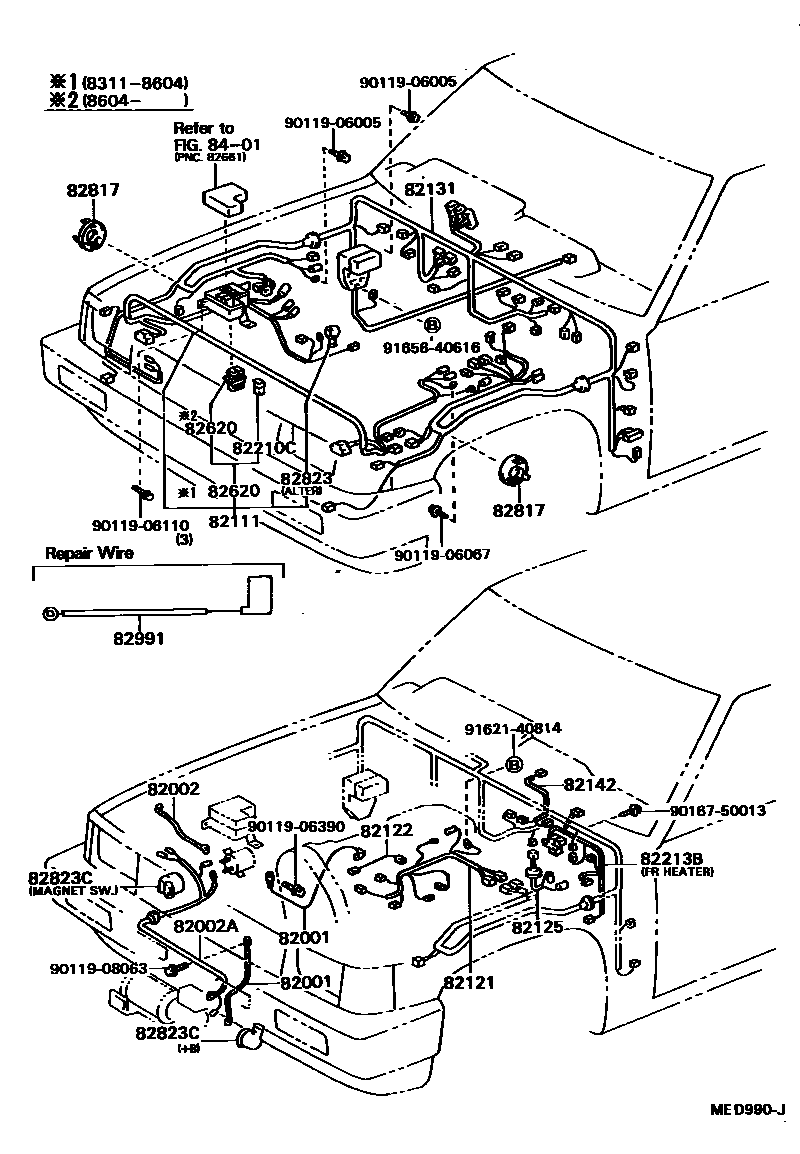

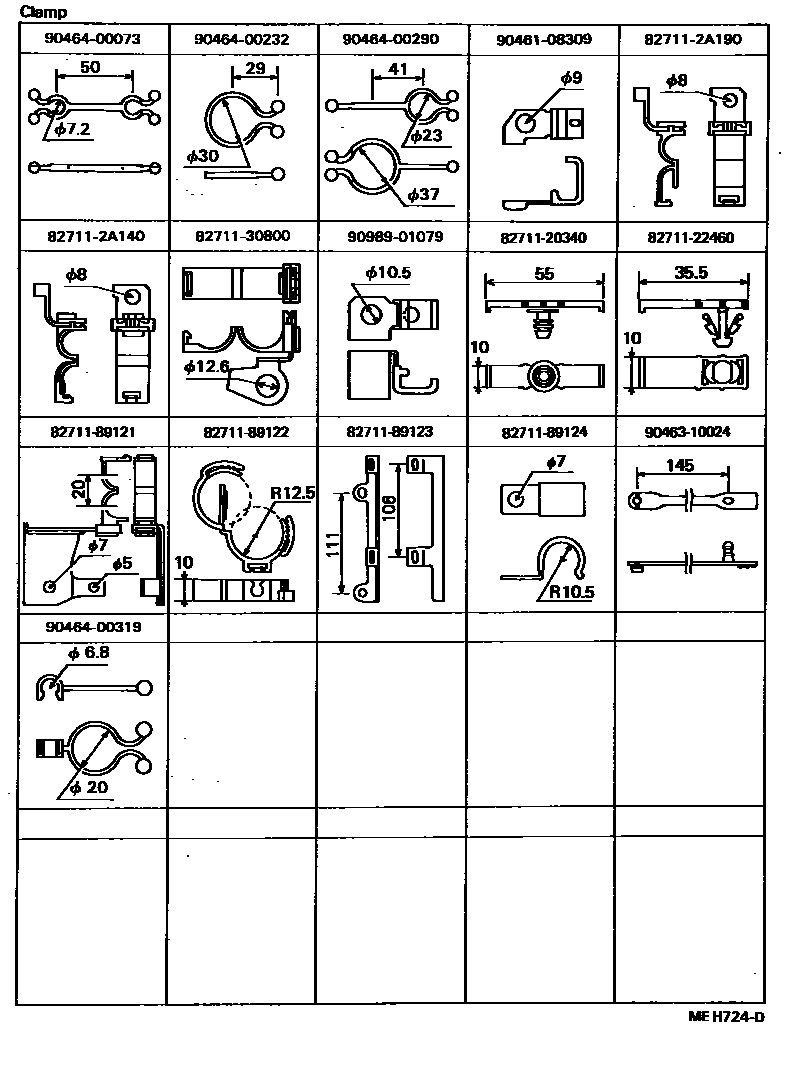

Toyota HILUX EPC diagram 8202, 线束和卡夹, with 7 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82001 | Connection cable No. 1 | 90980-07224 · 90980-07225 · 90980-07229 |
| 82002 | Cable (battery to electromagnetic switch) | 38655-89101 · 38655-89102 |
| 82002A | Cable (magnetic switch to winch) | 38656-89102 · 38656-89104 · 38656-89105 · 38656-89106 |
| 82111 | Engine room main wiring harness | 82111-89104 · 82111-89108 · 82111-89109 · 82111-89117 · 82111-89119 · 82111-89127 · 82111-89129 · 82111-89131 · 82111-89132 |
| 82121 | Engine wiring harness | 82121-89115 · 82121-89116 · 82121-89117 · 82121-89130 · 82121-89138 · 82121-89152 · 82121-89153 · 82121-89167 · 82121-89169 · 82121-89170 |
| 82122 | Engine No. 2 wiring harness | 82122-89103 · 82122-89104 |
| 82124 | Engine No. 4 wiring harness | 82124-89103 · 82124-89112 |
| 82125 | Transmission wiring harness | 82125-89104 · 82125-89111 · 82125-89116 · 82125-89117 |
| 82131 | Front panel wiring harness | 82131-89241 · 82131-89242 · 82131-89266 · 82131-89267 · 82131-89286 · 82131-89339 · 82131-89340 · 82131-89418 · 82131-89419 · 82131-89420 · 82131-89422 · 82131-89423 · 82131-89470 · 82131-89490 · 82131-89492 · 82131-89494 · 82131-89503 · 82131-89504 · 82131-89518 · 82131-89520 · 82131-89523 · 82131-89524 · 82131-89747 · 82131-89748 · 82131-89749 · 82131-89753 · 82131-89754 |
| 82142 | Instrument panel wiring harness No. 2 | 82142-89101 |
| 82151 | Right front door wiring harness | 82151-89105 · 82152-89109 |
| 82151A | Right front door wiring harness No. 2 | 82151-89112 |
| 82151B | Right front door wiring harness No. 3 | 82152-89106 |
| 82152 | Left front door wiring harness | 82151-89105 · 82151-89114 |
| 82152A | Left front door wiring harness No. 2 | 82151-89112 |
| 82152B | Left front door wiring harness No. 3 | 82151-89109 |
| 82161 | floor wiring harness | 82161-89101 · 82161-89105 · 82161-89107 |
| 82162 | Floor wiring harness No. 2 | 82162-89101 · 82162-89102 · 82162-89103 · 82162-89104 · 82162-89109 · 82162-89110 · 82162-89113 · 82162-89114 |
| 82164 | Frame wiring harness set | 82164-89118 · 82164-89119 · 82164-89123 · 82164-89144 · 82164-89145 · 82164-89146 |
| 82165 | No. 2 frame wiring harness | 82165-89102 · 82165-89108 · 82165-89110 |
| 82171 | Roof No. 1 wiring harness | 82171-89105 · 82171-89109 · 82171-89110 · 82171-89111 |
| 82184 | Rear door No. 1 wiring harness | 82184-89101 · 82184-89102 · 82184-89103 |
| 82187 | Rear window wiring harness No. 2 | 82187-89102 |
| 82210C | fuse | 90982-08188 · 90982-08189 · 90982-08190 · 90982-08202 · 90982-08203 · 90982-08253 |
| 82213B | heating wire | 82213-89101 · 82213-89103 · 82213-89105 |
| 82274 | Wiring harness (to magnetic starter) | 82274-89101 |
| 82345 | diode | 82345-22010 |
| 82375A | Wiper motor wiring harness | 82375-89101 |
| 82620 | Fuse box assembly | 82620-30020 · 82620-89101 |
| 82670 | No. 1 junction box assembly | 82670-89103 |
| 82817 | No. 1 wire harness protection device | 82817-16020 |
| 82817A | No. 2 wire harness protection device | 82817-89110 |
| 82823 | No. 1 terminal cover | 82823-12020 · 82823-17010 · 82823-22020 |
| 82823B | Terminal cover No. 3 | 82823-22040 |
| 82823C | No. 4 terminal cover | 82823-89103 · 82823-89104 |
| 82991 | Fuse repair line | 82991-89101 · 82991-89102 · 82991-89103 |
