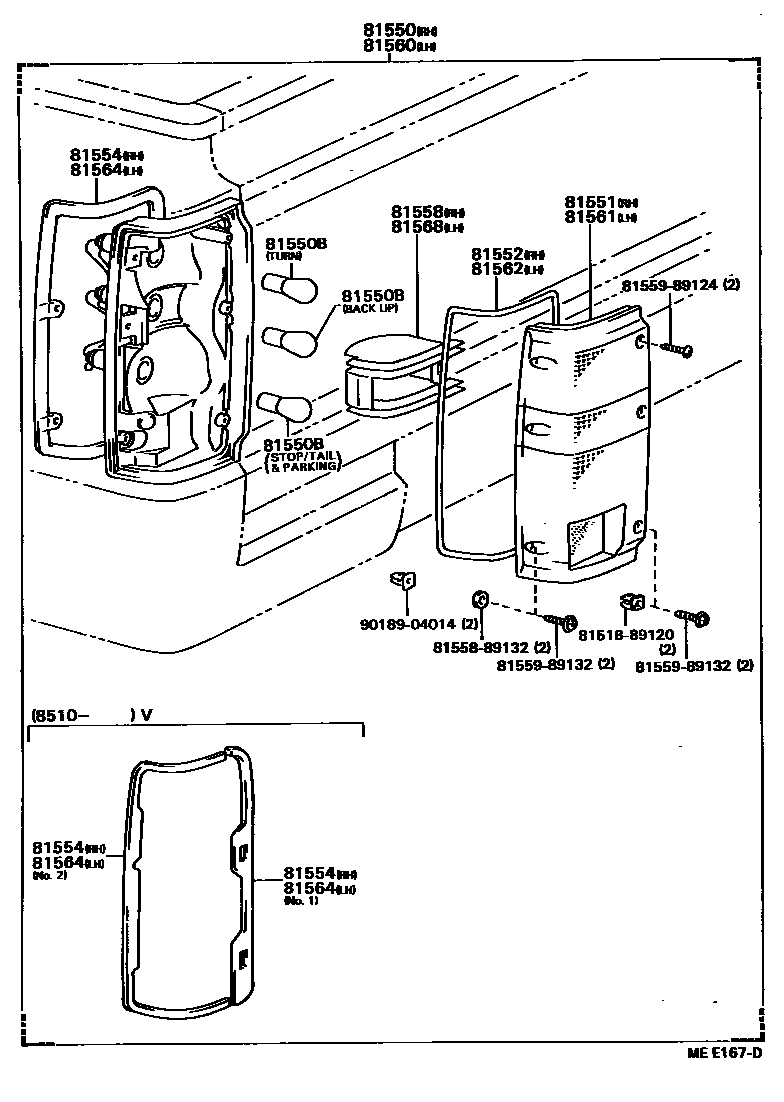

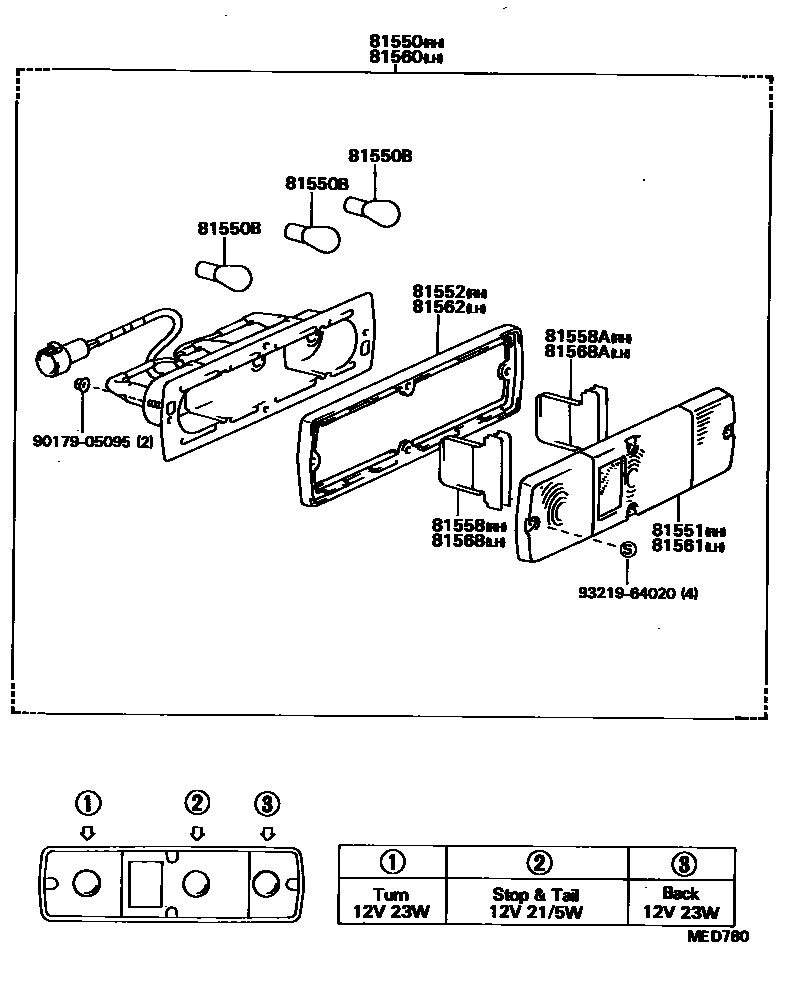

Toyota HILUX 后组合灯 — Figure 8111
Toyota HILUX EPC diagram 8111, 后组合灯, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81550 | Right rear combination light assembly | 81550-39825 · 81550-39845 · 81550-39875 · 81550-80216 · 81550-80219 |
| 81550B | Bulb (for rear combination lights) | 99132-11230 · 99132-21210 |
| 81551 | Right rear combination lamp shade | 81551-25060 · 81551-89131 · 81559-89157 |
| 81552 | Right rear combination lamp shade gasket | 81552-25060 · 81552-89131 |
| 81554 | Right rear combination lamp body gasket | 81552-89143 · 81554-89140 · 81554-89143 |
| 81558 | No. 1 right rear combination light lampshade | 81557-25060 · 81557-89131 |
| 81558A | No. 2 right rear combination light lampshade | 81557-25060 |
| 81560 | Left rear combination light assembly | 81560-39785 · 81560-39805 · 81560-39835 · 81560-80221 · 81560-80224 |
| 81561 | Left rear combination lamp shade | 81561-25040 · 81561-89131 · 81569-89157 |
| 81562 | Left rear combination lamp shade gasket | 81552-89131 · 81562-25040 |
| 81564 | Left rear combination lamp body gasket | 81562-89143 · 81564-89140 · 81564-89143 |
| 81568 | No. 1 left rear combination light lampshade | 81557-25060 · 81557-89131 |
| 81568A | No. 2 left rear combination light lampshade | 81557-25060 |
