Toyota HILUX 前示宽灯 — Figure 8104

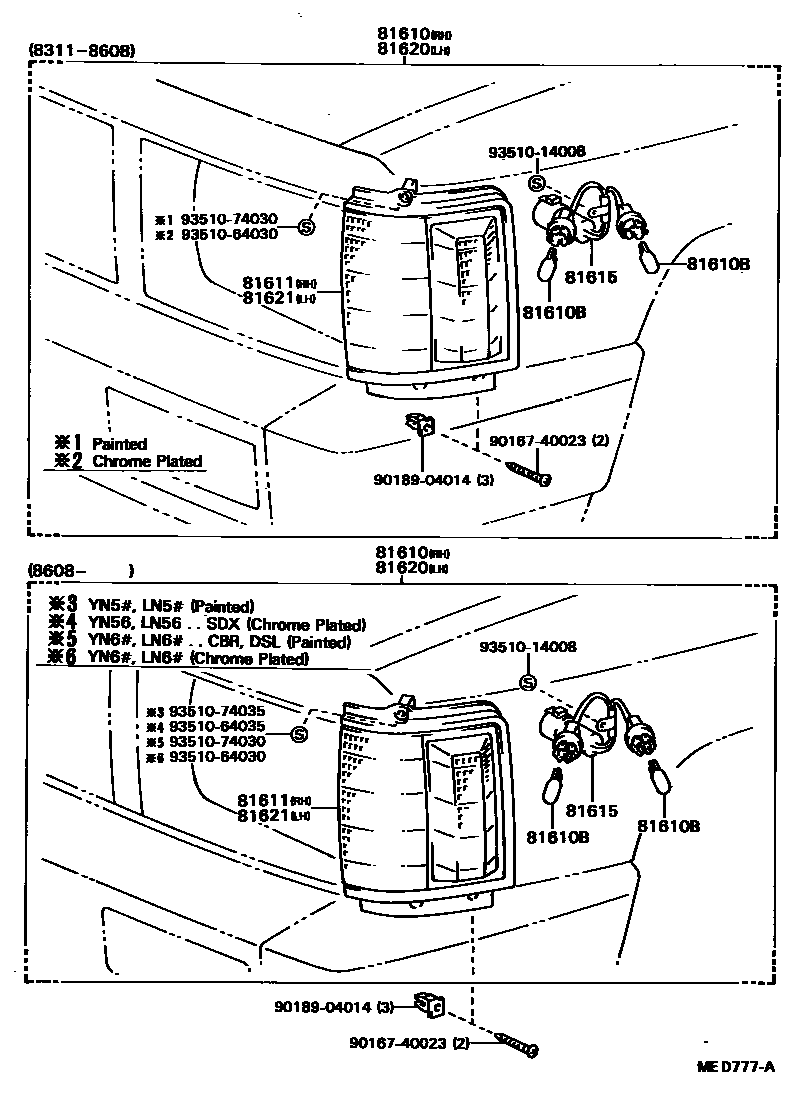

Toyota HILUX EPC diagram 8104, 前示宽灯, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81610 | Right parking light and width indicator light assembly | 81610-39835 · 81610-39845 · 81610-39865 · 81610-39875 · 81610-89153 · 81610-89157 · 81610-89158 · 81610-89165 |
| 81610B | Bulbs (for parking lights and side lights) | 99132-12050 |
| 81611 | Right parking light and width indicator light cover | 81611-89149 · 81611-89150 · 81611-89152 · 81611-89153 · 81611-89157 · 81611-89158 · 81611-89165 |
| 81615 | Width light lamp holder and wiring harness | 81615-89148 · 81625-89156 |
| 81620 | Left parking light and width indicator light assembly | 81620-39835 · 81620-39845 · 81620-39865 · 81620-39875 · 81620-89153 · 81620-89157 · 81620-89158 · 81620-89165 |
| 81621 | Left parking light and width indicator light cover | 81621-89149 · 81621-89150 · 81621-89152 · 81621-89153 · 81621-89157 · 81621-89158 · 81621-89165 |
