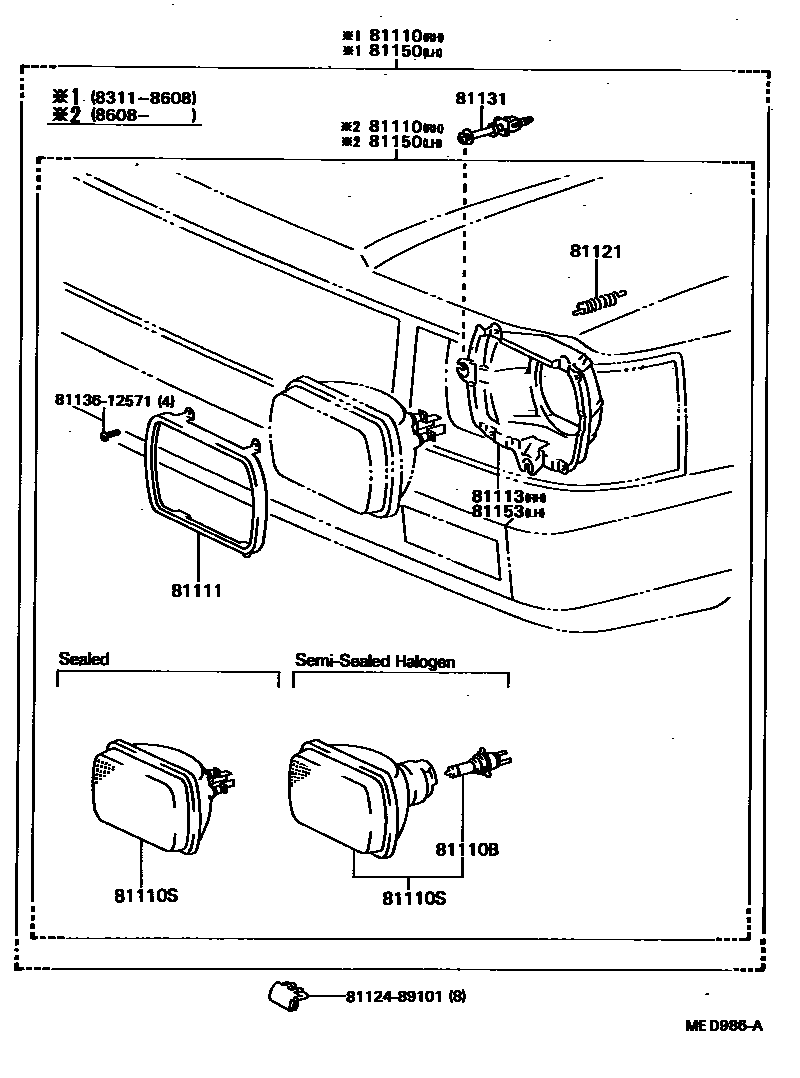

Toyota HILUX Headlamp — Figure 8101
Toyota HILUX EPC diagram 8101, Headlamp, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-80366 · 81110-80373 · 81110-89149 · 81110-89157 |
| 81110B | Bulb (for headlight No. 1) | 90981-13015 |
| 81110S | No. 1 enclosed lamp assembly | 90981-04001 · 90981-04010 |
| 81111 | Closed headlight retaining ring | 81111-16020 |
| 81113 | Right No. 1 closed lamp seat | 81113-89136 · 81113-89149 |
| 81121 | headlight spring | 81121-14670 |
| 81131 | Headlight adjustment screw | 81131-89103 |
| 81150 | Left headlight assembly | 81150-80360 · 81150-80367 · 81150-89149 · 81150-89157 |
| 81153 | No. 1 closed lamp seat on the left | 81153-89136 · 81153-89149 |
