Toyota HILUX accelerator pedal connecting rod — Figure 7851

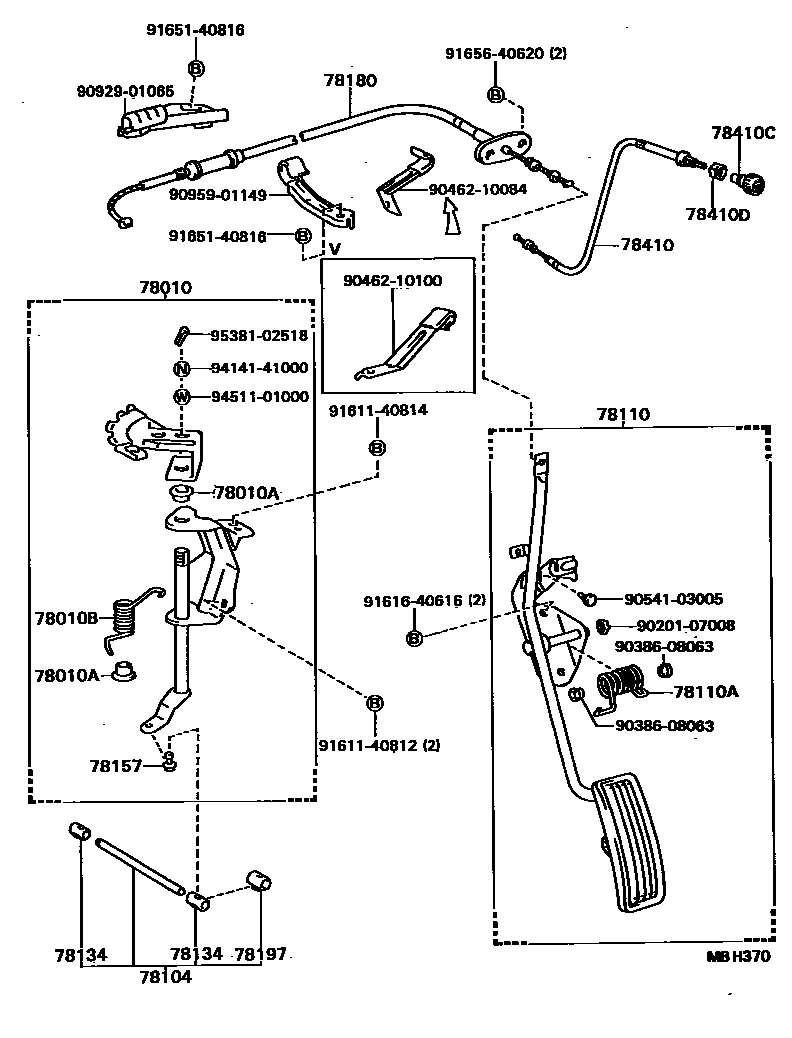

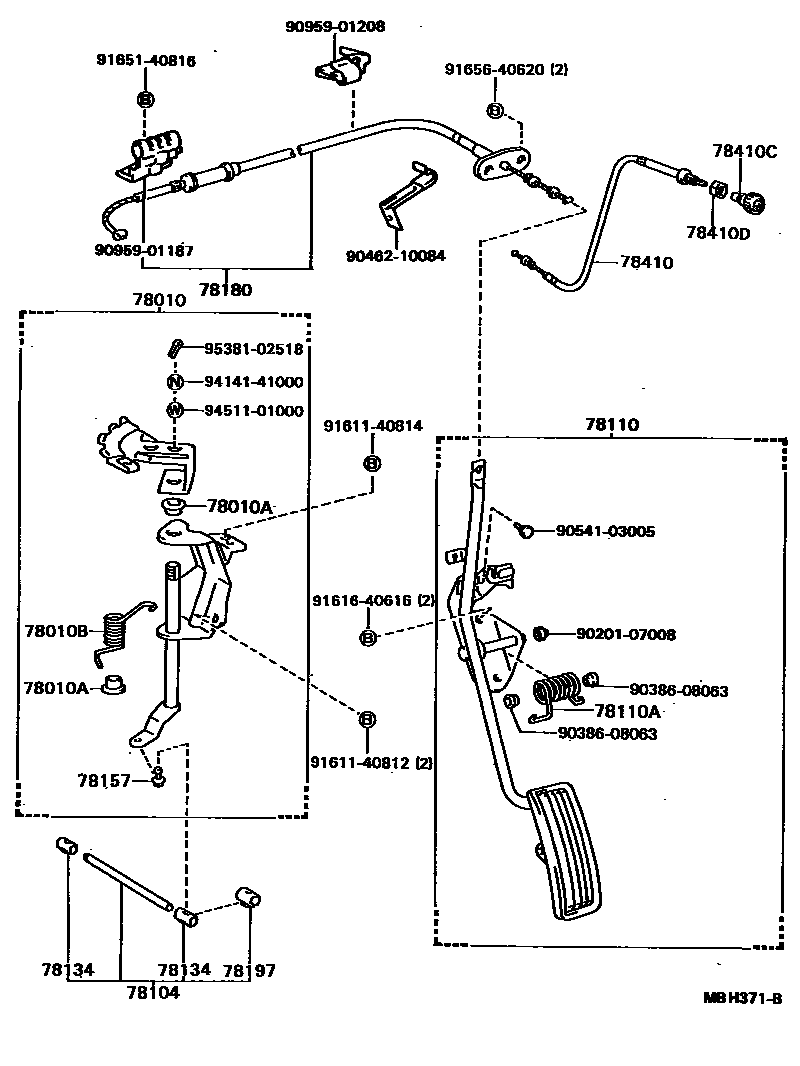

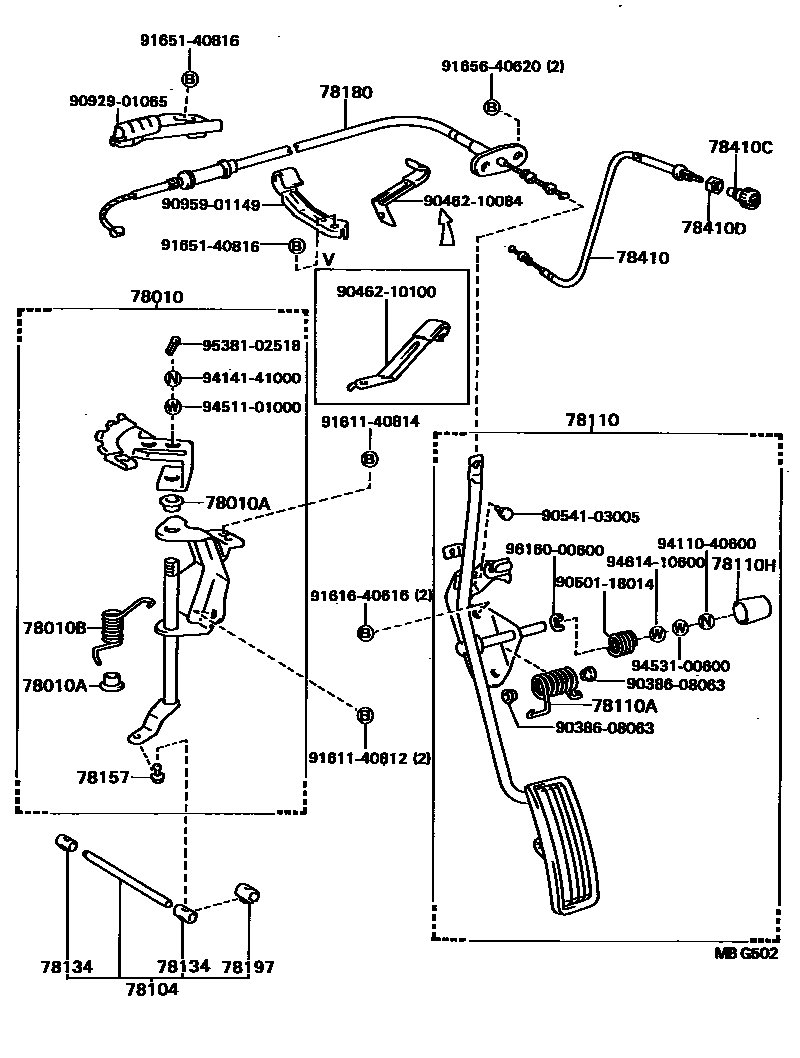

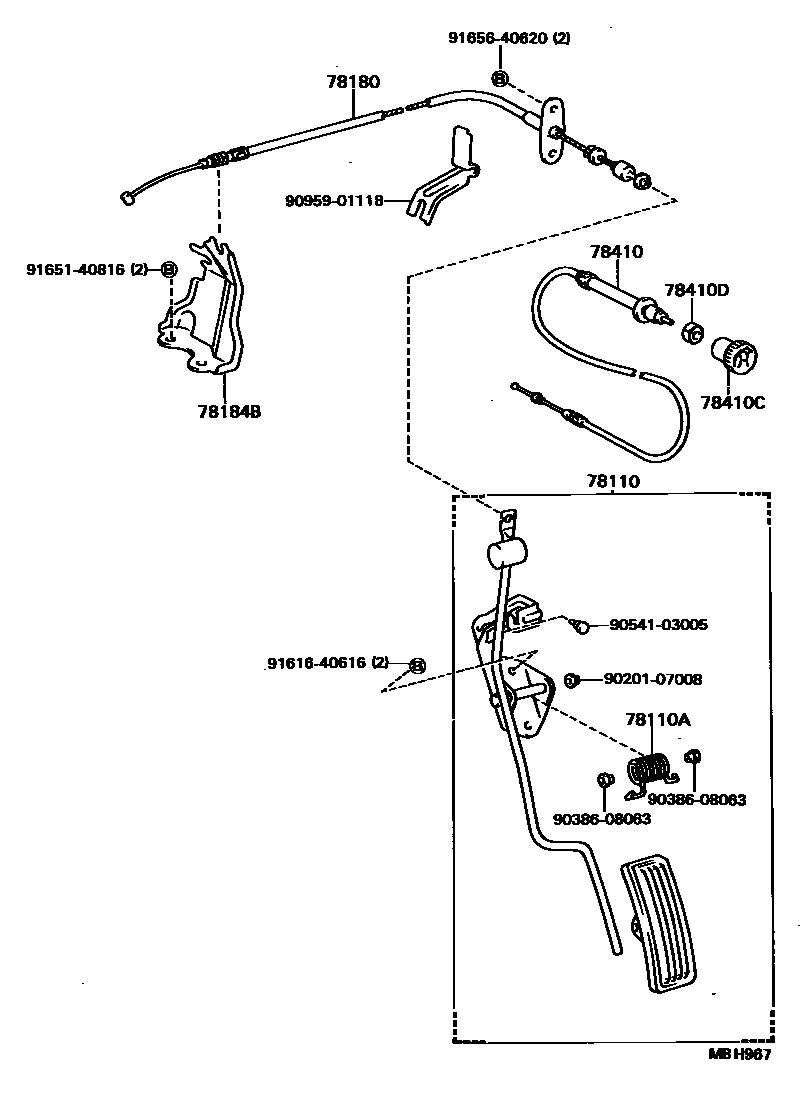

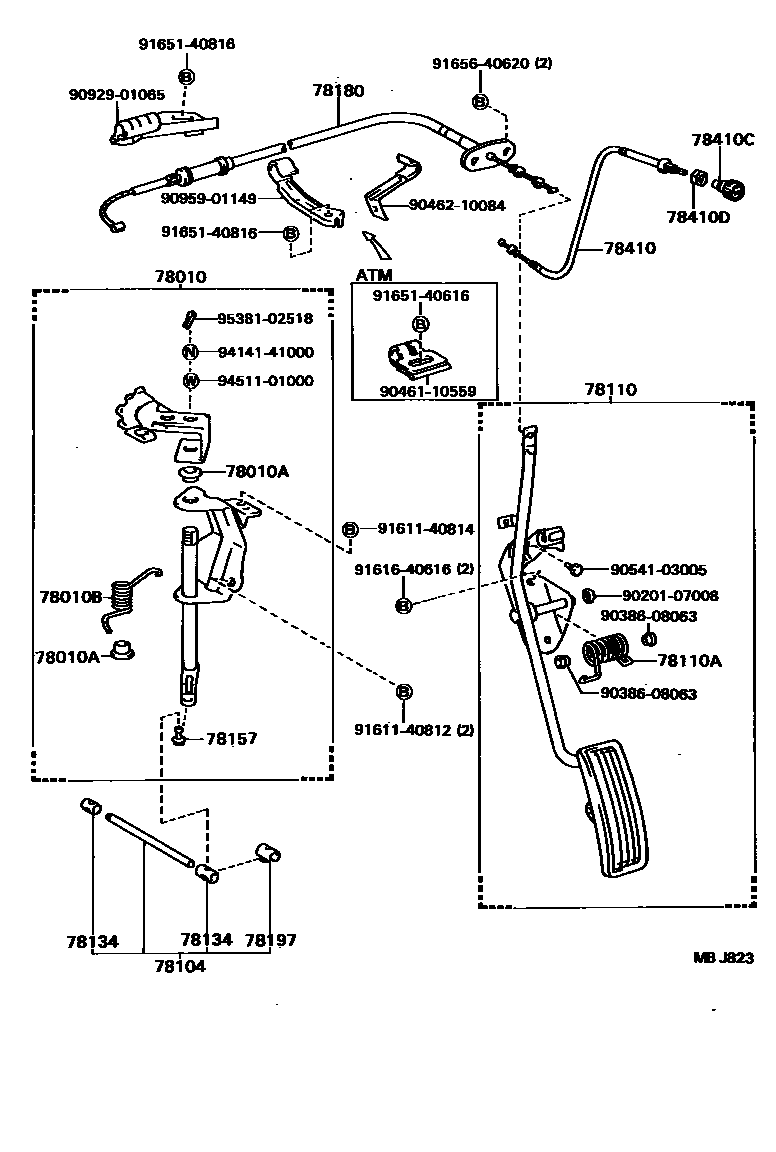

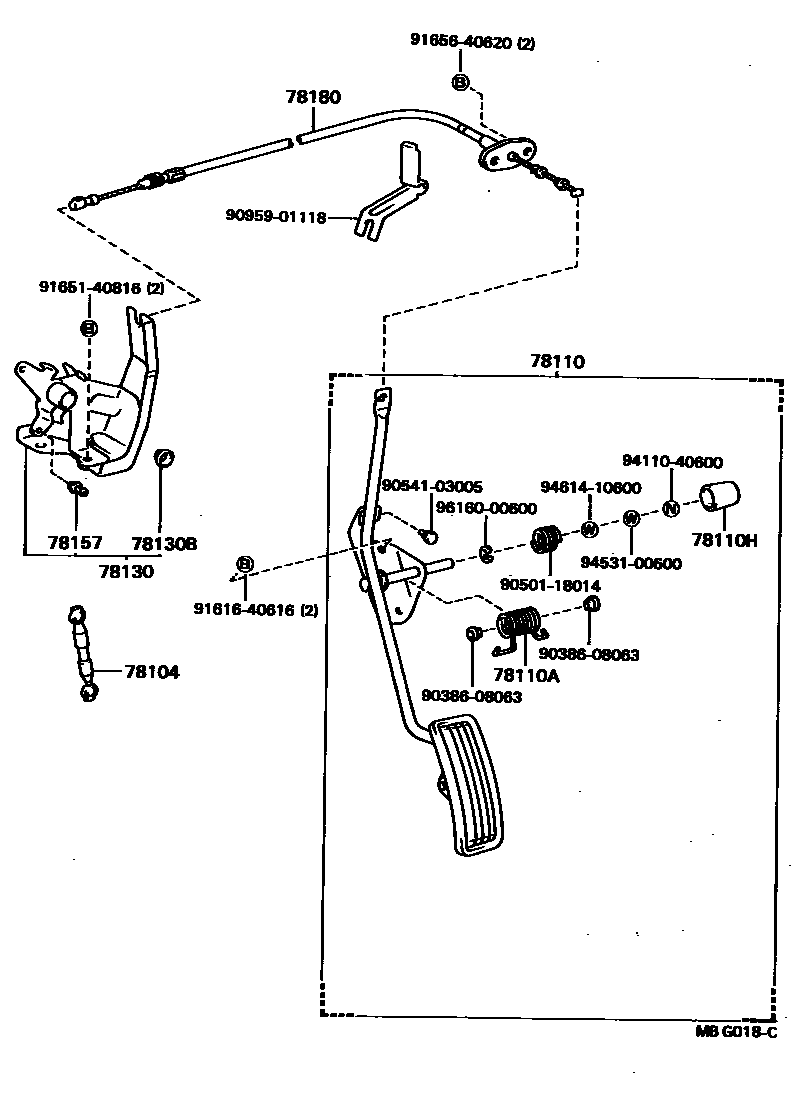

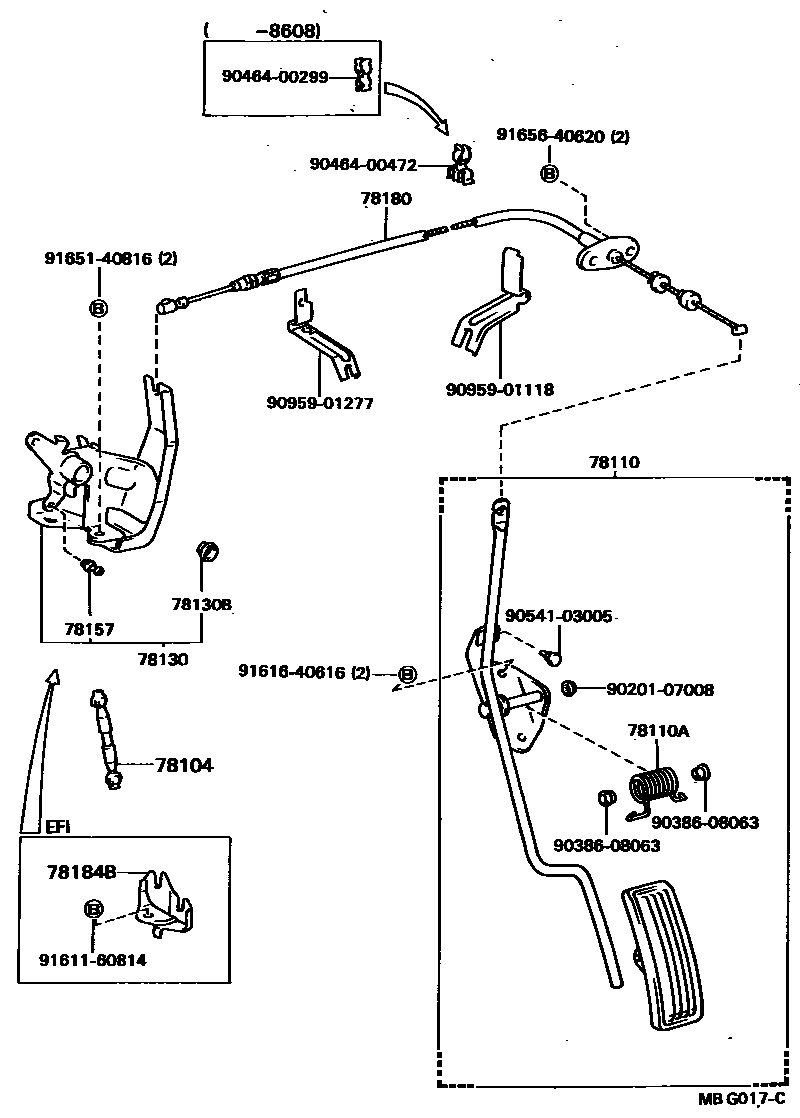

Toyota HILUX EPC diagram 7851, accelerator pedal connecting rod, with 7 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78010 | accelerator pedal connecting rod | 78100-89103 · 78100-89104 · 78100-89105 |
| 78010A | Bushing (for accelerator pedal linkage) | 90386-10138 |
| 78010B | Torsion spring (for accelerator pedal linkage) | 90508-20063 · 90508-23079 · 90508-23080 |
| 78104 | No. 2 accelerator pedal connecting rod sub-assembly | 78104-89105 · 78104-89106 |
| 78110 | Accelerator pedal lever assembly | 78120-89112 · 78120-89113 · 78120-89119 · 78120-89120 · 78120-89130 · 78120-89132 · 78120-89133 · 78120-89135 |
| 78110A | Spring (for accelerator pedal lever) | 90508-14066 · 90508-23075 · 90508-24006 |
| 78110H | Cover (for accelerator pedal lever) | 78116-22010 |
| 78130 | Accelerator pedal right-angle lever assembly | 78130-89109 |
| 78130B | Throttle pedal right angle lever bushing | 90386-08003 |
| 78134 | Accelerator pedal connecting rod end | 78134-10010 |
| 78157 | accelerator pedal ball joint | 78157-10010 |
| 78180 | Throttle cable assembly | 78180-89128 · 78180-89129 · 78180-89135 · 78180-89142 · 78180-89143 · 78180-89147 |
| 78184B | Throttle pedal control cable bracket | 78184-87005 |
| 78197 | Accelerator pedal ball joint clip | 78197-10010 |
| 78410 | Throttle valve control cable assembly | 78401-89106 |
| 78410C | Throttle Cable Section | 78411-89102 |
| 78410D | throttle nut | 90170-11006 |
