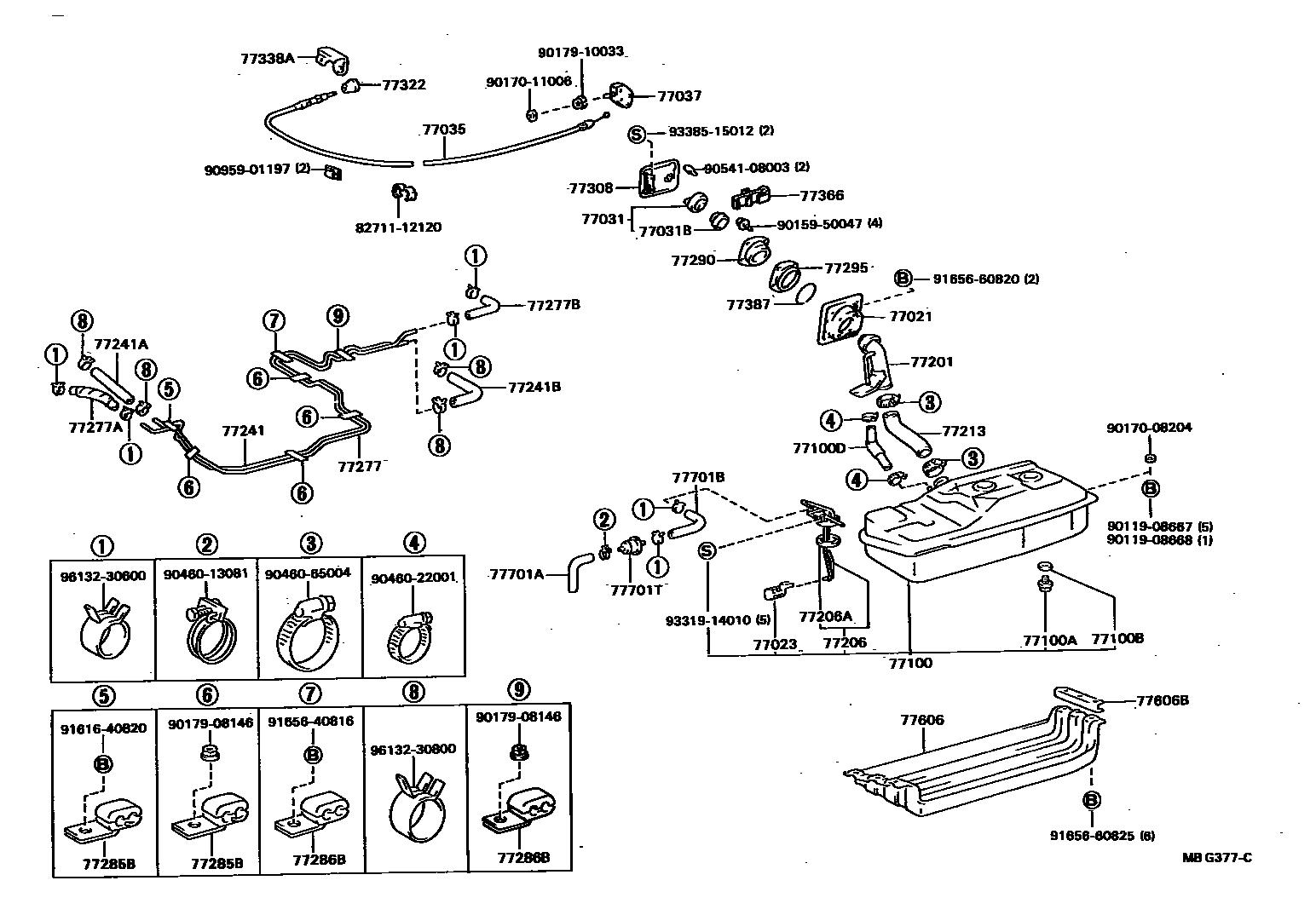

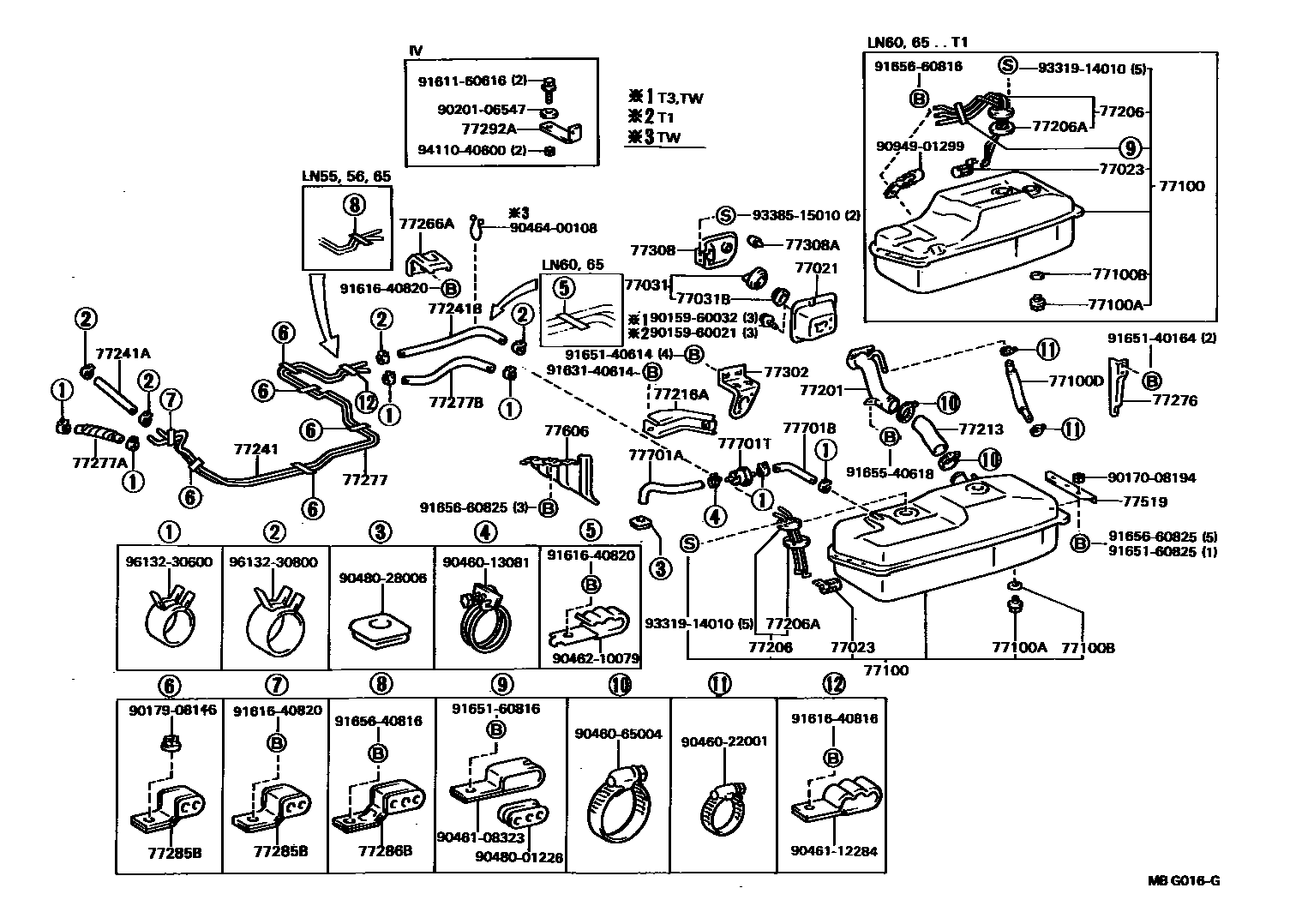

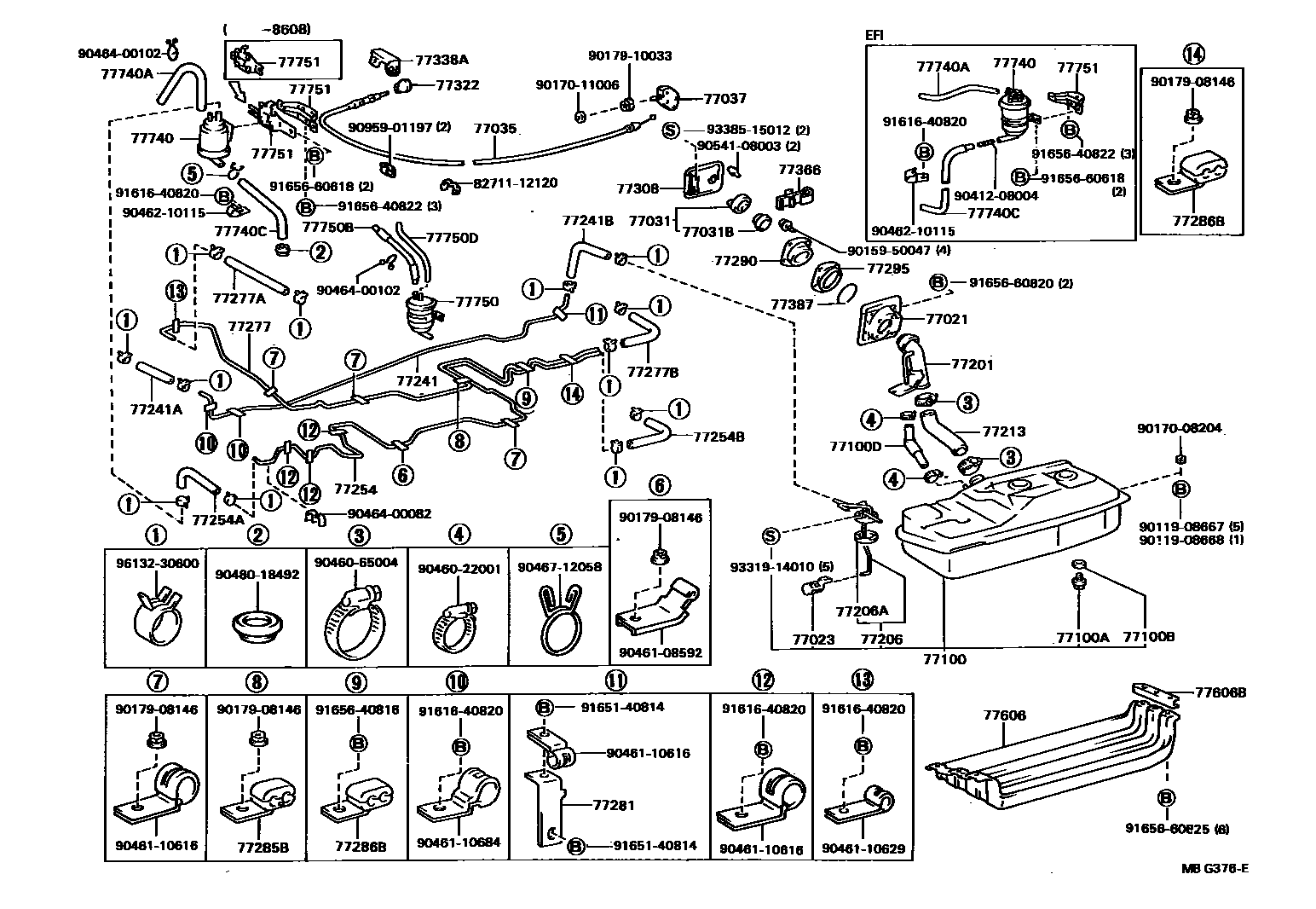

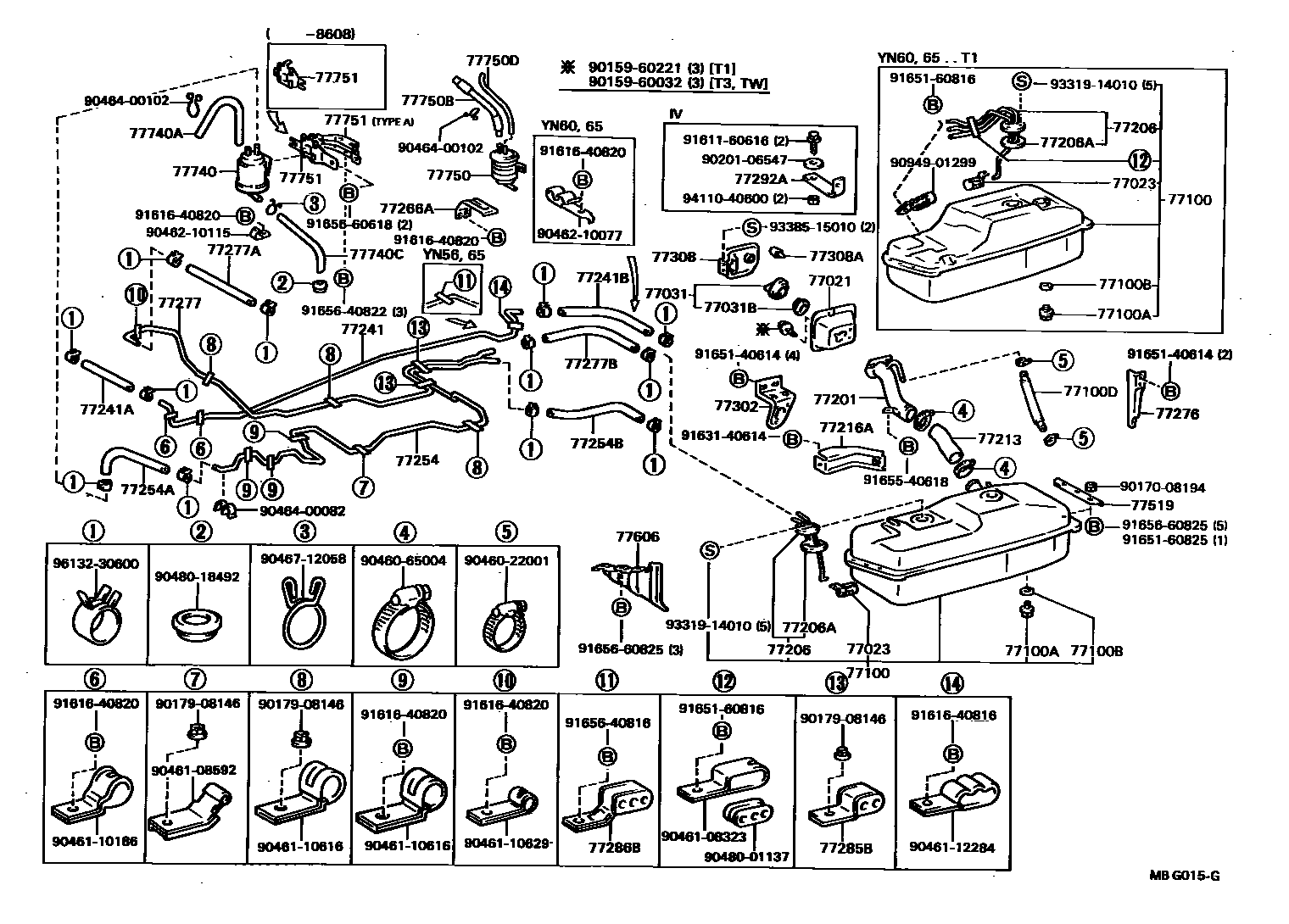

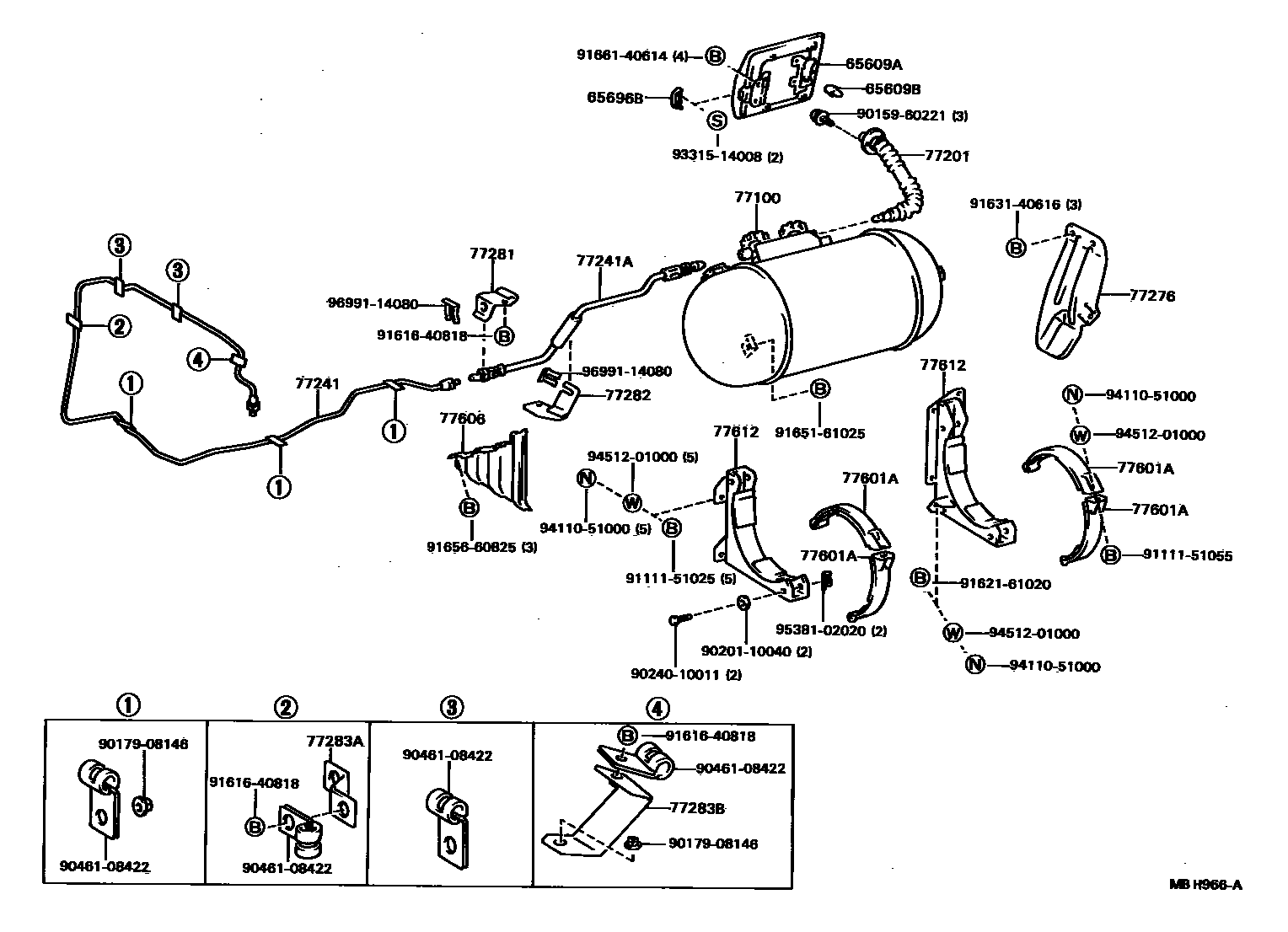

Toyota HILUX 燃油箱和燃油管 — Figure 7751
Toyota HILUX EPC diagram 7751, 燃油箱和燃油管, with 5 images and 59 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65609A | Check the opening cover sub-assembly | 65609-89104 |
| 65609B | Cushion (for inspection openings) | 90541-08003 · 90541-08011 |
| 65696B | Check the opening cover button | 65696-89101 |
| 77021 | Fuel tank inlet box assembly | 61709-89101 · 61709-89102 · 61725-89107 |
| 77023 | Fuel suction pipe filter sub-assembly | 77023-12050 · 77023-22040 |
| 77031 | Fuel tank cap assembly | 77310-12100 · 77310-35061 |
| 77031B | Gasket (for fuel tank cap) | 77316-12050 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-89105 |
| 77037 | Fuel filler cap lock sub-assembly | 77037-89101 |
| 77100 | fuel tank assembly | 77001-35925 · 77001-35927 · 77001-35930 · 77001-35933 · 77001-35935 · 77001-35938 · 77001-35950 · 77001-35951 · 77001-35954 · 77001-35955 · 77001-35957 · 77001-35958 · 77001-35961 · 77100-35240 · 77100-35241 · 77100-35250 · 77100-35251 · 77100-35290 · 77100-35291 · 77100-35300 · 77100-35301 · 77100-35310 · 77100-35311 · 77100-35320 · 77100-35321 · 77100-35450 · 77100-35451 · 77100-35470 · 77100-35471 · 77100-35480 · 77100-35481 · 77100-35530 · 77100-35540 · 77100-35550 · 77100-35560 |
| 77100A | Screw plug (for fuel tank) | 90105-12018 |
| 77100B | Gasket (for fuel tank) | 90430-12245 |
| 77100D | No. 1 fuel hose (for fuel tank) | 77408-35020 · 77408-35030 · 90445-21883 · 90445-22013 · 90445-22029 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-35200 · 77201-35210 · 77201-35220 · 77201-35230 · 77201-35260 · 77201-35310 · 77201-35320 · 77201-35330 |
| 77206 | Fuel tank suction pipe sub-assembly | 77203-35190 · 77203-35191 · 77203-35220 · 77203-35230 · 77203-35240 · 77203-35260 · 77203-35261 · 77203-35270 · 77203-35311 · 77203-35320 · 77203-35330 · 77203-35350 · 77203-35360 · 77203-35361 |
| 77206A | Gasket (for fuel tank suction pipe) | 77169-14020 |
| 77213 | Fuel tank auxiliary fuel inlet hose | 77213-35090 · 77213-35100 · 77213-35120 · 77213-35150 · 77213-35160 · 77213-35180 · 77213-35190 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-89102 |
| 77241 | No. 1 main fuel pipe | 77251-35230 · 77251-35240 · 77251-35280 · 77251-35290 · 77251-35300 · 77251-35301 · 77251-35302 · 77251-35330 · 77251-35331 · 77251-35332 · 77251-35340 · 77251-35350 · 77251-35351 · 77251-35370 · 77251-35390 · 77251-35400 · 77251-35490 · 77251-35500 |
| 77241A | No. 1 fuel hose (for No. 1 main fuel line) | 77259-35060 · 95332-08030 · 95333-06040 |
| 77241B | No. 2 fuel hose (for No. 1 main fuel line) | 77259-35040 · 77259-35070 · 77259-35090 · 90445-14120 · 90445-14145 · 90445-14149 · 90445-14153 · 95332-06030 · 95332-08040 · 95333-06030 · 95333-06040 · 95333-08040 · 95333-08080 |
| 77254 | No. 1 fuel evaporation exhaust pipe | 77261-35080 · 77261-35081 · 77261-35082 · 77261-35100 · 77261-35130 · 77261-35140 · 77261-35141 · 77261-35142 · 77261-35150 · 77261-35240 · 77261-35241 · 77261-35250 · 77261-35251 · 77261-35280 · 77261-35290 · 77261-35300 · 77261-35310 · 77261-35320 |
| 77254A | No. 1 fuel hose (for No. 1 drain pipe) | 95333-06030 |
| 77254B | No. 2 fuel hose (for No. 1 drain pipe) | 90445-12042 · 90445-12135 · 90445-12139 · 90445-12169 · 90445-12170 · 90445-12177 · 90445-12179 · 90445-12183 · 95332-06030 · 95333-06030 |
| 77266A | No. 1 fuel line protection device | 77266-35030 |
| 77276 | Fuel hose protector | 77276-89106 |
| 77277 | No. 1 fuel return pipe | 77255-35160 · 77255-35161 · 77255-35162 · 77255-35180 · 77255-35190 · 77255-35210 · 77255-35211 · 77255-35212 · 77255-35260 · 77255-35270 · 77255-35290 · 77255-35291 · 77255-35300 · 77255-35301 · 77255-35340 · 77255-35341 · 77255-35360 · 77255-35361 |
| 77277A | No. 1 fuel hose (for No. 1 return pipe) | 90447-12034 · 90447-12069 · 90447-12075 · 95332-06040 |
| 77277B | No. 2 fuel hose (for No. 1 return pipe) | 90445-12108 · 90445-12134 · 90445-12140 · 90445-12145 · 90445-12159 · 90445-12165 · 90445-12167 · 90445-12168 · 90445-12184 · 90445-12185 · 90445-12187 · 90445-12188 · 95332-06080 · 95333-06080 |
| 77281 | No. 1 main fuel pipe bracket | 77281-35020 |
| 77282 | No. 2 main fuel pipe bracket | 77282-35040 |
| 77283A | No. 1 fuel pipe clamp bracket | 77777-35020 |
| 77283B | No. 2 fuel pipe clamp bracket | 77777-35030 |
| 77285B | No. 1 fuel pipe clamp with retaining ring | 77285-35030 · 77285-35040 |
| 77286B | No. 2 fuel pipe clamp with retaining ring | 77285-35030 · 77285-35050 · 77285-35060 · 77285-35070 · 77285-35080 · 77285-35100 · 77285-35101 · 77285-35110 · 77285-35111 |
| 77290 | Fuel tank filler pipe cover assembly | 77290-89101 |
| 77292A | Fuel tank filler pipe upper bracket | 77292-35090 |
| 77295 | Fuel filler pipe cover | 77293-16010 |
| 77302 | Fuel tank cap fixing parts | 77314-89101 · 77314-89102 |
| 77308 | Fuel inlet cap sub-assembly | 77305-89103 · 77305-89104 · 77305-89106 |
| 77308A | Cushion (for fuel inlet cap) | 90541-08003 |
| 77322 | fuel tank cap button | 77319-89101 |
| 77338A | Fuel tank cap lock lever bracket | 77338-89103 |
| 77366 | Fuel filler cap hinge spring | 77360-24010 |
| 77387 | fuel inlet ring | 77391-14020 |
| 77519 | Fuel tank bracket spacer | 77519-35010 |
| 77601A | No. 1 fuel tank strap sub-assembly | 77601-35030 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77108-35030 · 77161-35050 · 77161-35070 · 77161-35090 · 77161-35100 |
| 77606B | Fuel tank protective shell side fixing bracket | 77162-35040 |
| 77612 | Fuel tank bracket sub-assembly | 77501-35010 · 77502-35010 |
| 77701A | No. 1 fuel hose (for breather valve) | 90445-12144 · 90446-12006 · 90446-12007 |
| 77701B | No. 2 fuel hose (for breather valve) | 95332-06010 · 95333-06010 |
| 77701T | Check valve (for main fuel tank) | 90917-10054 |
| 77740 | Carbon canister assembly | 77704-35100 · 77704-35170 · 77740-35140 |
| 77740A | No. 1 fuel hose (for canister) | 95411-19930 |
| 77740C | No. 3 fuel hose (for charcoal canister) | 77754-35160 · 90447-12079 · 90447-12080 |
| 77750 | Carbon canister assembly | 77740-35220 |
| 77750B | No. 2 fuel hose (for charcoal canister) | 90447-14039 |
| 77751 | Carbon canister base bracket | 77751-32010 · 77751-35051 · 77751-35070 |
