Toyota HILUX 防护条 — Figure 7552

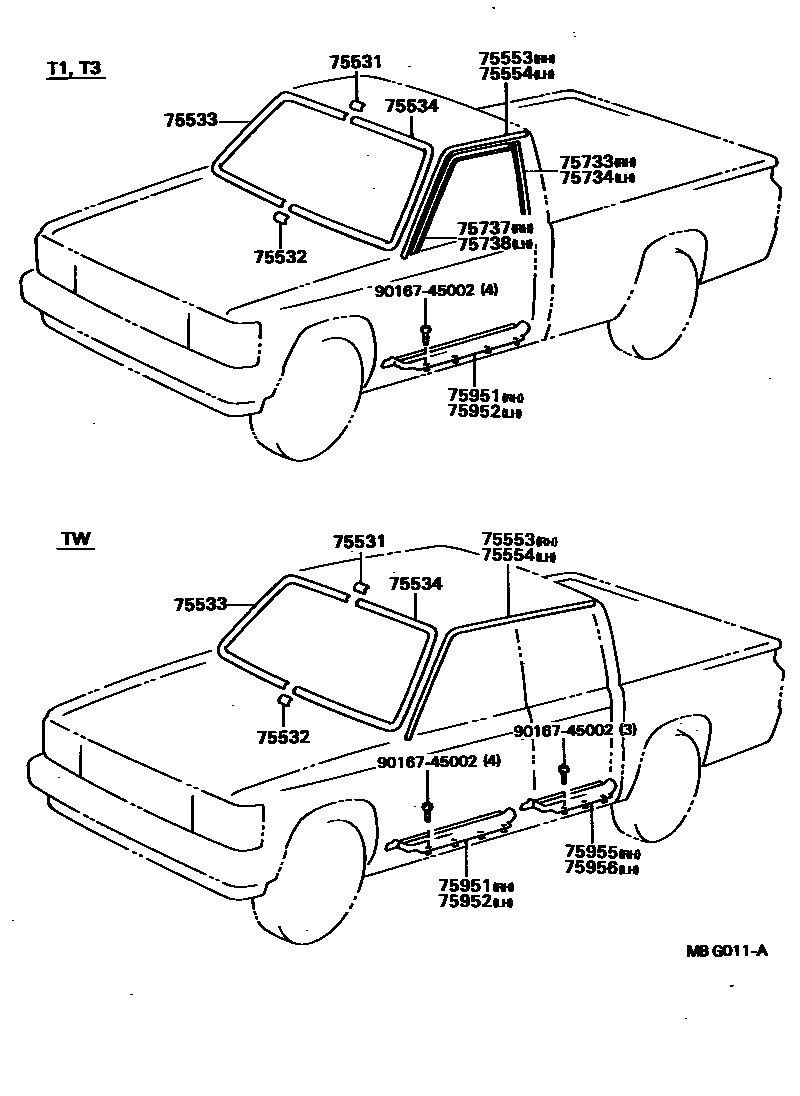

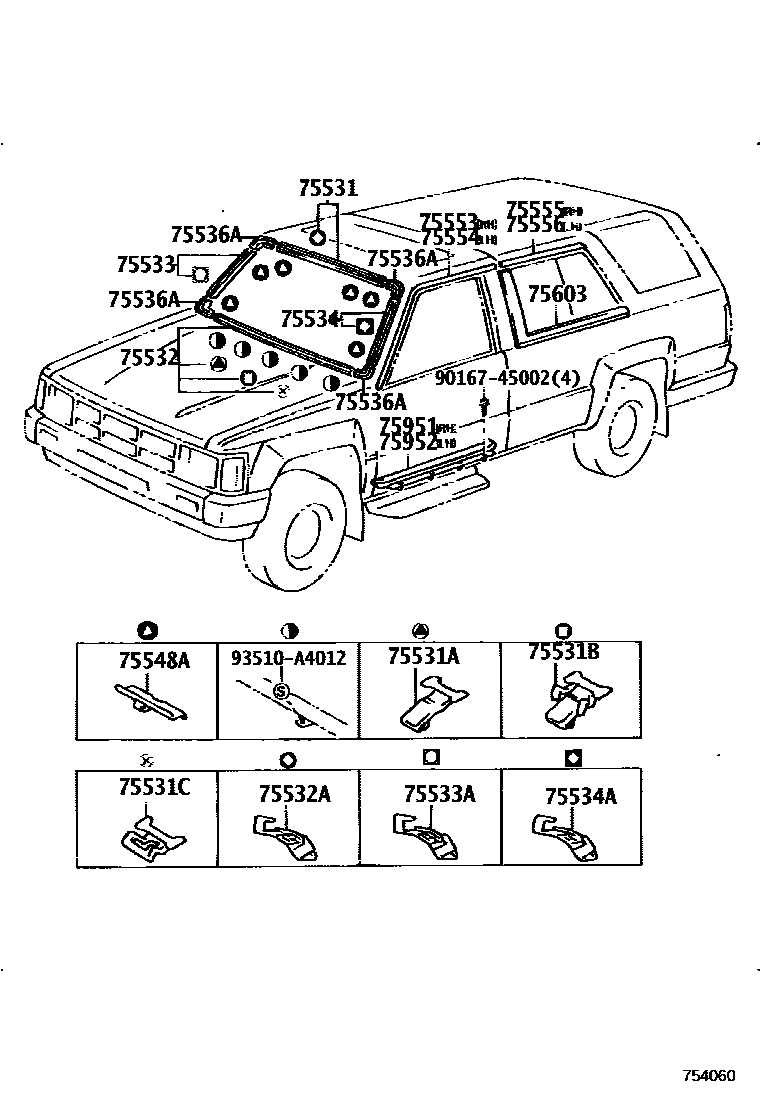

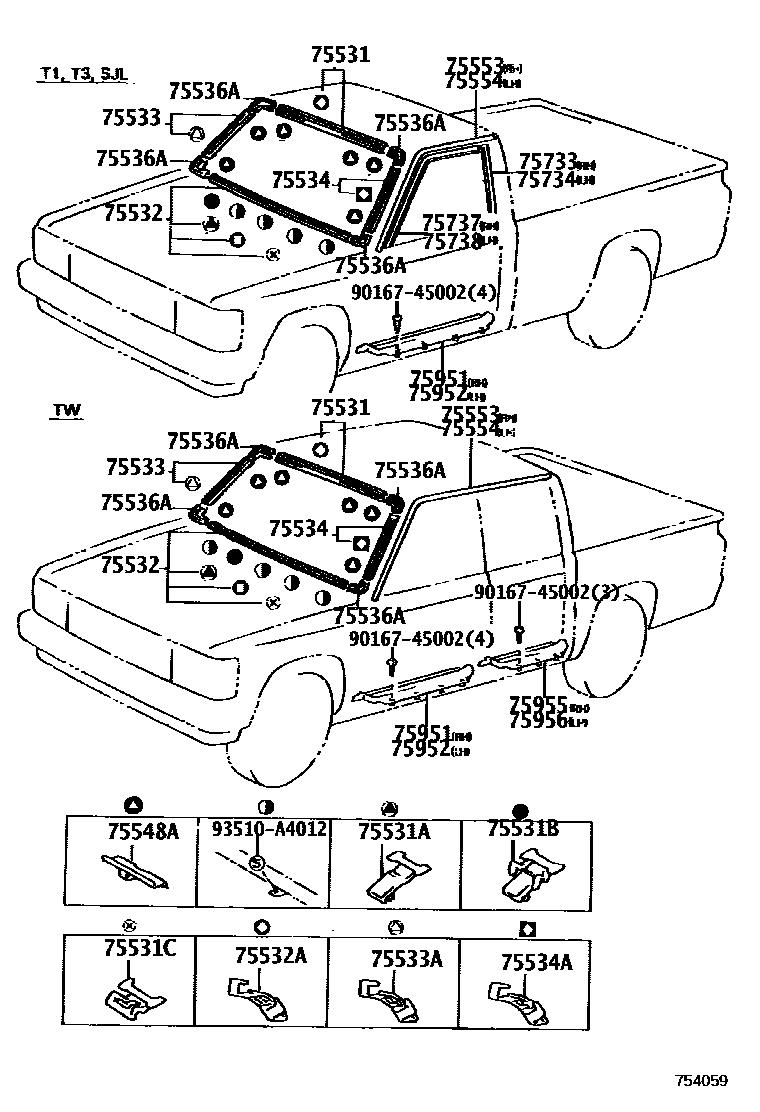

Toyota HILUX EPC diagram 7552, 防护条, with 3 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75531 | Windshield outer protective strip | 75531-89103 · 75531-89104 · 75581-10010 |
| 75531A | No. 1 windshield protection strip fixing clip | 75546-89102 |
| 75531B | No. 2 windshield protection strip fixing clip | 75546-89101 |
| 75531C | No. 3 windshield protective strip fixing clip | 75547-89101 |
| 75532 | Lower windshield protection strip | 75535-89101 · 75535-89102 · 75581-10010 |
| 75532A | Windshield protection strip fixing clip | 75545-89101 |
| 75533 | Windshield right outer protective strip | 75533-89105 · 75533-89106 · 75533-89107 |
| 75533A | Windshield right side protective strip clip | 75545-89101 |
| 75534 | Windshield left outer protective strip | 75534-89103 · 75534-89104 · 75534-89105 |
| 75534A | Windshield left protective strip clip | 75545-89101 |
| 75536A | Windshield outer protective strip joint cover | 75541-89101 · 75541-89102 · 75542-89101 · 75542-89102 · 75543-89101 · 75543-89102 · 75544-89101 · 75544-89102 |
| 75548A | No. 1 windshield outer protective strip fasteners | 75548-89101 · 75548-89102 · 75548-89103 |
| 75553 | Drainage groove side decorative strip on the right side of the roof | 75551-89108 · 75551-89109 · 75551-89112 · 75551-89113 · 75551-89114 · 75551-89115 · 75551-89116 · 75551-89117 |
| 75554 | Drainage groove side decorative strip on the left side of the roof | 75552-89108 · 75552-89109 · 75552-89112 · 75552-89113 · 75552-89114 · 75552-89115 · 75552-89116 · 75552-89117 |
| 75555 | Decorative strip on the right side of the roof, rear gutter side | 75553-89101 · 75553-89102 |
| 75556 | Decorative strip on the left side of the roof, rear gutter side | 75554-89101 · 75554-89102 |
| 75603 | Sliding window side panel outer protective strip sub-assembly | 75603-89101 · 75604-89101 |
| 75733 | Right front door window frame rear protective strip | 75755-89101 |
| 75734 | Left front door window frame rear protective strip | 75756-89101 |
| 75737 | Right front door window frame front protective strip | 75751-89101 |
| 75738 | Left front door window frame front protective strip | 75752-89101 |
