Toyota HILUX 徽标和铭牌 — Figure 7551

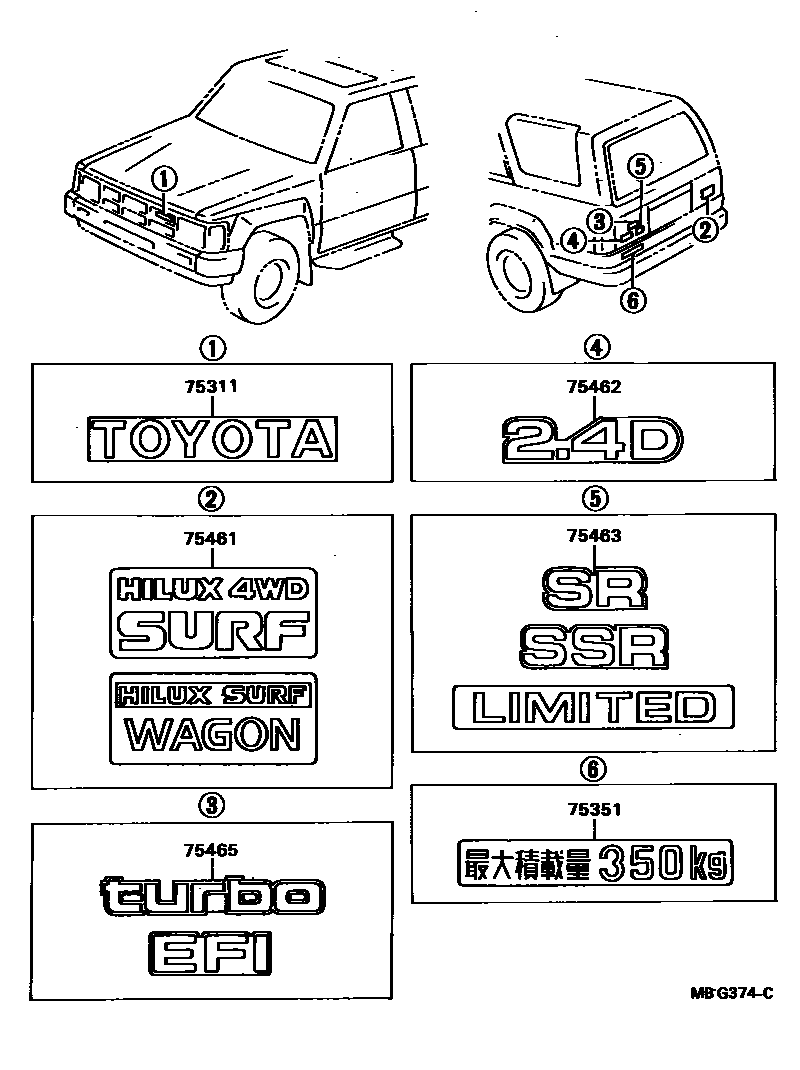

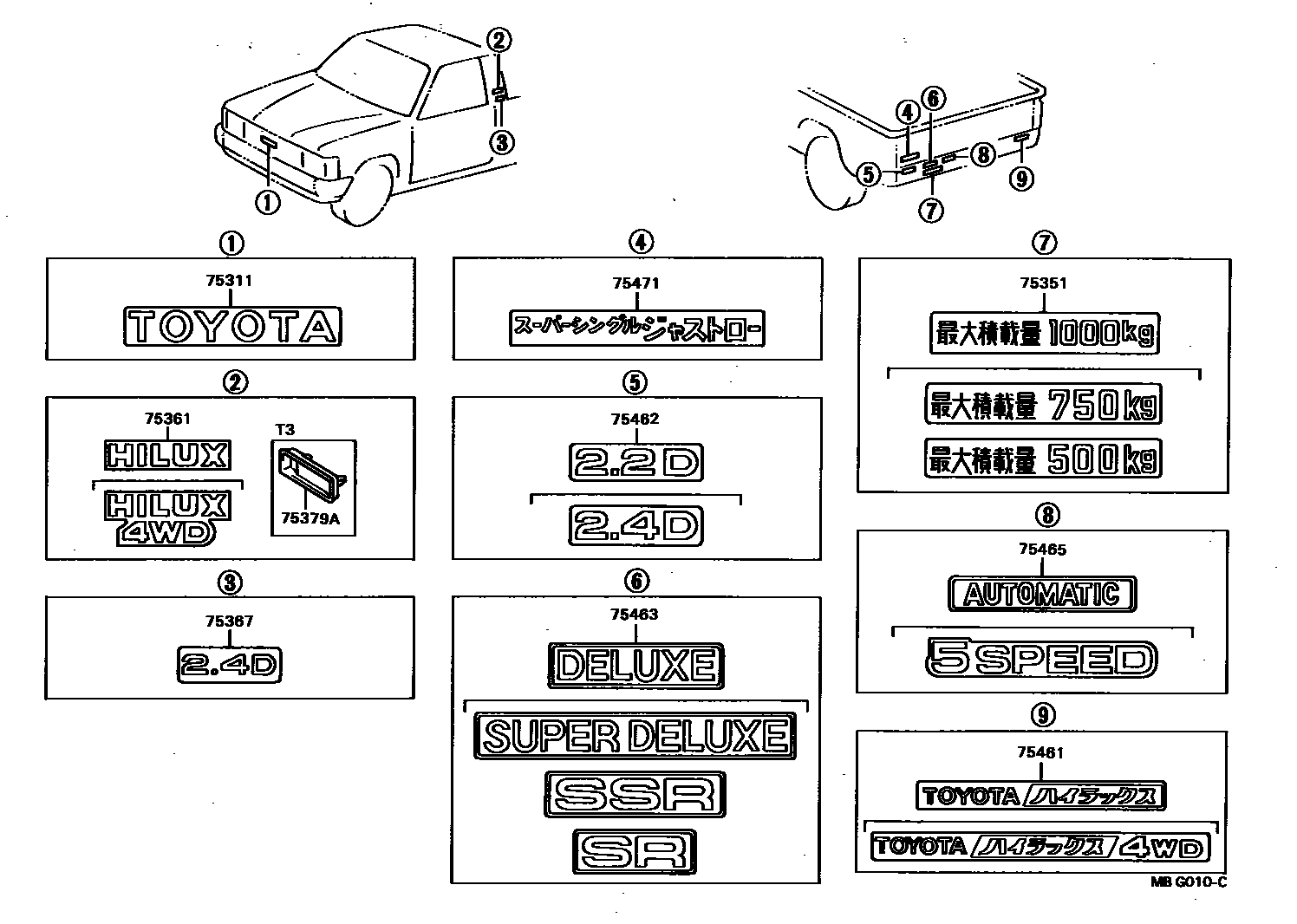

Toyota HILUX EPC diagram 7551, 徽标和铭牌, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75311-89109 · 75311-89113 · 75311-89115 |
| 75351 | Rear No. 6 nameplate (maximum load) | 75471-89110 · 75471-89111 · 75471-89112 · 75471-89116 |
| 75361 | Front fender No. 1 nameplate (model mark) | 75351-89112 · 75351-89118 · 75351-89120 |
| 75367 | Front fender No. 3 nameplate (displacement) | 75351-89116 |
| 75379A | Side panel sign liner | 75379-89101 |
| 75461 | Rear No. 2 nameplate (model mark) | 75441-89101 · 75441-89103 · 75441-89104 · 75441-89105 · 75471-89107 · 75471-89108 |
| 75462 | Rear No. 3 nameplate (displacement) | 75435-89103 · 75473-89106 · 75473-89107 |
| 75463 | Rear No. 4 nameplate (grade mark) | 75435-89101 · 75435-89107 · 75435-89109 · 75435-89111 · 75472-89118 · 75472-89119 · 75472-89120 · 75472-89124 · 75475-89102 |
| 75465 | No. 5 nameplate (organization) | 75435-89105 · 75435-89106 · 75473-89110 · 75474-89103 · 75474-89105 · 75474-89109 · 75474-89111 |
| 75471 | Rear body No. 1 nameplate (model mark) | 75475-95A00 |
