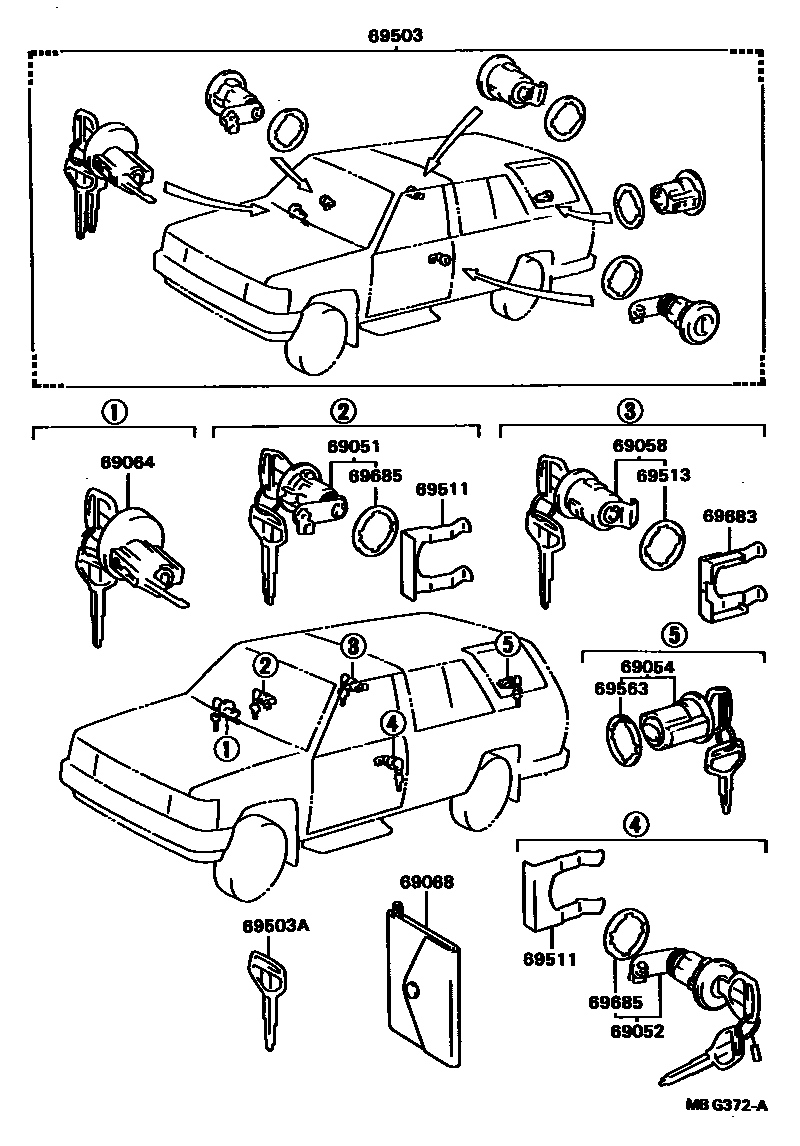

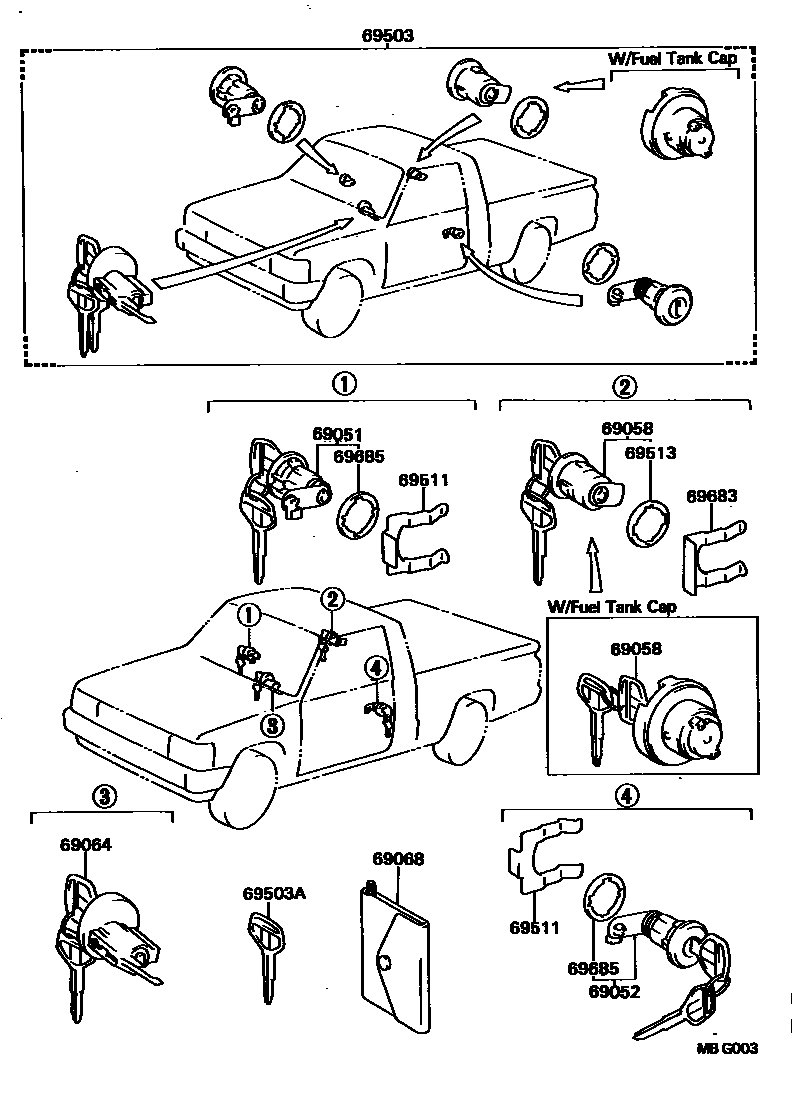

Toyota HILUX 锁芯组件 — Figure 6765
Toyota HILUX EPC diagram 6765, 锁芯组件, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-89111 |
| 69052 | Left door lock cylinder and key assembly | 69052-89111 |
| 69054 | Rear door lock cylinder and key assembly | 69055-89101 |
| 69058 | Fuel filler cap lock cylinder and key assembly | 69058-89102 · 69058-89105 · 69058-89108 · 69058-89109 · 69058-89111 · 69058-89112 · 69058-95400 |
| 69064 | Ignition switch lock cylinder and key assembly | 69057-89107 · 69057-89110 |
| 69068 | Key cover sub-assembly | 84041-89102 |
| 69503 | Door lock cylinder components | 69005-89139 · 69005-89140 · 69005-89141 · 69005-89151 · 69005-89156 · 69005-89157 · 69005-89166 · 69005-89167 · 69005-89168 · 69005-89169 · 69005-89170 · 69005-89171 |
| 69503A | external tooth key | 90999-00066 |
| 69511 | Front door lock cylinder fixing parts | 69511-89101 |
| 69513 | Fuel filler cap lock cylinder gasket | 69513-12020 |
| 69563 | Rear door lock cylinder gasket | 69563-89101 |
| 69683 | Fuel filler cap lock core clip | 69681-89102 · 69681-89103 |
| 69685 | Lock cylinder liner | 69513-32010 |
