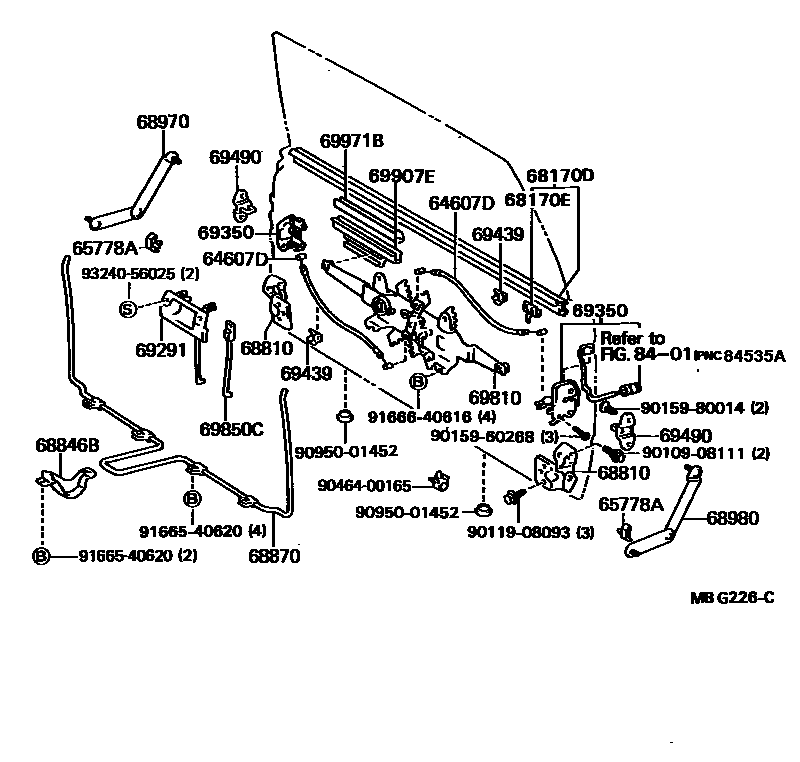

Toyota HILUX 背门锁和合页 — Figure 6762
Toyota HILUX EPC diagram 6762, 背门锁和合页, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64607D | Rear door lock control cable sub-assembly | 64607-89101 · 64607-89102 |
| 65778A | Back door support rod stop | 65778-89102 · 65778-89104 |
| 68170D | Back door glass inner sealing strip assembly | 68170-89114 |
| 68170E | Rear door glass seal strip clip | 68211-89107 |
| 68810 | Back door upper hinge assembly | 68810-89101 · 68820-89101 |
| 68846B | Rear door torsion bar duct | 68846-89101 |
| 68870 | Back door lower torsion bar assembly | 68870-89101 |
| 68970 | Back door right support rod assembly | 68950-89101 |
| 68980 | Back door support rod assembly | 68950-89101 |
| 69350 | Rear door lock assembly | 69380-89102 · 69380-89103 · 69390-89102 |
| 69439 | Rear door lock control cable clip | 69439-89101 |
| 69490 | Back door lock assembly | 69410-12040 |
| 69810 | Right door electric window lift sub-assembly | 69801-89111 |
| 69907E | Rear door glass slot sub-assembly | 69907-89101 · 69907-89102 |
| 69971B | Rear door glass channel filler | 69971-89104 · 69971-89105 |
