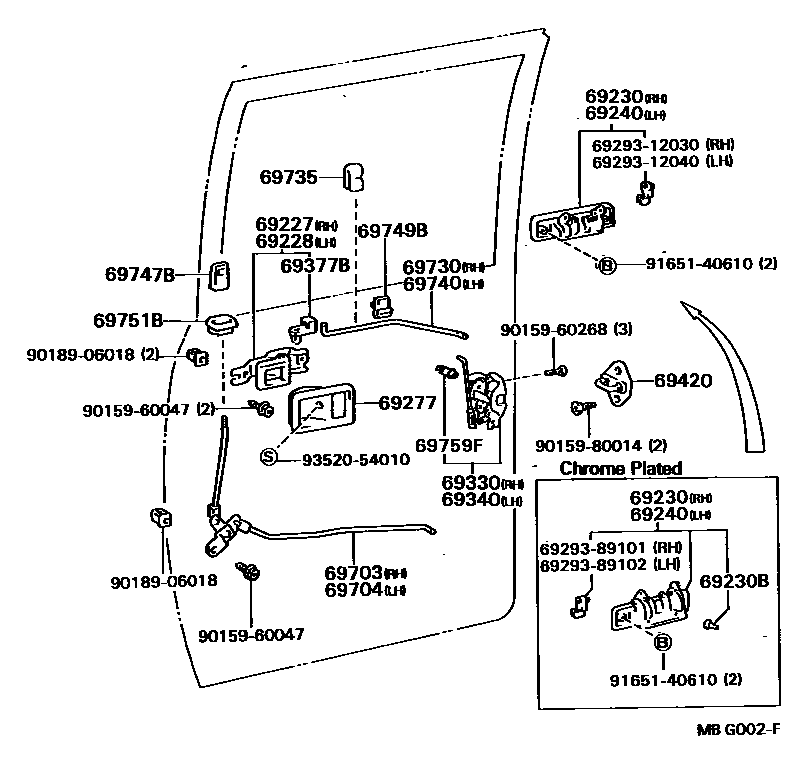

Toyota HILUX 后门锁和后门把手 — Figure 6756
Toyota HILUX EPC diagram 6756, 后门锁和后门把手, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69230 | Right rear door outer handle assembly | 69210-89108 · 69210-89109 |
| 69230B | Cushion pad (for rear door outer handle) | 90541-03021 |
| 69240 | Left rear door outer handle assembly | 69220-89108 · 69220-89109 |
| 69330 | Right rear door door lock assembly | 69330-89103 |
| 69340 | Left rear door lock assembly | 69340-89103 |
| 69377B | Rear door lock lever buckle | 69759-20060 · 69759-20070 |
| 69420 | Rear door lock plate assembly | 69410-87001 |
| 69703 | Right rear door lock control link sub-assembly | 69703-89103 |
| 69704 | Left rear door lock control link sub-assembly | 69704-89102 |
| 69730 | Right rear door opening control linkage assembly | 69713-89104 |
| 69735 | Rear door lock link silencer | 69759-89102 |
| 69740 | Left rear door opening control linkage assembly | 69714-89104 |
| 69749B | Rear door lock link clamp | 69749-20010 |
| 69751B | Door lock fixings (for rear doors) | 69751-20040 |
| 69759F | Rear door lock control link buckle | 69759-20040 · 69759-20050 · 69759-30030 |
