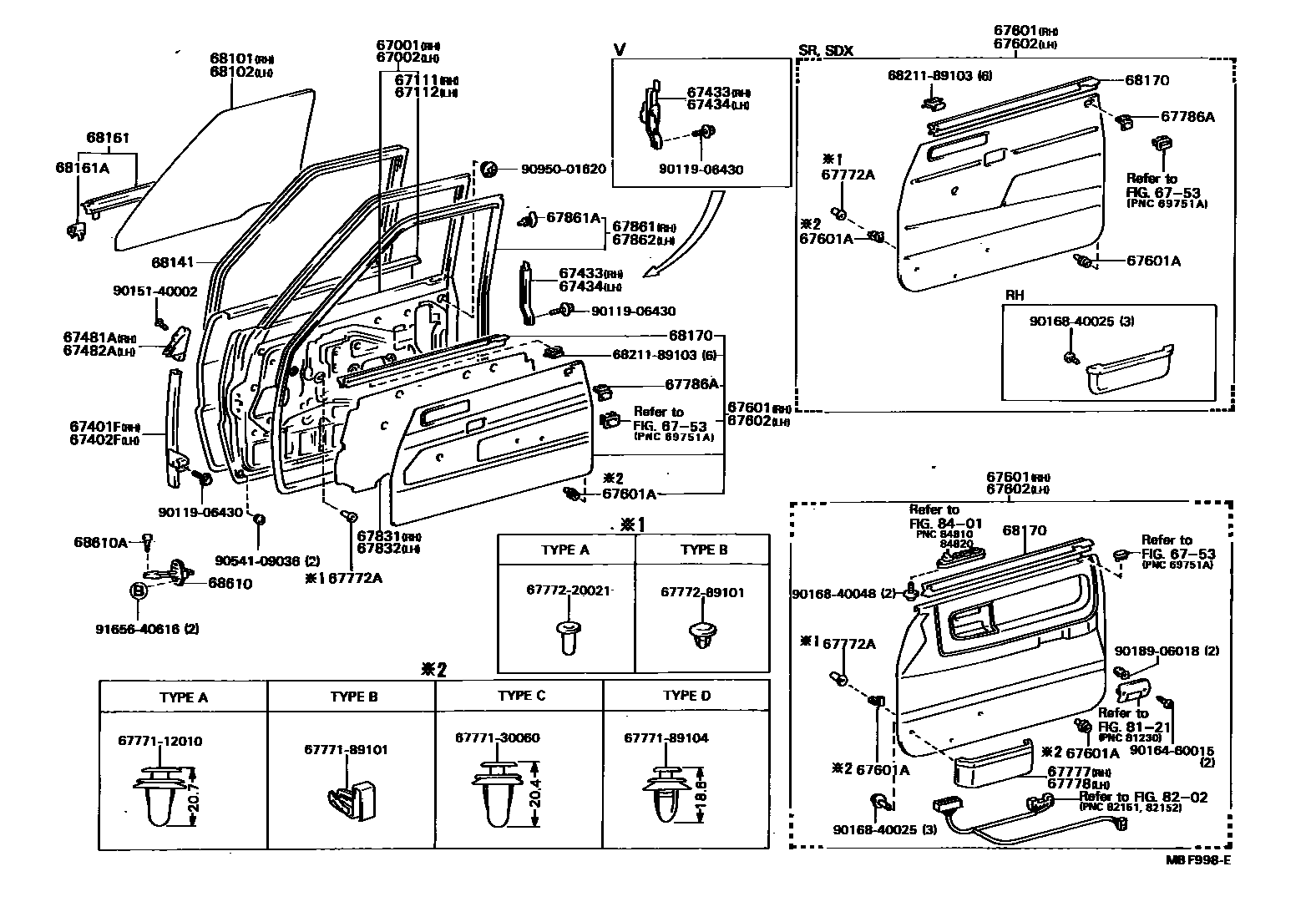

Toyota HILUX 前门板和前门玻璃 — Figure 6751
Toyota HILUX EPC diagram 6751, 前门板和前门玻璃, with 1 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-89130 · 67001-89131 · 67001-89161 · 67001-89163 · 67001-89188 |
| 67002 | Left front door panel sub-assembly | 67002-89132 · 67002-89133 · 67002-89162 · 67002-89168 · 67002-89188 · 67002-89189 |
| 67111 | Outer right front door panel | 67111-89116 · 67111-89126 |
| 67112 | Outer left front door panel | 67112-89121 · 67112-89130 |
| 67401F | Right front door front lower door frame sub-assembly | 67401-89107 |
| 67402F | Left front door front lower door frame sub-assembly | 67402-89107 |
| 67433 | Right front door window rear lower frame | 67403-89101 · 67403-89102 · 67433-89103 |
| 67434 | Left front door window rear lower frame | 67404-89101 · 67404-89102 · 67434-89103 |
| 67481A | Right front door front lower door frame seal | 67481-89106 |
| 67482A | Left front door front lower door frame seal | 67482-89102 |
| 67601A | Fixings (for front door trim) | 67771-12010 · 67771-30060 · 67771-89101 · 67771-89104 |
| 67772A | Front door trim panel fixing cover | 67772-20021 · 67772-89101 |
| 67786A | Door lock button collar fastener (for front doors) | 67786-10010 |
| 67831 | Right front door access hole cover | 67831-89106 · 67831-89107 · 67831-89115 |
| 67832 | Left front door access hole cover | 67831-89106 · 67831-89107 · 67831-89109 · 67831-89115 |
| 67861 | Right front door seal | 67861-89105 |
| 67861A | Fixing piece (for front door sealing strip) | 67867-89103 · 67868-89101 |
| 67862 | Left front door seal | 67862-89104 |
| 68101 | Right front door glass sub-assembly | 68111-89112 · 68111-89113 · 68111-89114 |
| 68102 | Left front door glass sub-assembly | 68112-89111 · 68112-89112 · 68112-89113 |
| 68141 | Front door glass lift chute | 68141-89107 |
| 68161 | Front door glass outer seal strip | 68160-89108 · 68160-89109 · 68160-89114 · 68160-89115 |
| 68161A | Catch (for front door glass outer sealing strip) | 68211-89104 · 68211-89105 |
| 68170 | Front door glass inner sealing strip assembly | 68170-89115 · 68171-89121 · 68171-89125 · 68172-89106 · 68172-89110 · 68220-89103 |
| 68610 | Front door opening limiter assembly | 68610-89102 |
| 68610A | Pin (for front door opening limiter) | 68617-22010 · 68617-90A00 |
