Toyota HILUX 后车身侧面板 — Figure 6554

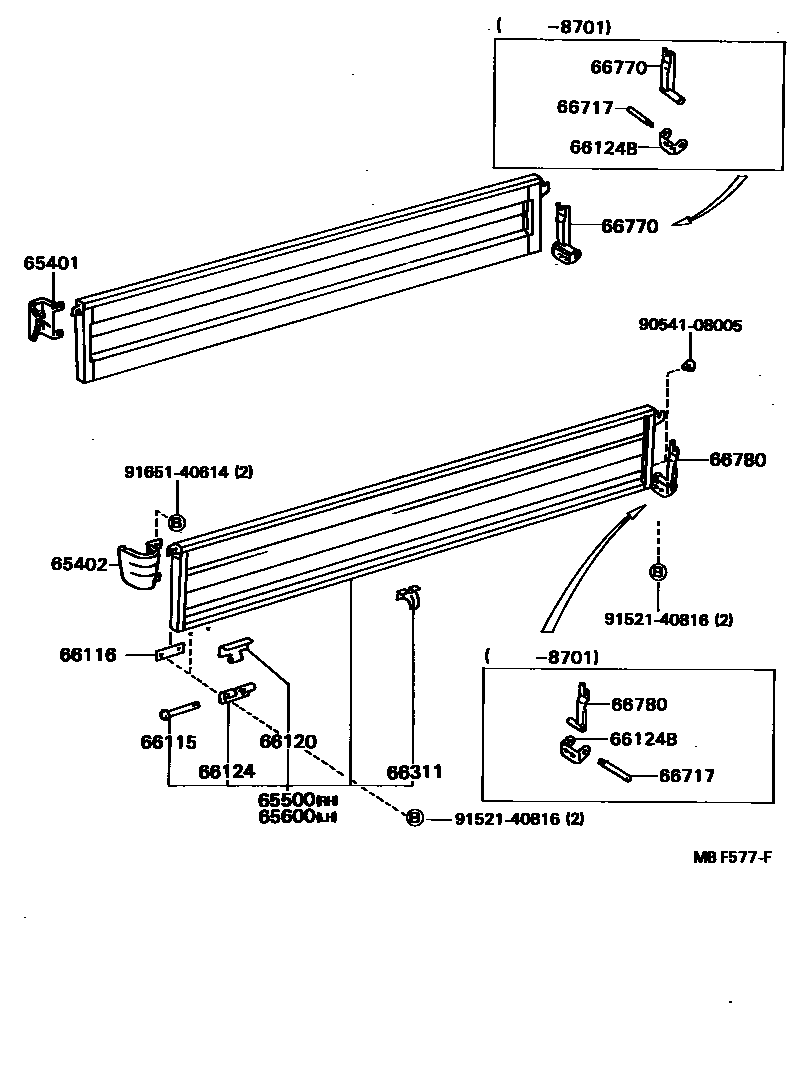

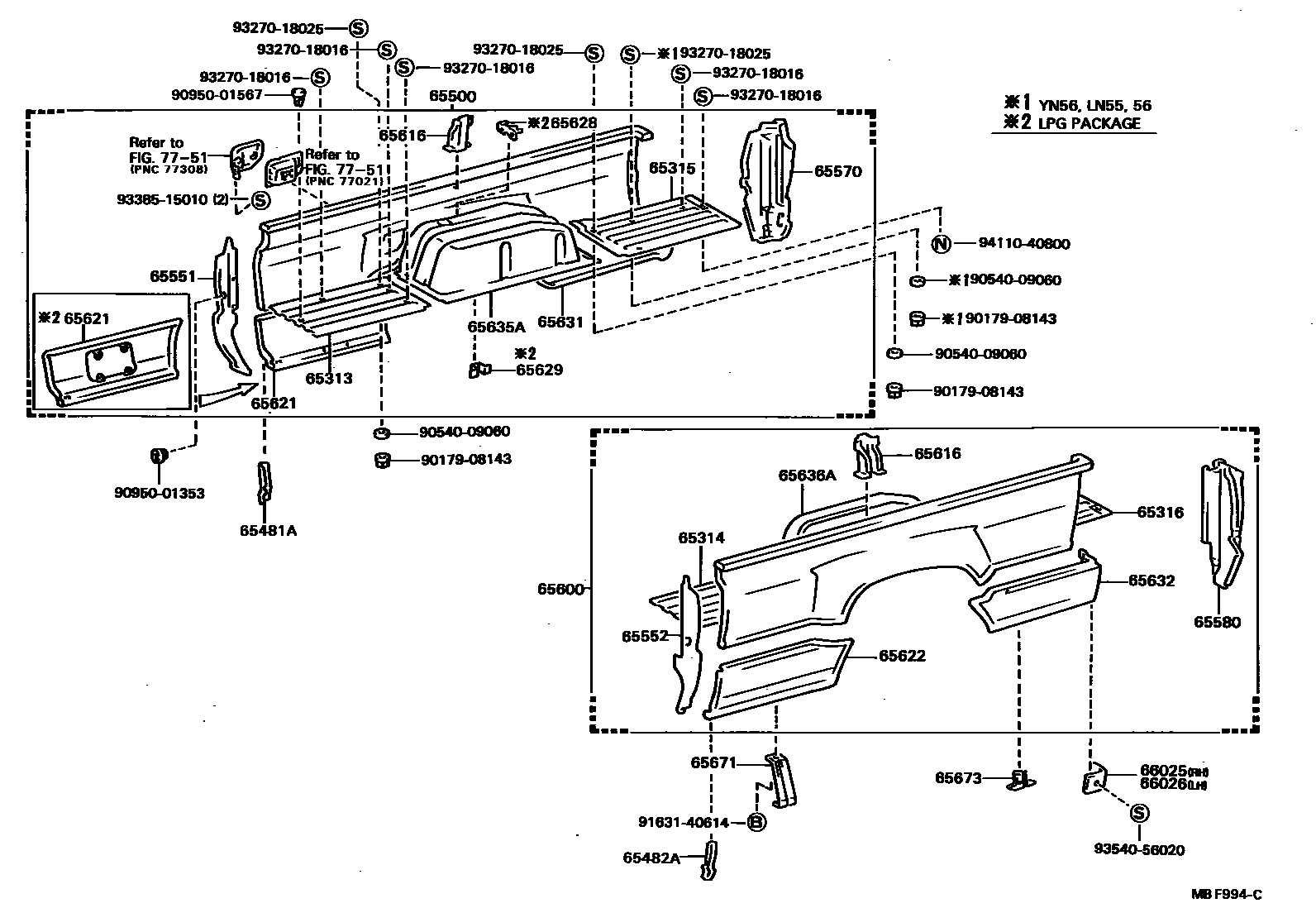

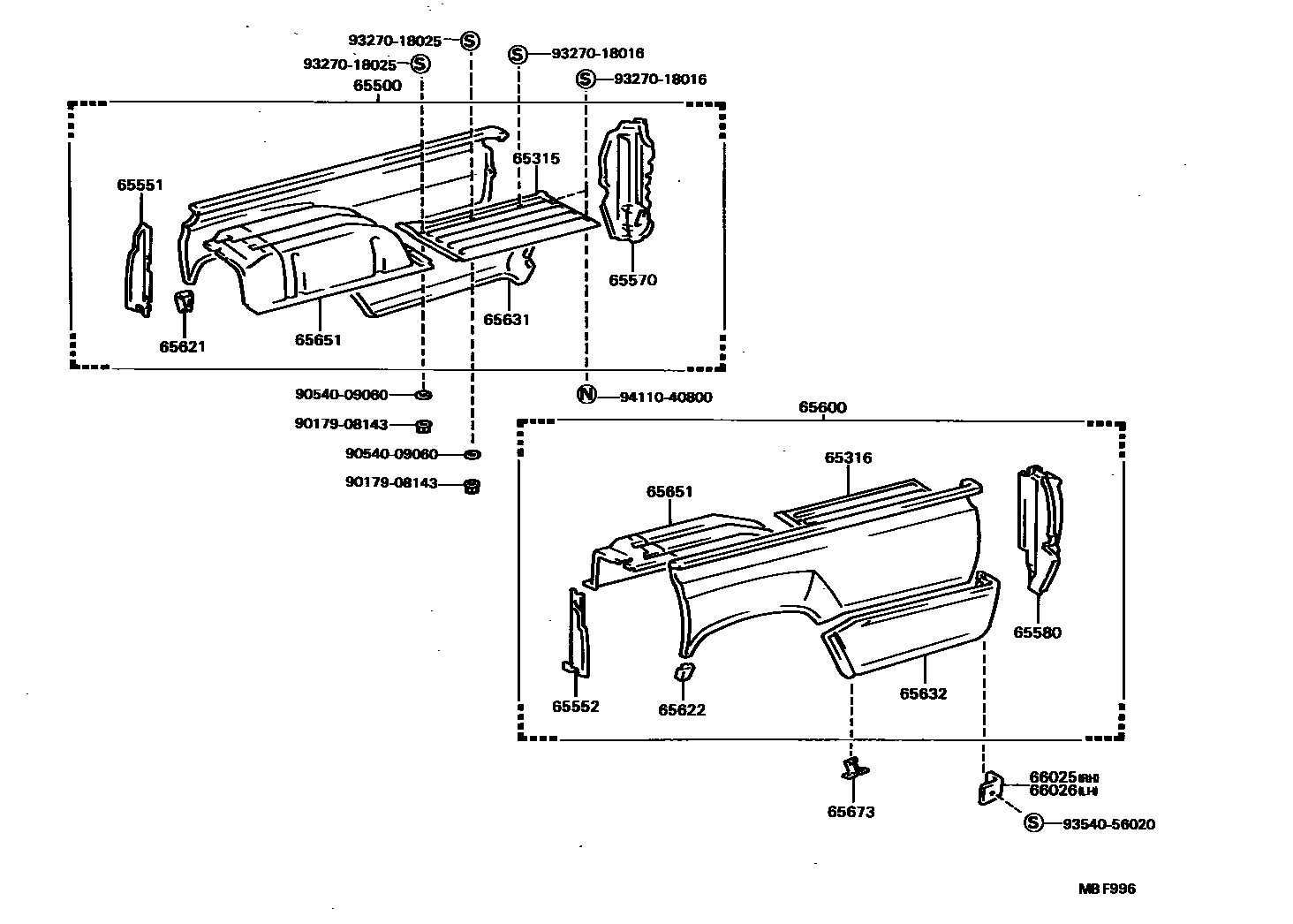

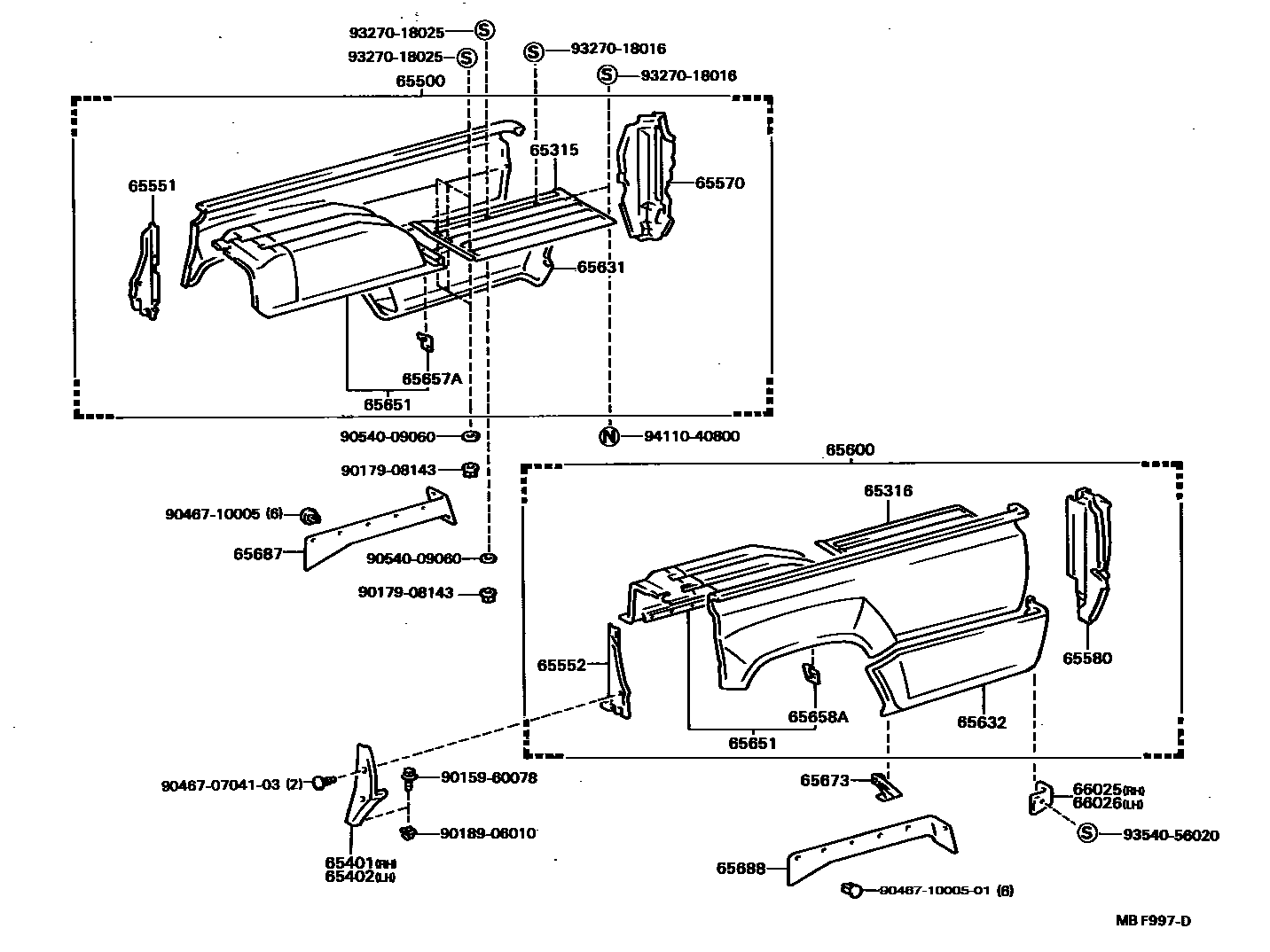

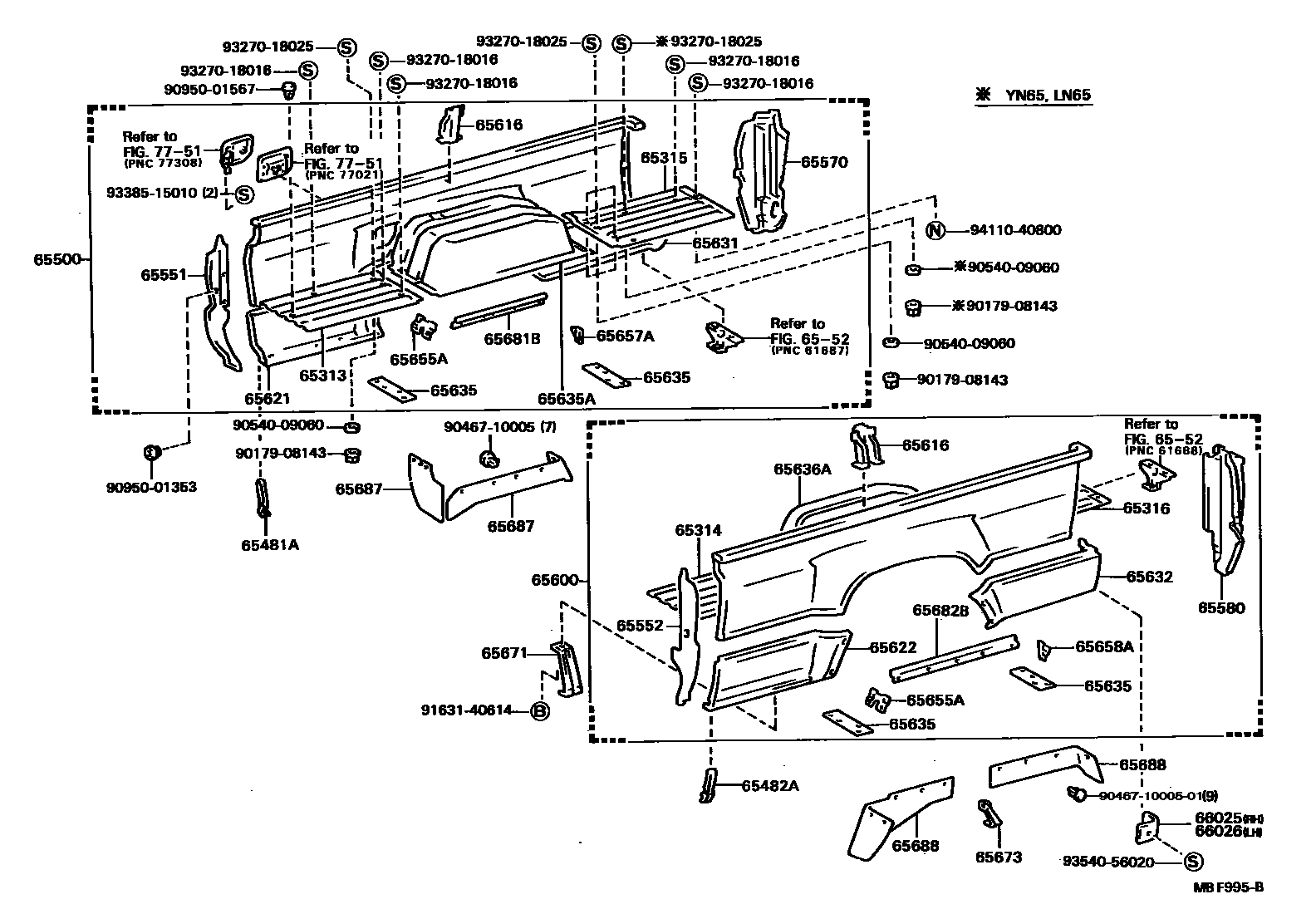

Toyota HILUX EPC diagram 6554, 后车身侧面板, with 5 images and 45 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65313 | Front floor right corner panel | 65313-89112 · 65313-89114 · 65313-89116 |
| 65314 | Front floor left corner panel | 65314-89114 · 65314-89116 · 65314-89118 |
| 65315 | Rear floor right corner panel | 65315-89112 · 65315-89113 · 65315-89115 · 65315-89116 · 65315-89118 · 65315-89119 · 65315-89120 |
| 65316 | Rear floor left corner panel | 65316-89112 · 65316-89113 · 65316-89115 · 65316-89116 · 65316-89118 · 65316-89119 · 65316-89120 |
| 65401 | Right front corner protector | 65481-89104 · 65481-89105 |
| 65402 | Left front corner protector | 65482-89101 · 65482-89102 |
| 65481A | Right front corner protector | 65481-89108 |
| 65482A | Left front corner protector | 65482-89105 |
| 65500 | Right rear body side panel assembly | 65500-89162 · 65500-89177 · 65500-89178 · 65500-89193 · 65500-89205 · 65500-89209 · 65500-89226 · 65500-89230 |
| 65551 | Right front end pillar inner panel | 65551-89108 · 65551-89110 · 65551-89111 · 65551-89112 · 65551-89113 |
| 65552 | Left front end pillar inner panel | 65552-89108 · 65552-89110 · 65552-89111 · 65552-89112 · 65552-89113 |
| 65570 | Right side panel rear end column assembly | 65505-89101 · 65505-89102 |
| 65580 | Left side panel rear end column assembly | 65506-89101 · 65506-89102 |
| 65600 | Left rear body side panel assembly | 65600-89165 · 65600-89166 · 65600-89178 · 65600-89179 · 65600-89192 · 65600-89200 · 65600-89203 · 65600-89207 |
| 65616 | Side panel reinforcement | 65545-89101 · 65545-89102 |
| 65621 | Right front side panel skirt | 65621-89113 · 65621-89115 · 65621-89117 · 65621-89126 · 65621-89127 |
| 65622 | Left front side panel skirt | 65622-89113 · 65622-89115 · 65622-89117 · 65622-89126 · 65622-89127 |
| 65628 | Fuel inlet hose upper protective bracket | 65628-89105 |
| 65629 | Fuel inlet hose side protection bracket | 65629-89105 |
| 65631 | Right rear side panel skirt | 65623-89110 · 65623-89113 · 65623-89116 · 65623-89119 |
| 65632 | Left rear side panel skirt | 65624-89110 · 65624-89113 · 65624-89117 · 65624-89120 |
| 65635 | rear wheel housing | 65631-89108 · 65635-89107 |
| 65635A | Right rear wheel housing panel | 65635-89104 · 65635-89105 |
| 65636A | Left rear wheel housing panel | 65636-89104 · 65636-89105 |
| 65651 | wheel arch plate | 65605-89108 · 65605-89109 · 65606-89106 · 65606-89107 |
| 65655A | Front wheel housing seal bracket | 65655-89101 |
| 65657A | Right rear wheel house seal bracket | 65657-89101 |
| 65658A | Left rear wheel house seal bracket | 65658-89102 |
| 65671 | Front side panel skirt bracket | 65671-89105 |
| 65673 | Rear side panel skirt bracket | 65608-89104 · 65609-89102 · 65673-89104 · 65674-89104 |
| 65681B | Right wheel housing seal bracket | 65681-89102 |
| 65682B | Left-hand wheel arch seal bracket | 65682-89101 |
| 65687 | Right wheel fender | 65675-89109 · 65677-89103 · 65677-89106 |
| 65688 | Left wheel fender | 65676-89102 · 65677-89106 · 65678-89107 |
| 66025 | Right rear body rubber buffer block sub-assembly | 75916-89102 |
| 66026 | Left rear body rubber buffer block sub-assembly | 75918-89102 |
| 66115 | Railing hinge pin | 66113-87402 |
| 66116 | Railing hinge lower fixings | 66115-95700 · 66115-95701 |
| 66120 | Side rail hinge assembly | 65535-87401 |
| 66124 | Side rail recessed hinges | 66112-95700 |
| 66124B | Side rail recessed hinges | 66125-87401 · 66126-87401 |
| 66311 | rope hook | 66311-87401 |
| 66717 | Siderail fixing pin | 66717-87401 |
| 66770 | Right side fence bracket sub-assembly | 66105-87402 · 66130-95700 |
| 66780 | Left side fence bracket sub-assembly | 66106-87401 · 66140-95700 |
