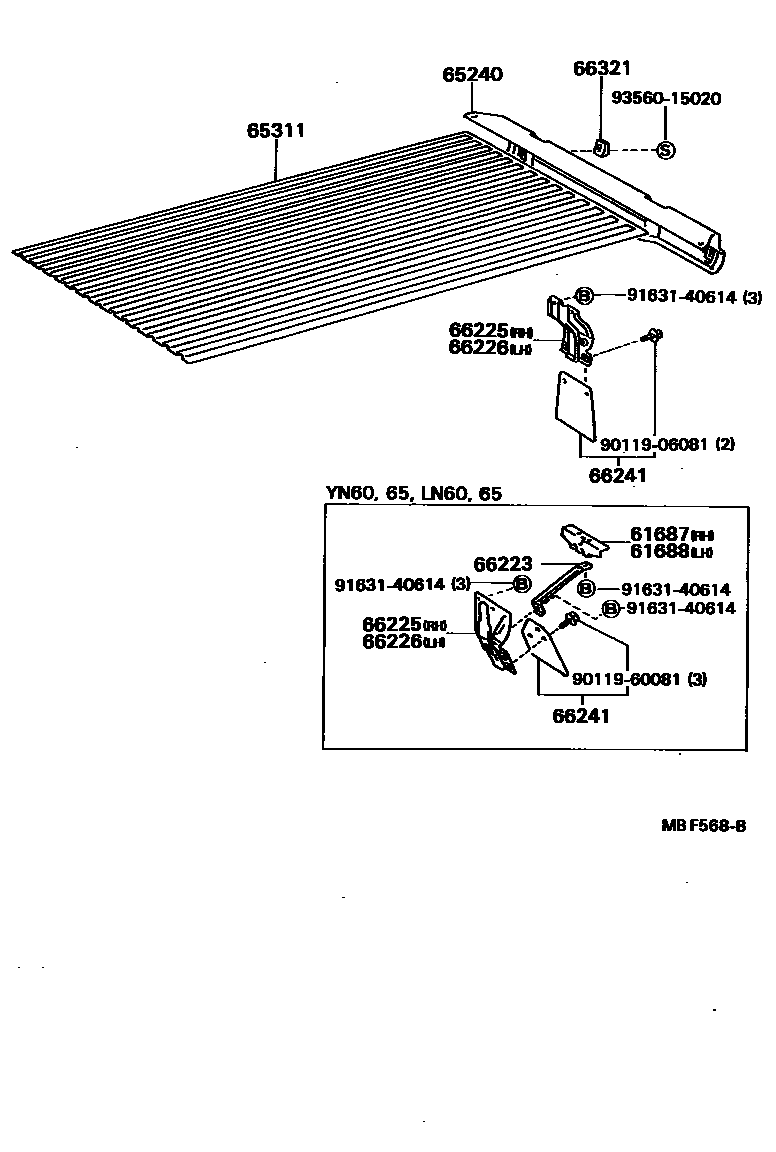

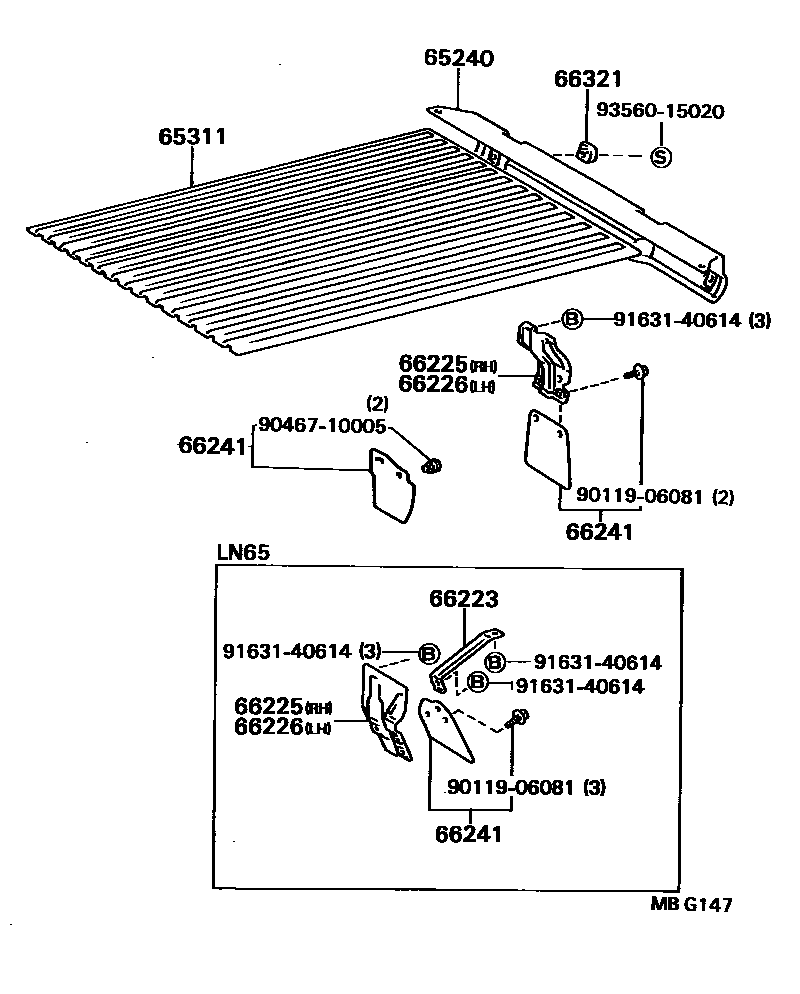

Toyota HILUX 后车身地板和翼子板 — Figure 6552
Toyota HILUX EPC diagram 6552, 后车身地板和翼子板, with 4 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61687 | Right rear fender bracket | 61687-89101 · 61687-89104 |
| 61688 | Left rear fender bracket | 61687-89101 · 61688-89101 |
| 65240 | Rear body floor cross member | 65240-89116 · 65240-89126 · 65240-89127 · 65240-95701 |
| 65311 | central floor | 65311-89116 · 65311-89118 · 65311-89120 |
| 65317 | Floor right panel | 65037-89101 · 65037-89102 |
| 65318 | Floor left panel | 65038-89101 · 65038-89102 |
| 65349 | Floor side fender | 65349-95701 |
| 66010 | Rear body right rear fender assembly | 66210-89101 · 66210-89102 |
| 66020 | Rear body left rear fender assembly | 66220-89101 · 66220-89102 |
| 66210 | Rear body right front fender assembly | 66010-89101 · 66010-89102 |
| 66220 | Rear body left front fender assembly | 66020-89101 · 66020-89102 |
| 66223 | Rear fender rear panel bracket | 66299-89101 |
| 66225 | Rear fender right bracket | 76647-89101 · 76647-89102 |
| 66226 | Rear fender left bracket | 76648-89101 · 76648-89102 |
| 66241 | rear fender | 66241-39015 · 66241-39016 · 76625-39075 · 76625-39095 · 76626-39075 |
| 66321 | Railing rubber buffer block | 52208-89101 · 65739-89101 · 65739-89102 · 66303-87403 |
