Toyota HILUX 后通风装置和车顶通风装置 — Figure 6155

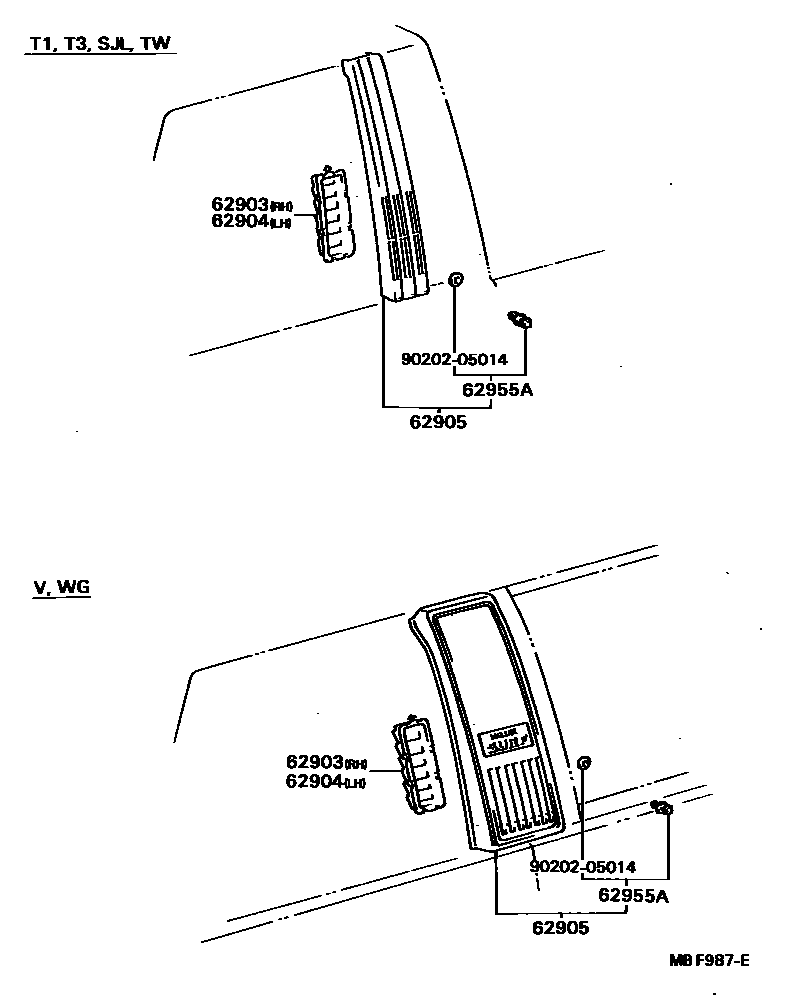

Toyota HILUX EPC diagram 6155, 后通风装置和车顶通风装置, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62903 | Right side ventilation duct sub-assembly | 62903-89101 |
| 62904 | Left side ventilation duct sub-assembly | 62903-89101 |
| 62905 | Side ventilation grilles | 62905-89101 · 62905-89103 · 62905-89106 · 62905-89107 · 62905-89110 · 62906-89101 · 62906-89103 · 62906-89106 · 62906-89107 · 62906-89110 |
| 62955A | Side ventilation grille fixings | 62955-89101 · 62955-91C01 |
