Toyota HILUX 天窗板和背板 — Figure 6153

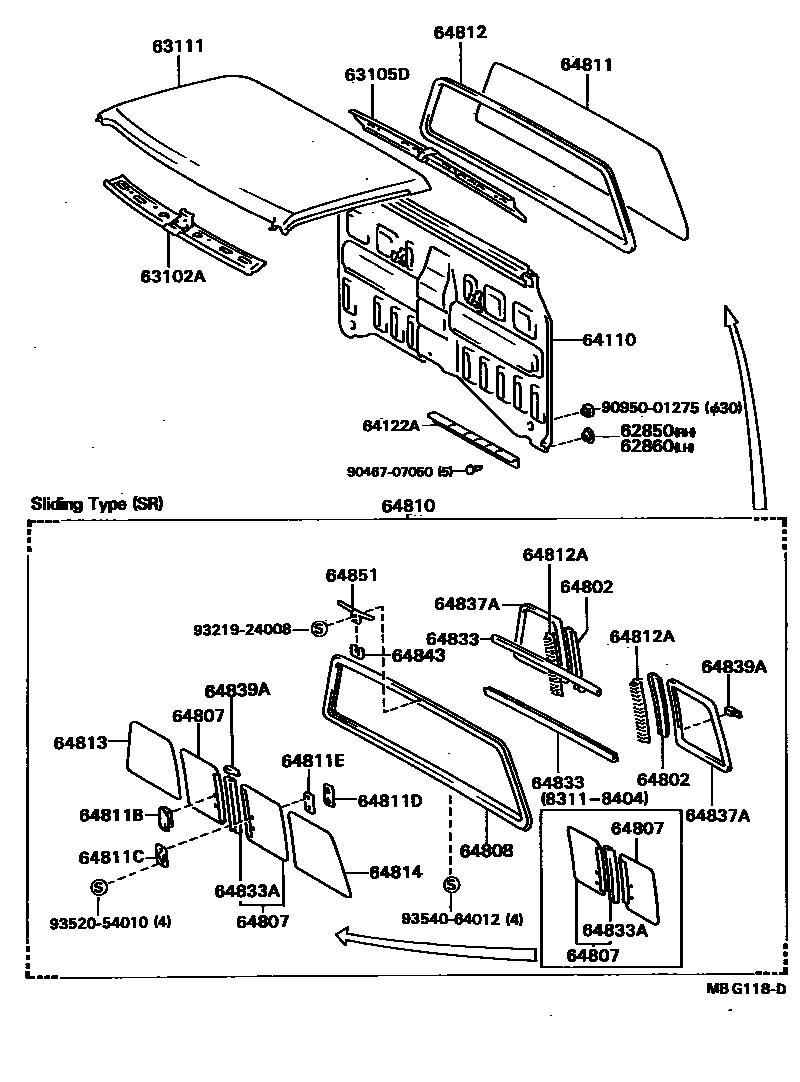

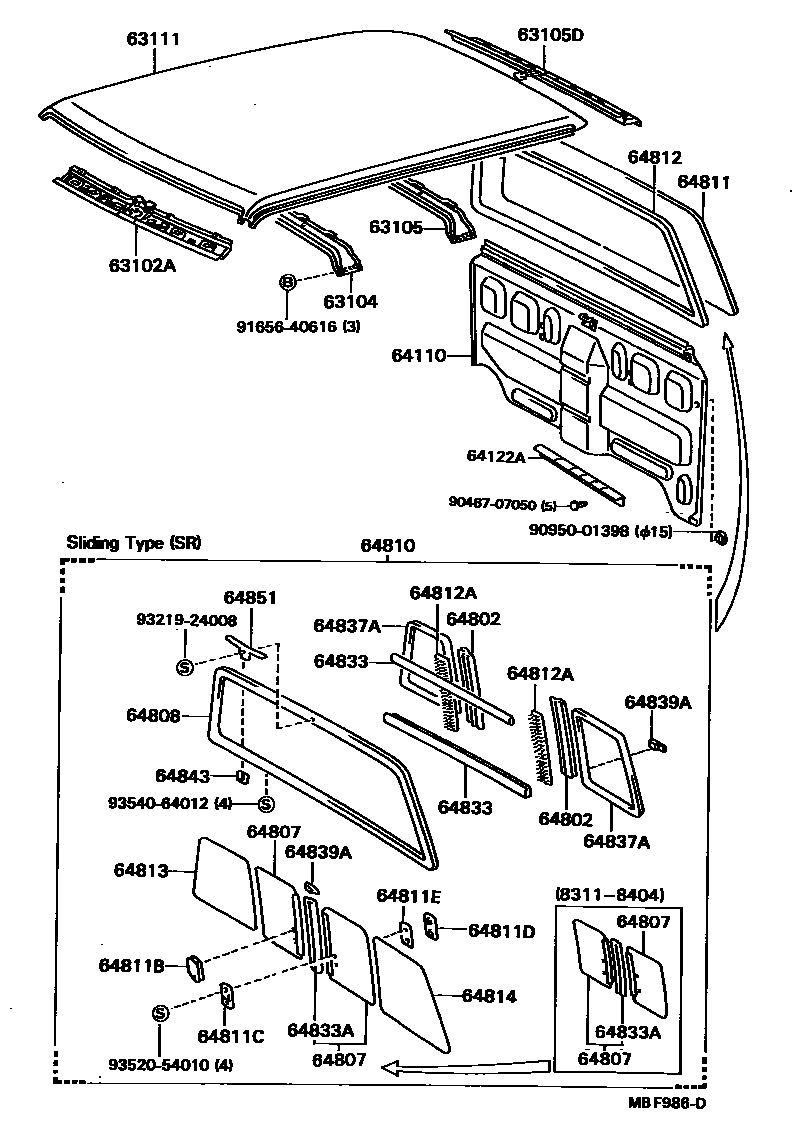

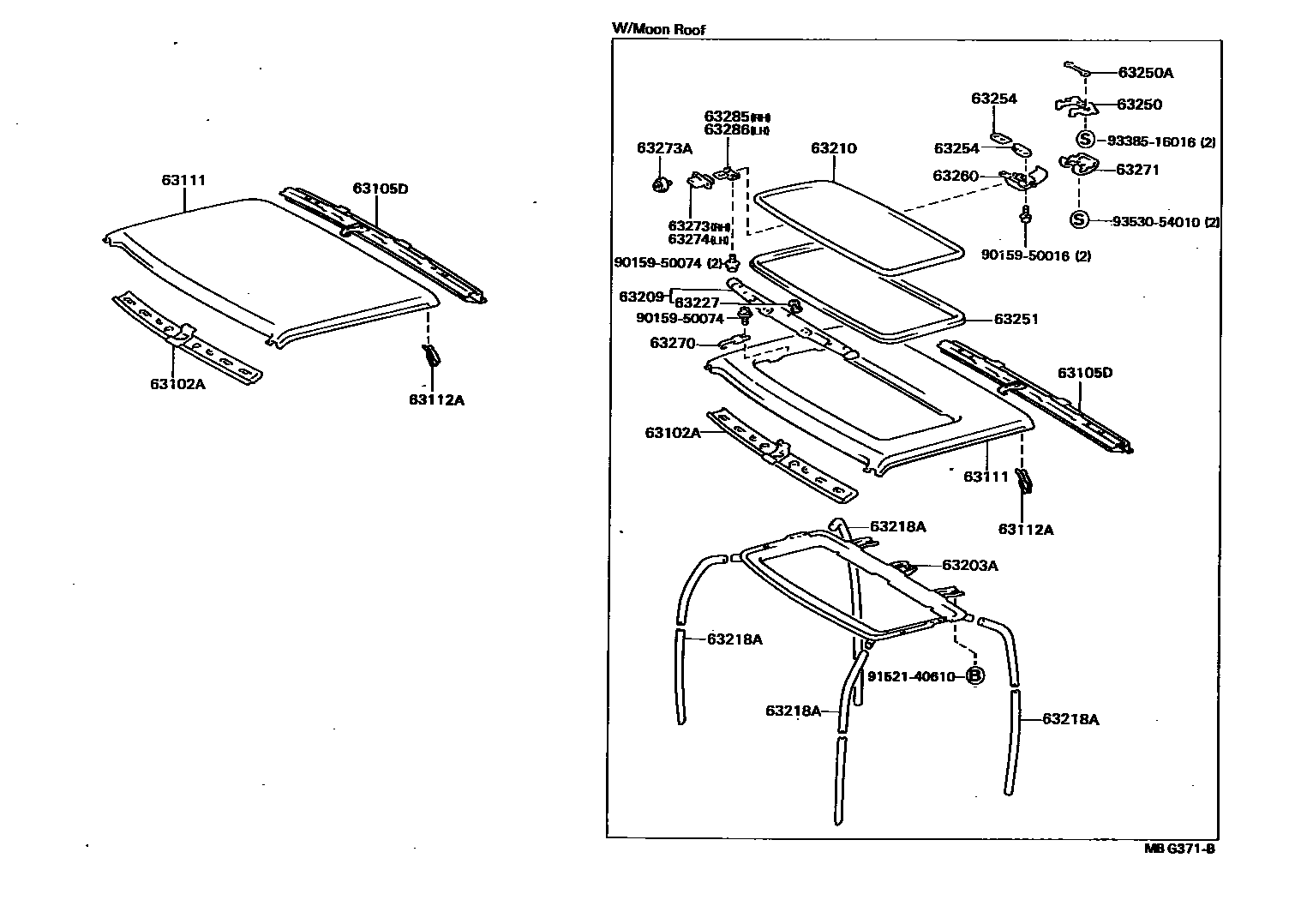

Toyota HILUX EPC diagram 6153, 天窗板和背板, with 3 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62850 | Right compartment pressure reducing valve assembly | 62850-89101 |
| 62860 | Left compartment pressure reducing valve assembly | 62850-89101 |
| 63102A | Windshield roof sub-assembly | 63102-89102 · 63102-89103 |
| 63104 | Center roof panel reinforcement sub-assembly | 63103-89104 · 63103-89105 |
| 63105 | Rear roof panel reinforcement sub-assembly | 63141-89103 |
| 63105D | Rear window upper frame sub-assembly | 63105-89101 · 63105-89103 · 63105-89104 · 63105-89105 |
| 63111 | roof panel | 63111-89109 · 63111-89115 · 63111-89116 · 63111-89117 |
| 63112A | No. 2 roof panel | 63113-89101 · 63114-89101 |
| 63203A | Sliding sunroof or removable sunroof frame sub-assembly | 63203-89105 |
| 63209 | Roof deflector sub-assembly | 63209-89102 |
| 63210 | Sliding sunroof or removable sunroof glass sub-assembly | 63201-89104 |
| 63218A | Hoses (for sliding or removable sunroof drainage) | 63249-89101 · 63249-89102 · 63249-89103 |
| 63227 | Roof deflector clip | 63227-12011 |
| 63250 | Detachable sunroof lock base assembly | 63250-12010 |
| 63250A | Removable sunroof lock base spacer | 63277-89101 |
| 63251 | Sliding skylight panels or removable skylight seals | 63252-89103 |
| 63254 | Removable sunroof glass inner rear fixing bracket | 63254-89103 · 63254-89104 |
| 63270 | Removable sunroof right auxiliary hook assembly | 63280-89101 |
| 63273 | Removable sunroof right hinge shell | 63273-12010 |
| 63273A | Removable sunroof hinge housing bolts | 63297-12010 |
| 63274 | Removable sunroof left hinge shell | 63274-12010 |
| 63285 | Removable sunroof hinge, right | 63285-89101 · 63285-89102 |
| 63286 | Removable sunroof hinge, left | 63286-89101 · 63286-89102 |
| 64110 | Front body back panel assembly | 64101-89121 · 64101-89124 · 64101-89128 |
| 64122A | Rear body dust baffle | 64122-95110 · 65457-89101 |
| 64802 | Rear window fixed frame sub-assembly | 64881-89104 |
| 64807 | Rear window sliding glass sub-assembly | 64807-89105 · 64807-89106 · 64807-89115 · 64807-89116 |
| 64808 | Rear window sliding glass channel sub-assembly | 64808-89103 |
| 64810 | Rear window assembly | 64810-89104 |
| 64811 | back window glass | 64811-89119 |
| 64811B | Rear window lock assembly | 69370-89102 |
| 64811C | Back window latch | 69374-89102 |
| 64811D | Rear window fixings | 69375-89102 |
| 64811E | Rear window lock seal | 69376-89102 |
| 64812 | No. 1 back window glass seal strip | 64812-89106 |
| 64812A | No. 2 rear window glass seal strip | 64834-89101 · 64837-89102 |
| 64813 | Back window right corner glass | 64813-89101 |
| 64814 | Back window left corner glass | 64814-89101 |
| 64833 | Back window groove sealing strip | 64833-89104 · 64833-89105 |
| 64833A | Center sealing strip of rear window trough | 64833-89106 · 64833-89110 |
| 64837A | Rear window corner seal strip | 64837-89101 |
| 64839A | Rear window seal | 64839-89102 · 64839-89103 · 64839-89104 |
| 64843 | Back window groove sealing strip | 64833-89109 |
| 64851 | Rear window sliding glass stop | 64851-89102 |
