Toyota HILUX 地板隔热垫 — Figure 5853

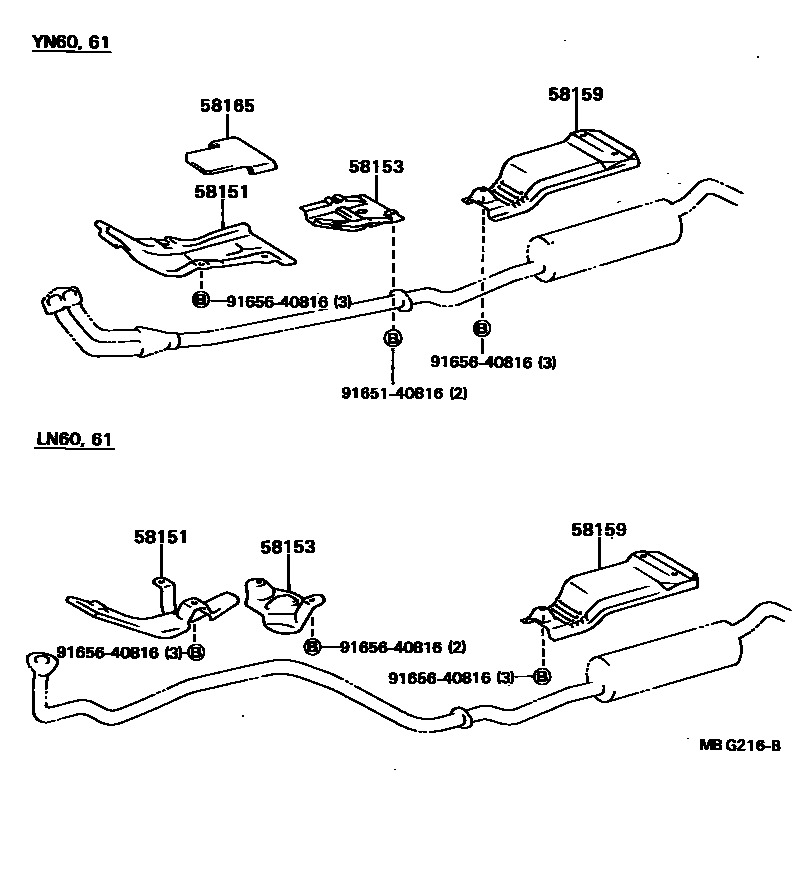

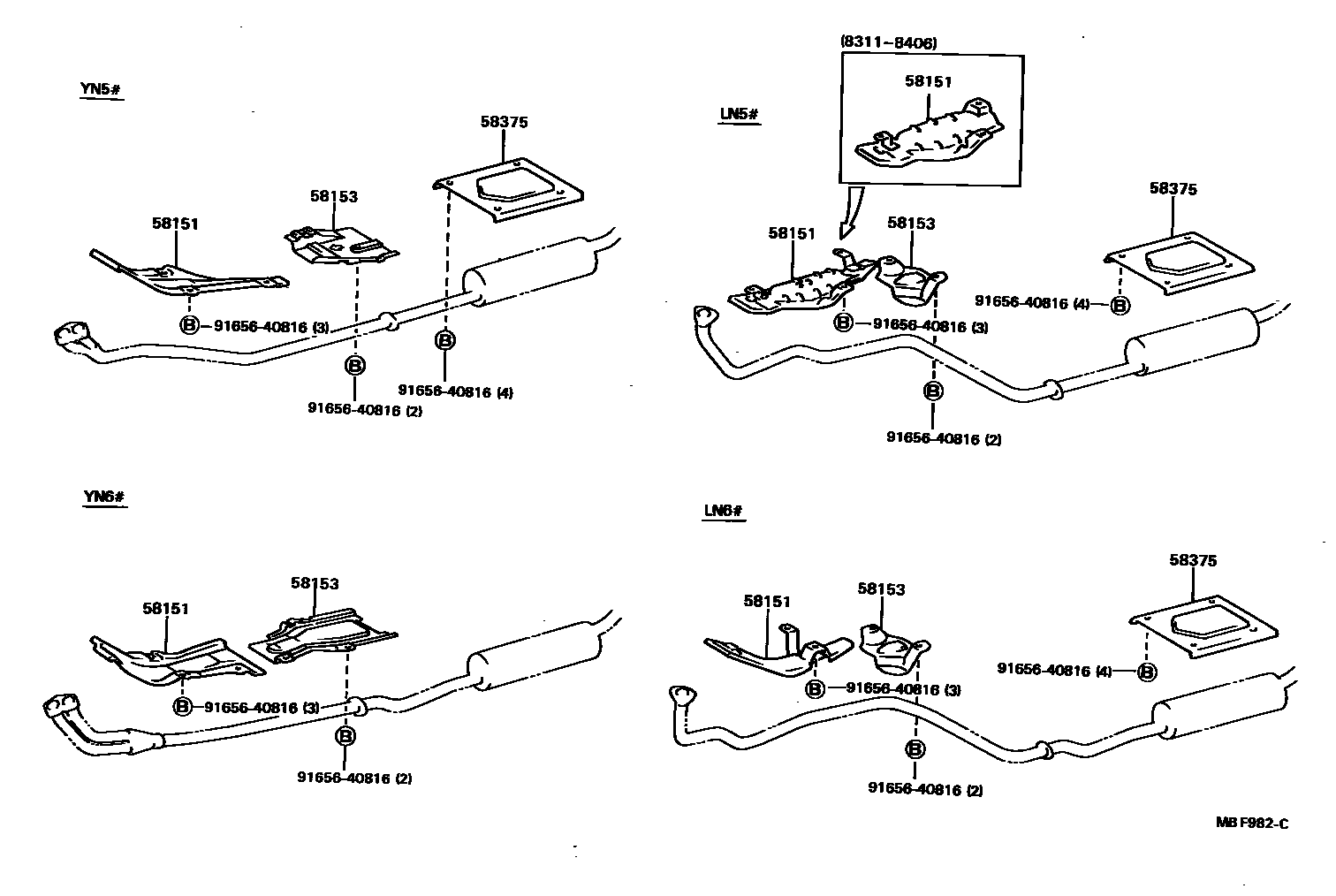

Toyota HILUX EPC diagram 5853, 地板隔热垫, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58151 | Front floor insulation mat No. 1 | 58041-89104 · 58041-89105 · 58041-89106 · 58151-89102 · 58151-89106 · 58151-89108 · 58151-89109 |
| 58153 | Front floor insulation mat No. 2 | 58042-89101 · 58153-89104 · 58153-89105 · 58153-89106 · 58153-89107 · 58153-89108 |
| 58159 | Main muffler heat insulation pad | 58221-89104 · 58327-89105 |
| 58165 | Front Floor Insulator Pad No. 1 | 58165-89101 |
| 58375 | Rear Floor Insulating Mat No. 1 | 58322-89102 |
