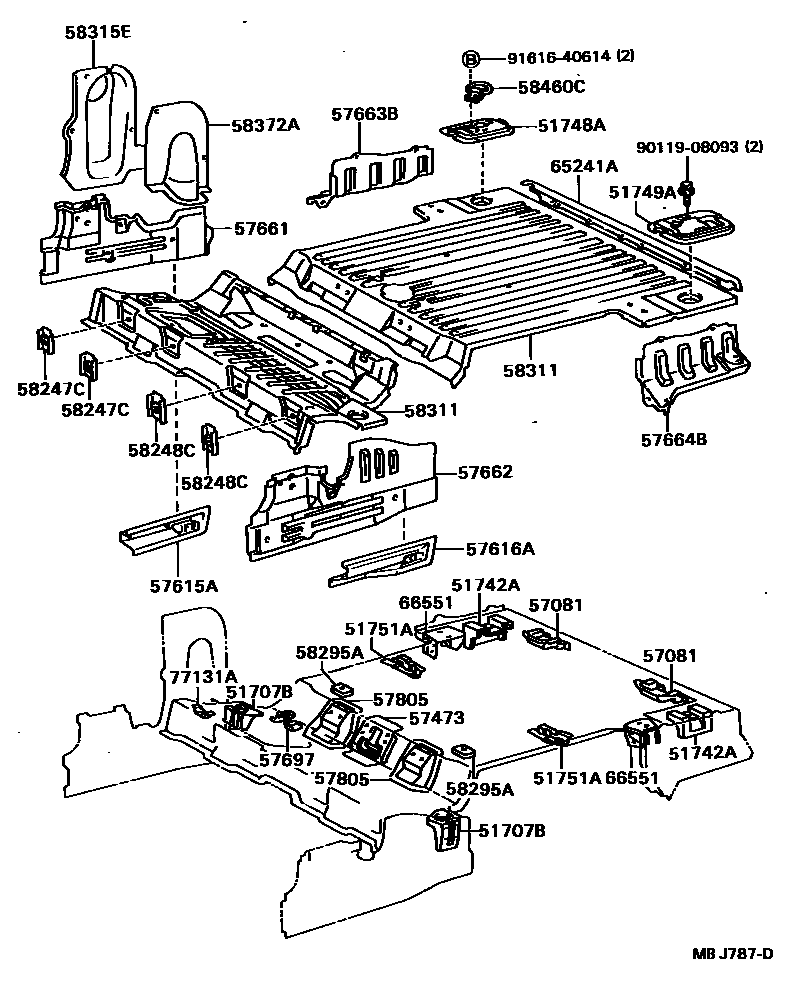

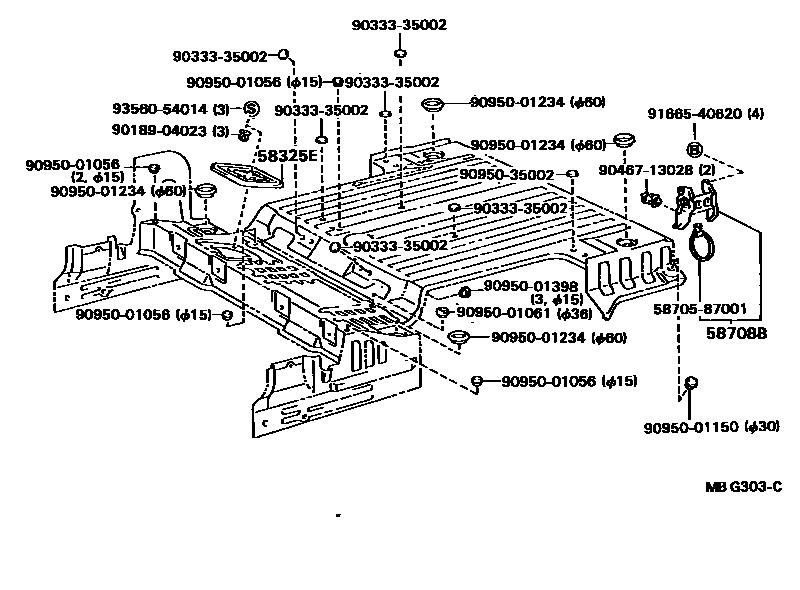

Toyota HILUX 后地板和后地板梁 — Figure 5852
Toyota HILUX EPC diagram 5852, 后地板和后地板梁, with 2 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51707B | Cab suspension No. 4 bracket sub-assembly | 51707-89103 · 51708-89103 |
| 51742A | Rear body No. 2 mounting bracket | 51742-89101 |
| 51748A | Right body No. 2 bracket corner plate | 51748-89101 |
| 51749A | Left body No. 2 bracket corner plate | 51749-89101 |
| 51751A | Body No. 1 Bracket | 51751-89101 · 51752-89101 |
| 57081 | Rear bumper mounting bracket sub-assembly | 57081-89101 |
| 57473 | Rear seat backrest hinge reinforcement | 57473-89101 |
| 57615A | Rear floor right rear longitudinal member | 57615-89101 |
| 57616A | Rear floor left rear longitudinal member | 57616-89101 |
| 57661 | Rear floor right front side panel | 57661-89101 |
| 57662 | Rear floor left front side panel | 57662-89101 |
| 57663B | Rear floor right rear side panel | 57663-89101 |
| 57664B | Rear floor left rear side panel | 57664-89101 |
| 57697 | Rear seat cushion fixings | 57697-89101 |
| 57805 | Seat belt anchor reinforcement sub-assembly | 57805-89101 |
| 58247C | Rear right seat cushion hinge reinforcement | 58247-89101 |
| 58248C | Rear left seat cushion hinge reinforcement | 58247-89101 |
| 58295A | Seat belt anchor floor reinforcement | 58295-89101 |
| 58311 | rear floor pan | 58211-89106 · 58311-89110 |
| 58315E | Rear floor right front side panel extension | 58315-89102 |
| 58325E | Rear floor access hole cover | 58325-89101 |
| 58372A | Fuel inlet pipe housing | 58372-89102 |
| 58460C | Luggage fixing belt lock assembly | 58460-89101 |
| 58708B | Jack bracket sub-assembly (for rear floor) | 58709-89101 · 58709-89102 |
| 65241A | rear cross member | 65241-89116 |
| 66551 | Rollover bar fixings | 66551-89101 |
| 77131A | Fuel inlet pipe bracket | 77131-89101 |
