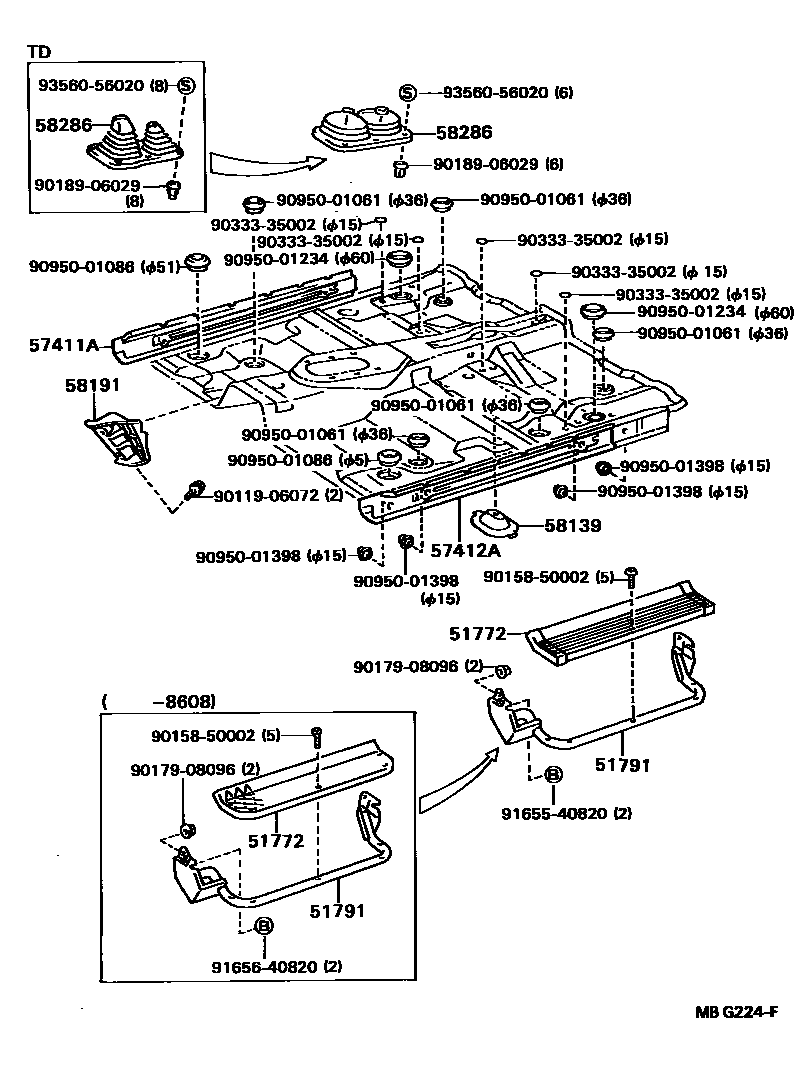

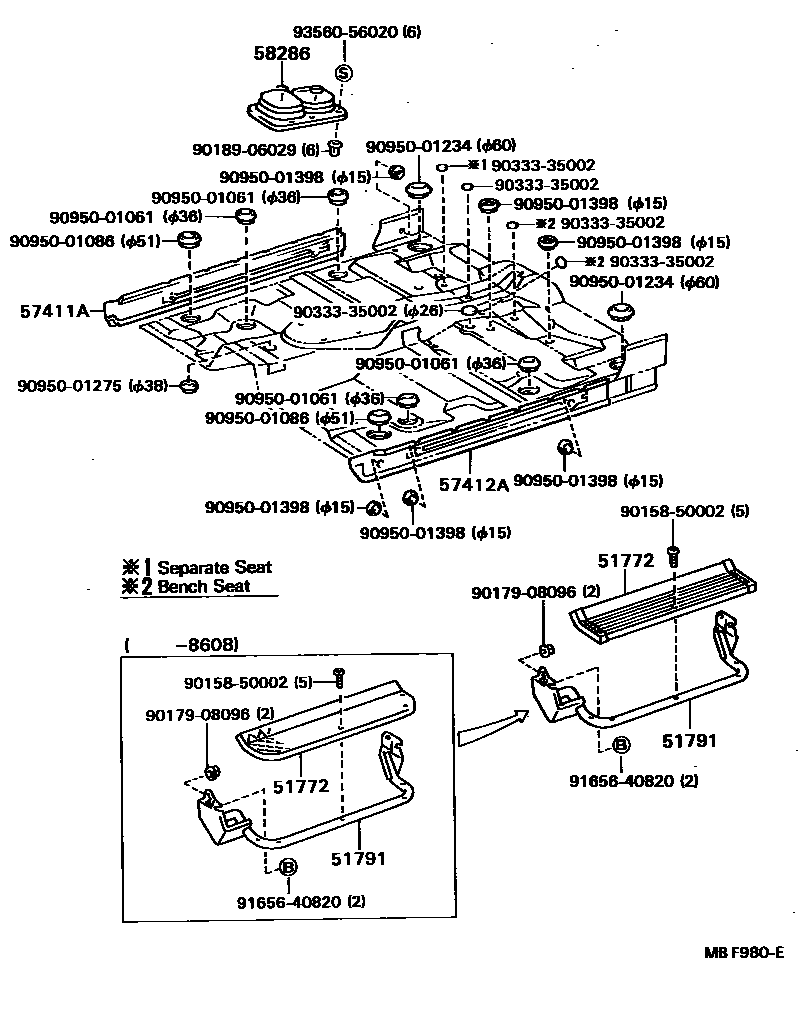

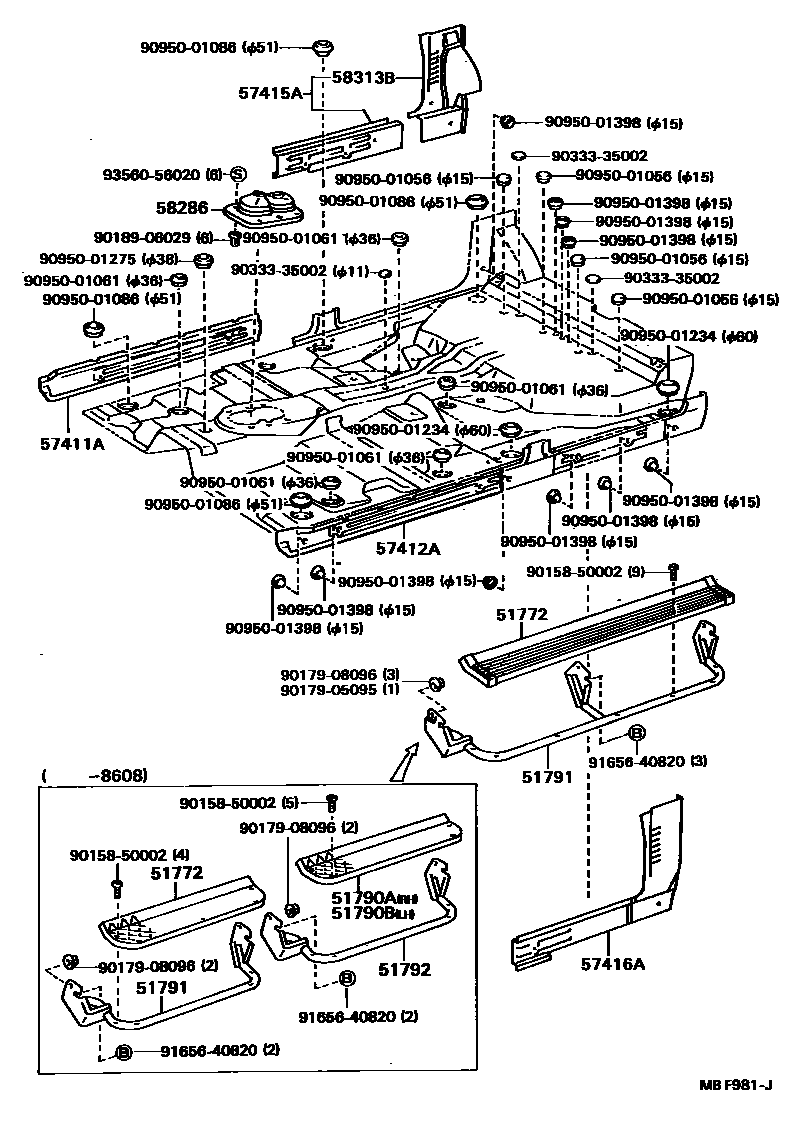

Toyota HILUX 前地板和前地板梁 — Figure 5851
Toyota HILUX EPC diagram 5851, 前地板和前地板梁, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51772 | running board | 51707-89104 · 51707-89105 · 51771-89101 · 51771-95111 |
| 51790A | Right rear running board lining sub-assembly | 51772-95111 |
| 51790B | Left rear running board lining sub-assembly | 51772-95111 |
| 51791 | running board stay | 51705-89104 · 51705-89109 · 51705-89110 · 51705-89117 · 51705-89118 · 51705-89119 · 51706-89104 · 51706-89109 · 51706-89110 · 51706-89117 · 51706-89118 · 51706-89119 |
| 51792 | No. 2 footboard lining stay | 51707-89102 · 51708-89102 |
| 57411A | Floor right inner longitudinal beam | 57411-89103 |
| 57412A | Floor left inner longitudinal beam | 57412-89105 |
| 57415A | Rear floor right longitudinal beam sub-assembly | 57047-89101 |
| 57416A | Rear floor left longitudinal beam sub-assembly | 57048-89101 |
| 58139 | Front floor rear side cover | 58139-89101 |
| 58191 | Front floor footrest | 58191-89102 |
| 58286 | No. 1 shift lever dust cover | 58280-89105 · 58280-89106 · 58280-89108 |
| 58313B | Rear floor right panel | 58313-89101 |
