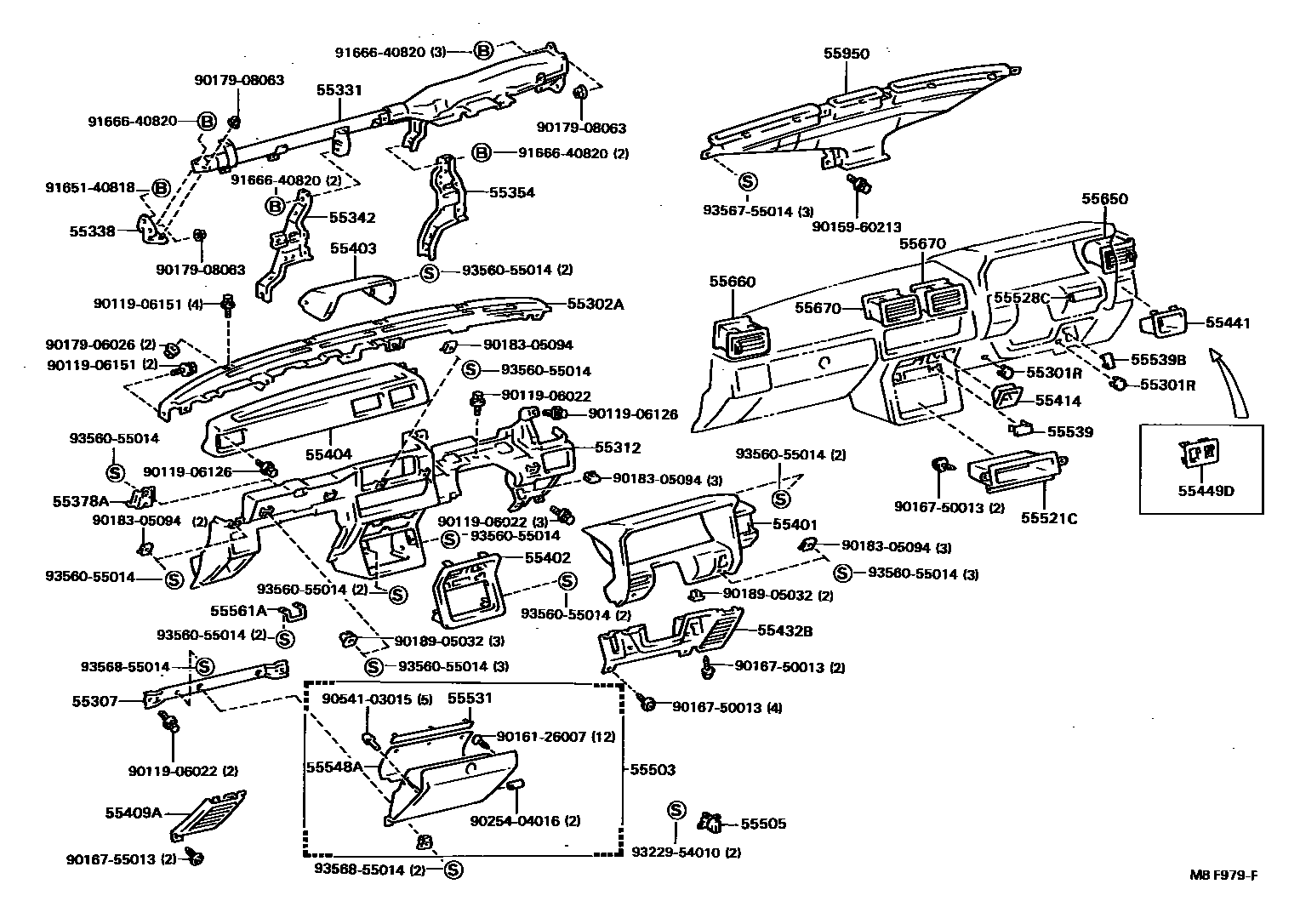

Toyota HILUX 仪表板和手套箱 — Figure 5551
Toyota HILUX EPC diagram 5551, 仪表板和手套箱, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55302A | Upper instrument panel sub-assembly | 55302-89101 · 55302-89103 |
| 55307 | Under-dashboard reinforcement sub-assembly | 55331-89110 |
| 55331 | Dashboard reinforcement | 55330-89106 · 55330-89107 · 55330-89113 · 55330-89114 |
| 55338 | Instrument panel reinforcement extension No. 1 | 55338-89102 |
| 55342 | Instrument panel bracket No. 2 | 55307-89103 · 55307-89106 |
| 55354 | Dashboard to floor bracket | 55306-89104 · 55351-89102 |
| 55378A | Glovebox lid lock mounting bracket | 55313-89104 |
| 55402 | Central instrument configuration panel sub-assembly | 55405-89152 |
| 55414 | Cigarette lighter hole frame | 55477-89103 |
| 55521C | stereo system hole cover | 55521-89101 |
| 55531 | glove box panel | 55531-89104 |
| 55548A | Dashboard hole cover | 55548-89103 |
| 55561A | Glove box lid lock | 55561-32010 · 55561-89103 |
| 55950 | Defroster nozzle assembly | 55950-89105 |
