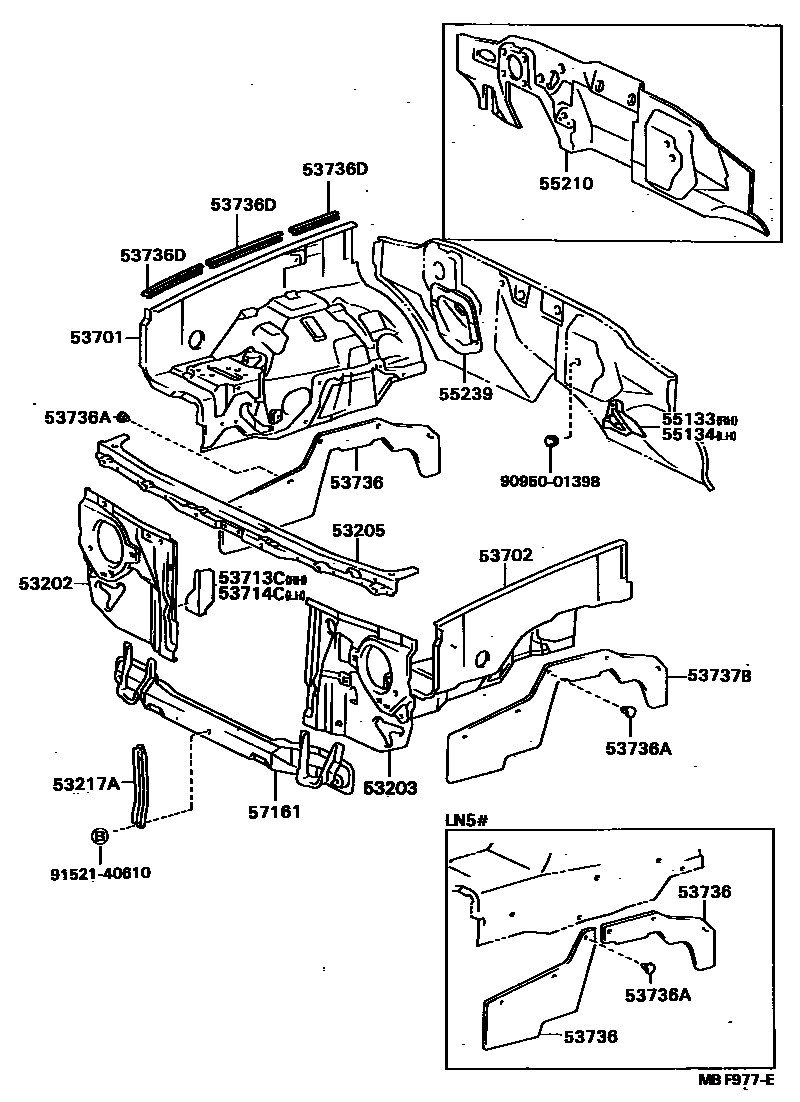

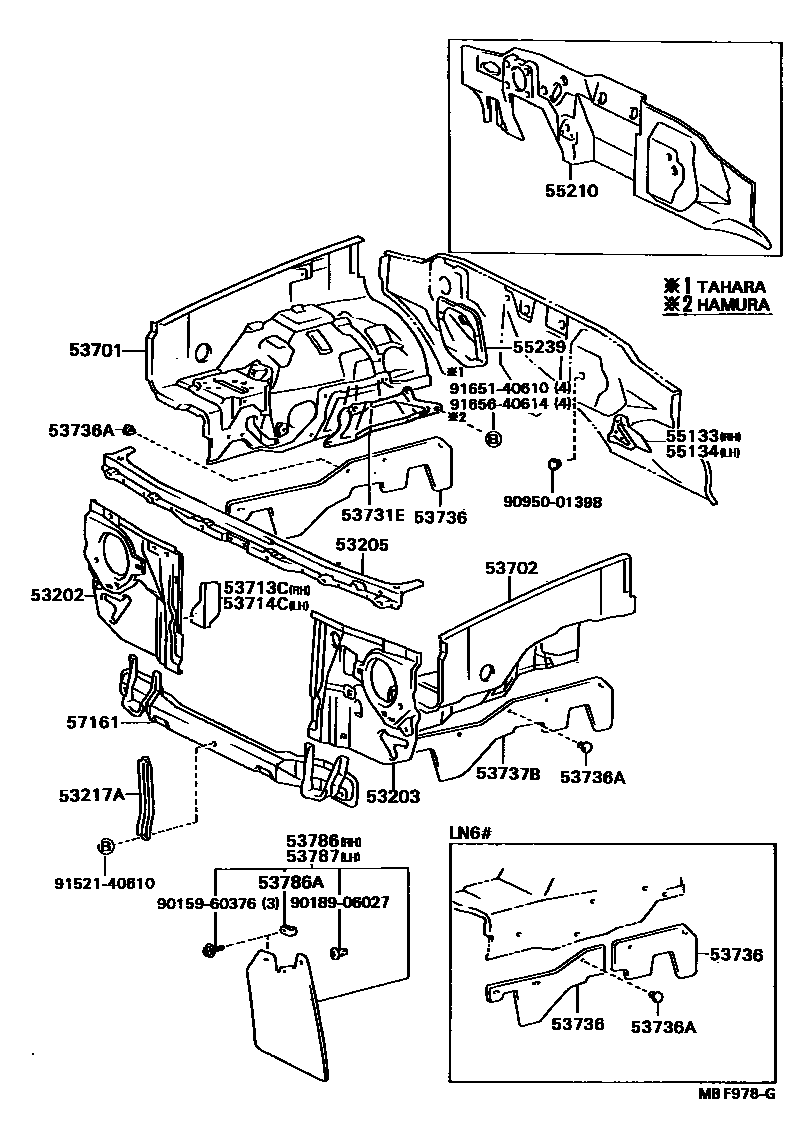

Toyota HILUX 前翼子板挡泥板和前围板 — Figure 5355
Toyota HILUX EPC diagram 5355, 前翼子板挡泥板和前围板, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53202 | Radiator right side bracket sub-assembly | 53211-89112 · 53211-89113 · 53211-89114 · 53211-89116 · 53211-89120 |
| 53203 | Radiator left bracket sub-assembly | 53212-89111 · 53212-89112 · 53212-89113 · 53212-89117 |
| 53205 | Radiator upper bracket sub-assembly | 53216-89105 · 53216-89106 · 53216-89107 |
| 53217A | engine cover lock bracket | 53217-89107 |
| 53701 | Right front fender fender sub-assembly | 53701-89128 · 53701-89130 · 53701-89134 · 53701-89137 · 53701-89144 · 53701-89145 · 53701-89148 · 53701-89149 · 53701-89172 · 53701-89173 · 53701-89174 · 53701-89185 · 53701-89193 · 53701-89195 |
| 53702 | Left front fender fender sub-assembly | 53702-89166 · 53702-89168 · 53702-89173 · 53702-89175 · 53702-89182 · 53702-89183 · 53702-89194 · 53702-89196 · 53702-89199 · 53702-89200 · 53702-89227 |
| 53713C | Right front fender fender front extension | 53713-89101 · 53713-89103 |
| 53714C | Left front fender fender front extension | 53714-89101 · 53714-89103 |
| 53731E | Front fender fender liner | 53731-89107 · 53731-89108 · 53732-89106 |
| 53736 | Right front fender fender seal | 53736-89107 · 53736-89108 · 53736-89111 · 53736-89114 · 53736-89115 · 53736-89116 · 53736-89126 · 53736-89127 · 53736-89128 · 53737-89105 · 53737-89106 · 53737-89107 |
| 53736A | Clip (for front fender fender seal) | 90467-10107 |
| 53736D | fender fender seal | 53736-89112 · 53736-89113 |
| 53737B | Left front fender fender seal | 53736-89107 · 53736-89109 · 53736-89114 · 53736-89126 |
| 53786 | right front fender | 76621-39045 · 76621-39055 |
| 53786A | Fasteners (for front fender) | 53879-22010 |
| 53787 | left front fender | 76622-39045 · 76622-39055 |
| 55133 | Right front fender fender lower fixing plate | 55133-89103 |
| 55134 | Left front fender fender lower fixing plate | 55134-89103 |
| 55210 | Front wall insulation pad assembly | 55210-89141 · 55210-89142 · 55210-89145 · 55210-89146 · 55210-89147 |
| 55239 | Steering column hole cover muffler | 55210-89136 · 55210-89137 |
| 57161 | front cross member | 57104-89104 · 57104-89105 · 57104-89107 · 57104-89108 |
