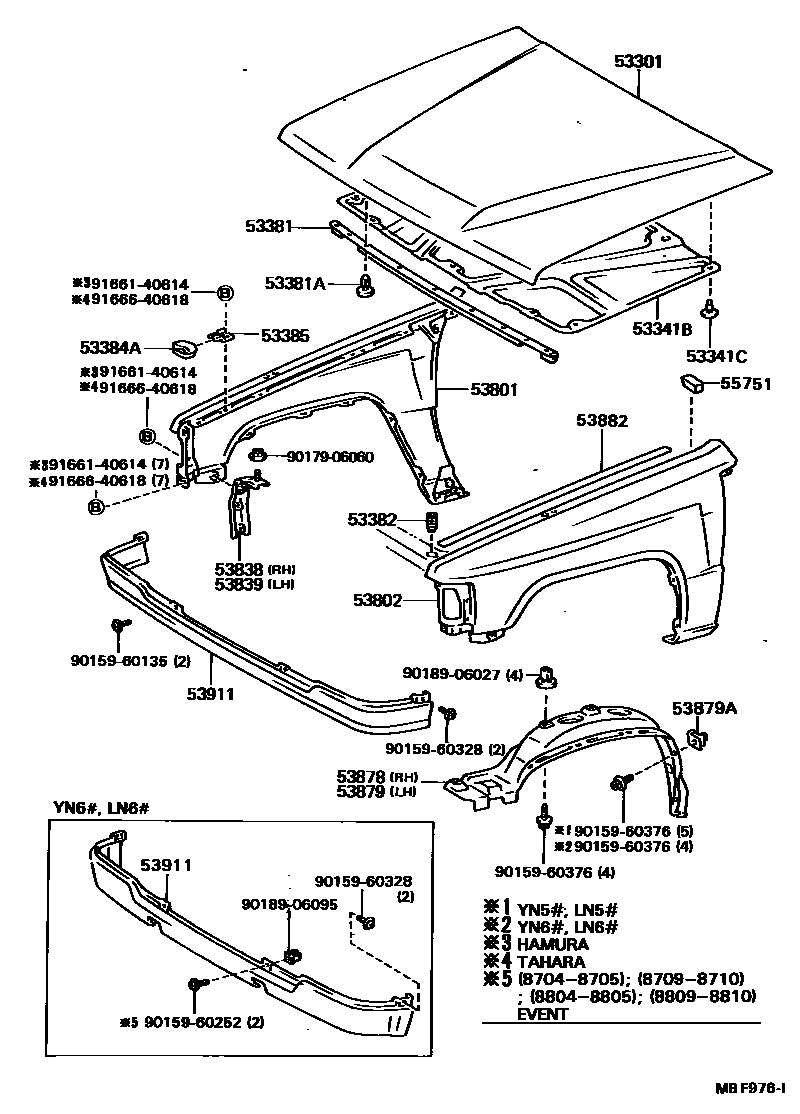

Toyota HILUX 发动机盖和前翼子板 — Figure 5353
Toyota HILUX EPC diagram 5353, 发动机盖和前翼子板, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-89117 · 53301-89119 |
| 53341B | engine cover gasket | 53341-89102 · 53341-89103 · 53341-89104 |
| 53381 | Engine cover to radiator bracket seal | 53381-89103 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 |
| 53382 | Engine cover front buffer block | 53382-89102 |
| 53384A | fender to engine cover buffer block | 53384-14010 |
| 53385 | Engine cover buffer block fixing | 53385-14010 · 53386-14010 |
| 53801 | Right front fender sub-assembly | 53801-89169 · 53801-89172 · 53801-89174 |
| 53802 | Left front fender sub-assembly | 53802-89163 · 53802-89166 · 53802-89173 |
| 53838 | Right front fender stay | 53835-89101 · 53835-89104 · 53905-89101 |
| 53839 | Left front fender stay | 53835-89101 · 53836-89102 · 53906-89101 |
| 53878 | Right front fender lining | 53875-89103 · 53875-89104 |
| 53879 | Left front fender lining | 53876-89103 · 53876-89104 |
| 53879A | Front fender lining fixing parts | 53879-22010 |
| 53882 | Front fender main seal | 53882-89104 · 53882-89105 |
| 53911 | front fender | 53911-89106 · 53911-89107 · 53911-89109 · 53911-89110 |
| 55751 | Front ventilator splash guard | 55751-89104 |
