Toyota HILUX radiator grille — Figure 5351

Toyota HILUX EPC diagram 5351, radiator grille, with 2 images and 4 PNC and OE references.

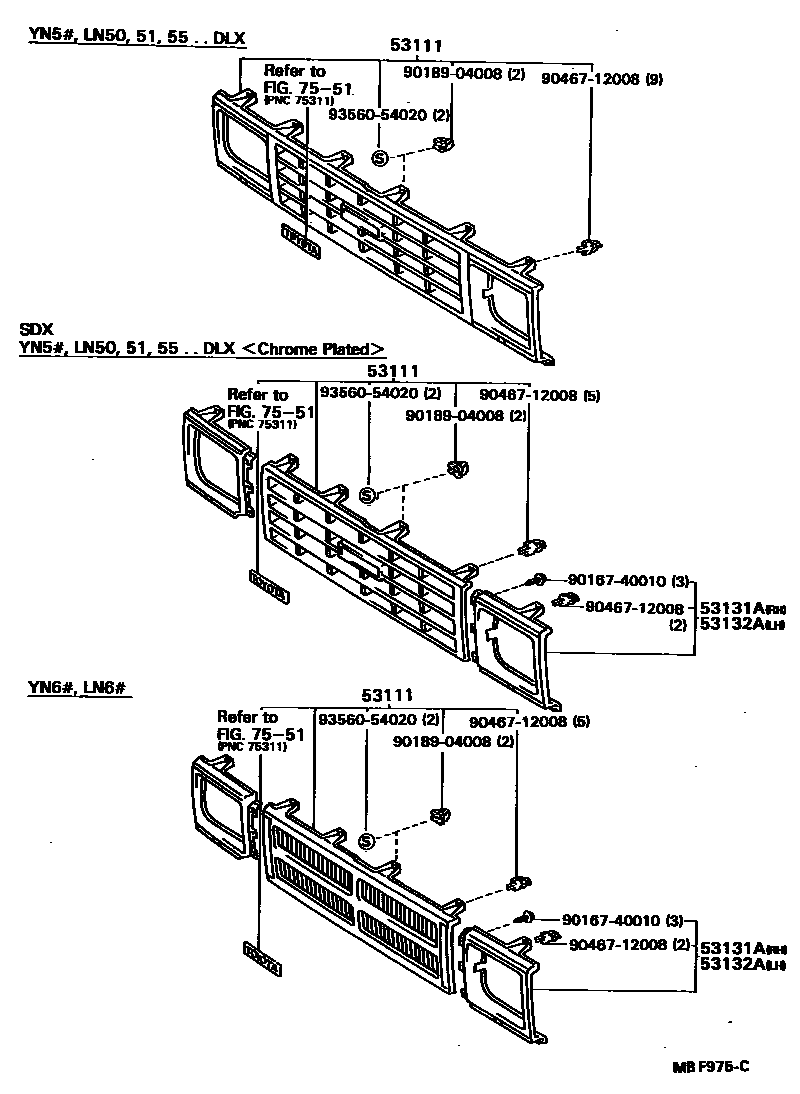

Toyota HILUX radiator grille EPC diagram — MBF975C
radiator grille — MBF975C (198311 – 198608)

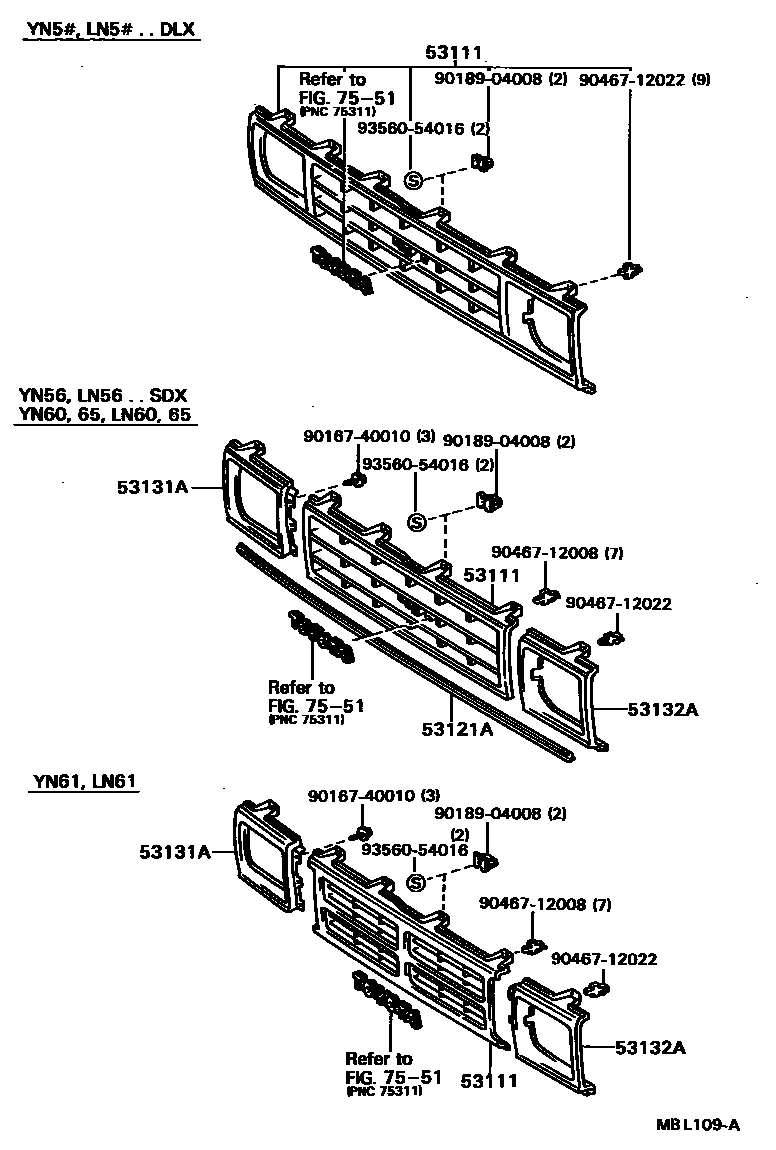

Toyota HILUX radiator grille EPC diagram — MBL109A
radiator grille — MBL109A (198608 – 999999)

PNC and OE references

PNCPart nameOE numbers
53111radiator grille53100-89110 · 53100-89119 · 53111-39045 · 53111-39055 · 53111-39075 · 53111-39085 · 53111-39095 · 53111-89125 · 53111-89126 · 53111-89127 · 53111-89128 · 53111-89129
53121ARadiator grille protection strip53121-89102
53131ARight headlight lampshade53131-39165 · 53131-39185 · 53131-39195 · 53131-89111 · 53131-89112 · 53131-89113 · 53131-89114 · 53131-89115
53132ALeft headlight lampshade53132-39165 · 53132-39185 · 53132-39195 · 53132-89110 · 53132-89111 · 53132-89112 · 53132-89113 · 53132-89114
