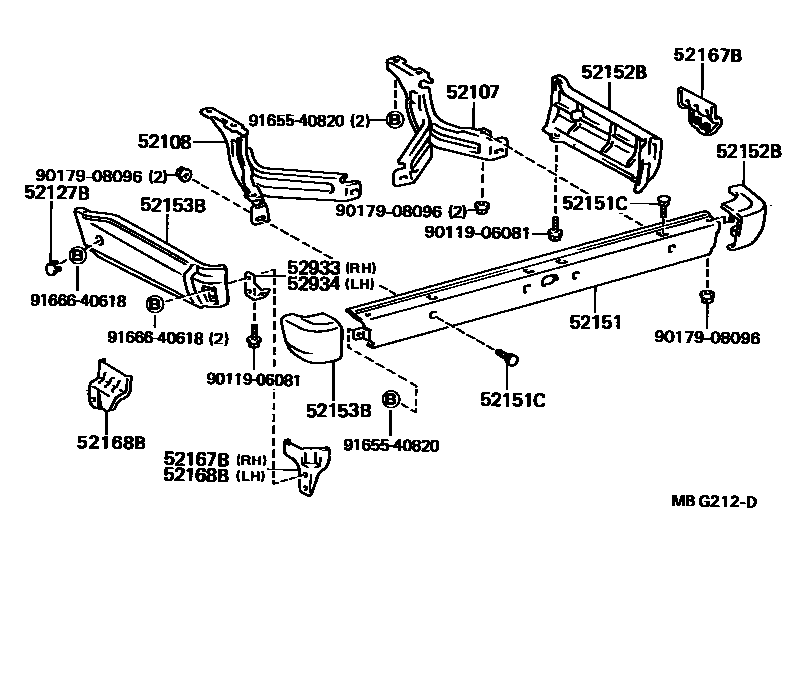

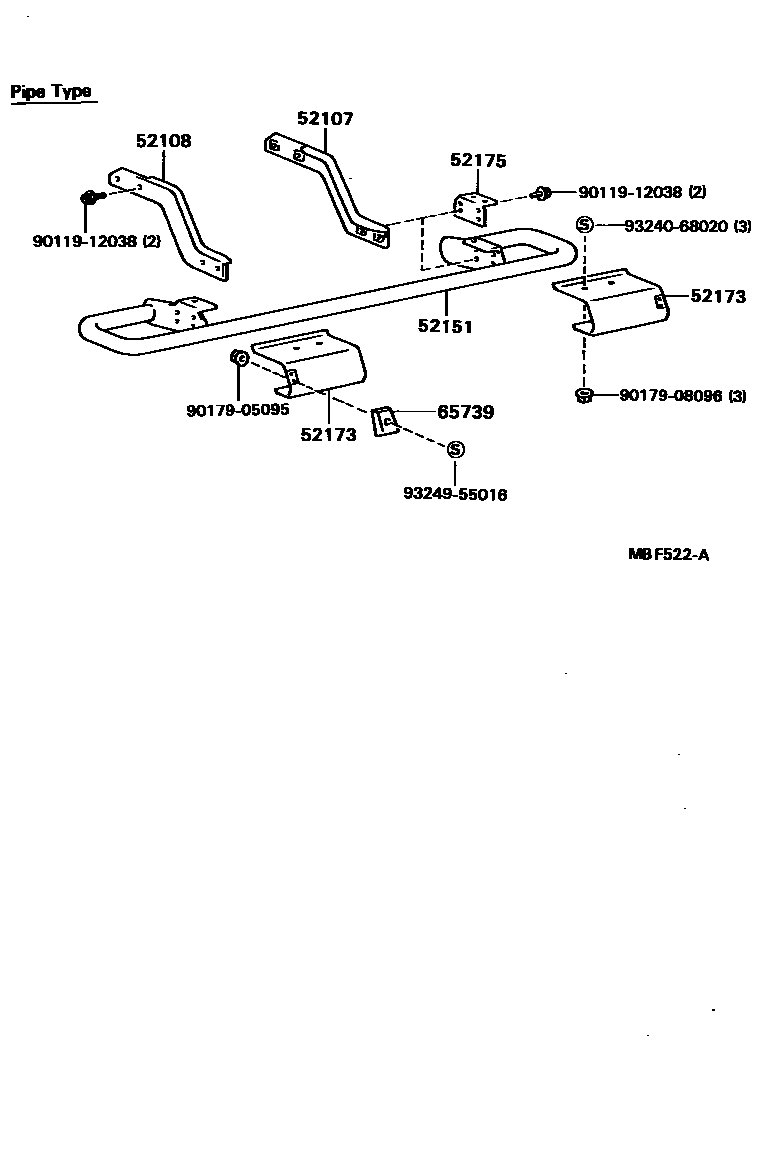

Toyota HILUX 后保险杠及附件 — Figure 5253
Toyota HILUX EPC diagram 5253, 后保险杠及附件, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52107 | Rear bumper right side stay sub-assembly | 52015-89108 · 52181-89111 |
| 52108 | Rear bumper left side stay sub-assembly | 52016-89108 · 52182-89108 |
| 52127B | Rear bumper hole cover | 52127-89101 |
| 52151 | Rear bumper assembly | 52105-89105 · 52105-89106 · 52105-89112 · 52105-95111 |
| 52151C | Round head square neck bolt (for rear bumper) | 90112-08035 · 90112-08050 · 90112-08065 |
| 52152B | Rear bumper right extension | 52106-89102 · 52152-89106 |
| 52153B | Rear bumper left extension | 52107-89101 · 52153-89106 |
| 52167B | Rear bumper extension right mounting bracket | 52167-89101 · 52167-89102 |
| 52168B | Rear bumper extension left mounting bracket | 52168-89101 · 52168-89102 |
| 52173 | Rear bumper side fenders | 52163-89103 · 52164-89102 |
| 52175 | Rear bumper arm mounting bracket | 52175-95110 |
| 52933 | Rear bumper right side bracket | 52933-89101 |
| 52934 | Rear bumper left bracket | 52934-89101 |
| 65739 | Back door buffer block | 65739-89101 |
