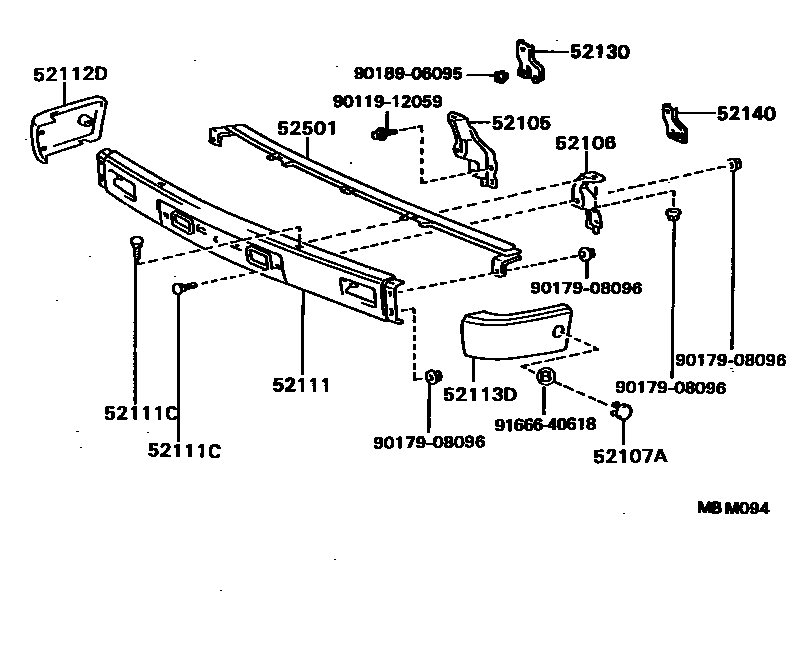

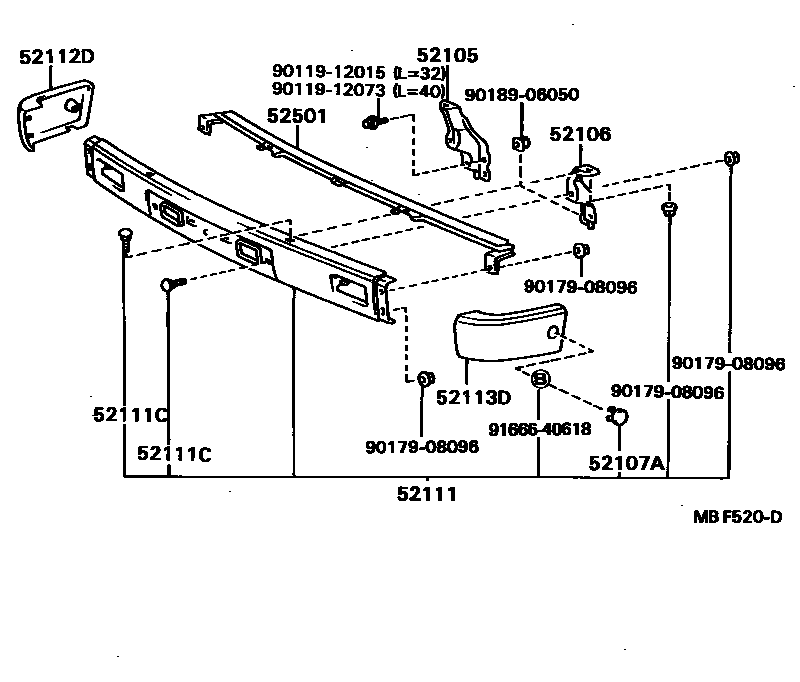

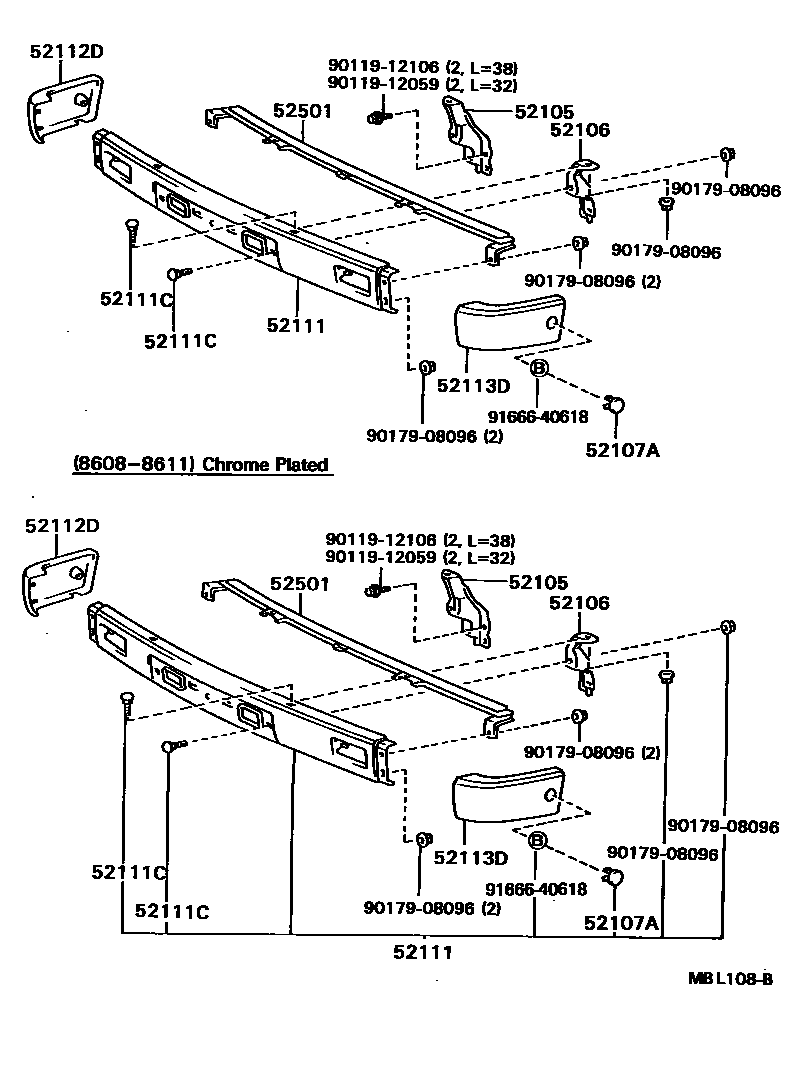

Toyota HILUX 前保险杠及附件 — Figure 5252
Toyota HILUX EPC diagram 5252, 前保险杠及附件, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52105 | Front bumper right side stay sub-assembly | 52011-89105 · 52011-89106 · 52011-89108 · 52011-89109 · 52011-89111 |
| 52106 | Front bumper left stay sub-assembly | 52012-89105 · 52012-89106 · 52012-89108 · 52012-89109 · 52012-89111 |
| 52107A | Front bumper arm hole cover | 52127-89101 |
| 52111 | front bumper assembly | 52111-39495 · 52111-39505 · 52111-39515 · 52111-39525 · 52111-39535 · 52111-39545 · 52111-89139 · 52111-89146 · 52111-89156 · 52111-89158 · 52111-89164 · 52111-89165 |
| 52111C | Round head square neck bolt (for front bumper) | 90112-08035 · 90112-08038 · 90112-08050 · 90112-08065 |
| 52112D | Front bumper right extension | 52102-89104 · 52102-89105 · 52102-89106 |
| 52113D | Front bumper left extension | 52103-89104 · 52103-89105 · 52103-89106 |
| 52130 | Front bumper right side mounting bracket assembly | 52133-89109 |
| 52140 | Front bumper left side mounting bracket assembly | 52134-89109 |
| 52501 | Front bumper arc filler sub-assembly | 52501-89102 · 52501-89104 |
