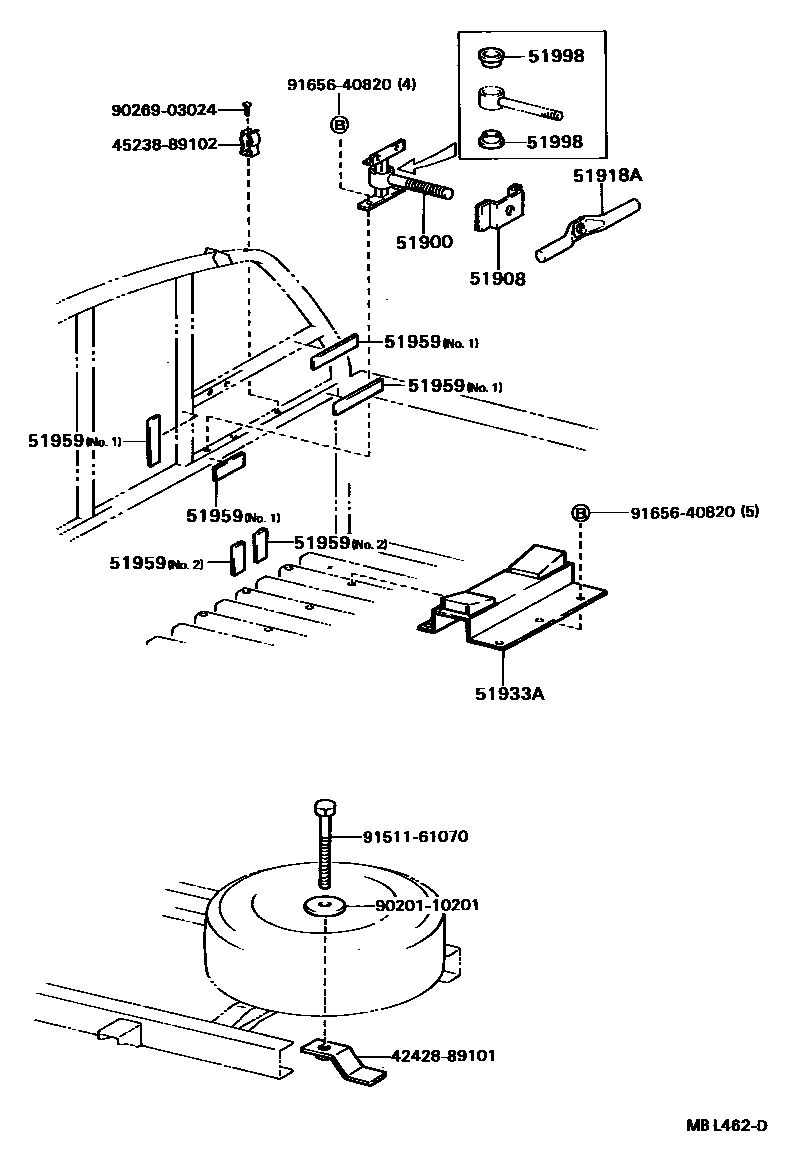

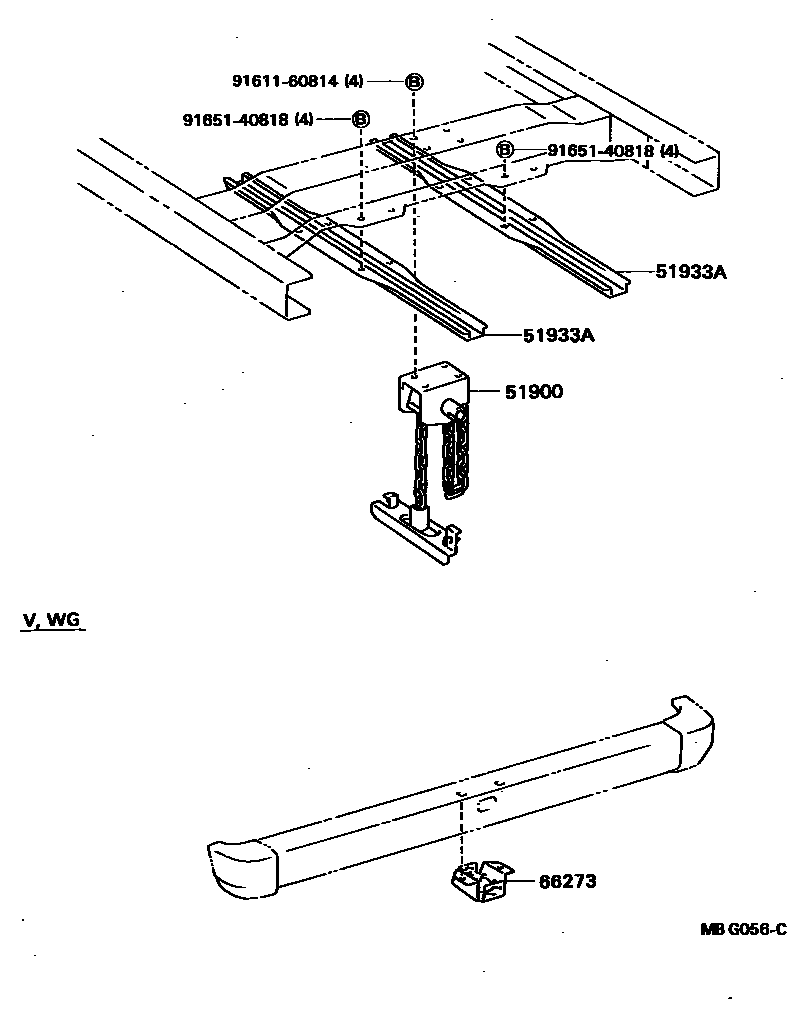

Toyota HILUX Spare tire rack — Figure 5153
Toyota HILUX EPC diagram 5153, Spare tire rack, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51900 | Spare tire rack assembly | 51900-35100 · 51900-35101 · 51900-35120 · 51900-35121 · 51900-35130 · 51903-89101 |
| 51908 | Spare tire rack bracket sub-assembly | 51909-89102 |
| 51918A | Spare tire rack block | 51928-90K00 |
| 51933A | No. 1 spare tire block | 51904-89102 · 51933-35040 · 51933-35050 |
| 51959 | Spare tire cushion | 88362-89103 · 88362-89104 |
| 51998 | Spare tire holder pad | 51998-89102 |
| 66273 | Spare tire rack guide groove | 52179-89107 |
