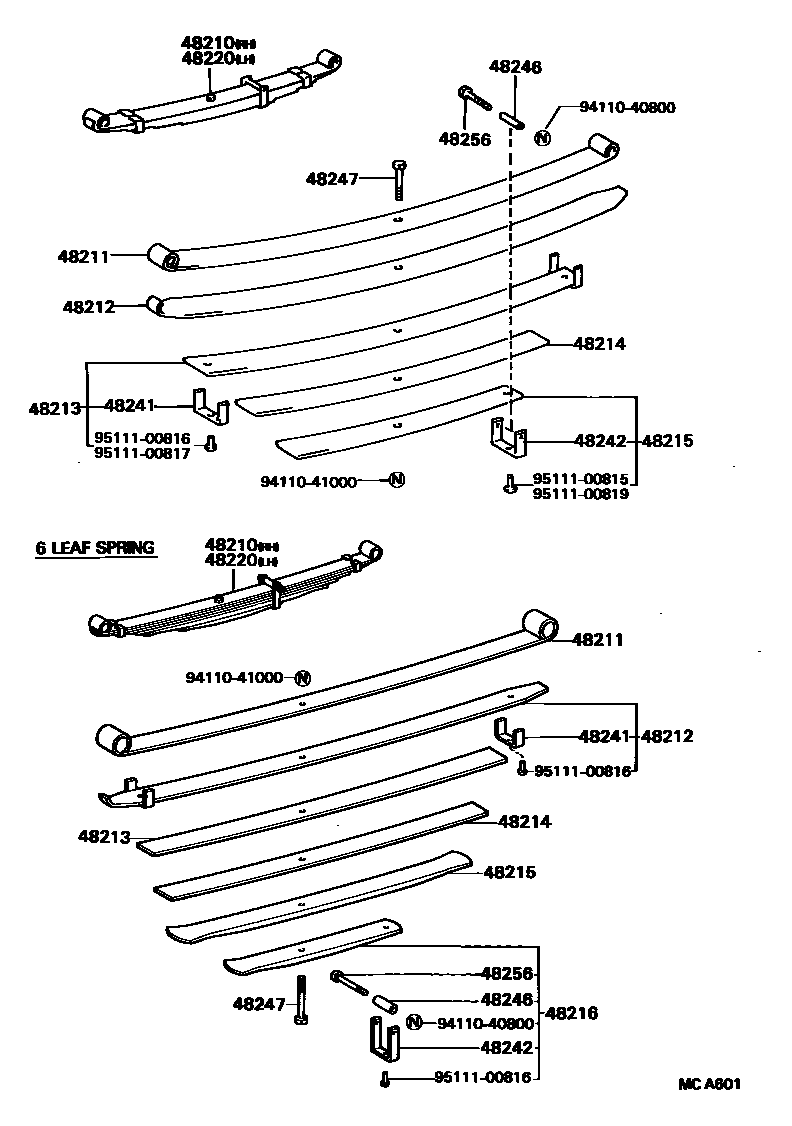

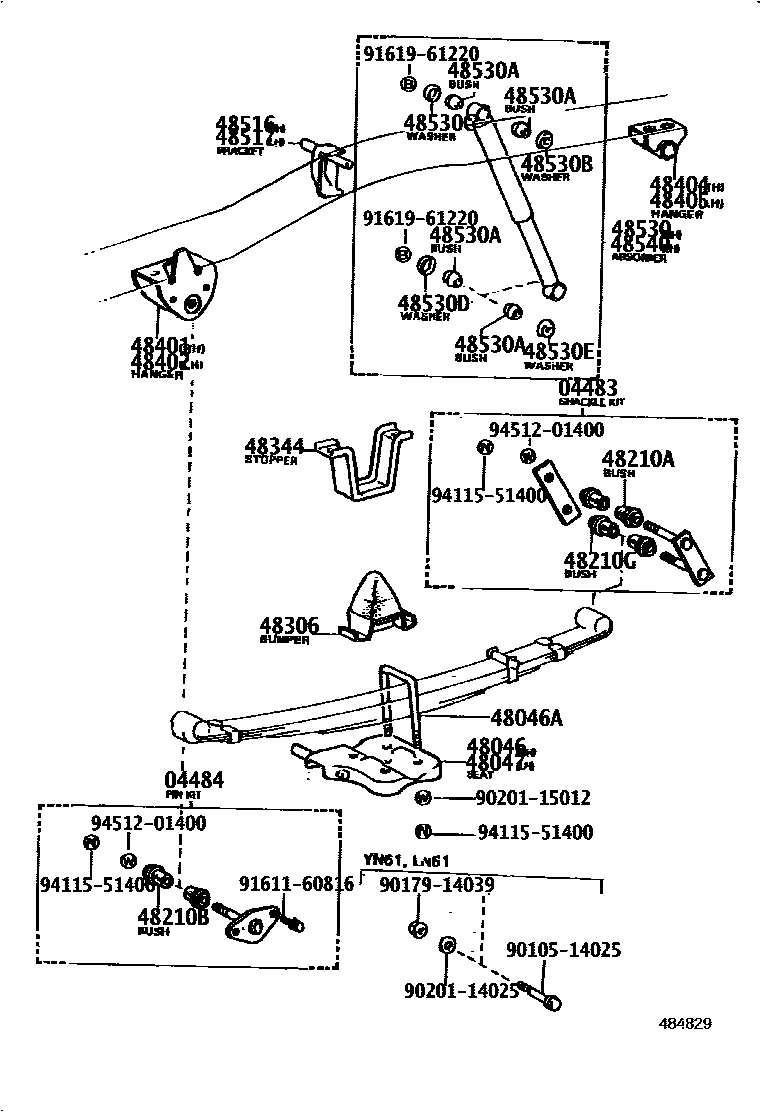

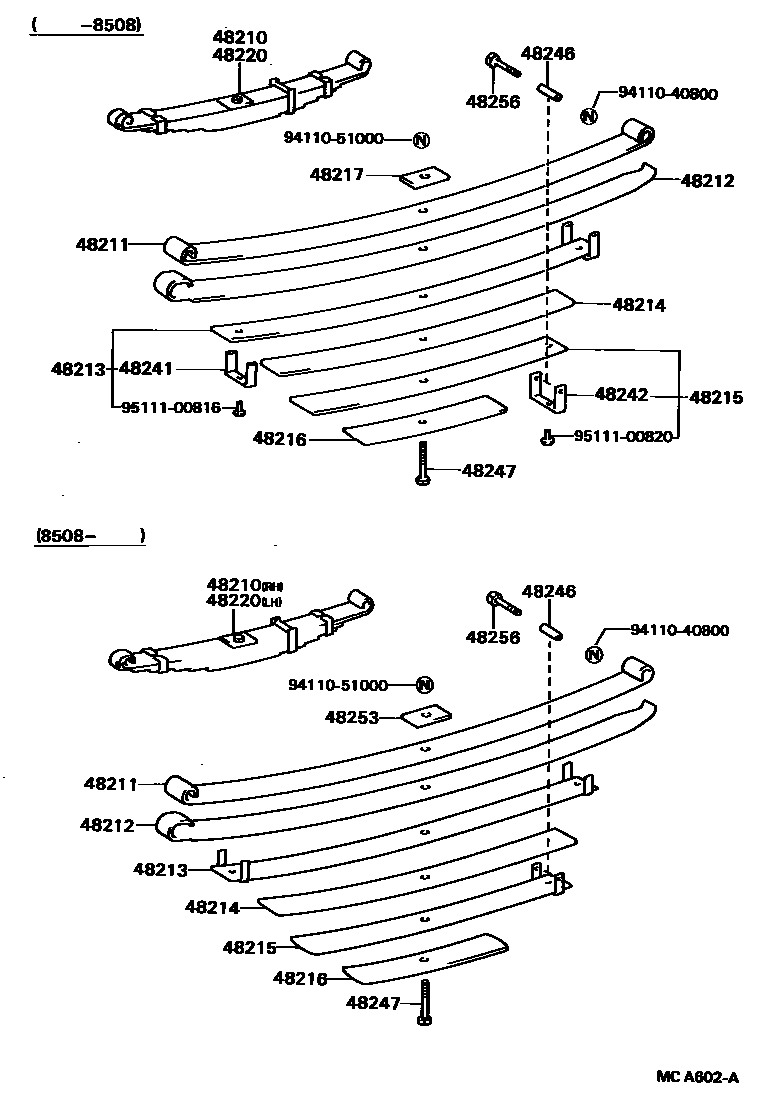

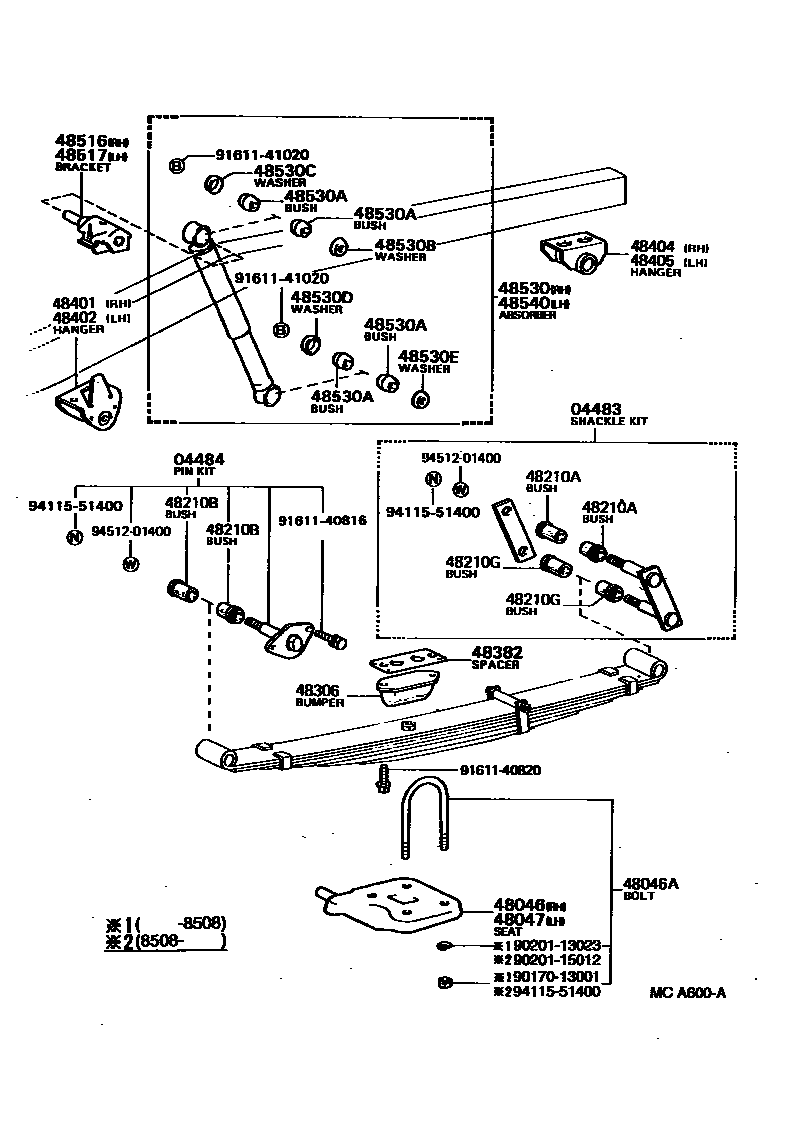

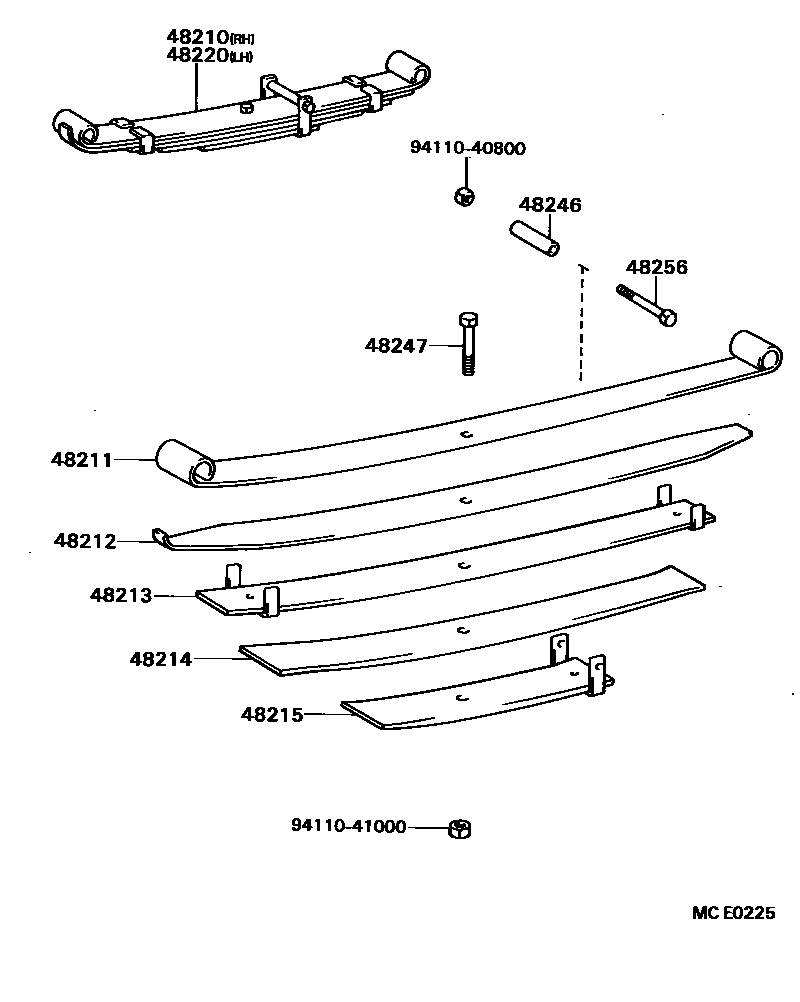

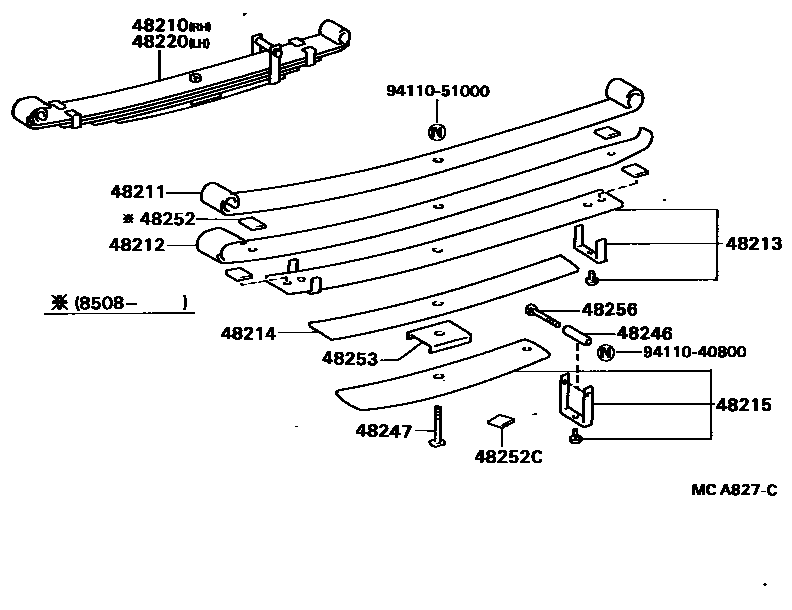

Toyota HILUX Rear Spring & Shock Absorber — Figure 4804
Toyota HILUX EPC diagram 4804, Rear Spring & Shock Absorber, with 6 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04483 | Rear spring lifting lug assembly | 04483-35040 |
| 04484 | Rear spring pin assembly | 04482-35030 |
| 48046 | Right spring U-bolt base sub-assembly | 48046-35080 · 48046-35090 · 48046-35100 · 48046-35120 · 48046-35130 · 48046-35170 |
| 48046A | U-bolt (for rear spring) | 90117-14007 · 90117-14008 · 90117-14042 · 90118-13215 · 90118-13216 · 90118-14204 · 90118-14211 · 90118-14214 · 90118-14222 · 90118-14226 · 90118-14227 · 90118-14230 |
| 48047 | Left spring U-bolt base sub-assembly | 48046-35080 · 48046-35090 · 48046-35100 · 48046-35120 · 48046-35130 · 48046-35170 |
| 48210 | Right rear spring assembly | 48210-35250 · 48210-35251 · 48210-35290 · 48210-35291 · 48210-35300 · 48210-35301 · 48210-35310 · 48210-35311 · 48210-35320 · 48210-35350 · 48210-35380 · 48210-35450 · 48210-35480 · 48210-35481 · 48210-35570 · 48210-35571 · 48210-35580 |
| 48210A | Upper bushing (for rear spring lug) | 90385-18046 |
| 48210B | Bushing (for rear spring pin) | 90385-18046 |
| 48210G | Lower bushing (for rear spring lug) | 90385-18046 |
| 48211 | No. 1 rear leaf spring | 48211-35251 · 48211-35290 · 48211-35291 · 48211-35300 · 48211-35301 · 48211-35310 · 48211-35311 · 48211-35320 · 48211-35350 · 48211-35380 · 48211-35450 · 48211-35480 · 48211-35570 · 48211-35580 |
| 48212 | No. 2 rear leaf spring | 48202-35250 · 48202-35251 · 48212-35290 · 48212-35291 · 48212-35300 · 48212-35301 · 48212-35310 · 48212-35311 · 48212-35320 · 48212-35350 · 48212-35380 · 48212-35450 · 48212-35480 · 48212-35570 · 48212-35580 |
| 48213 | No. 3 rear leaf spring | 48201-35290 · 48201-35300 · 48201-35310 · 48202-35291 · 48202-35301 · 48202-35311 · 48202-35320 · 48202-35350 · 48202-35380 · 48202-35450 · 48202-35480 · 48202-35570 · 48202-35580 · 48213-35250 · 48213-35251 |
| 48214 | No. 4 rear leaf spring | 48203-35480 · 48203-35570 · 48214-35250 · 48214-35251 · 48214-35290 · 48214-35291 · 48214-35300 · 48214-35301 · 48214-35310 · 48214-35311 · 48214-35320 · 48214-35350 · 48214-35380 · 48214-35450 · 48214-35580 |
| 48215 | No. 5 rear leaf spring | 48202-35290 · 48202-35300 · 48202-35310 · 48203-35291 · 48203-35301 · 48203-35311 · 48203-35320 · 48203-35350 · 48203-35380 · 48203-35450 · 48203-35580 · 48215-35250 · 48215-35251 |
| 48216 | No. 6 rear leaf spring | 48203-35250 · 48203-35251 · 48216-35320 · 48216-35450 |
| 48217 | No. 7 rear leaf spring | 48221-35320 |
| 48220 | Left rear spring assembly | 48210-35250 · 48210-35251 · 48210-35290 · 48210-35291 · 48210-35300 · 48210-35301 · 48210-35310 · 48210-35311 · 48210-35320 · 48210-35350 · 48210-35380 · 48210-35450 · 48210-35480 · 48210-35570 · 48210-35580 |
| 48241 | No. 1 rear spring clip | 48142-35030 · 48241-35141 · 48241-35290 · 48242-35240 · 48243-35120 |
| 48242 | No. 2 rear spring clip | 48241-35250 · 48242-35170 · 48242-35250 · 48242-35290 |
| 48246 | rear spring clamp bolt housing | 48146-60010 · 48146-60070 · 48246-26020 · 48246-35040 |
| 48247 | rear spring center bolt | 48247-25020 · 48247-25170 · 48247-35070 · 48247-35250 · 48247-35290 · 48247-35480 · 48247-35490 · 48247-35560 · 48247-36450 |
| 48252 | rear spring muffler | 48252-26070 |
| 48252C | No. 2 rear spring muffler | 48252-35470 |
| 48253 | No. 1 rear spring spacer | 48251-35350 · 48253-35440 |
| 48256 | Hex bolt (for rear spring clamp assembly) | 48256-25050 · 48256-35040 · 48256-35170 · 48256-36570 |
| 48306 | Rear spring buffer block sub-assembly | 48306-35050 · 48306-35060 · 48306-35070 · 48306-35090 · 48341-35030 · 48341-35031 · 48341-35040 · 48341-35041 |
| 48344 | Rear buffer block | 48344-35020 |
| 48382 | Buffer block spacer | 48382-35020 · 48382-35021 · 48382-35030 |
| 48401 | Rear spring right front bracket sub-assembly | 48414-35070 · 48414-35071 · 48414-35100 · 48414-35101 |
| 48402 | Rear spring left front bracket sub-assembly | 48414-35070 · 48414-35071 · 48414-35100 · 48414-35101 |
| 48404 | Rear spring right rear bracket sub-assembly | 48416-35050 · 48416-35051 · 48416-35060 · 48416-35061 |
| 48405 | Rear spring left rear bracket sub-assembly | 48416-35050 · 48416-35051 · 48416-35060 · 48416-35061 |
| 48516 | Right rear shock absorber upper bracket | 48505-35010 · 48505-35011 · 48505-35020 · 48505-35021 · 48505-35040 |
| 48517 | Left rear shock absorber upper bracket | 48506-35010 · 48506-35020 · 48506-35021 |
| 48530 | Right rear shock absorber assembly | 48531-39605 · 48531-39675 · 48531-39695 · 48531-39895 |
| 48530A | Bushing (for rear shock absorber) | 90385-16007 · 90385-19002 · 90385-19057 |
| 48530B | Rear shock absorber No. 1 cushion washer | 90948-03004 · 90948-03015 |
| 48530C | Rear shock absorber No. 2 cushion washer | 90948-03011 · 90948-03012 |
| 48530D | Rear shock absorber No. 3 cushion washer | 90948-03011 · 90948-03012 |
| 48530E | Rear shock absorber No. 4 cushion washer | 90948-03004 · 90948-03015 |
| 48540 | Left rear shock absorber assembly | 48531-39605 · 48541-39025 · 48541-39035 · 48541-39055 |
