Toyota HILUX Front Spring & Shock Absorber — Figure 4803

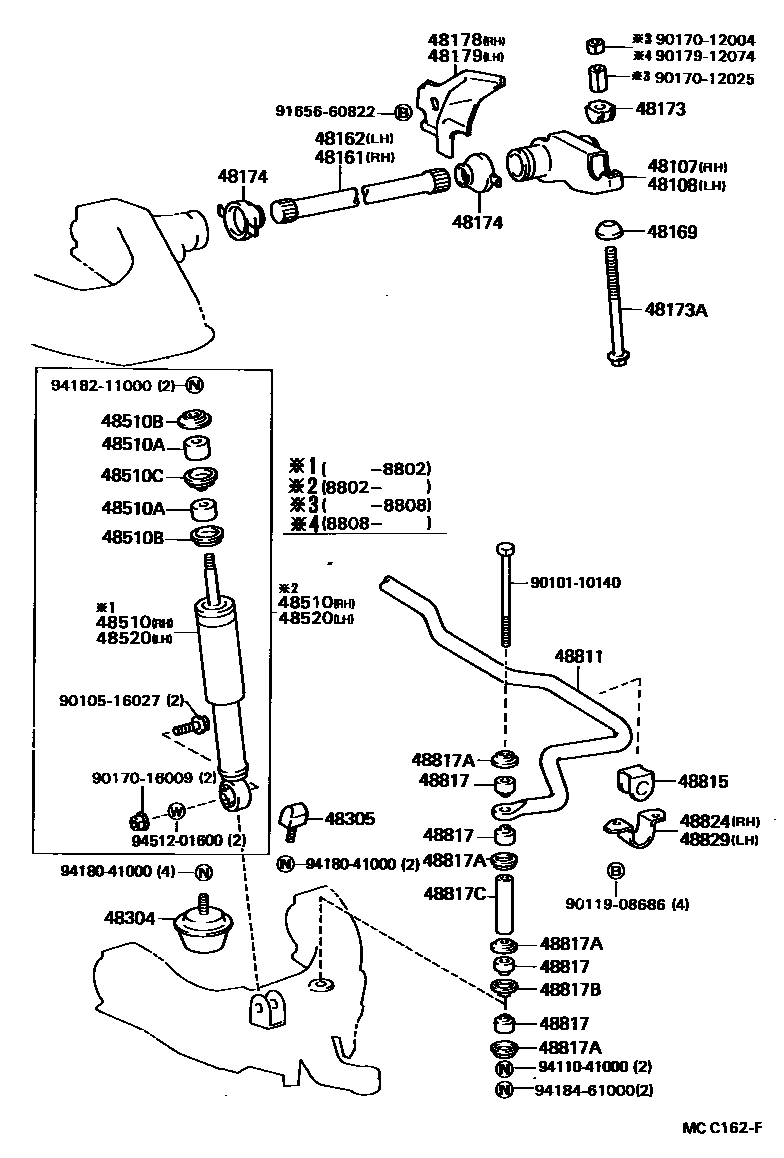

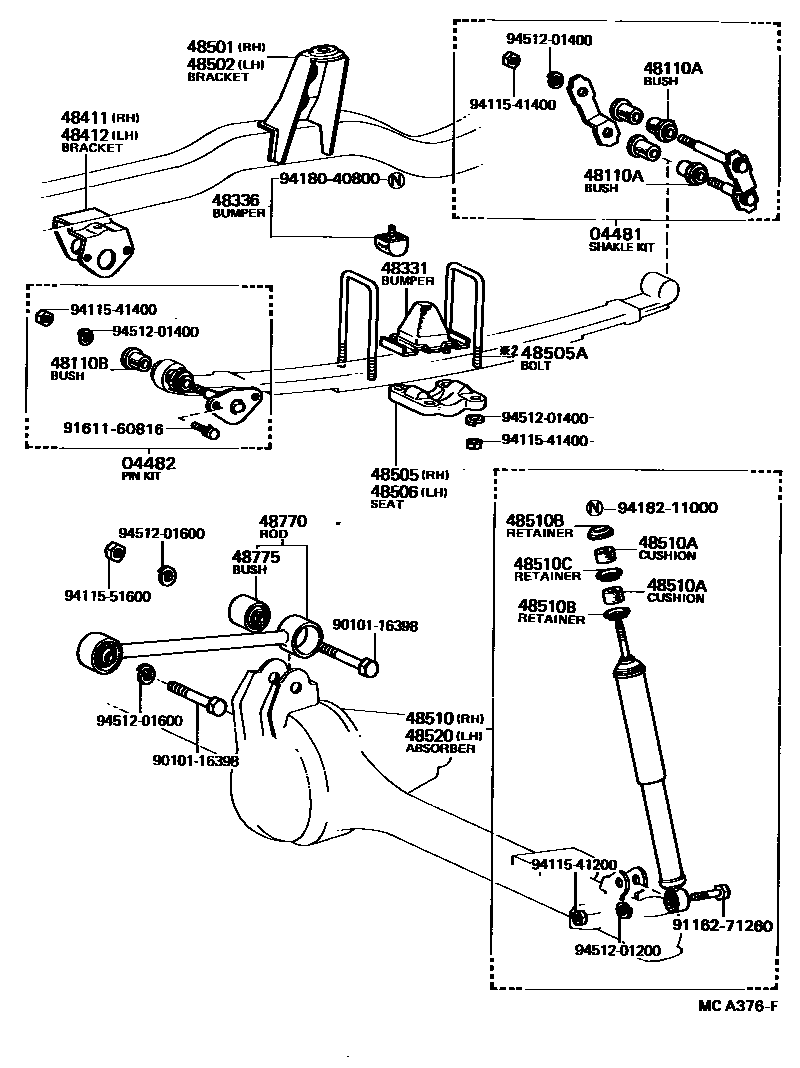

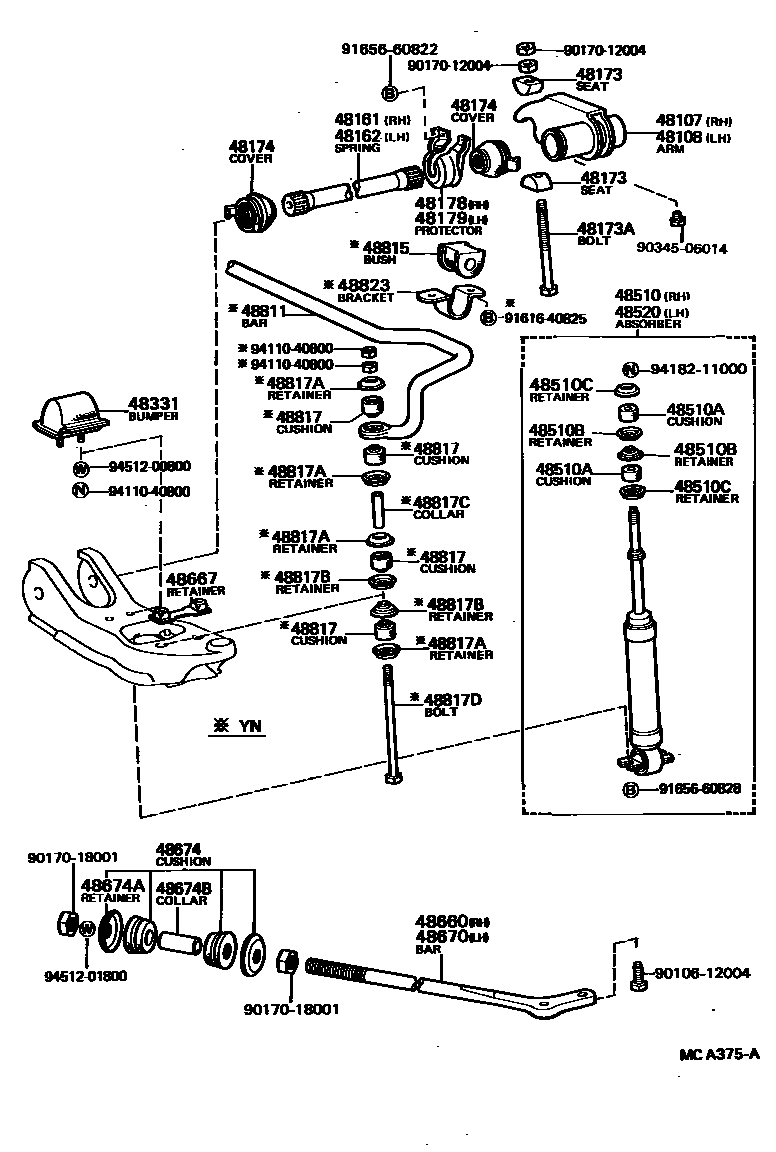

Toyota HILUX EPC diagram 4803, Front Spring & Shock Absorber, with 4 images and 56 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04481 | Front spring lifting lug assembly | 04481-35040 |
| 04482 | Front spring pin assembly | 04482-35030 |
| 48107 | Right fixed arm sub-assembly | 48107-35020 · 48107-35030 · 48107-35050 |
| 48108 | Left fixed arm sub-assembly | 48108-35020 · 48108-35030 · 48108-35050 |
| 48110 | Right front spring assembly | 48110-35110 · 48110-35111 · 48110-35120 · 48110-35121 · 48110-35170 · 48110-35180 |
| 48110A | Bushing (for front spring lug) | 90385-18007 · 90385-18046 |
| 48110B | Bushing (for front spring pin) | 90385-18046 |
| 48111 | No. 1 front leaf spring | 48111-35110 · 48111-35111 · 48111-35120 · 48111-35121 · 48111-35170 · 48111-35180 · 48121-35060 · 48121-35070 |
| 48112 | No. 2 front leaf spring | 48102-35060 · 48102-35070 · 48102-35110 · 48102-35111 · 48102-35120 · 48102-35121 · 48102-35170 · 48102-35180 |
| 48113 | No. 3 front leaf spring | 48103-35070 · 48103-35110 · 48103-35111 · 48103-35120 · 48103-35121 · 48103-35170 · 48103-35180 · 48105-35060 |
| 48114 | No. 4 front leaf spring | 48104-35060 · 48104-35070 · 48104-35110 · 48104-35111 · 48104-35120 · 48104-35121 · 48104-35170 · 48104-35180 |
| 48120 | Left front spring assembly | 48120-35060 · 48120-35070 · 48120-35100 · 48120-35110 |
| 48147 | Front spring center bolt | 48147-35040 |
| 48153 | No. 1 front leaf spring spacer | 48153-35170 |
| 48161 | Right torsion bar spring | 48161-35050 · 48161-35090 · 48161-35110 · 48161-35130 |
| 48162 | Left torsion bar spring | 48162-35050 · 48162-35090 · 48162-35110 · 48162-35130 |
| 48169 | Fixed arm swivel joint | 48169-35010 · 48173-35010 |
| 48173 | fixed arm adjuster seat | 48173-35010 · 48173-35020 · 48173-35030 |
| 48173A | Hexagonal bolt (for adjusting the fixed arm) | 90101-12104 · 90101-12118 · 90101-12159 |
| 48174 | Torsion bar dust cover | 48174-26010 · 48174-35010 · 48174-35020 |
| 48178 | Right torsion bar dust cover protection device | 48178-35020 · 48178-35050 |
| 48179 | Left torsion bar dust cover protector | 48178-35020 · 48179-35020 · 48179-35030 |
| 48304 | No. 1 front spring buffer block sub-assembly | 48304-35120 |
| 48305 | No. 2 front spring buffer block sub-assembly | 48305-35020 |
| 48331 | No. 1 front spring buffer block | 48304-35080 · 48304-35100 · 48304-35110 |
| 48336 | No. 2 front spring buffer block | 48305-29045 |
| 48411 | Front spring bracket (for right front) | 48411-35040 |
| 48412 | Front spring bracket (for left front) | 48411-35040 |
| 48501 | Right front shock absorber upper bracket sub-assembly | 48512-35040 |
| 48502 | Left front shock absorber upper bracket sub-assembly | 48512-35040 |
| 48505 | Right front spring seat | 48471-35010 |
| 48505A | U-bolt (for front spring) | 90117-14008 · 90117-14011 · 90118-14213 · 90118-14214 |
| 48506 | Left front spring seat | 48472-35020 |
| 48510 | Right front shock absorber assembly | 48511-35280 · 48511-39415 · 48511-39455 · 48511-39565 · 48511-39566 |
| 48510A | Front shock absorber cushion | 90948-01002 · 90948-01003 · 90948-01045 |
| 48510B | No. 1 bumper plate (for front shock absorber) | 90948-02002 · 90948-02005 · 90948-02131 |
| 48510C | No. 2 buffer pad block (for front shock absorber) | 90948-02007 · 90948-02069 · 90948-02087 · 90948-02119 |
| 48520 | Left front shock absorber assembly | 48511-35280 · 48511-39415 · 48511-39455 · 48511-39565 · 48511-39566 |
| 48660 | Right support rod assembly | 48661-35021 |
| 48667 | Support rod retaining ring | 48667-35010 |
| 48670 | Left support rod assembly | 48671-35021 |
| 48674 | Support rod cushion | 48674-29026 · 48674-39035 |
| 48674A | Bumper stop (for support rod bumper) | 90948-02030 |
| 48674B | Collar (for support rod cushion) | 90387-18002 |
| 48770 | Torque rod sub-assembly | 48760-35020 |
| 48775 | Torque rod bushing | 48725-35010 |
| 48811 | front stabilizer bar | 48811-35140 · 48811-35190 · 48811-35240 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-30050 |
| 48817 | Front stabilizer bar cushion | 48817-30010 · 90948-01002 |
| 48817A | Crash pad block No. 1 (for front stabilizer bar) | 90948-02004 · 90948-02032 |
| 48817B | Crash pad block No. 2 (for front stabilizer bar) | 90948-02015 · 90948-02034 |
| 48817C | Collar (for stabilizer bar) | 90387-09004 · 90440-14003 |
| 48817D | Bolt (for front stabilizer bar) | 90101-08038 |
| 48823 | Stabilizer bar linkage cover (for front) | 48823-35030 |
| 48824 | front stabilizer bar bracket | 48824-35070 |
| 48829 | Stabilizer bar bracket | 48829-35040 |
