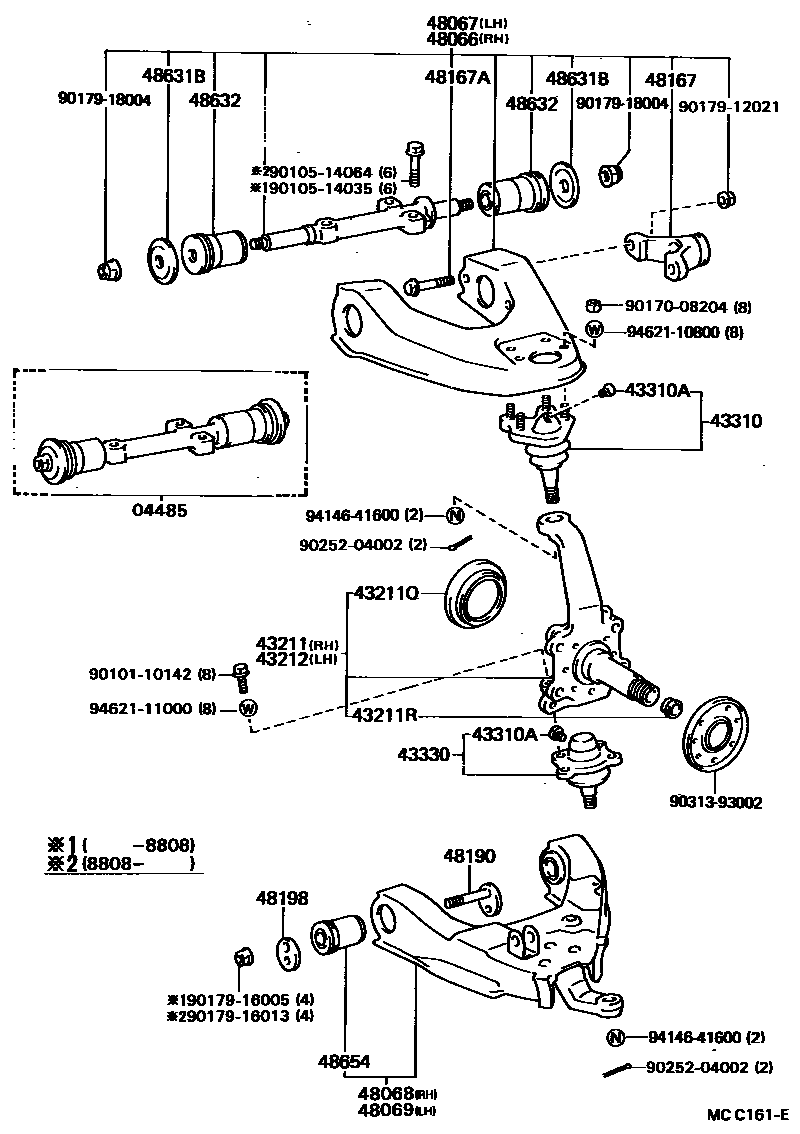

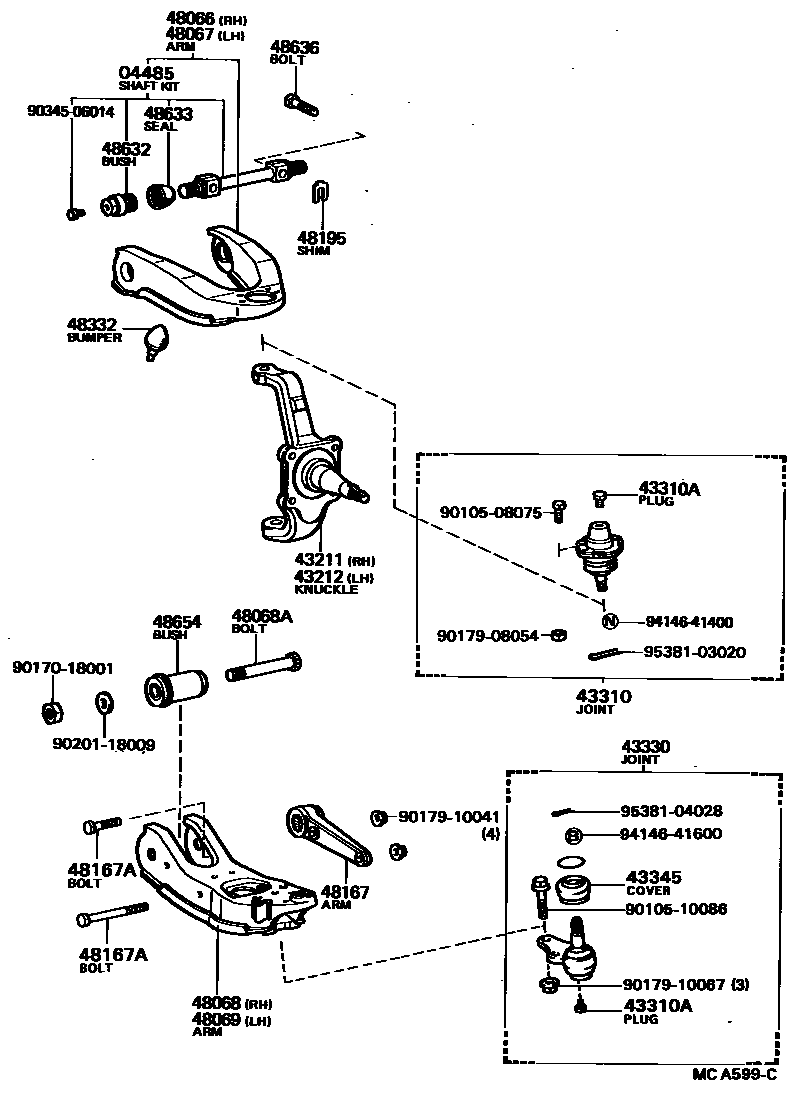

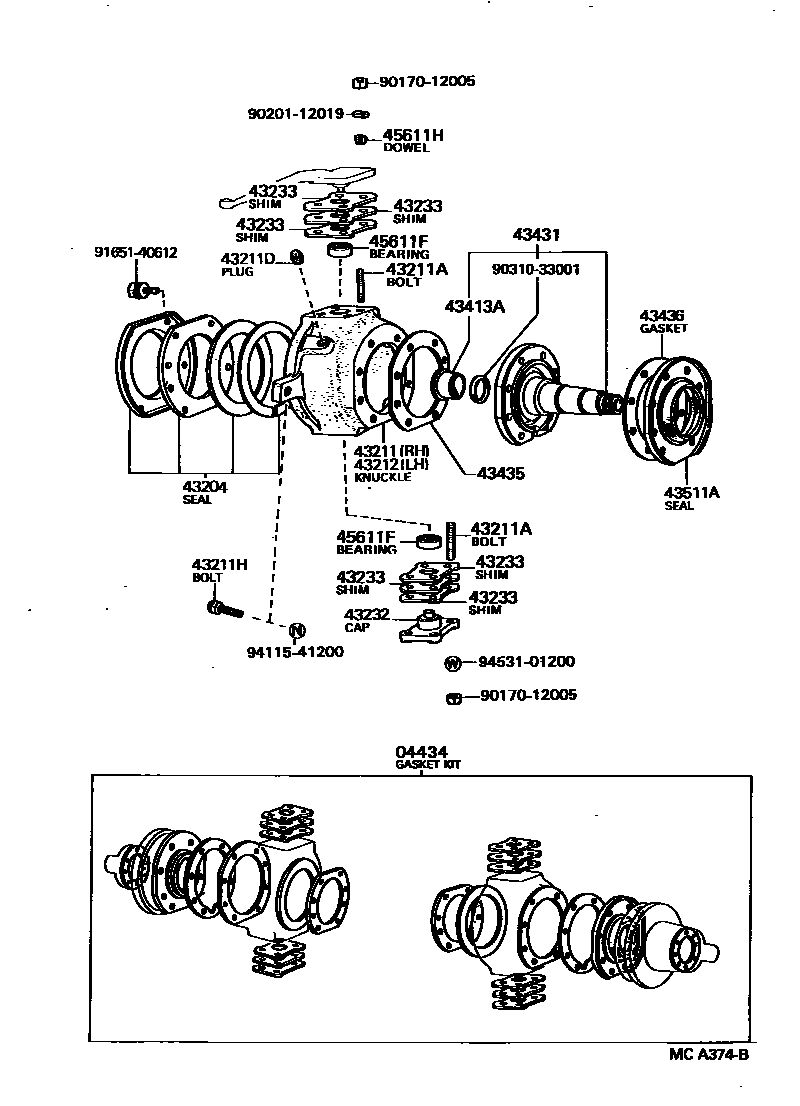

Toyota HILUX 前桥控制臂和转向节 — Figure 4802
Toyota HILUX EPC diagram 4802, 前桥控制臂和转向节, with 3 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04434 | Front axle overhaul gasket assembly | 04434-60012 |
| 04485 | Suspension upper arm shaft assembly | 04485-35020 · 04485-35040 |
| 43204 | Steering knuckle oil seal sub-assembly | 43204-60020 |
| 43211 | Right steering knuckle | 43201-35020 · 43211-35070 · 43211-35090 |
| 43211A | Stud bolts (for steering knuckle assembly) | 90116-12007 |
| 43211D | Screw plug (for steering knuckle) | 90345-53020 |
| 43211H | Round hex bolt | 90106-12022 |
| 43211Q | Oil seal (for steering knuckle) | 90310-33001 · 90316-60001 · 90316-60002 |
| 43211R | Bushing (for steering knuckle) | 90381-30003 · 90999-70068 |
| 43212 | left steering knuckle | 43202-35010 · 43212-35040 · 43212-35050 |
| 43232 | Steering knuckle bearing cap | 43232-35010 |
| 43233 | No. 1 steering knuckle adjustment washer | 43233-60011 · 43234-60011 · 43235-60010 · 43236-60010 |
| 43310 | Upper ball joint assembly | 43350-39035 · 43350-39045 · 43360-39075 |
| 43310A | Screw plug (for ball joint) | 90345-06014 |
| 43330 | Front lower ball joint assembly | 43330-39165 · 43330-39195 · 43340-39145 · 43340-39175 |
| 43345 | Lower ball joint dust cover | 43345-26010 |
| 43413A | Integral bushing (for drive shaft) | 90381-33002 · 90999-70067 |
| 43431 | Steering knuckle spindle | 43401-35010 · 43401-60012 |
| 43435 | Steering knuckle spindle pad | 43435-60011 |
| 43436 | Steering knuckle spindle oil retaining ring gasket | 43436-60011 |
| 43511A | Dust seal (for front axle hub) | 90313-93011 |
| 45611F | Bearing (for knuckle arm) | 90366-17001 |
| 45611H | Separate locating pin (for knuckle arm) | 42323-60020 |
| 48066 | Right front suspension upper arm sub-assembly | 48066-35050 · 48066-35070 · 48066-35100 |
| 48067 | Left front suspension upper arm sub-assembly | 48066-35050 · 48067-35030 · 48067-35040 |
| 48068 | Right front suspension No. 1 lower arm sub-assembly | 48068-35040 · 48605-35060 · 48605-35070 |
| 48068A | Bolt (for front suspension lower arm) | 90114-18003 |
| 48069 | Left front suspension No. 1 lower arm sub-assembly | 48069-35040 · 48606-35060 · 48606-35070 |
| 48167 | torque arm | 48106-35010 · 48106-35011 · 48167-35020 |
| 48167A | Bolt (for securing torque arm) | 90105-10087 · 90105-10088 · 90105-12112 |
| 48190 | Camber angle adjustment cam assembly | 48190-35010 · 48190-35020 |
| 48195 | Camber angle adjustment washer | 90565-12004 · 90565-12008 · 90565-12009 |
| 48198 | No. 2 camber angle adjustment cam | 48198-35010 |
| 48332 | No. 2 front spring buffer block | 48332-35020 |
| 48631B | Crash pad retainer (for front suspension upper arm) | 90948-02065 · 90948-02066 |
| 48632 | Upper arm bushing | 48632-26010 · 48632-30012 · 48635-26010 |
| 48633 | Upper arm pivot dust seal | 48633-35010 |
| 48636 | Upper arm fixing bolt | 90105-12080 |
| 48654 | lower arm bushing | 48061-35010 · 48061-35011 · 48654-35010 · 48654-35030 |
