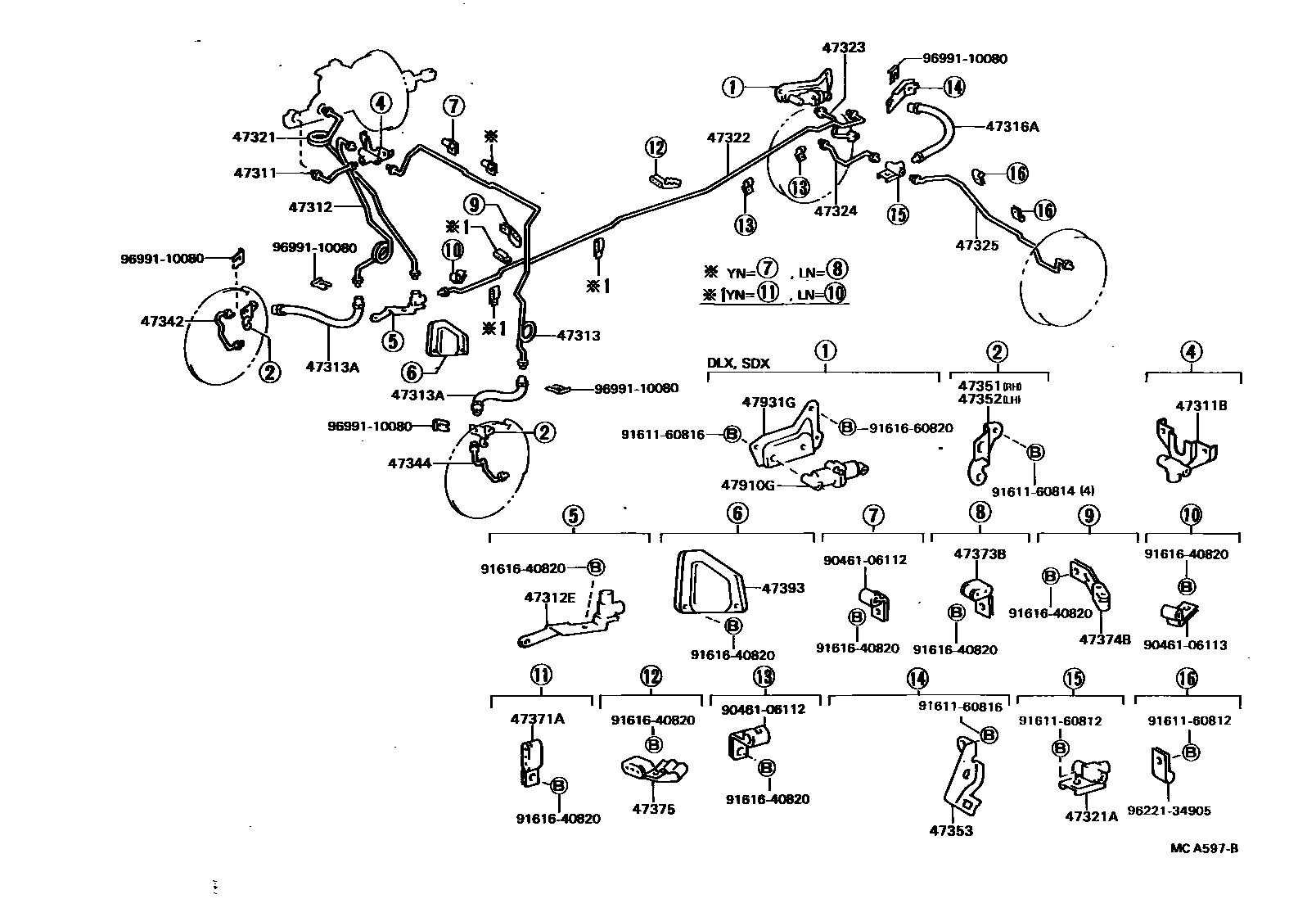

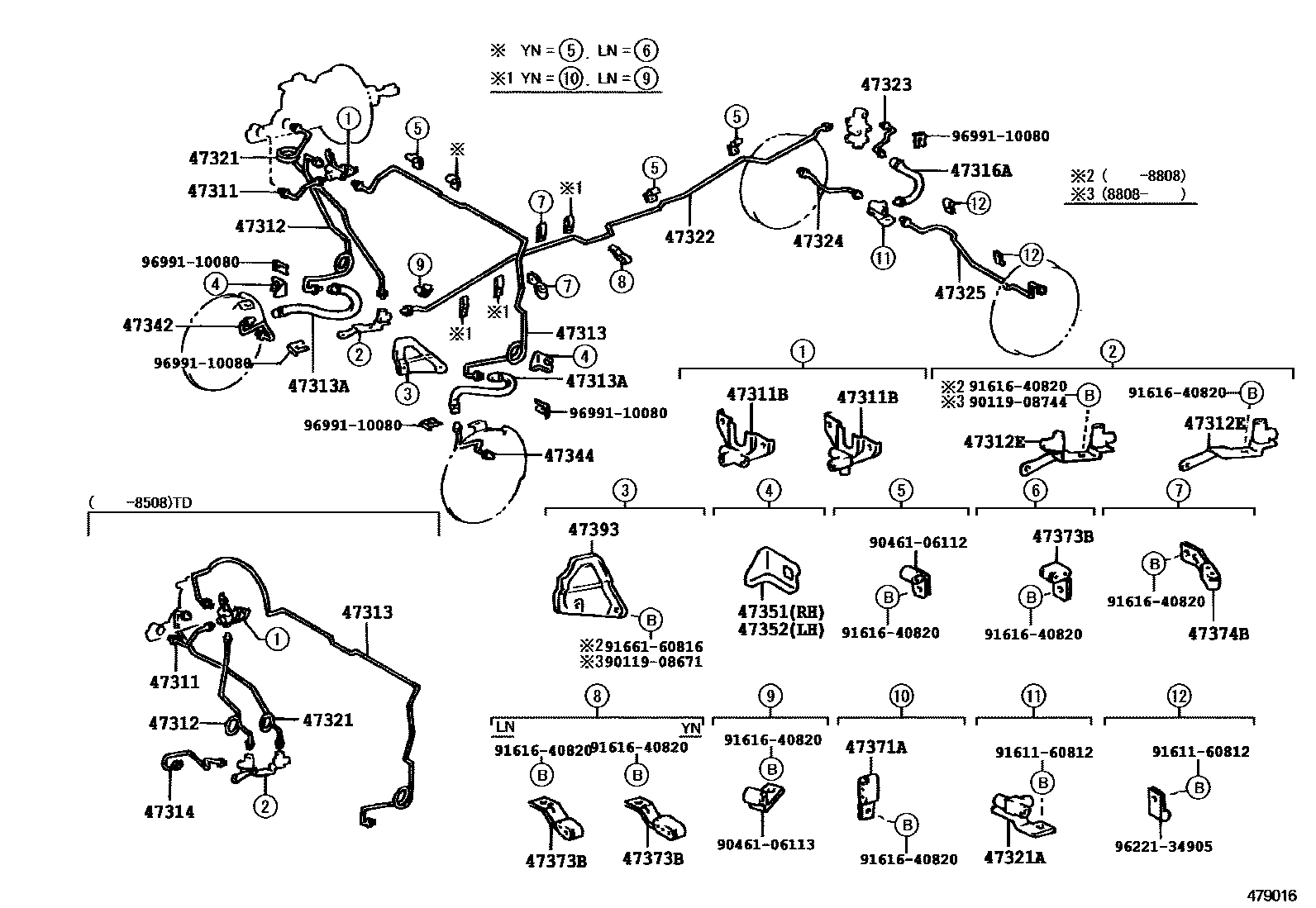

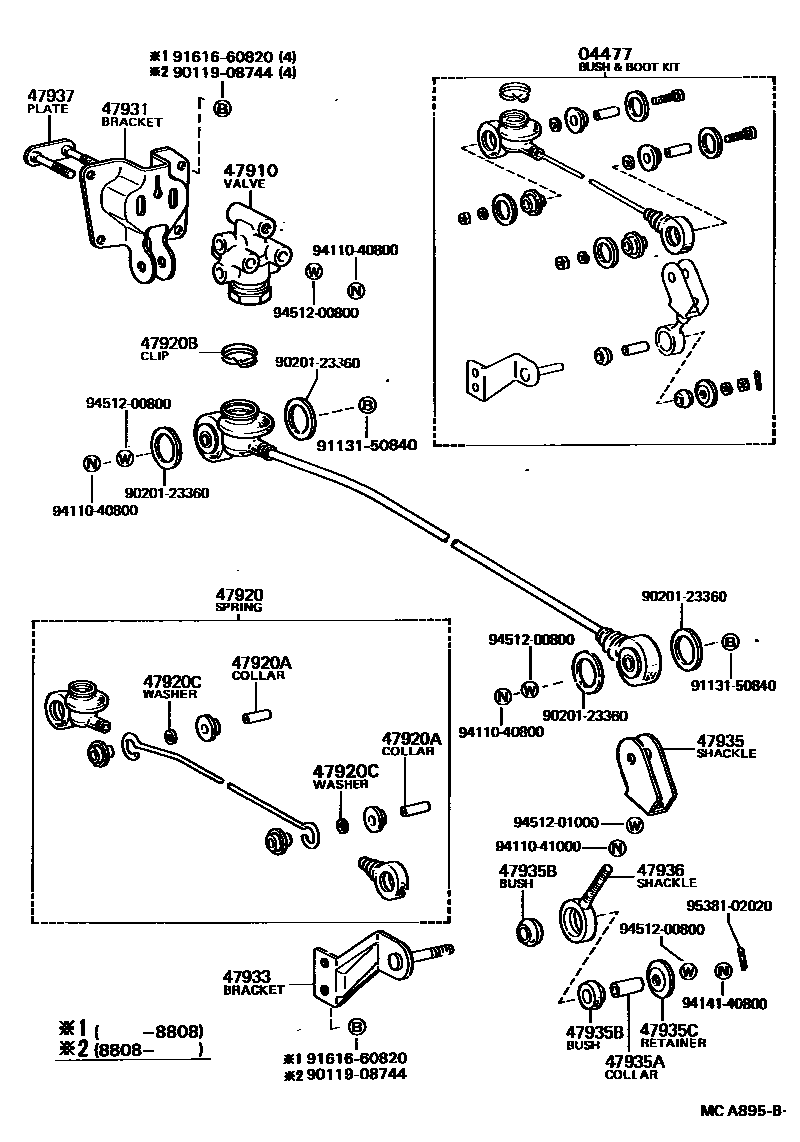

Toyota HILUX 制动配管和卡箍 — Figure 4708
Toyota HILUX EPC diagram 4708, 制动配管和卡箍, with 3 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04477 | Load sensing spring bushing and boot assembly | 04477-60010 |
| 47311 | No. 1 front brake pipe | 47311-35270 · 47311-35330 · 47311-35350 · 47311-35400 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90413-10058 · 90413-10111 · 90413-10176 · 90413-10194 |
| 47312 | No. 2 front brake pipe | 47312-35400 · 47312-35440 · 47312-35460 · 47312-35530 · 47312-35670 · 47312-35720 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90412-10108 · 90412-10123 · 90412-10135 |
| 47313 | No. 3 front brake pipe | 47313-35280 · 47313-35310 · 47313-35370 · 47313-35400 · 47313-35460 · 47313-35490 |
| 47313A | No. 1 front flexible hose | 90947-02383 · 90947-02446 · 90947-02588 · 96950-33555 |
| 47314 | No. 4 front brake pipe | 47314-35180 |
| 47316A | Flexible hose (for rear brake pipe) | 90947-02491 · 90947-02589 · 96940-34205 · 96940-34305 · 96940-34805 |
| 47321 | No. 1 rear brake pipe | 47321-35210 · 47321-35240 · 47321-35270 · 47321-35370 |
| 47321A | Pipe fitting (for rear brake pipe) | 90413-10152 · 90413-10162 · 90413-10198 |
| 47322 | No. 2 rear brake pipe | 47322-35190 · 47322-35230 · 47322-35270 · 47322-35290 · 47322-35300 · 47322-35400 |
| 47323 | No. 3 rear brake pipe | 47323-35060 · 47323-35080 · 47323-35120 |
| 47324 | No. 4 rear brake pipe | 47324-35060 · 47324-35080 · 47324-35100 · 47324-35110 · 47324-35120 · 47324-35150 |
| 47325 | No. 5 rear brake pipe | 47325-35070 · 47325-35090 · 47325-35110 · 47325-35120 · 47325-35130 · 47325-35160 |
| 47342 | No. 2 right front wheel cylinder brake pipe | 47341-35030 · 47341-35090 · 47341-35100 |
| 47344 | No. 2 left front wheel cylinder brake pipe | 47343-35030 · 47343-35090 · 47343-35100 |
| 47351 | Right front flex hose bracket | 47351-35120 · 47351-35140 · 47352-35170 |
| 47352 | Left front flex hose bracket | 47352-35120 · 47353-35080 · 47354-35080 |
| 47353 | Rear flex hose bracket | 47352-35140 |
| 47371A | No. 1 brake pipe clamp | 47371-35030 · 47371-35040 |
| 47373B | No. 3 brake pipe clamp | 47371-35050 · 47371-35060 · 47372-35020 · 47373-35010 |
| 47374B | No. 4 brake pipe clamp | 47373-35020 · 47373-35030 · 47374-35010 |
| 47375 | No. 5 brake pipe clamp | 47375-35010 · 47375-35030 · 47375-35040 · 47375-35050 |
| 47393 | brake pipe heat shield | 47393-35050 · 47393-35051 · 47393-35060 · 47393-35080 · 47393-35100 |
| 47910 | Load sensing proportional valve assembly | 47910-26030 · 47910-35070 |
| 47910G | Deceleration sensing proportional valve assembly | 47910-35050 |
| 47920 | Load sensing spring assembly | 47920-35050 |
| 47920A | Collar (for load sensing spring) | 90387-08099 |
| 47920B | Clamp (for load sensing valve dust cover) | 90467-31110 |
| 47920C | Washer (for load sensing spring) | 90202-10103 |
| 47931 | Load sensing valve bracket | 47931-35050 |
| 47931G | Deceleration sensor valve bracket | 47931-35060 |
| 47933 | No. 1 load-sensing spring lifting eye bracket | 47933-35040 · 47933-35050 |
| 47935 | No. 1 load-sensing spring lifting ear | 47935-35010 |
| 47935A | Shaft collar (for load sensing spring lifting lugs) | 90387-08099 |
| 47935B | Bushing (for load sensing spring lifting lugs) | 90385-10064 |
| 47935C | Fixings (for load-sensing spring lifting lugs) | 90948-02033 |
| 47936 | No. 2 load-sensing spring lifting lugs | 47936-35020 |
| 47937 | Load sensing valve fixing plate | 47937-60010 |
