Toyota HILUX 前盘式制动器卡钳和防尘罩 — Figure 4705

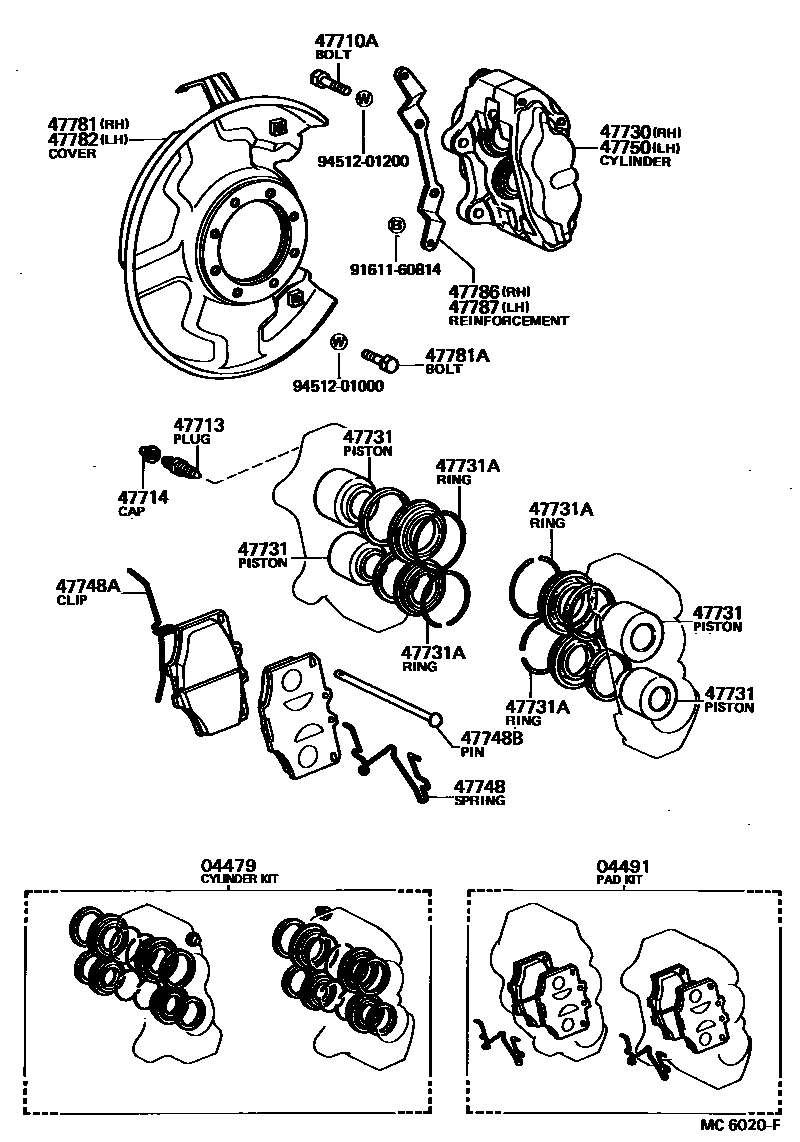

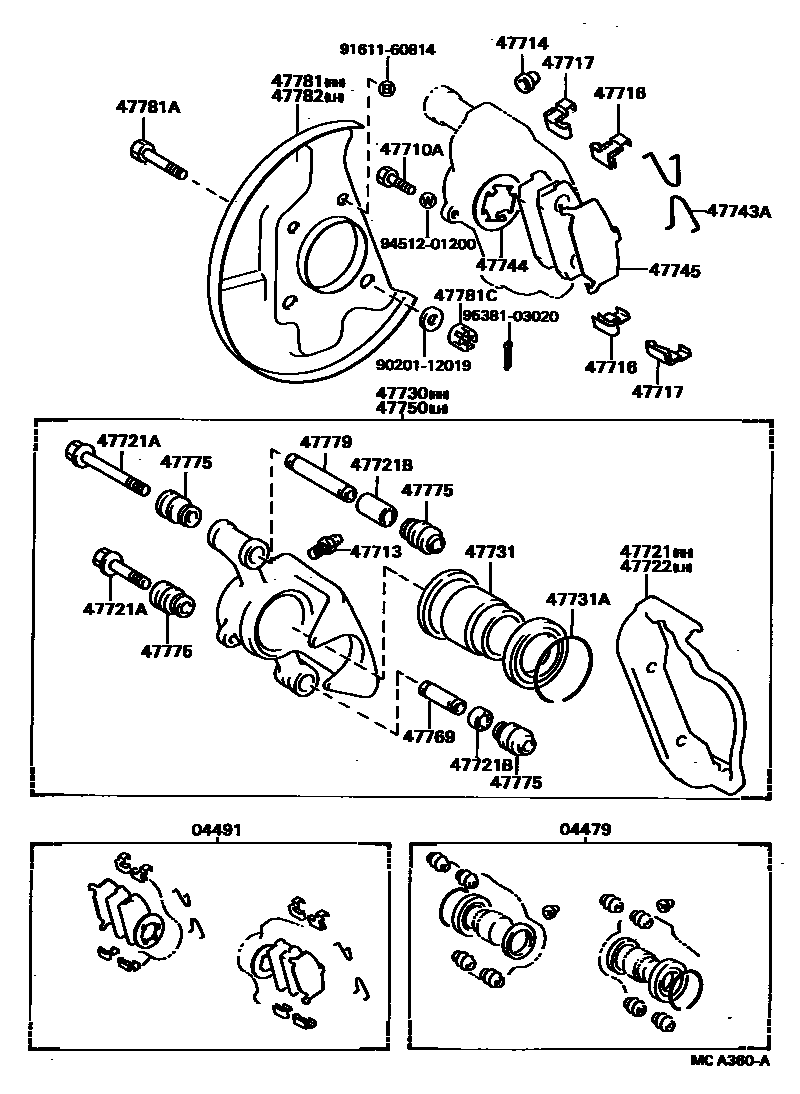

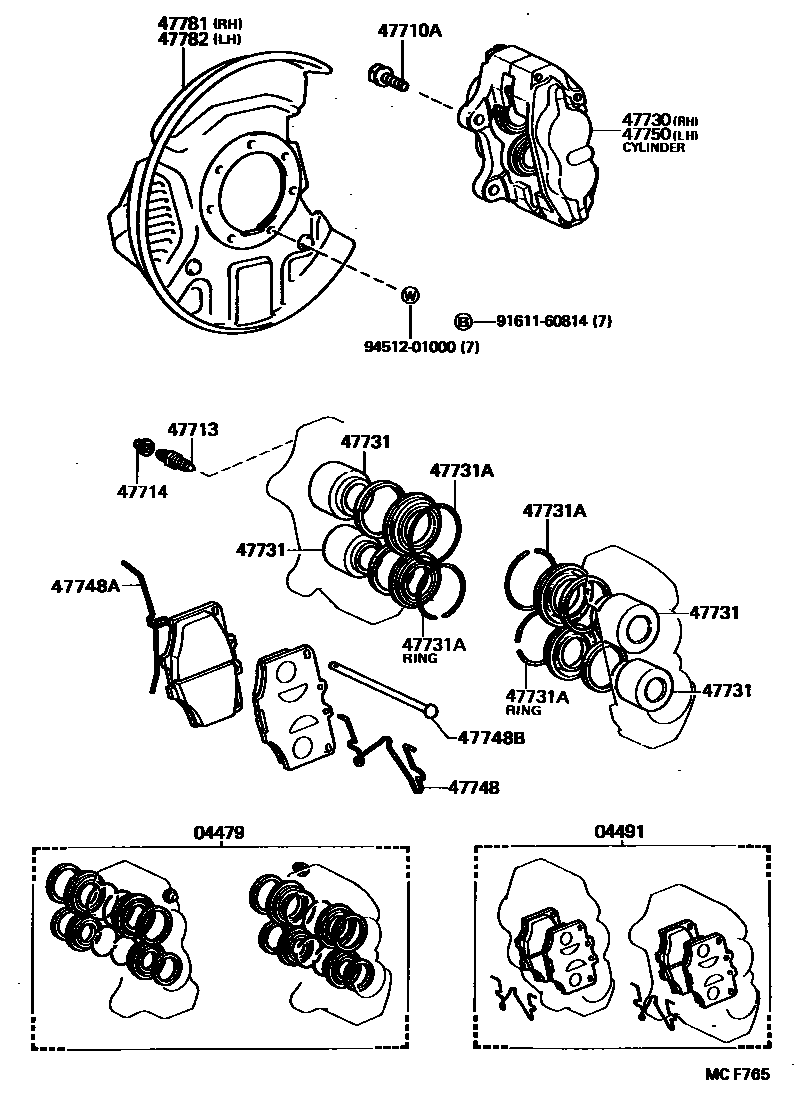

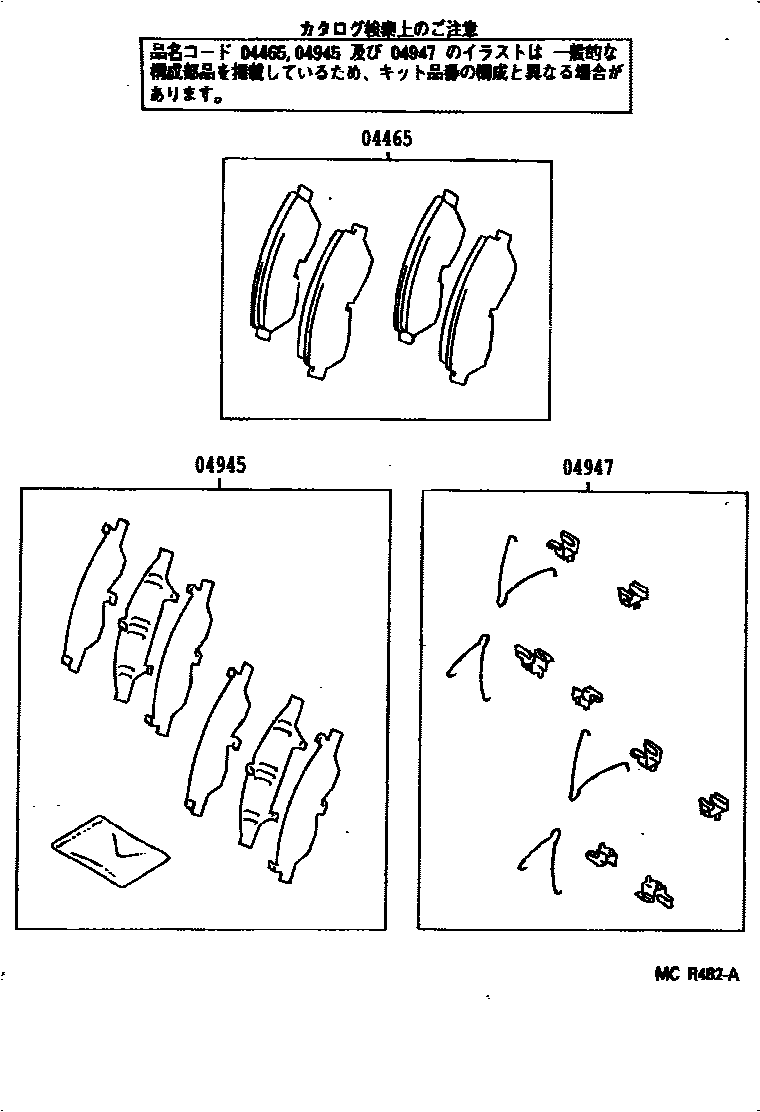

Toyota HILUX EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 4 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-35020 · 04465-35170 |
| 04479 | Front disc brake cylinder assembly | 04479-30030 · 04479-40010 |
| 04491 | Front disc brake pad assembly | 04491-35050 · 04491-35080 · 04491-35100 · 04491-35101 · 04491-60010 |
| 04945 | Front silencer gasket assembly | 04945-26060 · 04945-35060 |
| 04947 | Front disc brake mounting kit | 04947-26030 · 04947-60050 · 04947-60060 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90101-12030 · 90101-12060 · 90101-12491 |
| 47713 | Bleed plug (for front disc brake) | 47547-12010 · 47547-20030 |
| 47714 | Bleeder plug cap (for front disc brake) | 31478-30010 |
| 47716 | Pad support plate No. 1 (for front disc brake) | 47716-40010 |
| 47717 | Pad support plate No. 2 (for front disc brake) | 47717-40010 |
| 47721 | Right front disc brake cylinder retainer | 47721-26040 |
| 47721A | Bolt (for front disc brake cylinder retainer) | 90119-10014 · 90119-10249 |
| 47721B | Collar (for front disc brake cylinder retainer) | 90387-16004 · 90387-16005 |
| 47722 | Left front disc brake cylinder retainer | 47721-26040 |
| 47730 | Right front disc brake cylinder assembly | 47730-26040 · 47730-35010 · 47730-60021 |
| 47731 | Front disc brake piston | 47731-30020 · 47731-40010 · 47732-30010 |
| 47731A | retaining ring (for front disc brake piston) | 90522-40043 · 90522-48044 · 90522-70001 |
| 47743A | Silencer spring (for front disc brake) | 47743-40010 · 47743-40020 |
| 47744 | No. 1 silencer gasket (for front disc brake) | 47744-26020 · 47744-35010 |
| 47745 | No. 2 silencer gasket (for front disc brake) | 47745-35010 · 47745-40020 |
| 47748 | Anti-vibration spring No. 1 (for front disc brake) | 47748-30013 · 47748-60010 |
| 47748A | Clamp (for front disc brake vibration isolator) | 90468-12003 |
| 47748B | Pin with hole (for front disc brake vibration isolator) | 90240-06006 · 90240-06158 |
| 47750 | Left disc brake cylinder assembly | 47750-26040 · 47750-35010 · 47750-60021 |
| 47769 | No. 1 brake cylinder sliding sleeve (for front disc brake) | 47769-40010 |
| 47775 | Bushing boot (for front disc brake) | 47775-40010 |
| 47779 | No. 2 brake cylinder sliding sleeve (for front disc brake) | 47779-40010 |
| 47781 | Right front disc brake dust cover | 47703-35020 · 47703-35030 · 47781-35040 |
| 47781A | Bolt (used to secure dust cover to knuckle arm) | 90102-12006 · 91112-71028 |
| 47781C | Nut (used to secure dust cover to steering knuckle arm) | 90171-12006 |
| 47782 | Left front disc brake dust cover | 47704-35020 · 47704-35030 · 47782-35040 |
| 47786 | Right dust cover reinforcement | 47786-60020 |
| 47787 | Left dust cover reinforcement | 47787-60020 |
