Toyota HILUX 制动助力器和真空管 — Figure 4703

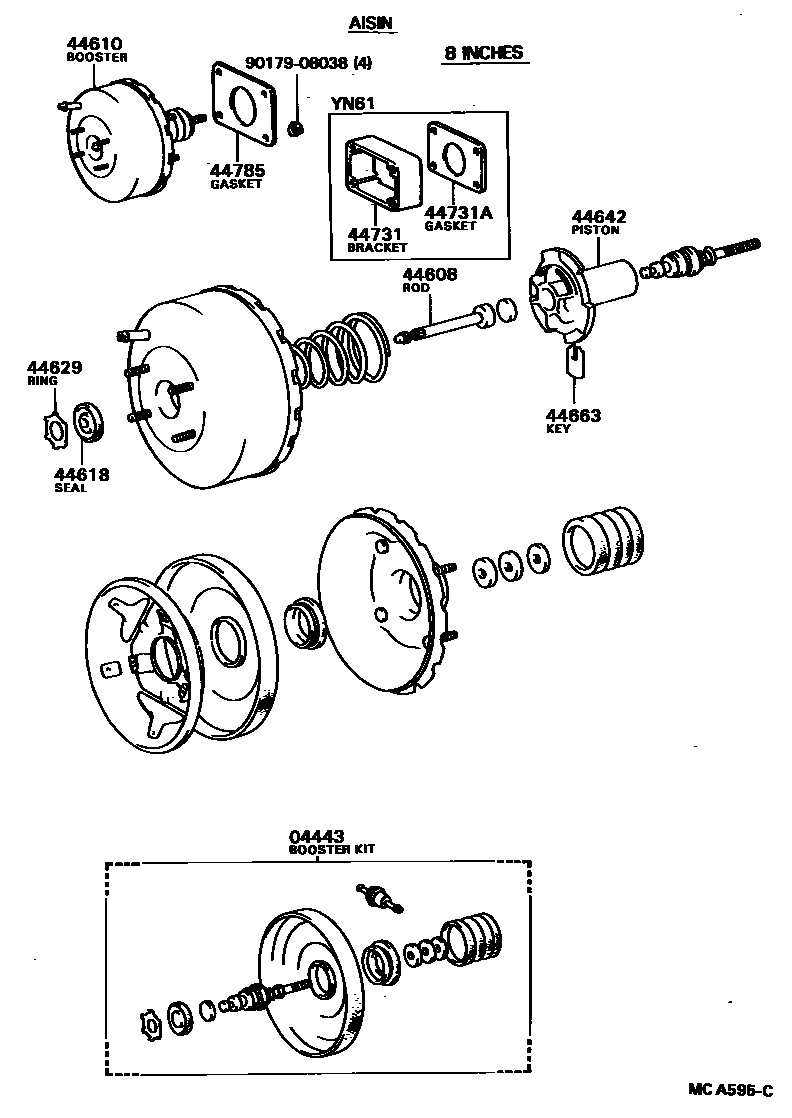

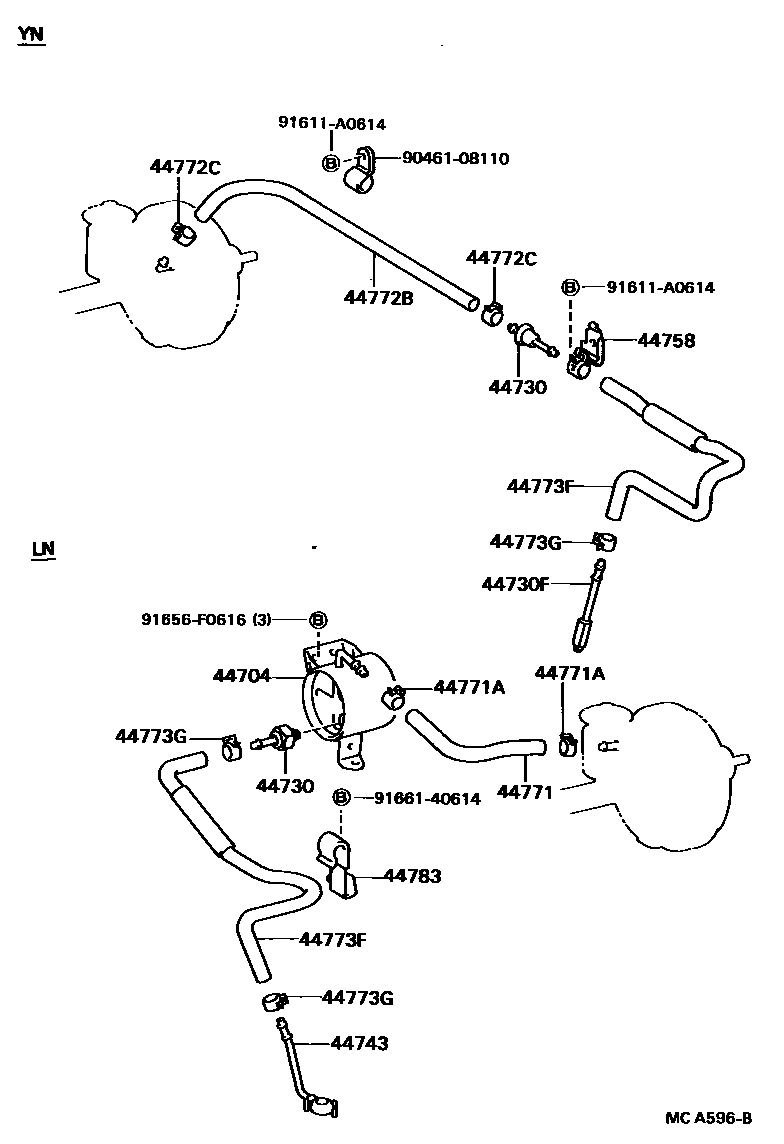

Toyota HILUX EPC diagram 4703, 制动助力器和真空管, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04443 | brake booster components | 04443-16080 · 04443-16081 · 04443-35320 · 04443-35450 · 04443-35480 · 04443-35530 · 04443-35550 |
| 44608 | Booster push rod sub-assembly | 44606-12520 · 44606-32010 |
| 44610 | brake booster assembly | 44610-35460 · 44610-35500 · 44610-35670 · 44610-35710 · 44610-35770 · 44610-35790 |
| 44618 | Booster body sealing ring | 44621-28120 |
| 44629 | annular inner ring | 44628-28120 |
| 44642 | brake booster piston | 44642-12520 · 44642-16050 |
| 44663 | valve stop key | 44635-28120 |
| 44704 | Vacuum liquid tank sub-assembly | 44704-35030 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-10010 · 44730-60040 |
| 44730F | Vacuum hose connector (for manifold side) | 90404-51020 · 90404-51054 |
| 44731 | Front brake booster bracket | 44731-35090 |
| 44731A | Brake booster bracket pad | 44785-35020 |
| 44743 | Connector (for vacuum pump) | 90405-09078 · 90405-09079 · 90405-09081 · 90405-09082 |
| 44758 | Vacuum check valve bracket | 44758-35070 |
| 44771 | Vacuum tube connector hose | 44771-35010 |
| 44771A | Clip (for vacuum tube connector hose) | 90467-16002 |
| 44772B | Hoses (check valve to brake booster) | 44772-35050 · 44772-35160 |
| 44772C | Clip (for check valve to brake booster hose) | 90467-16002 |
| 44773F | Hoses (connector to check valve) | 44773-35230 · 44773-35240 · 44773-35270 · 44773-35280 · 44773-35300 |
| 44773G | Clamp (for connector to one-way valve hose) | 90467-16002 |
| 44783 | Vacuum hose clamp | 44783-35020 |
| 44785 | brake booster pad | 44785-35020 |
