Toyota HILUX Brake Pedal & Bracket — Figure 4701

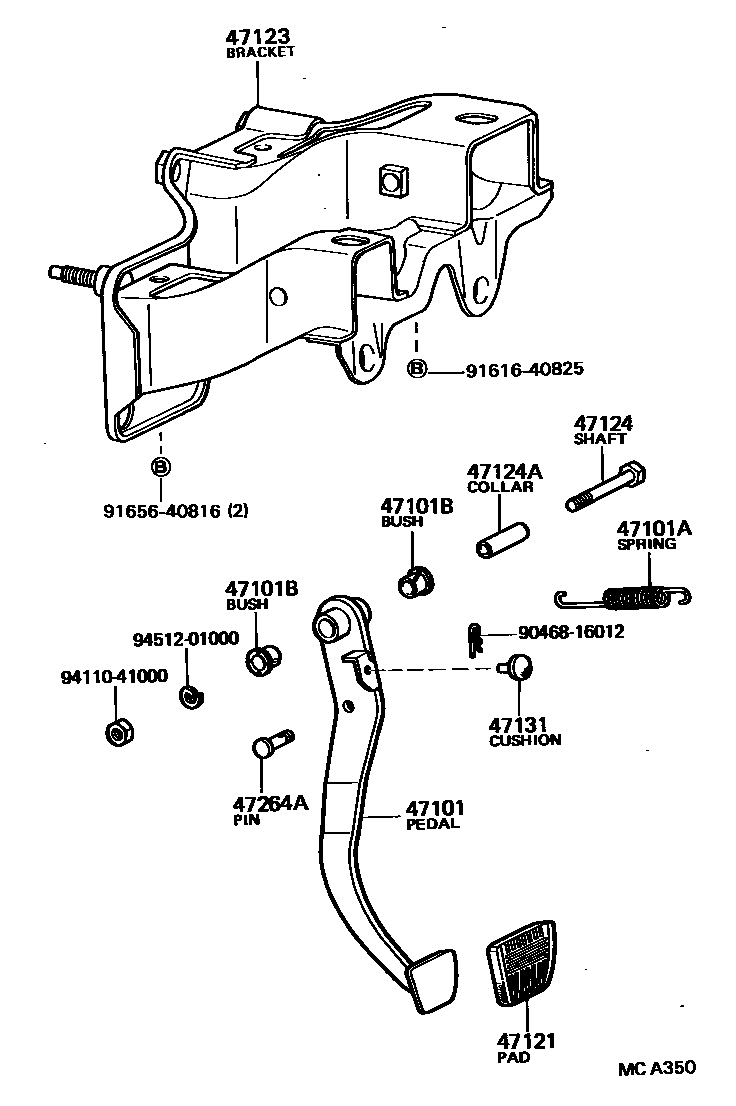

Toyota HILUX EPC diagram 4701, Brake Pedal & Bracket, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101 | Brake pedal sub-assembly | 47101-35200 · 47101-35210 |
| 47101A | Spring (for brake pedal return) | 90506-14021 |
| 47101B | Bushing (for brake pedal) | 90386-13007 |
| 47121 | brake pedal pad | 31321-14020 · 47121-12011 |
| 47123 | brake pedal bracket | 55106-89120 · 55106-89121 |
| 47124 | brake pedal shaft | 91121-51060 |
| 47124A | Collar (for brake pedal shaft) | 90387-10003 |
| 47131 | Bump pad (for brake light switch) | 90541-06008 |
| 47264A | Pin (for push rod) | 90249-10064 |
