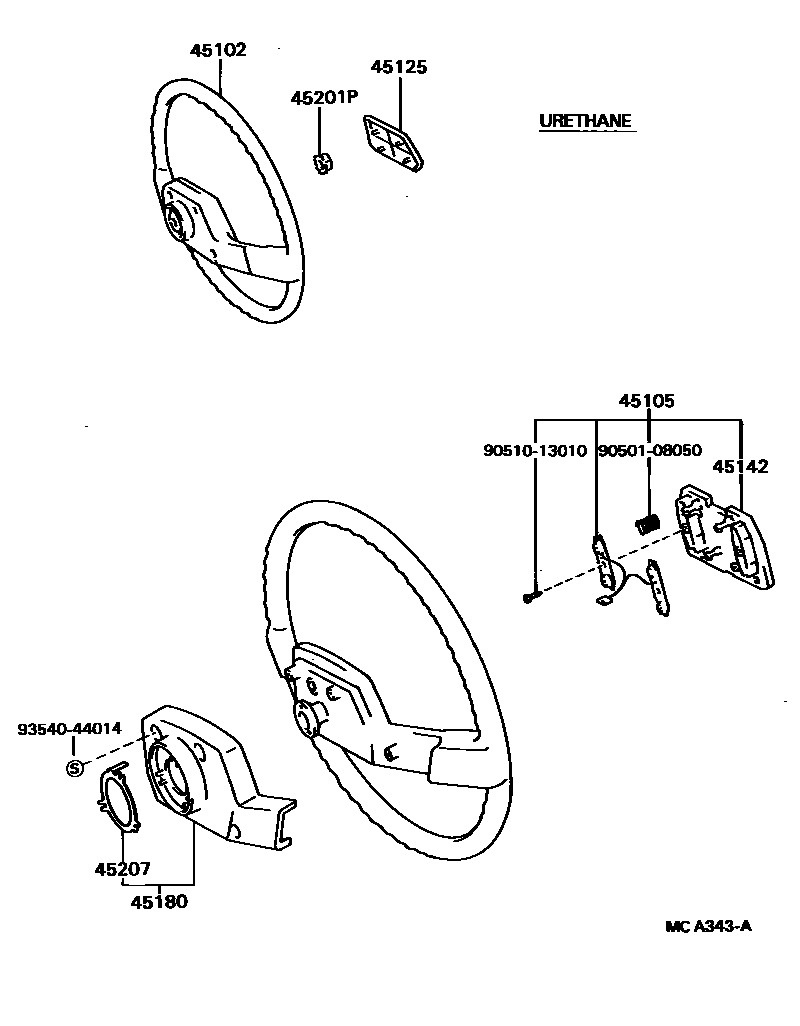

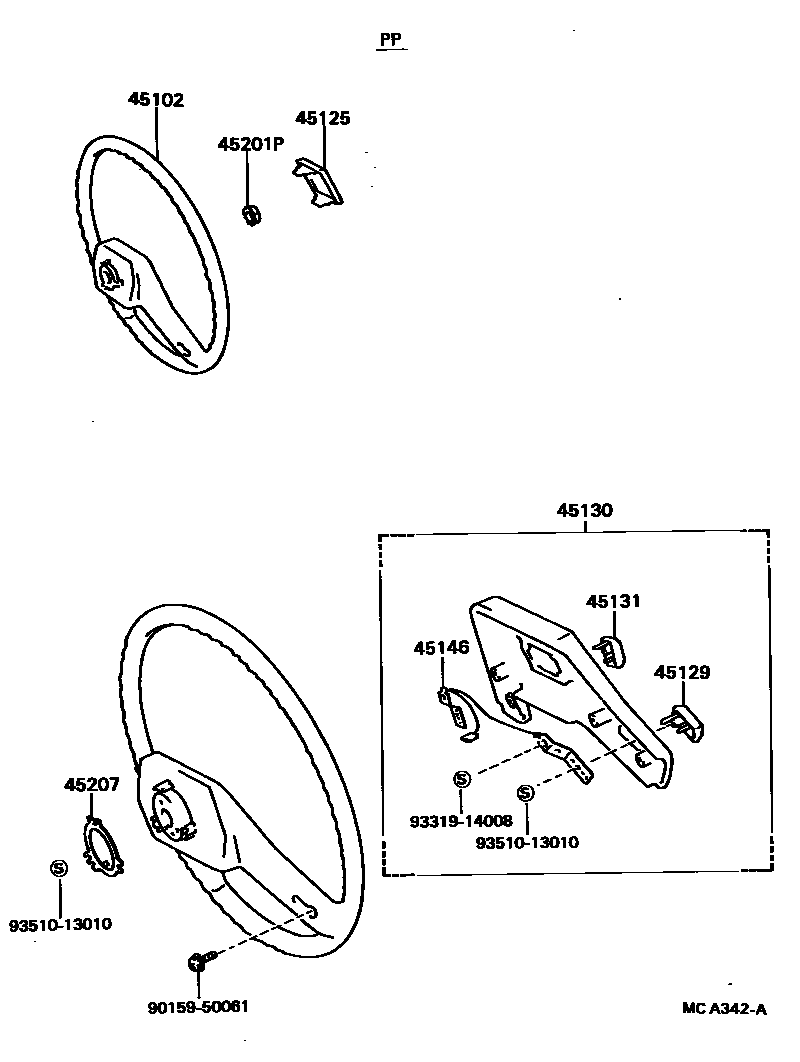

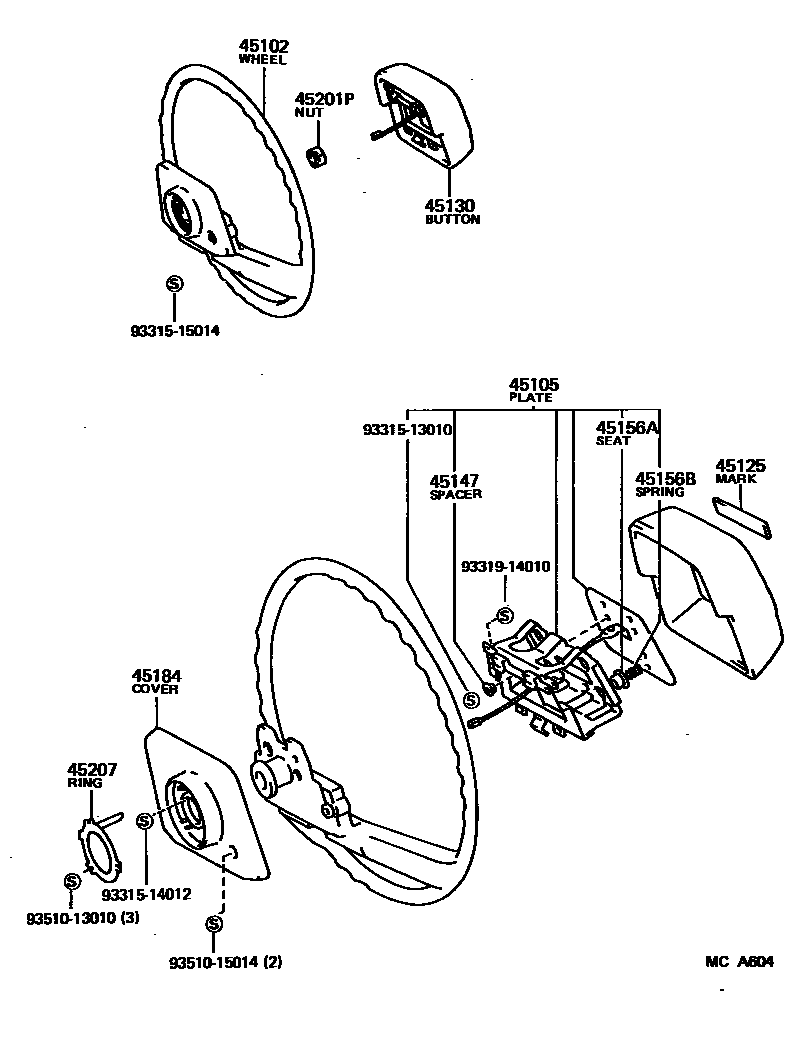

Toyota HILUX Steering Wheel — Figure 4504
Toyota HILUX EPC diagram 4504, Steering Wheel, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45102 | Steering wheel sub-assembly | 45100-35210 · 45100-35220 |
| 45105 | No. 1 horn button contact piece sub-assembly | 45105-35020 · 45105-35021 · 45105-35030 |
| 45125 | Steering wheel trim cover markings | 45125-35080 · 45125-35090 · 45125-35110 · 45125-35141 |
| 45129 | Speaker button No. 2 | 45129-35040 |
| 45130 | Speaker button assembly | 45130-35170 |
| 45131 | Speaker button No. 1 | 45131-35120 |
| 45142 | No. 1 horn button contact seat | 45142-35030 · 45142-35031 |
| 45146 | Horn button contact spring | 45146-35070 |
| 45147 | Speaker button spacer | 90561-02001 |
| 45156A | Speaker contact spring holder | 45156-16010 |
| 45156B | Spring (for horn contact spring holder) | 90501-06032 |
| 45180 | Steering wheel cover sub-assembly | 45180-35030 |
| 45201P | Steering wheel fixing nut | 90179-12086 |
| 45207 | Speaker contact ring | 45176-20030 · 45176-22050 · 45176-35020 |
