Toyota HILUX 动力转向配管 — Figure 4503

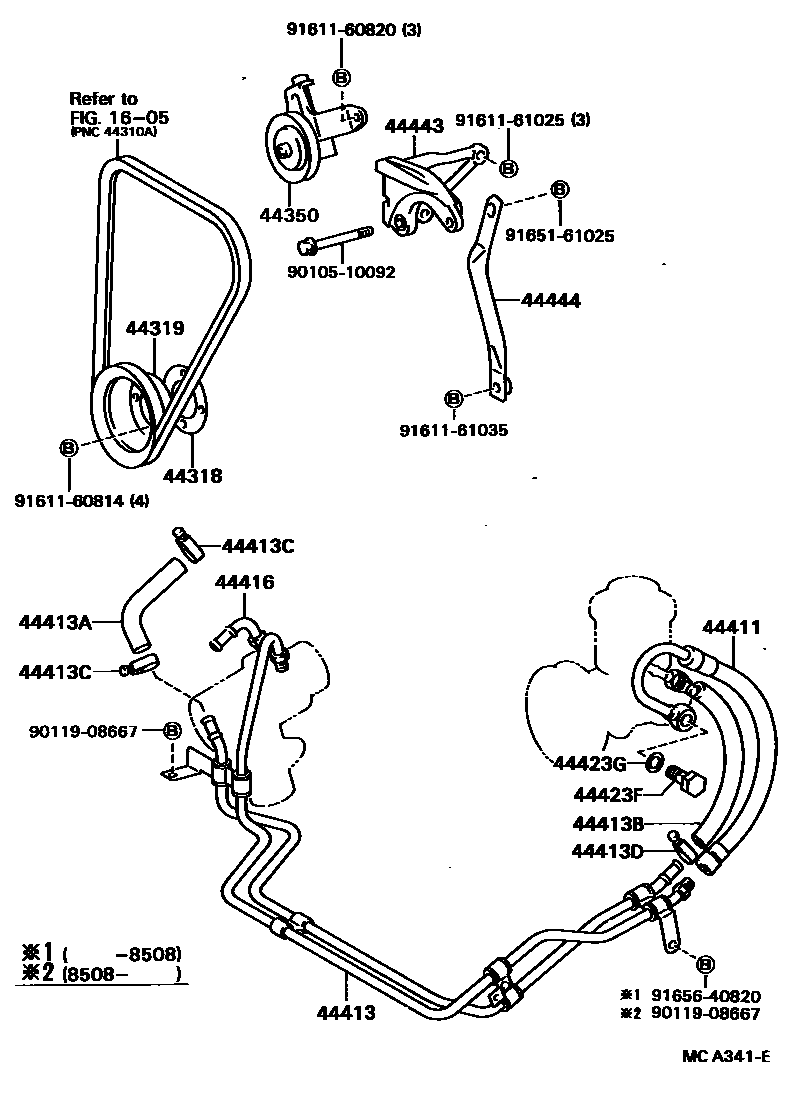

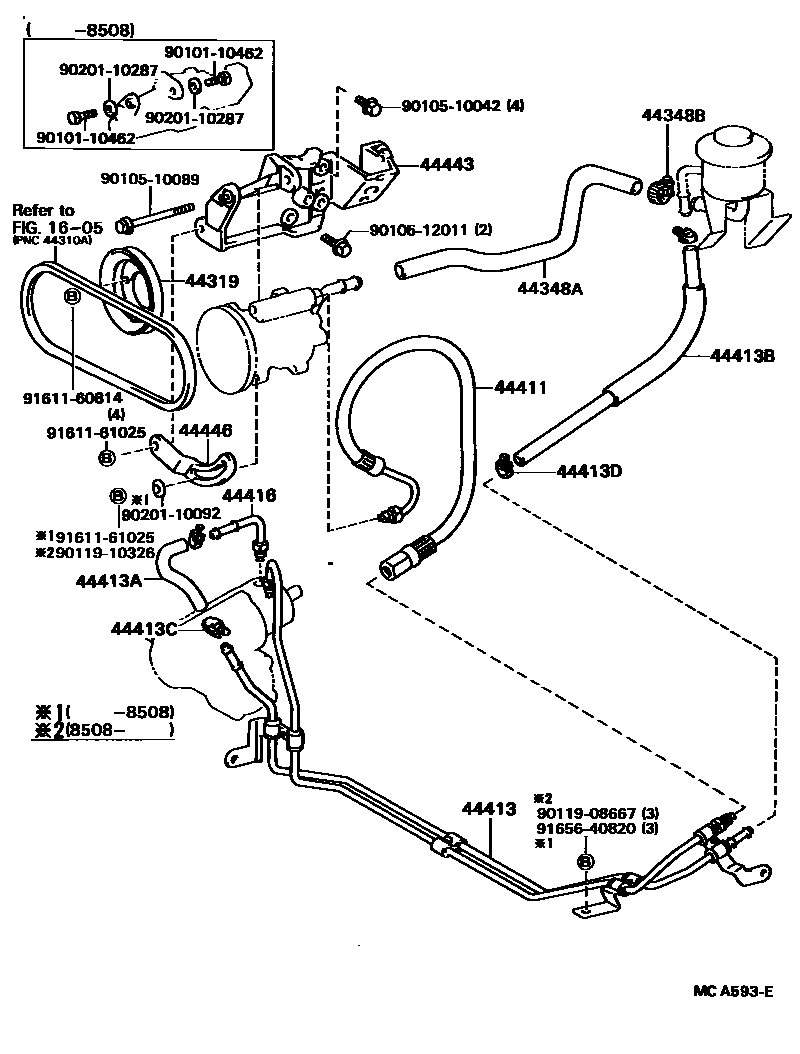

Toyota HILUX EPC diagram 4503, 动力转向配管, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44318 | Vane pump drive pulley spacer | 44318-28012 |
| 44319 | Vane pump drive pulley | 44319-28013 · 44319-30020 · 44319-30030 |
| 44348A | No. 1 hose (tank to pump) | 44348-35061 · 44348-35070 · 44348-35090 |
| 44348B | Clamp (for reservoir to pump hose) | 90460-26001 |
| 44350 | Power steering idler assembly | 44350-28011 |
| 44411 | pressure supply hose | 44411-35040 · 44411-35070 · 44411-35090 · 44411-35170 |
| 44413 | No. 1 pressure supply pipe | 44410-35020 · 44410-35030 · 44410-35080 · 44410-35081 · 44410-35090 |
| 44413A | Hoses (for return pipe outlet) | 90445-18067 · 90445-18079 |
| 44413B | Hoses (for storage tank inlet) | 90445-18096 · 90447-18020 · 90447-18025 · 90447-18033 |
| 44413C | Clamp (for oil return pipe outlet hose) | 90460-01001 |
| 44413D | Clamp (for oil storage tank inlet hose) | 90460-01001 |
| 44416 | Oil return pipe (for steering gear outlet) | 44416-35020 · 44416-35040 |
| 44423F | Joint bolts | 90401-16005 · 90401-16008 |
| 44423G | Joint bolt gasket | 90430-16242 |
| 44443 | pump bracket | 44443-22020 · 44443-28021 · 44443-30080 |
| 44444 | Pump back stay | 44444-27010 |
| 44446 | Adjust the stand | 44446-30050 · 44446-30070 |
