Toyota HILUX Steering Column & Shaft — Figure 4501

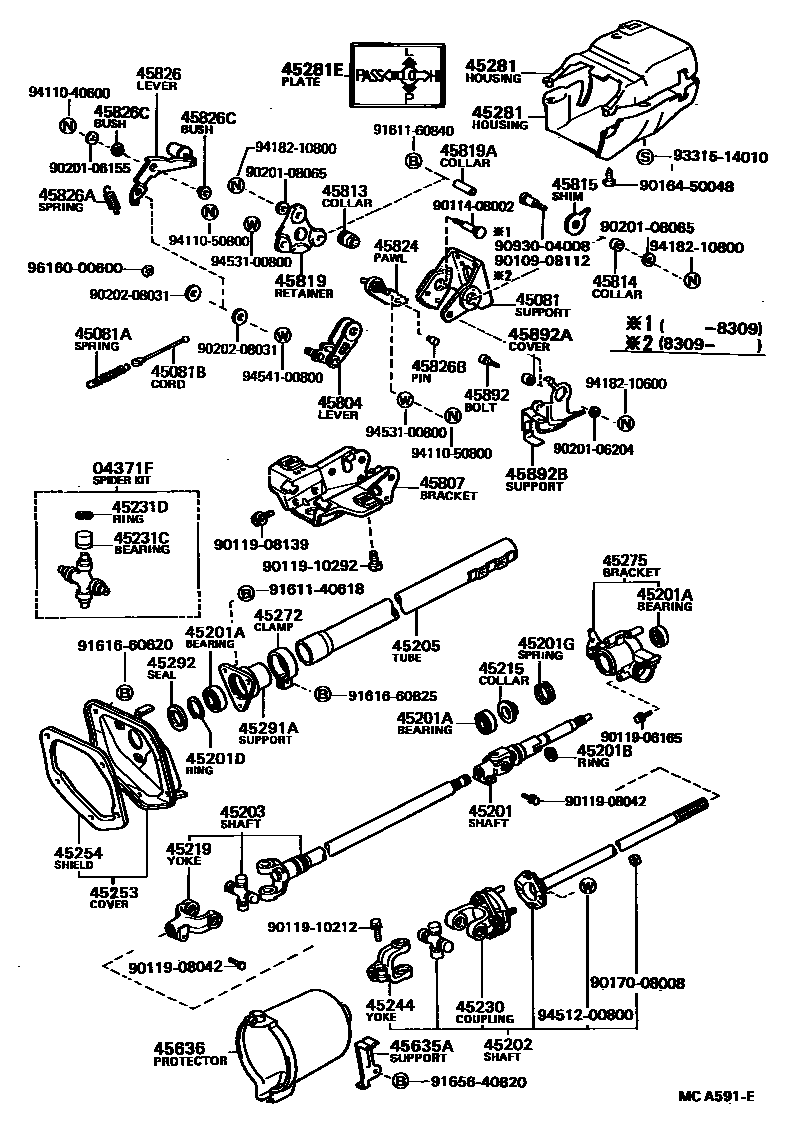

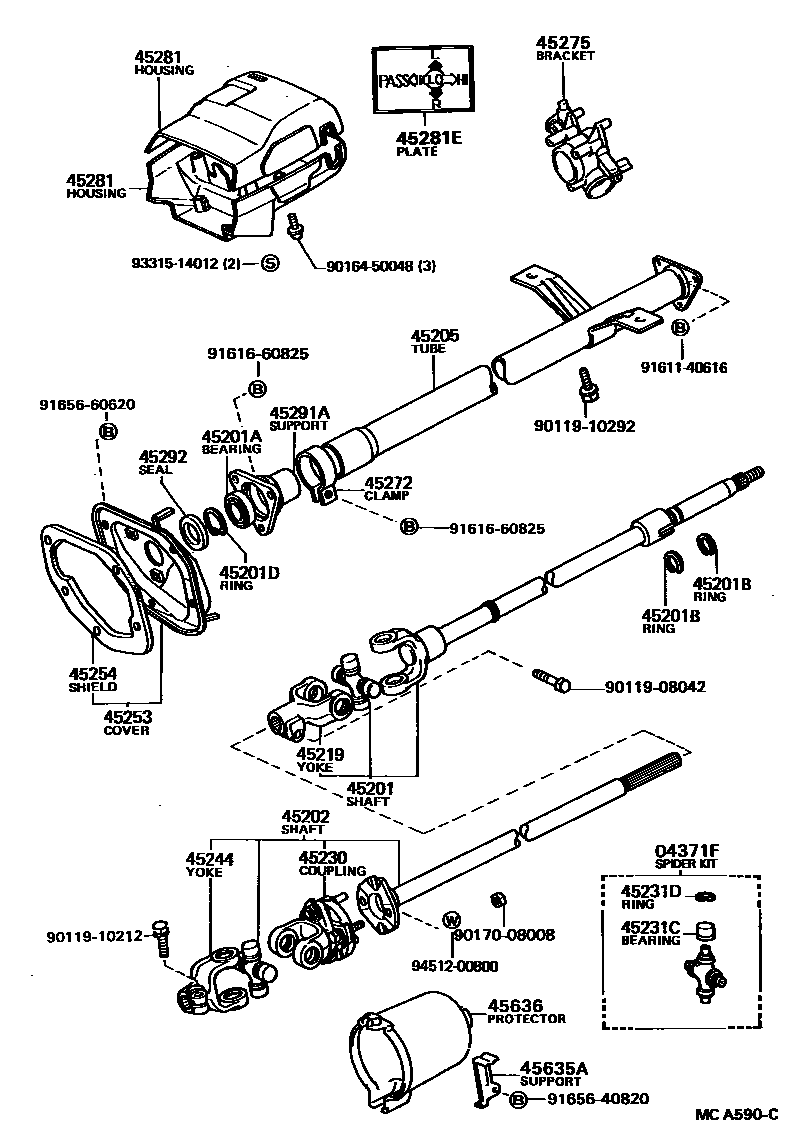

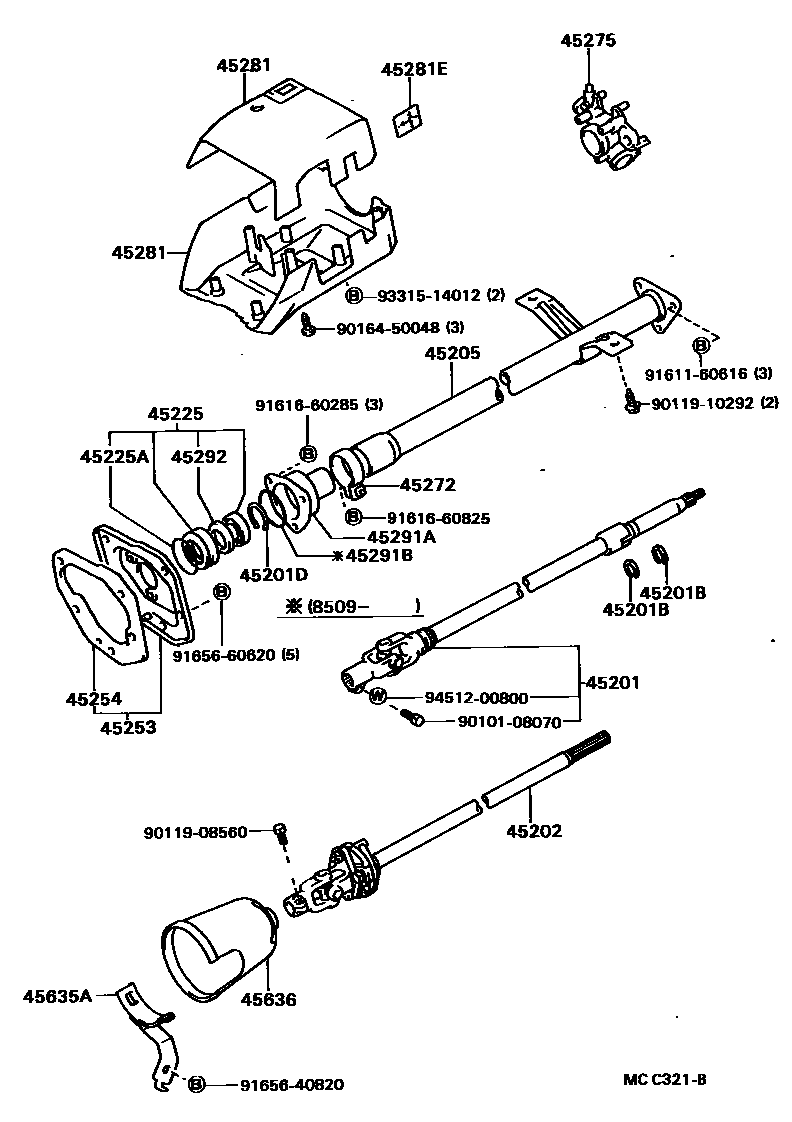

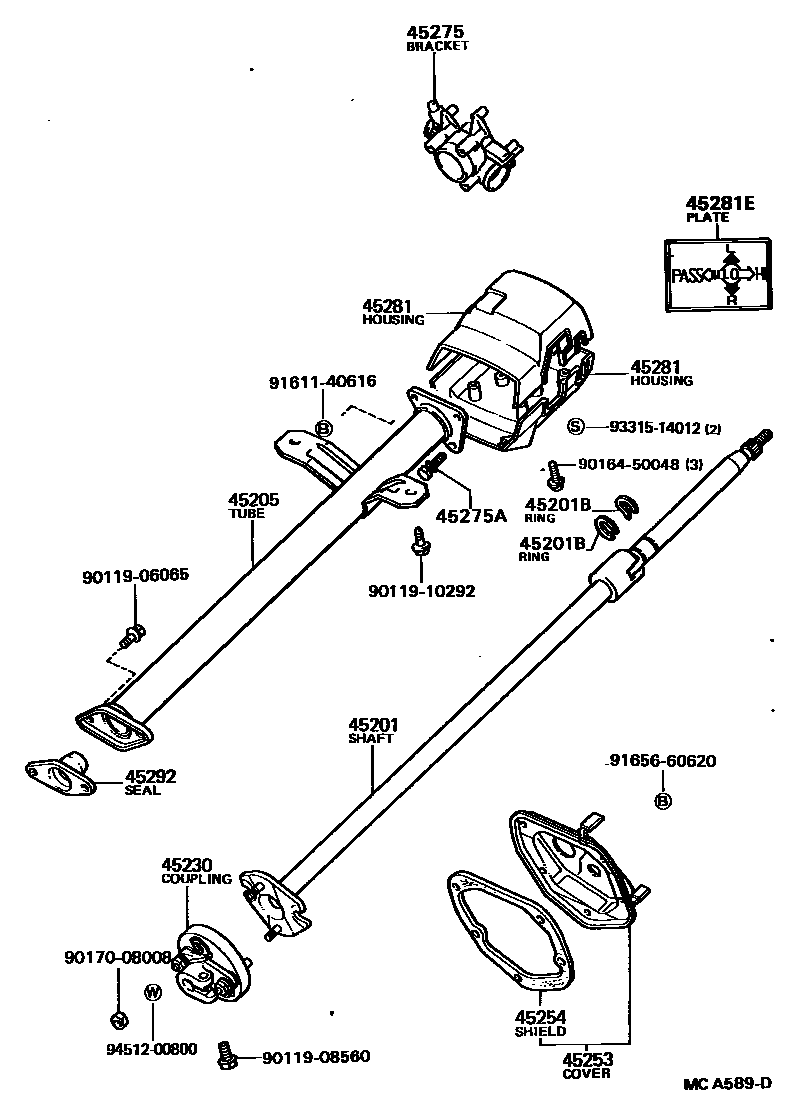

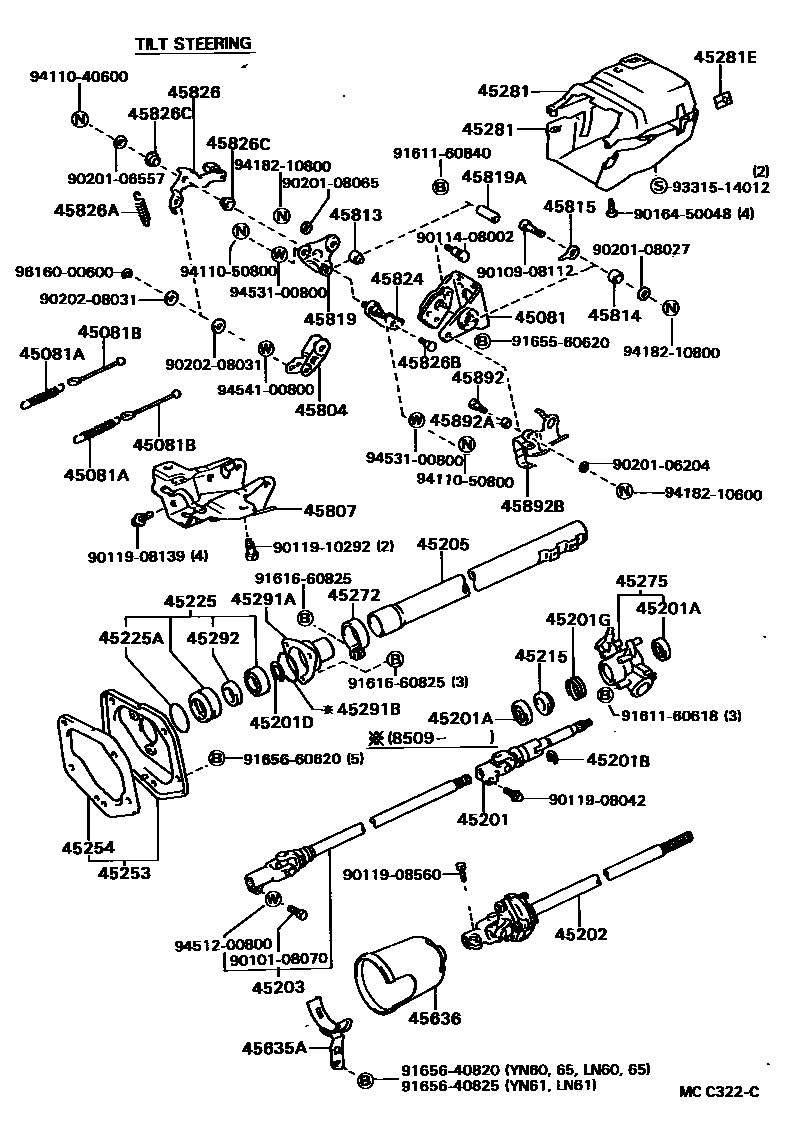

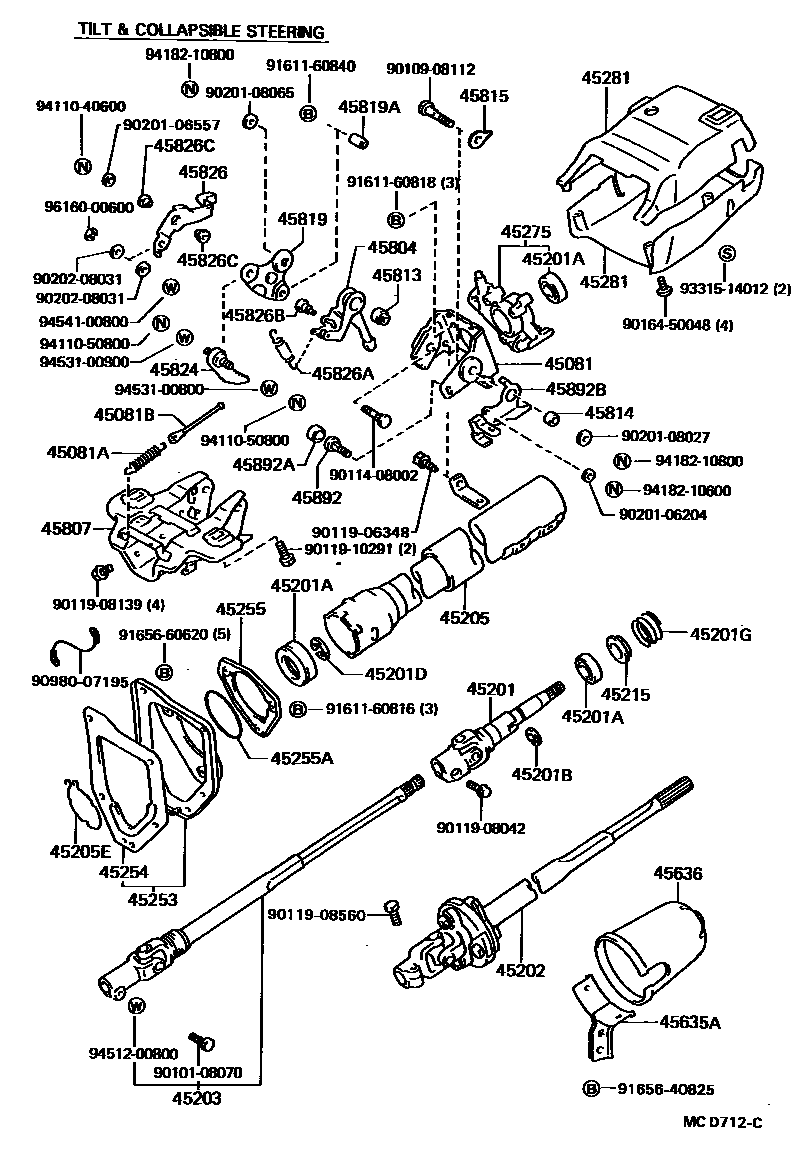

Toyota HILUX EPC diagram 4501, Steering Column & Shaft, with 6 images and 50 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04371F | Universal joint cross shaft assembly (for steering spindle) | 04371-10011 |
| 45081 | Tilt-adjustable steering bracket sub-assembly | 45081-35010 |
| 45081A | Tension spring (for tilt-adjustable steering column) | 90506-23009 |
| 45081B | Wire (for tilt-adjustable steering column) | 90945-02034 |
| 45201 | Steering spindle sub-assembly | 45201-35170 · 45210-22050 · 45210-35110 · 45210-35111 |
| 45201A | Bearings (for steering spindle) | 45225-60010 · 90363-18001 · 90363-28001 · 90363-30007 |
| 45201B | Shaft snap ring (for steering spindle) | 90520-17042 · 90520-17269 |
| 45201D | Ring (for steering spindle) | 96151-04700 · 96152-00300 |
| 45201G | Compression spring (for steering spindle) | 90501-45011 |
| 45202 | Steering intermediate shaft sub-assembly | 45220-35080 · 45220-35090 · 45220-35120 · 45220-35130 · 45220-35150 |
| 45203 | No. 2 steering intermediate shaft sub-assembly | 45260-35041 · 45860-35020 · 45860-35021 |
| 45205 | Steering column tube sub-assembly | 45205-35190 · 45205-35200 · 45205-35201 · 45205-35210 · 45205-35211 · 45870-35081 |
| 45205E | Snap ring (for steering column tube) | 90521-01003 |
| 45215 | Spindle bearing thrust collar | 45215-22011 |
| 45219 | steering fork | 45219-35010 |
| 45225 | Bearing body | 45225-60010 |
| 45225A | O-ring (for bearing body) | 96711-24053 |
| 45230 | Flexible coupling assembly | 45230-35020 · 45230-35040 |
| 45231C | Universal joint cross shaft bearing (for steering spindle) | 37402-10020 |
| 45231D | Hole snap ring (for steering spindle) | 90521-22011 · 90521-22012 · 90521-22013 |
| 45244 | Steering worm sliding fork | 45244-60020 |
| 45253 | Steering column hole cover | 45025-35060 · 45025-35061 · 45025-35080 · 45025-35081 · 45025-35090 · 45025-35091 · 45025-35130 |
| 45254 | steering column escutcheon | 45254-35010 · 45254-35020 · 45254-35030 |
| 45255 | Steering column hole cover | 45255-35021 |
| 45255A | Seal or O-ring (for steering column clamp) | 90301-60122 |
| 45272 | Steering column lower clip | 45272-35020 |
| 45275 | Steering column upper bracket | 45280-28040 · 45280-28041 · 45280-35150 · 45280-35151 |
| 45275A | Hexagonal bolt (for steering column bracket) | 45897-12030 |
| 45281 | Steering column housing | 45286-35190 · 45286-35200 · 45286-35210 · 45286-35240 · 45287-35140 · 45287-35150 · 45287-35160 |
| 45281E | Safety warning nameplate | 45283-22010 |
| 45291A | Steering column tube bracket | 45291-35020 · 45291-60040 · 45291-60041 |
| 45291B | O-ring (for steering column tube bracket) | 90301-61002 |
| 45292 | Dust-proof sealing ring under spindle | 45292-35021 · 45292-35030 · 45292-60050 |
| 45635A | Intermediate shaft tie rod joint protection device bracket | 45635-35011 · 45635-35030 · 45635-35050 |
| 45636 | Protective device for intermediate shaft tie rod joint | 45636-35011 · 45636-35020 |
| 45804 | Steering tilt adjustment lever sub-assembly | 45804-30010 |
| 45807 | Steering column upper bracket sub-assembly | 45082-35040 · 45807-35080 · 45807-35081 |
| 45813 | No. 1 tilt-adjustable steering bracket collar | 45813-22010 · 45813-22020 · 45813-22030 · 45813-22040 · 45813-22050 |
| 45814 | No. 2 tilt-adjustable steering bracket collar | 45814-22010 · 45814-22020 |
| 45815 | Tilt-adjustable steering rack spacer | 45815-22060 · 45815-22070 · 45815-22080 · 45815-22090 · 45815-22100 |
| 45819 | Tilt adjustment lever retaining ring | 45809-30021 |
| 45819A | Collar (for tilt adjustment lever retaining ring) | 90387-08002 |
| 45824 | Tilt-adjustable steering pawl | 45890-30020 |
| 45826 | Steering tilt adjustment lever | 45826-35010 |
| 45826A | Tension spring (for steering tilt adjustment lever) | 90507-14001 |
| 45826B | Pin (for steering tilt adjustment lever) | 72538-12010 |
| 45826C | Bushing (for steering tilt adjustment lever) | 90386-08123 |
| 45892 | Tilt-adjustable steering bracket limit bolt | 45898-22010 |
| 45892A | Tilt-adjustable steering rack stop cover | 45899-22020 |
| 45892B | Tilt-adjustable steering column cover bracket | 45289-35020 |
