Toyota HILUX Front Drive Shaft — Figure 4302

Toyota HILUX EPC diagram 4302, Front Drive Shaft, with 2 images and 18 PNC and OE references.

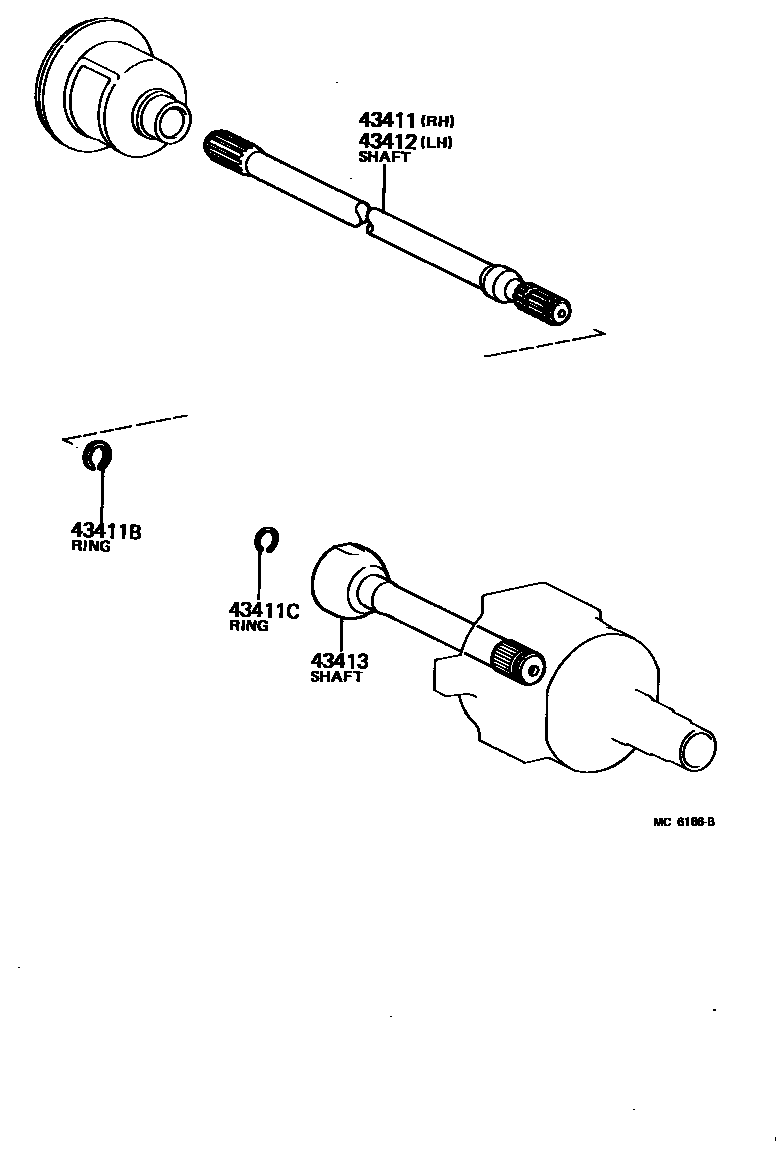

Toyota HILUX Front Drive Shaft EPC diagram — MC6166B
Front Drive Shaft — MC6166B (198311 – 999999)

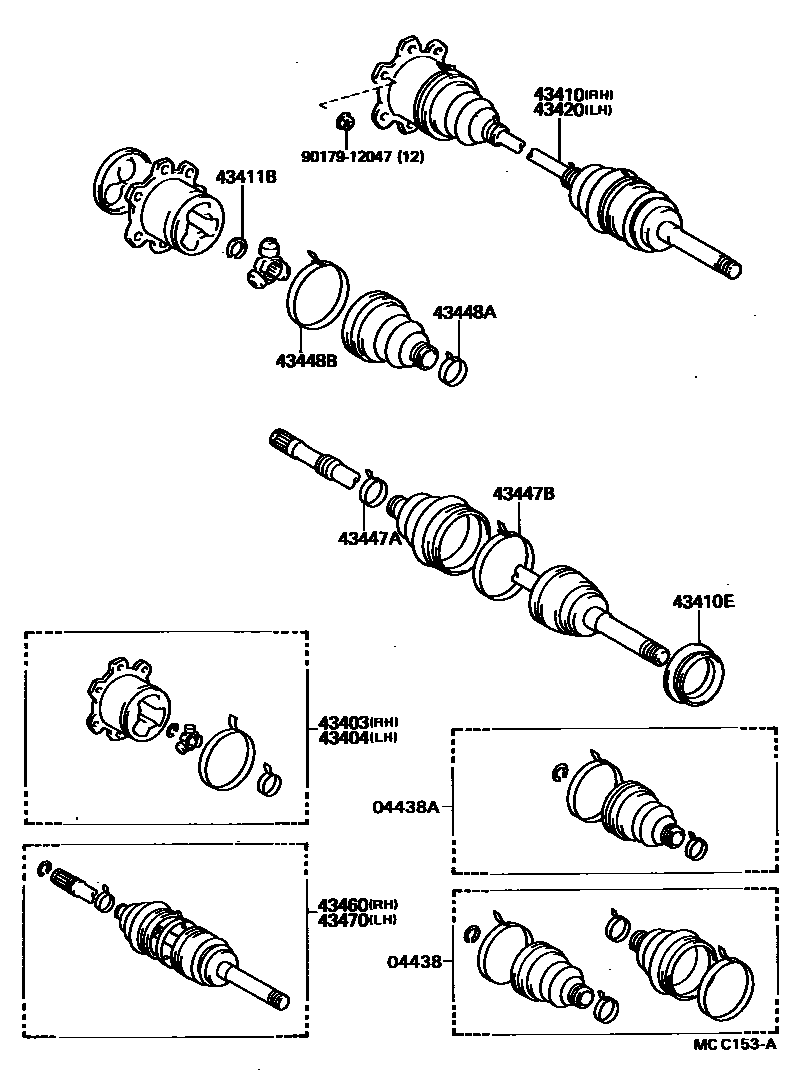

Toyota HILUX Front Drive Shaft EPC diagram — MCC153A
Front Drive Shaft — MCC153A (198508 – 999999)

PNC and OE references

PNCPart nameOE numbers
04438Front drive shaft dust boot assembly04438-35021
04438AFront drive shaft inner universal joint dust boot assembly04438-35011
43403Right front axle inner universal joint assembly43403-39035
43404Left front axle inner universal joint assembly43403-39035
43410Right front driveshaft assembly43430-35010
43410EDust cover (for front drive shaft)90304-76001 · 90304-76002
43411Right front axle inner shaft43411-35010
43411BInner shaft snap ring (for front axle inner shaft)90520-28036 · 90520-29028
43411COuter shaft snap ring (for front axle inner shaft)90520-27091
43412Left front axle inner shaft43412-35010
43413drive shaft43405-60015 · 43405-60016
43420Left front drive shaft assembly43430-35010
43447AClamp No. 1 (used to fix the universal joint dust cover on the outside of the front axle)90949-01221
43447BClamp No. 2 (used to fix the universal joint dust cover on the outside of the front axle)90949-01135
43448AClamp No. 1 (used to fix the universal joint dust cover on the inside of the front axle)90949-01221
43448BNo. 2 clip (used to fix the universal joint dust cover on the inside of the front axle)90949-01222
43460Right front outer drive universal joint shaft assembly43460-39025
43470Left front outer drive universal joint shaft assembly43460-39025
