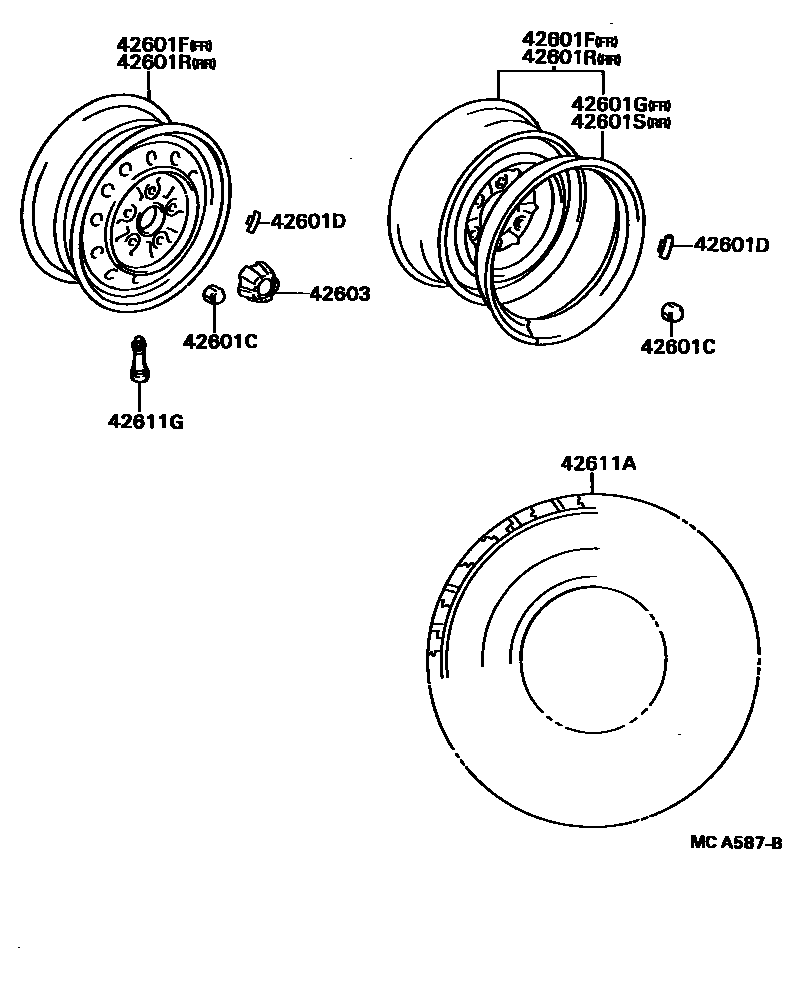

Toyota HILUX 车轮和车轮盖 — Figure 4103
Toyota HILUX EPC diagram 4103, 车轮和车轮盖, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01027 · 90942-01048 · 90942-01059 · 90942-01061 · 90942-01066 |
| 42601D | Balance weight (for spoked wheels) | 90942-03017 · 90942-03020 · 90942-03022 · 90942-03025 · 90942-03027 · 90942-03029 · 90942-03031 · 90942-03041 · 90942-03045 · 90942-03047 · 90942-03049 · 90942-03050 · 90942-03051 · 90942-03052 · 90942-03053 · 90942-03064 · 90942-03079 · 90942-03080 · 90942-03081 · 90942-03082 · 90942-03083 · 90942-03084 · 90942-03085 · 90942-03086 · 90942-03098 · 90942-03099 · 90942-03100 · 90942-03101 · 90942-03102 · 90942-03106 · 90942-03107 · 90942-03108 · 90942-03109 |
| 42601F | Spoke wheels (for front tires) | 42601-26171 · 42601-26180 · 42601-26250 · 42601-35142 · 42601-35260 · 42601-35400 · 42601-35420 · 42601-60220 · 42601-60221 |
| 42601G | Web-type wheel retaining rings (for front tires) | 42613-35010 |
| 42601R | Spoke wheels (for rear tires) | 42601-26180 · 42601-26250 · 42601-26260 · 42601-26261 · 42601-35142 · 42601-35260 · 42601-35400 · 42601-35420 · 42601-60220 · 42601-60221 |
| 42601S | Spoke wheel retaining ring (for rear tire) | 42613-35010 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-35071 · 42603-35080 · 42603-35090 · 42603-35110 · 42603-35120 · 42603-35130 · 42603-35150 · 42603-35160 · 42603-35170 · 42603-35171 · 42603-35180 · 42603-35181 · 42603-35200 · 42603-35201 · 42603-35210 · 42603-35211 · 42603-35290 · 42603-35420 |
| 42611A | Tubeless tire assembly or tubeless tire | 42605-26080 · 42605-26110 · 42605-35030 · 42605-35040 · 42605-35060 · 42605-35160 · 42605-35170 · 42605-60470 · 42605-60580 · 42605-60590 · 42652-26150 · 42652-26160 · 98061-60143 · 98061-65144 · 98665-70154 |
| 42611G | Valve (for tubeless tires) | 90942-05009 · 90942-05018 · 90942-05023 · 90942-05025 |
