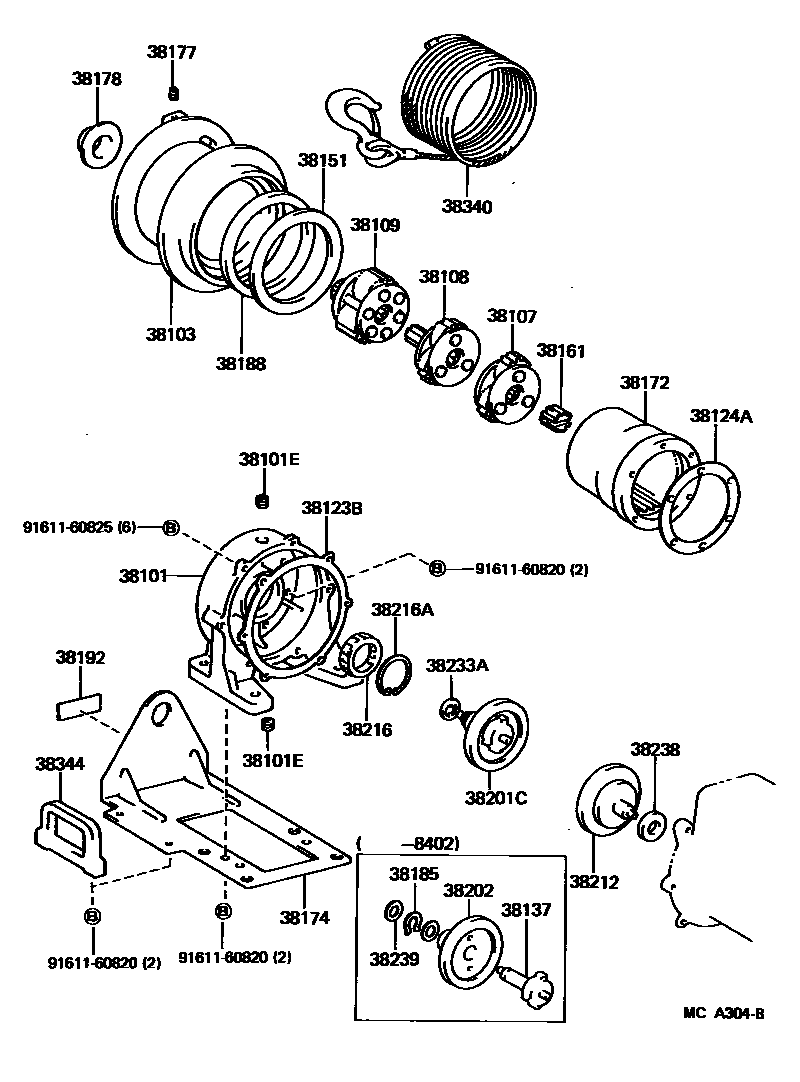

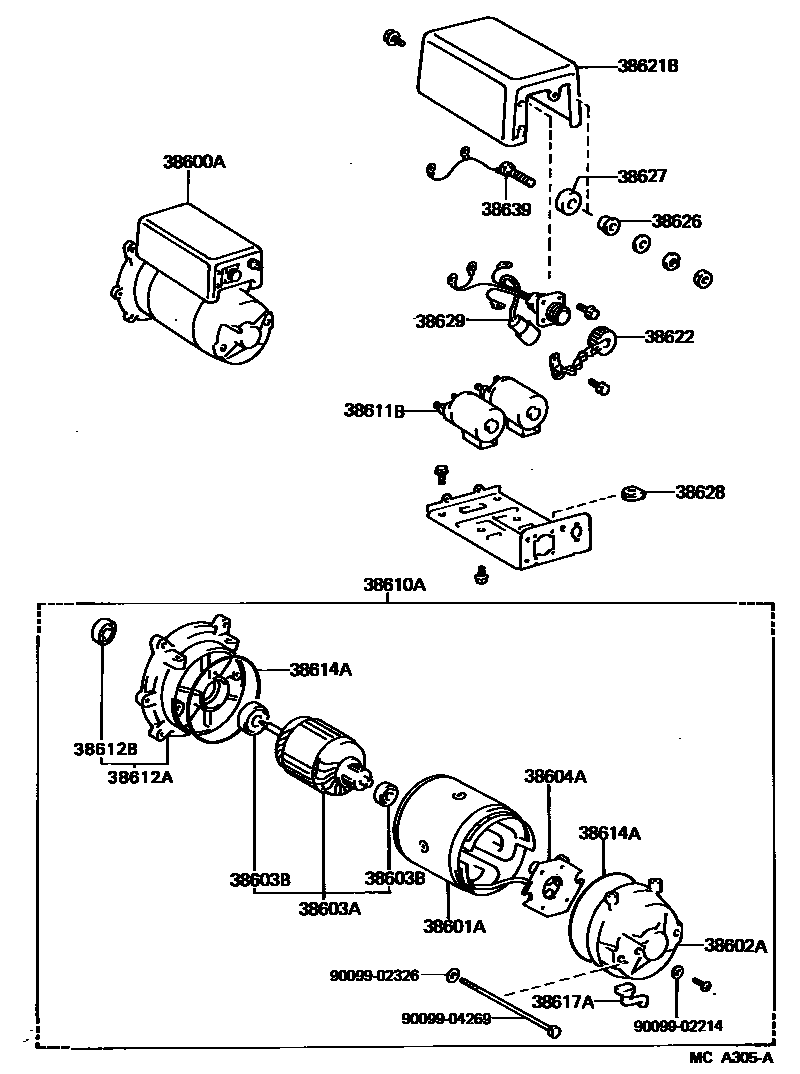

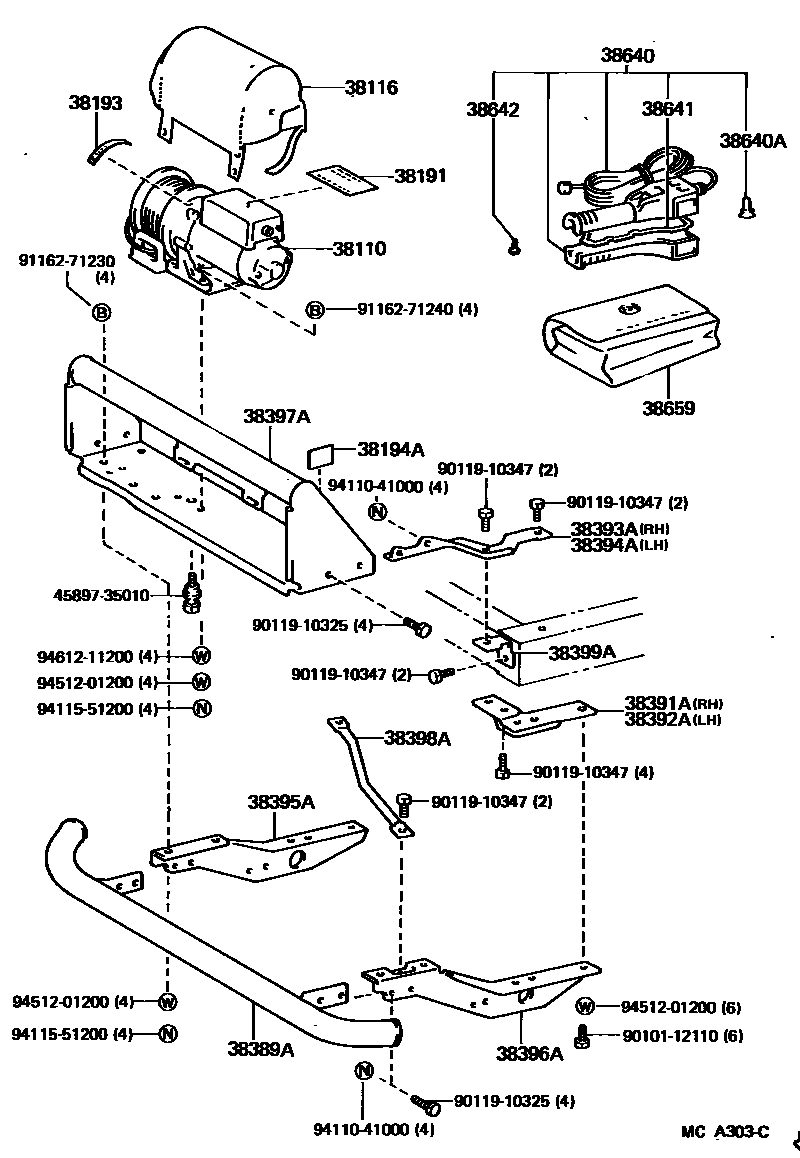

Toyota HILUX 绞盘 — Figure 3802
Toyota HILUX EPC diagram 3802, 绞盘, with 3 images and 67 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 38101 | Winch gear housing sub-assembly | 38101-35010 |
| 38101E | Screw plug (for winch gear housing) | 90344-52003 |
| 38103 | Winch rotating hub sub-assembly | 38103-35010 |
| 38107 | No. 1 winch planetary gear sub-assembly | 38107-35010 |
| 38108 | No. 2 winch planetary gear sub-assembly | 38108-35010 |
| 38109 | No. 3 winch planetary gear sub-assembly | 38109-35010 |
| 38110 | winch assembly | 38110-35010 |
| 38116 | winch cover | 38286-35010 |
| 38123B | Winch gear housing gasket | 38123-35010 |
| 38124A | Ring gear gasket | 38124-35010 |
| 38137 | winch input shaft | 38137-35010 |
| 38151 | No. 1 winch hub spacer | 38151-35010 |
| 38161 | Winch planetary gear train sun gear | 38161-35010 |
| 38172 | winch ring gear | 38172-35010 |
| 38174 | Winch gear shell plate | 38174-35010 |
| 38177 | winch fixing bolts | 38177-35010 |
| 38178 | drum thrust bushing | 38178-35010 |
| 38185 | Clutch outer race snap ring | 96150-01200 |
| 38188 | Winch hub oil seal | 38188-35010 |
| 38191 | No. 1 winch warning nameplate | 38191-35010 |
| 38192 | No. 2 winch warning nameplate | 38189-35010 |
| 38193 | No. 3 winch warning nameplate | 38193-35010 |
| 38194A | No. 4 warning nameplate | 74594-35010 |
| 38201C | Winch brake sub-assembly | 38201-35010 |
| 38202 | Clutch outer race sub-assembly | 38202-35010 |
| 38212 | Inner disc guide plate | 38212-35010 |
| 38216 | Winch one-way clutch | 38216-35010 |
| 38216A | Snap ring (for one-way clutch) | 96151-03700 |
| 38233A | No. 2 input shaft thrust washer | 38233-35010 |
| 38238 | Thrust Bushing No. 1 | 38238-35010 |
| 38239 | Thrust Bushing No. 2 | 38239-35010 |
| 38340 | Winch chain cable assembly | 38340-35010 |
| 38344 | Winch cable guide | 38344-35010 |
| 38389A | Protective buffer under winch | 38389-35010 · 38389-35020 |
| 38391A | No. 1 beam right corner plate | 38391-35010 · 38391-35020 |
| 38392A | No. 1 beam left corner plate | 38392-35010 · 38392-35020 |
| 38393A | Winch right support rod | 38393-35010 · 38393-35020 |
| 38394A | Winch left support rod | 38394-35010 · 38394-35020 |
| 38395A | Winch right lower stay | 38395-35010 · 38395-35020 |
| 38396A | Winch left lower stay | 38396-35010 · 38396-35020 |
| 38397A | winch upper base | 38397-35010 |
| 38398A | Winch cross support rod | 38398-35010 · 38398-35020 |
| 38399A | Slide column side lower bracket | 38399-35010 · 38399-35020 |
| 38600A | Winch motor assembly with electromagnetic switch | 38600-35010 |
| 38601A | Winch motor fork sub-assembly | 38601-35010 |
| 38602A | Commutator end frame sub-assembly (for winch motor) | 38618-35010 |
| 38603A | Winch motor armature sub-assembly | 38603-35010 |
| 38603B | No. 1 bearing (for winch motor armature) | 90099-10116 · 90099-10153 |
| 38604A | Winch motor brush holder assembly | 38604-35010 |
| 38610A | Winch motor assembly | 38610-35010 |
| 38611B | No. 2 electromagnetic switch (for winch motor) | 38611-35010 |
| 38612A | Winch motor end frame | 38612-35010 |
| 38612B | Oil seal (for end cover) | 90099-15033 |
| 38614A | O-ring (for winch motor) | 90099-14077 |
| 38617A | winch cover slot | 38617-35010 |
| 38621B | Electromagnetic switch winch cover | 38621-35010 |
| 38622 | Connector winch cover | 38622-35010 |
| 38626 | Winch motor stepped inner hole bushing | 90099-19254 |
| 38627 | Winch motor stepped plug bushing | 38627-60011 |
| 38628 | Winch gasket | 38628-60010 |
| 38629 | Winch motor wiring harness | 38629-35010 |
| 38639 | Wiring harness (for winch motor) | 38639-35010 |
| 38640 | Winch control switch assembly | 38640-35010 |
| 38640A | Light bulb (for winch control switch) | 90981-11024 |
| 38641 | Pad (for winch control switch) | 38641-60010 |
| 38642 | Screw (for winch control switch) | 38642-60010 |
| 38659 | Winch control switch cover | 38659-60010 |
