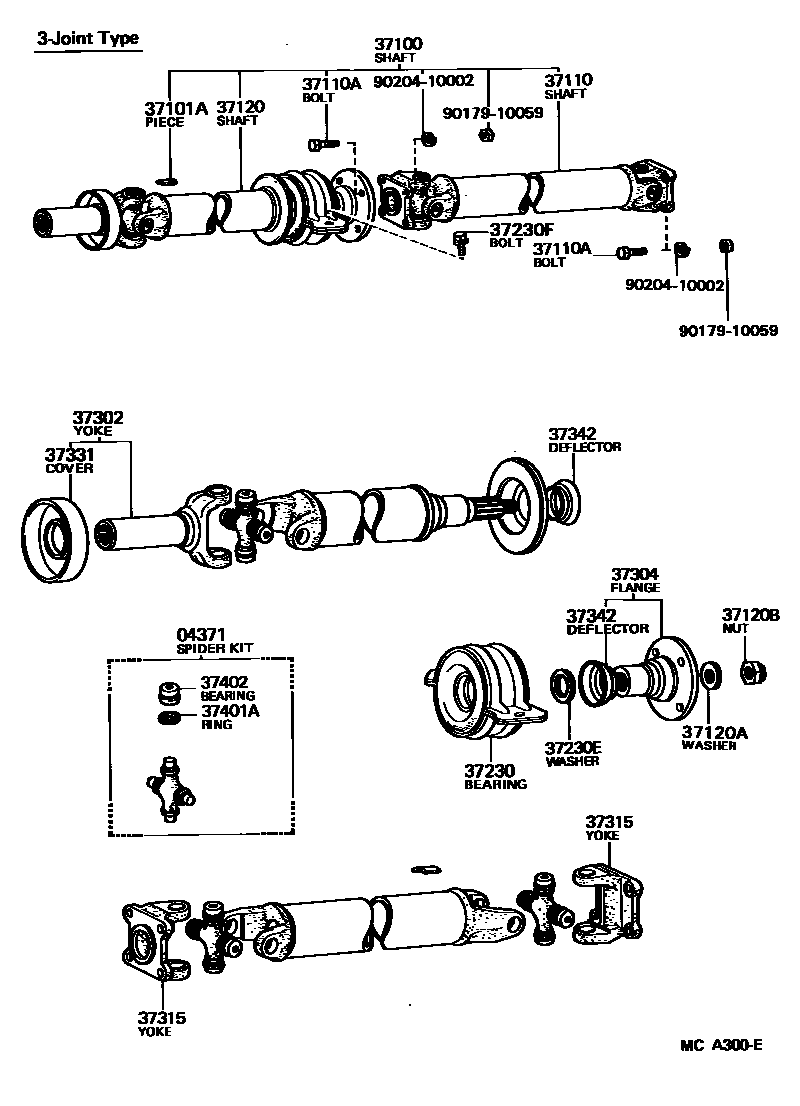

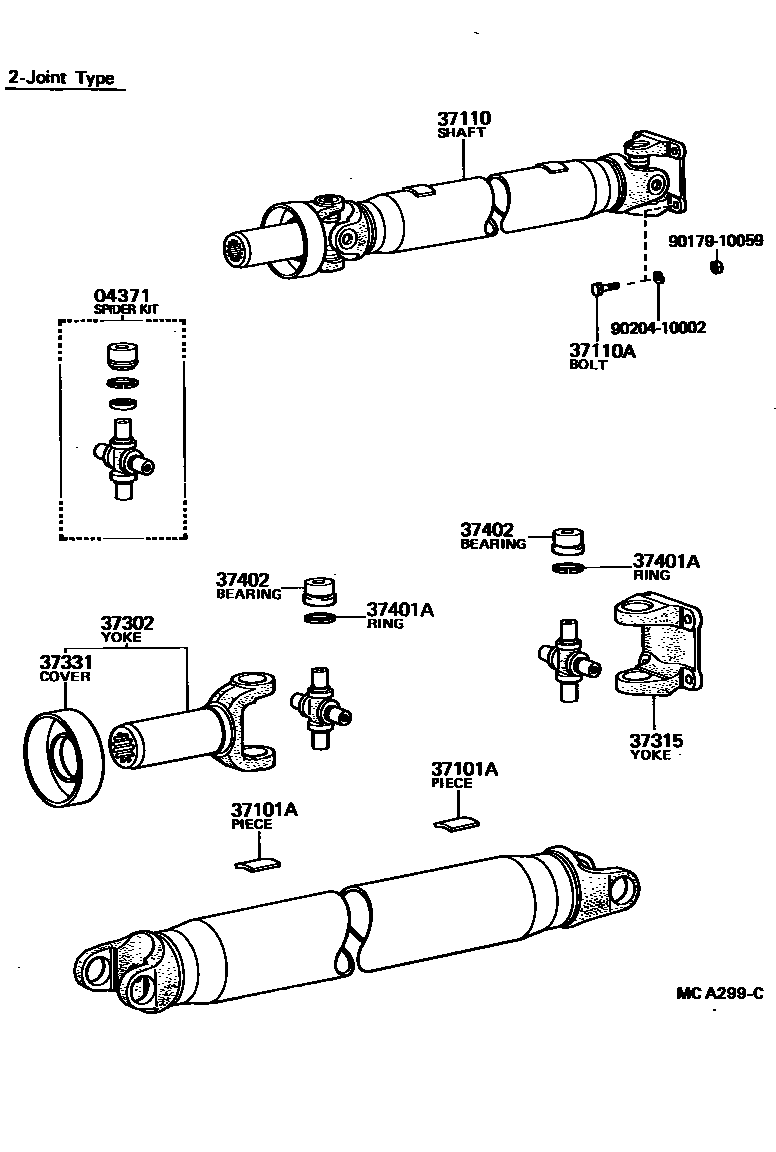

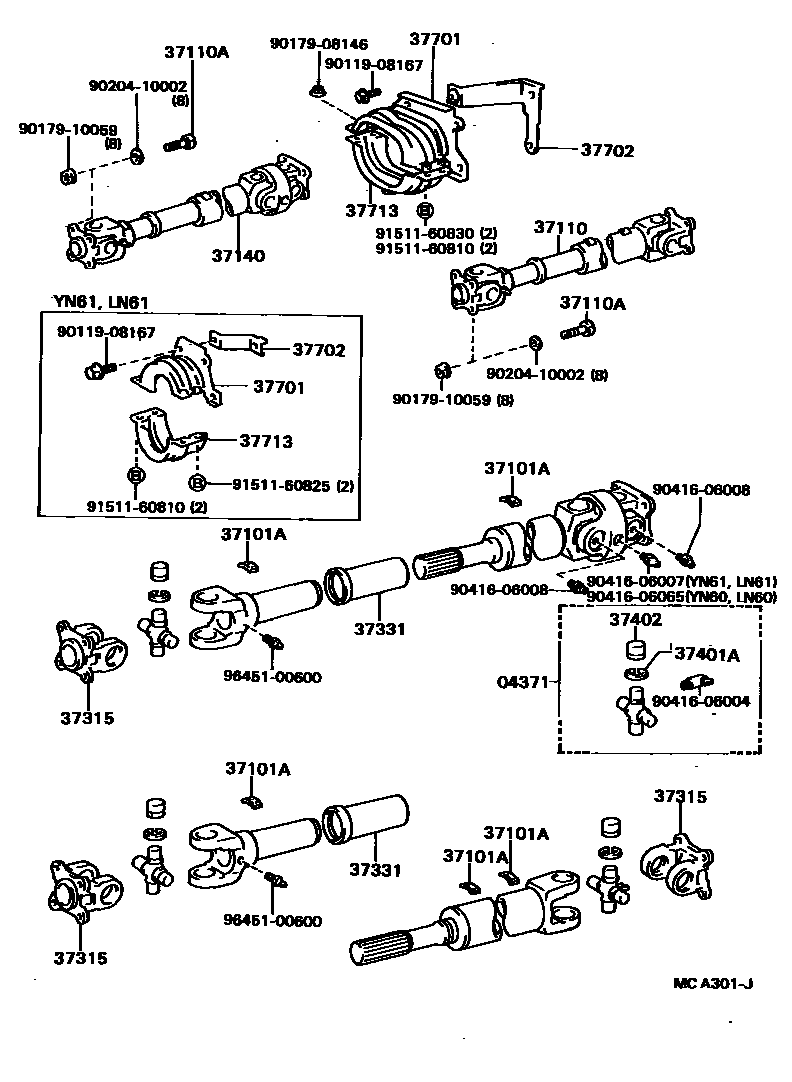

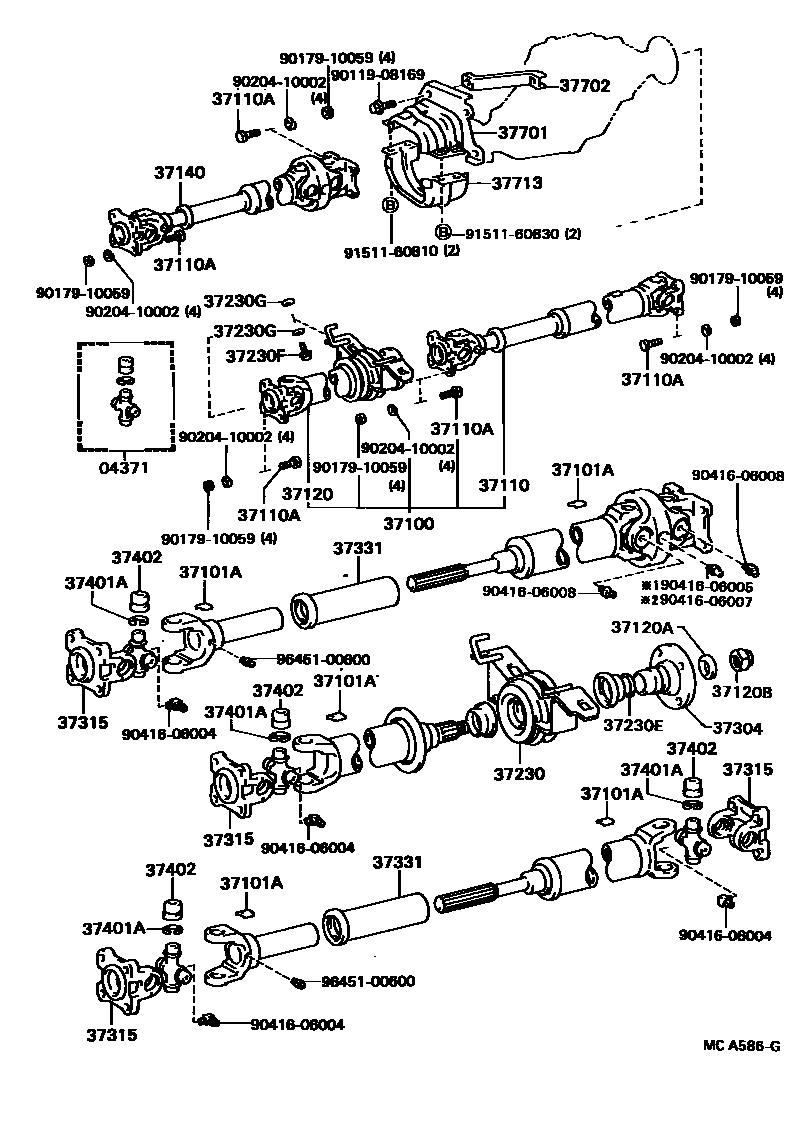

Toyota HILUX Propeller Shaft & Universal Joint — Figure 3701
Toyota HILUX EPC diagram 3701, Propeller Shaft & Universal Joint, with 4 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04371 | Universal joint cross shaft assembly (for drive shaft) | 04371-25010 · 04371-35030 · 04371-35031 |
| 37100 | Drive shaft assembly with central bearing | 37100-35180 · 37100-35190 · 37100-35200 |
| 37101A | Balance weight No. 1 (for drive shaft) | 90937-01003 · 90937-01004 · 90937-01005 · 90937-01029 · 90937-01030 · 90937-01031 · 90937-01132 · 90937-01136 · 90937-01140 · 90937-01147 · 90937-01148 · 90937-01149 · 90937-01150 · 90937-01151 · 90937-01152 · 90937-01153 · 90937-01154 · 90937-01155 · 90937-01156 · 90937-01157 · 90937-01158 · 90937-01184 · 90937-01191 · 90937-01192 · 90937-01193 · 90937-01194 · 90937-01198 · 90937-01199 · 90937-01200 · 90937-01201 · 90937-01202 · 90937-01203 · 90937-01204 · 90937-01205 · 90937-01206 · 90937-01207 · 90937-01208 · 90937-01209 · 90937-01210 · 90937-01211 · 90937-01268 · 90937-01269 · 90937-01270 · 90937-01271 · 90937-01272 · 90937-01273 · 90937-01274 |
| 37110 | Drive shaft assembly | 37110-35230 · 37110-35240 · 37110-35241 · 37110-35250 · 37110-35260 · 37110-35390 |
| 37110A | Bolt (for drive shaft) | 90105-10085 |
| 37120 | Intermediate drive shaft assembly | 37120-35140 · 37120-35150 · 37120-35160 |
| 37120A | Flat Washer (for intermediate drive shaft assembly) | 90201-18182 · 90201-20005 |
| 37120B | Nut (for fixing the intermediate drive shaft) | 90179-18009 · 90179-18060 · 90179-20006 |
| 37140 | Front drive shaft assembly | 37140-35030 · 37140-35040 |
| 37230 | No. 1 intermediate support bearing assembly | 37230-35050 · 37230-35061 |
| 37230E | No. 1 washer (for intermediate support bearing) | 90201-26005 · 90201-28005 |
| 37230F | No. 1 bolt (for intermediate support bearing) | 90119-10049 · 90119-10316 |
| 37230G | No. 2 washer (for intermediate support bearing) | 90201-10055 · 90201-10056 · 90201-10057 · 90201-10058 · 90201-10059 |
| 37302 | Universal joint fork assembly | 37302-35010 |
| 37304 | Universal joint flange sub-assembly | 37304-35040 · 37304-35041 · 37304-35051 |
| 37315 | Universal joint flange fork | 37315-35040 · 37315-35050 |
| 37331 | Sliding shaft dust cover | 37305-35020 · 37331-30010 |
| 37342 | No. 2 drive shaft dust cover | 37342-30010 |
| 37401A | Hole snap ring (for cross shaft bearings) | 90520-26038 · 90520-26040 · 90520-26041 · 90520-26042 · 90520-26043 · 90520-26044 · 90520-26045 · 90520-26046 · 90520-26233 · 90520-26234 · 90520-26235 · 90521-29070 · 90521-29071 · 90521-29072 |
| 37402 | Universal joint cross shaft bearing sub-assembly | 37402-25020 · 37402-30010 · 37402-30011 · 37402-30020 |
| 37701 | Drive shaft dust cover sub-assembly | 37701-35030 · 37701-35031 · 37701-35050 · 37701-35051 · 37701-35060 · 37701-35100 |
| 37702 | Drive shaft dust cover stay sub-assembly | 37702-35030 · 37702-35040 |
| 37713 | No. 2 drive shaft dust cover | 37713-35020 · 37713-35021 · 37713-35040 · 37713-35041 · 37713-35050 · 37713-35051 |
