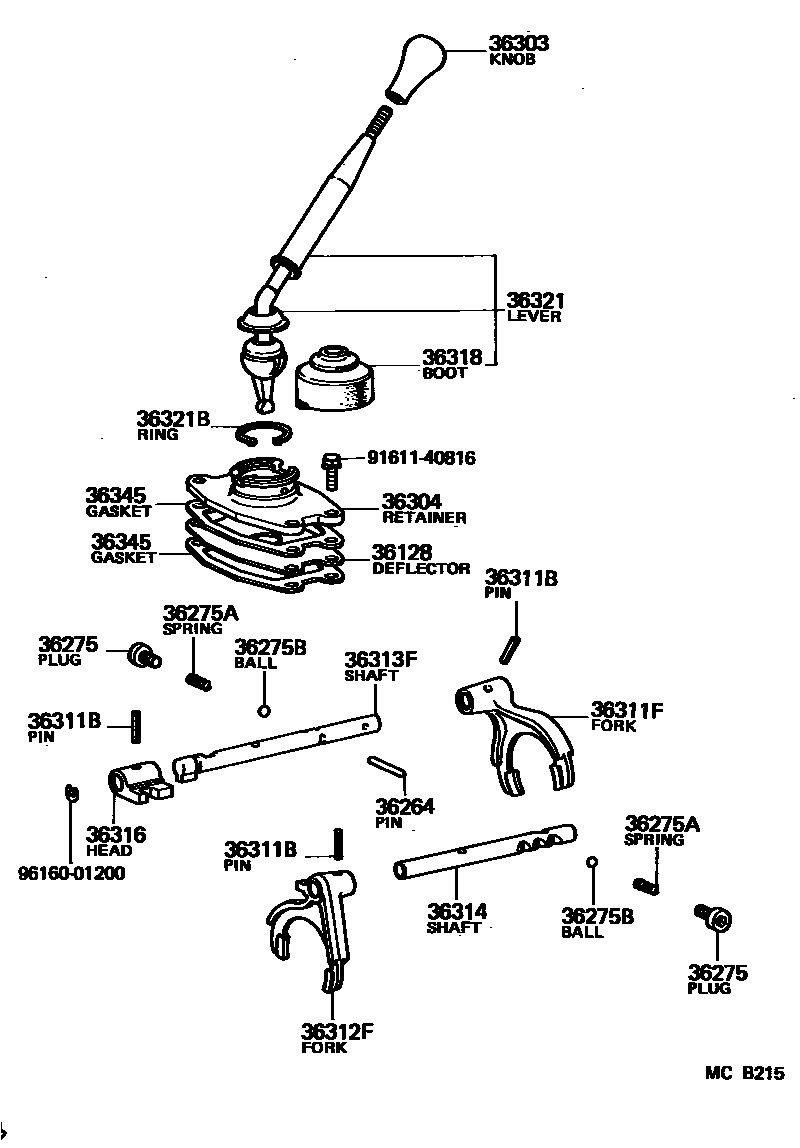

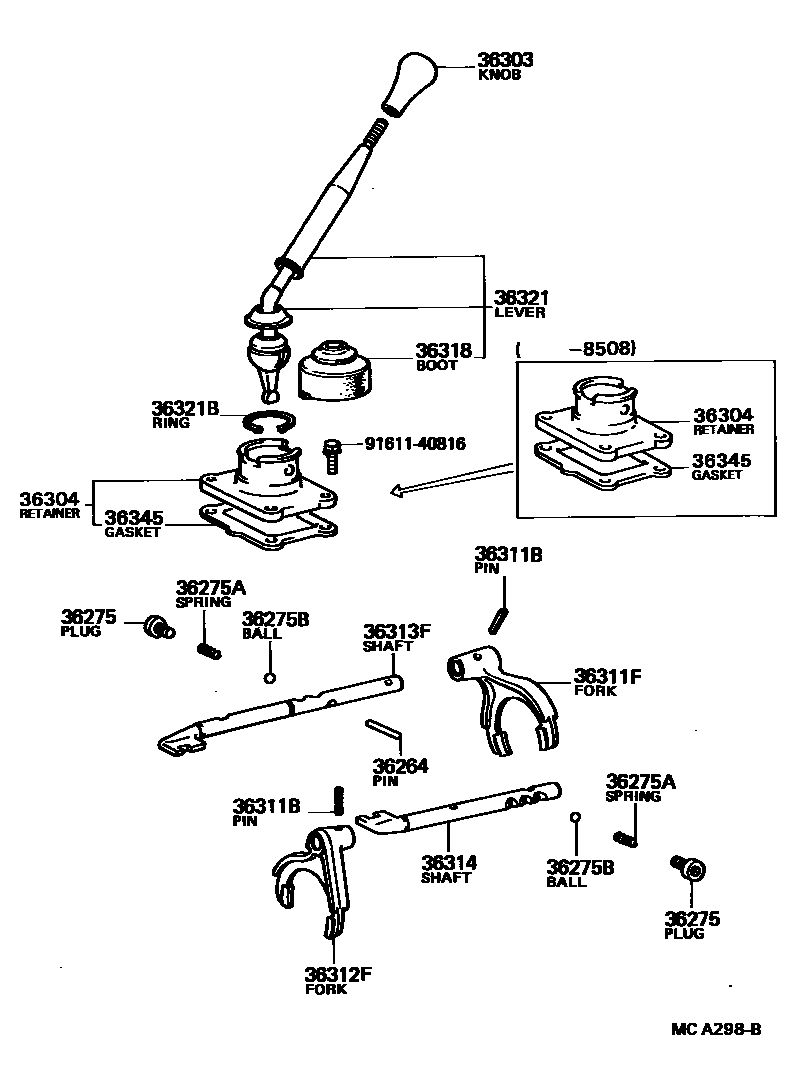

Toyota HILUX Transfer Lever & Shift Fork Shaft — Figure 3611
Toyota HILUX EPC diagram 3611, Transfer Lever & Shift Fork Shaft, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 36128 | Air vent oil baffle | 36128-35010 |
| 36264 | Shift interlock pin or roller | 90250-06005 |
| 36275 | Gear shift lock steel ball spring plug | 90341-10064 |
| 36275A | Compression spring (for shift lock steel ball) | 90501-13001 |
| 36275B | Gear shift lock steel ball | 90360-08009 |
| 36303 | Shift lever handle sub-assembly | 36303-35020 |
| 36304 | Transfer case shift control lever stopper sub-assembly | 36304-35010 · 36304-35021 · 36304-35030 |
| 36311B | Slotted spring pin (for transfer case shift fork) | 90254-05001 |
| 36311F | No. 1 transfer case shift fork | 36311-35010 |
| 36312F | No. 2 transfer case shift fork | 36312-35010 · 36312-35020 |
| 36313F | Transfer case front wheel drive shift fork shaft | 36313-35020 · 36313-35030 |
| 36314 | Transfer case high and low gear shift fork shaft | 36314-35020 · 36314-35030 · 36314-35040 · 36314-35050 |
| 36316 | No. 2 transmission guide block of transfer case | 36316-35010 |
| 36318 | Transfer case front wheel drive shift dust cover | 33555-20060 |
| 36321 | Transfer case front-wheel drive shift lever | 36360-35030 · 36360-35050 |
| 36321B | Hole snap ring (for transfer case front wheel drive shift lever) | 90521-49003 |
| 36345 | Transfer case shift lever stopper gasket | 36157-35010 · 36345-35010 · 36345-35020 |
